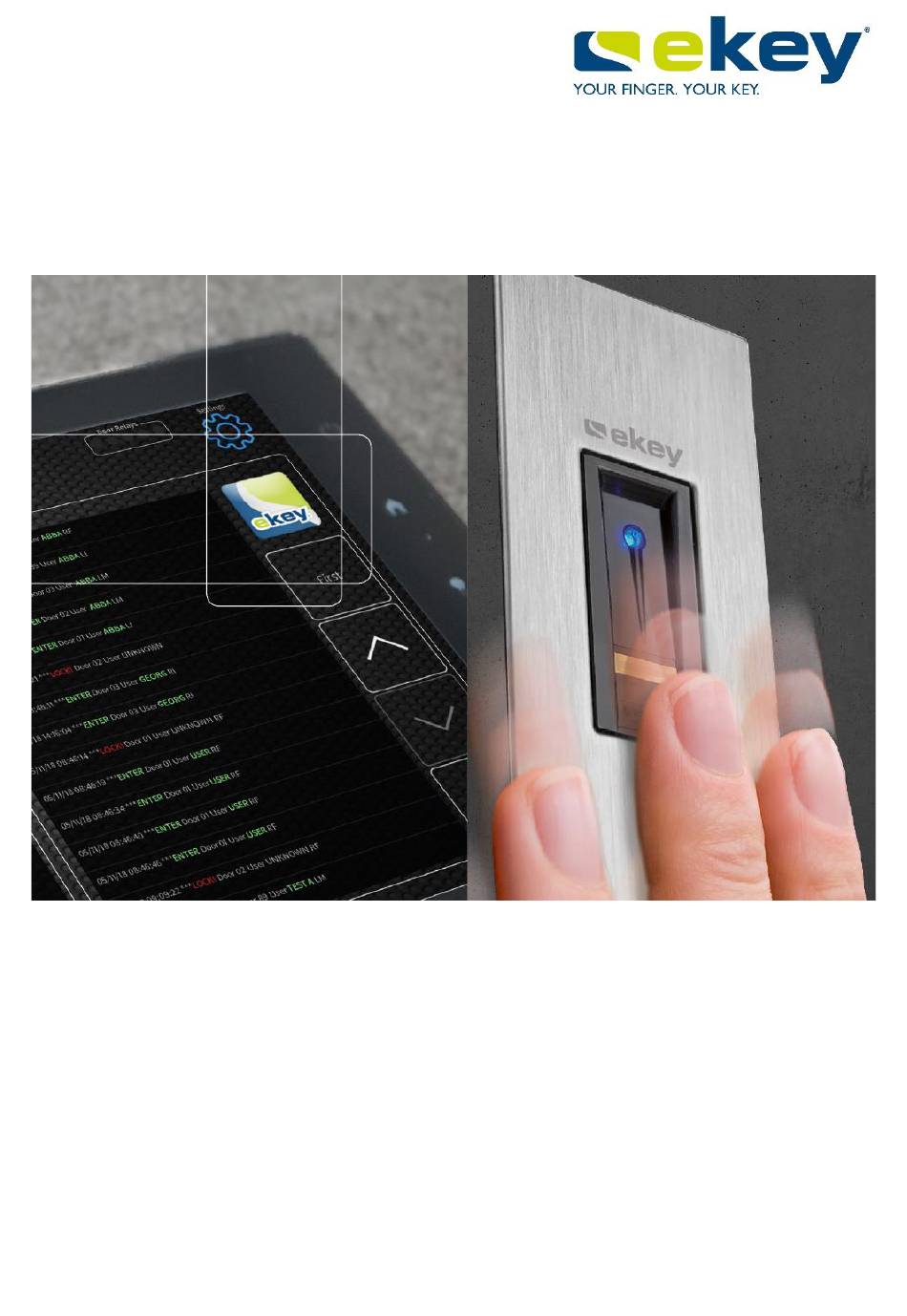

- Page 1 OPERATING INSTRUCTIONS ekey Crestron ID347/722/0/650: Version 1, 2019-07-25; Media Center ID: 3018...
-
Page 2: Table Of Contents
English Original operating instructions – ID347/722/0/650 Table of contents General ........................3 Note ........................3 Product liability and limitation of liability ..............3 Notices, symbols and abbreviations ................4 Safety information ...................... 4 Life-threatening danger resulting from electricity ............4 Safety against tampering .................. -
Page 3: General
Our general terms and conditions apply as valid at the date of purchase. See http://www.ekey.net. ekey biometric systems GmbH provides a 36-month warranty for material or processing defects. -
Page 4: Notices, Symbols And Abbreviations
Life-threatening danger resulting from electricity DANGER All ekey devices are to be operated with safety extra-low voltage (SELV). Only use power supplies rated protection class 2 according to VDE 0140-1. Failure to do so will result in life-threatening danger due to electric shock. -
Page 5: Product Description
Centralized administration via the Crestron Touch Screen Programmable time slots Can store up to 100 fingerprints and 100 RFID transponders Scope of delivery and required components The ekey finger scanner for Crestron comes with the following components: • ekey finger scanner for Crestron •... -
Page 6: Supported Finger Scanners
4.4.1 Function of the Crestron access control system The ekey finger scanner detects the fingerprint by means of a line sensor. The controller processes it. It then compares the result with the stored fingerprint image. The finger scanner only works correctly and reliably with the front phalanx print. -
Page 7: Correct Operation Of The Finger Scanner
The index, middle and ring fingers work best. The thumb and little finger work marginally or not at all. □ If the fingers are frequently wet, save the images with wet fingers. □ Children's fingerprints work from approx. 5 years of age. Product description www.ekey.net en│7... -
Page 8: Optical Signals On The Finger Scanner
Activating the finger scanner Activating the registration units and the controller couples these devices. In order to begin activation of the ekey finger scanner in the Crestron system, the activation of the Controller and of the Touch Screen must first be completed. -
Page 9: Activating The Finger Scanner
The LED flashes orange “SAVE Device” is not illuminated in green, the entries are incorrect or incomplete. Tap on “SAVE Device”. The LED lights up blue after successful integration. Activating the finger scanner www.ekey.net en│9... - Page 10 Repeat these steps for each additional finger scanner. ✓ Activation of the finger scanner is complete. The finger scanner is ready for operation. NOTICE Notice: You can add up to a maximum of 10 finger scanners. Activating the finger scanner www.ekey.net en│10...
-
Page 11: User Administration
The function LEDs shine red when an otherwise permitted piece of identification information is recognized outside of the corresponding time slots, and access is denied. 1-Status LED; 2-Function LEDs User administration www.ekey.net en│11... -
Page 12: Storing Identification Methods
Under USERS, select an existing user by tapping and holding your finger on the username (approx. 2 s), or add a new User by tapping on “Add User”. By tapping on “Enroll” you begin the storing process for the finger you have selected. User administration www.ekey.net en│12... -
Page 13: Storing Rfid Transponders
Follow the same instructions as for storing fingers, but instead of swiping your finger over the sensor, hold the RFID transponder next to the finger swipe area of the finger scanner at a distance of between 1 and 5 cm. User administration www.ekey.net en│13... -
Page 14: Managing Existing Users
“Save ” to complete the process of adding or removing functions. □ Tap “Delete” to delete the selected finger. □ Tap “Return”(arrow at top right) to exit this section without saving any changes you have made. User administration www.ekey.net en│14... -
Page 15: Logs
Logs You can view the most recent access events. These events are updated in real time and displayed on the screen, with the most recent at the top. Logs www.ekey.net en│15... -
Page 16: Maintenance
13/08/2005 is to be recycled and may not be disposed of with household waste. As disposal regulations within the EU can differ from country to country, please contact your dealer for further information as necessary. Maintenance www.ekey.net en│16... - Page 17 Phone: +386 1 530 94 89 Phone: +39 0471 922 712 T:+1 (941) 870-4757 info@ekey.si italia@ekey.net E: info@ekeyUSA.com www.ekey.net Made in Austria ekey biometric systems GmbH operates a quality management system in compliance with EN ISO 9001:2015 and is certified accordingly.
