YOUR FINGER. YOUR KEY.
Information sheet for converting

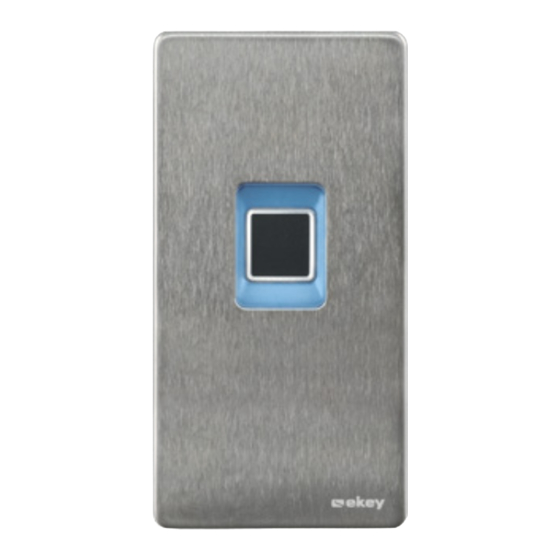

an ekey home set finger scanner integra into an ekey dLine set

Advertisement

loading
Need help?

Need help?

Do you have a question about the home set and is the answer not in the manual?

Questions and answers

Related Manuals for eKey home set

Summary of Contents for eKey home set

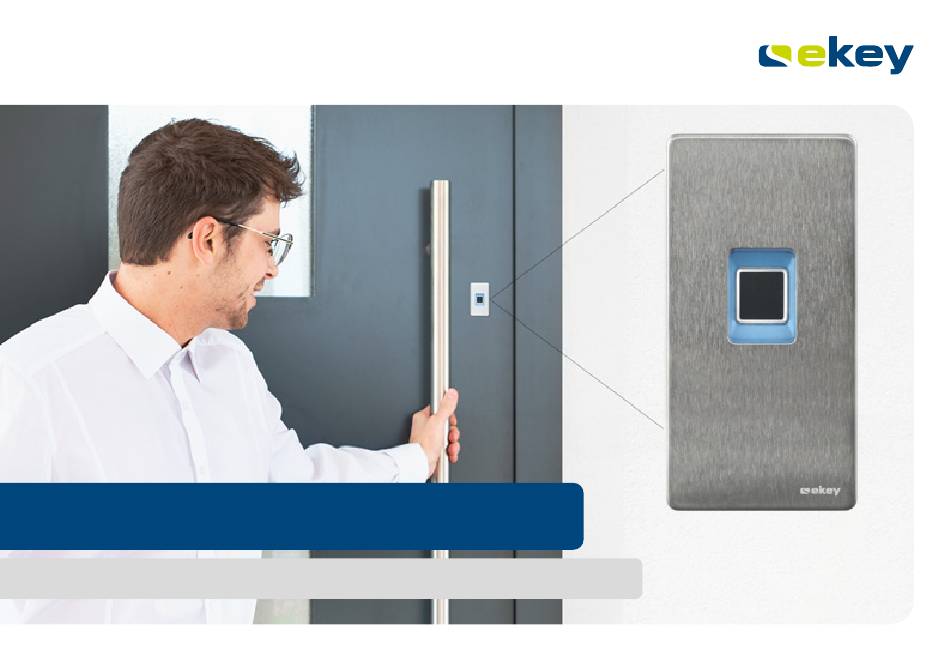

  • Page 1 YOUR FINGER. YOUR KEY. Information sheet for converting an ekey home set finger scanner integra into an ekey dLine set...
  • Page 2 Conversion YOUR FINGER. YOUR KEY. ekey home set ekey dLine set finger scanner integra...
  • Page 3 It is recommended to have the conversion carried out by specialist personnel.  In addition to the ekey home finger scanner integra, the cable transfer may also have to be removed so that you can  get to the control panel.
  • Page 4 291301 ekey dLine fingerprint scanner/control unit 291301 ekey dLine fingerprint scanner/control unit adapter adapter cable 0.13 m cable 0.13 m 291331 ekey dLine control unit adapter cable CP micro 291332 ekey dLine control unit adapter cable CP micro 0.13 m 0.13 m 201201 291331 201001...
  • Page 5 You must replace the ekey home finger scanner integra including the design element and the respective control panel, CP IN or CP micro. What can remain in the door? The wiring, the cable transfer and the motorized lock remain from the existing ekey system (ekey home).
  • Page 6 Disconnect the devices from the power supply before you start removing them.  It may be that the ekey dLine control unit including the adapter cable does not have enough space.  With wooden doors, but also behind the cable transfer or the lock, the space is usually very limited.
  • Page 7 How to find the CP micro YOUR FINGER. YOUR KEY. There are several places where the CP micro could be installed: behind the cable transfer, on the plastic faceplate (mounting plate) or on the locking side.
  • Page 8 How to replace the CP micro YOUR FINGER. YOUR KEY. In most cases, the CP micro is located behind the cable transfer, so you have to remove it. Pull out the adapter cable until the CP micro (in a housing or heat-shrink tubing) is out. Unplug both connection cables.
  • Page 9 How to replace the CP micro YOUR FINGER. YOUR KEY. Plug the two adapter cables (291301 and 291332) into the ekey dLine control unit. Beware! Remove the jumper (without the jumper, the output is a dry contact) In this case, you do not have to connect anything...
  • Page 10 Plug the existing adapter cable or A cable into the two adapter cables (291301 and 291332) in the door. Hide the cables and the ekey dLine control unit back in the door. Reinsert the cable transfer and screw it on.
  • Page 11 Unscrew the CP micro if it is located behind the plastic faceplate. Remove the CP micro from the faceplate. Unplug the two connection cables. You can mount the ekey dLine control unit onto the existing mounting plate. The rest of the replacement is now as described previously.
  • Page 12 How to replace the CP micro YOUR FINGER. YOUR KEY. If the CP micro is on the motorized lock side, the conversion is very time-consuming: In most cases, the complete multi-point lock has to be removed.  Have the conversion carried out by specialist personnel only. ...
  • Page 13 How to replace the CP integra YOUR FINGER. YOUR KEY. The CP integra is located in the door rebate on the hinge side. You must loosen the two fastening screws to remove the CP integra. Pull out the CP integra and unplug all connection cables.
  • Page 14 How to replace the CP integra YOUR FINGER. YOUR KEY. Plug the two adapter cables (291301 and 291332) into the ekey dLine control unit and the A cable and the cable from the cable transfer into the other ends.
  • Page 15 Connection to the electrical installation In the case of locks that work with a switching impulse, you must switch from the green plug to the ekey dLine NOTICE plug as follows: 1 to 1, 2 to 2, 3 to 3. 4 remains free on the ekey dLine plug.
  • Page 16 Connection to the electrical installation NOTICE In the case of locks that work with a dry contact, you must switch from the green plug to the ekey dLine plug as follows: This wiring diagram is not subject to Color Description 1 to 3, 3 to 4.
  • Page 17 How to replace the CP integra YOUR FINGER. YOUR KEY. Attach the appropriate mounting plate to the ekey dLine control unit. Stow the cables in the door leaf and screw the mounting plate back on.
  • Page 18 How to replace the FS integra YOUR FINGER. YOUR KEY.  Loosen the screws until the retaining clips have rotated to the side.  Remove the design element.  Remove the finger scanner.  Unplug the connection cable.
  • Page 19 How to replace the FS integra YOUR FINGER. YOUR KEY. Take the ekey dLine fingerprint scanner adapter for the integra finger scanner. Plug in the A cable. The adapter for the A cable is on the RJ-45 plug.
  • Page 20 How to replace the FS integra YOUR FINGER. YOUR KEY. Insert the ekey dLine fingerprint scanner adapter for the integra finger scanner. Screw it back on. Stick on the design element and press firmly.
  • Page 21 How to activate the ekey dLine system YOUR FINGER. YOUR KEY. You can activate your ekey dLine system as soon as the ekey dLine fingerprint scanner and the ekey dLine control unit have been installed and the power supply has been restored.
  • Page 22 GmbH operates a quality management system in compliance with EN ISO 9001:2015 and is certified accordingly. ID 392/782/0/788: Version 1, 2023-01-19 This information sheet is not subject to updating. Subject to optical and technical modifications, any liability for misprints is excluded.
