ATCOM IP2G4A User Manual page 8

IPPBX IP2G4A User Manual
192.168.1.100
NOTE: It's recommended to re-set IP address of IPPBX via WAN at the first time, Since DHCP server on LAN
port is enabled by default, Other DHCP client enabled devices in the network may obtain IP from IPPBX rather
than real DHCP server. And then access IPPBX via LAN after configuring LAN settings.

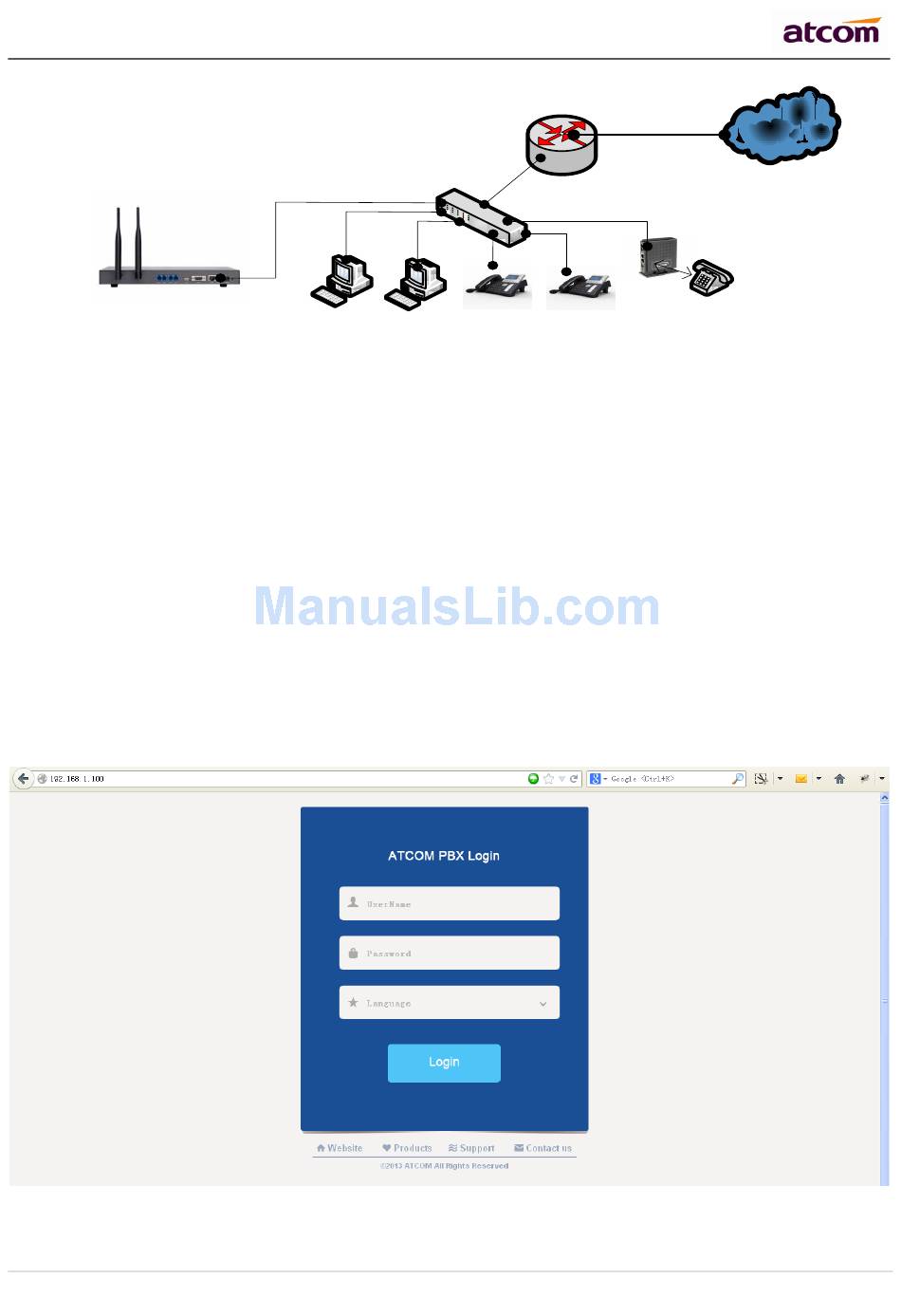

1) Connect IPPBX to your PC directly or through switch.
Make sure IP address of your PC is in network 192.168.1.0/255.255.255.0, if not, you need to appoint an IP
address for your PC, for example, 192.168.1.3
2) Login IPPBX as administrator via WEB GUI
User: admin
Password: atcom
NOTE: Language option will be accomplished in future versions, currently, only English is supported. So it's not
selectable now.
3) Go to Network Settings ->WAN.
Re-set IP of WAN port.
WAN
Ext:6001
192.168.1.3
Ext:6003
192.168.1.5
Ext:6002
192.168.1.4
~ 7 ~
Ext:6005
192.168.1.7
Ext:6004
192.168.1.6
ATCOM TECHNOLOGY CO., LIMITED
Internet
