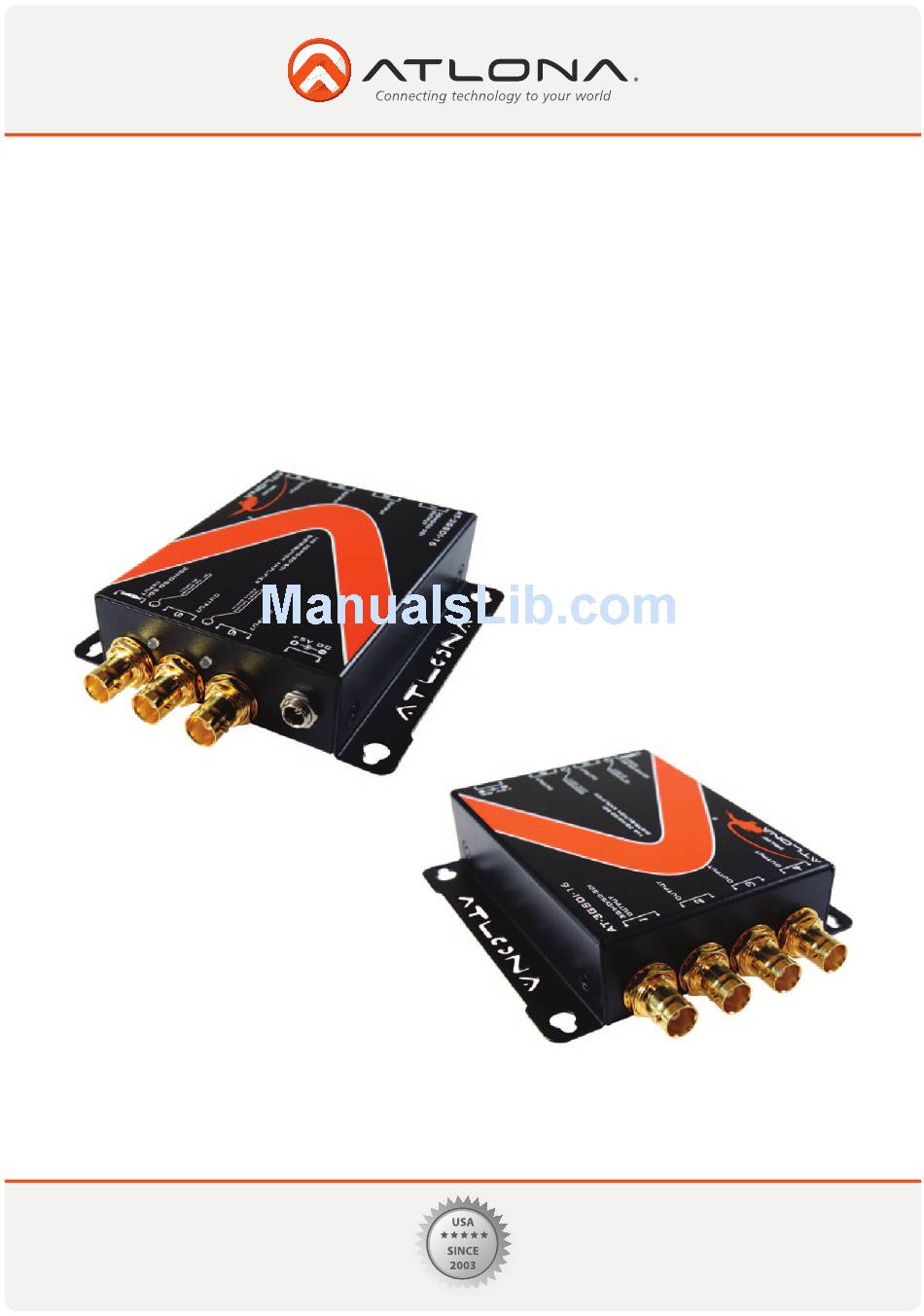

- Page 1 USER MANUAL 1X6 3G/HD/SD-SDI SPLITTER WITH RECLOCKING AT-3GSDI-16 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
...... 8 INTRODUCTION: The AT-3GSDI-16 1x6 3G/HD/SD-SDI Splitter with Reclocking receives one SDI input, perfectly duplicates it, and re-transmits six SDI outputs for real time multi-viewing. It is a reliable video device splitting a SDI, HD-SDI, or 3G-SDI video source to six SDI compliant displays at the same time. -
Page 3: Specifications
10.9oz (310g) Weight Package 1.7lbs (785g) Fixedness Inter-locked power supply Power supply 5V 4A DC Power consumption 10 Watt (max) Operation temperature 32~104°F (0~40°C) Storage temperature -4~140°F (-20~60°C) Relative humidity 20~90% RH (no condensation) Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 4: Panel Descriptions
4. LED — Orange: Power status Green: Signal status 5. 3G/HD/SD-SDI output 6 6. 5V DC power jack 5.1.2. Rear Panel 1. 3G/HD/SD-SDI output 1 2. 3G/HD/SD-SDI output 2 3. 3G/HD/SD-SDI output 3 4. 3G/HD/SD-SDI output 4 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 5: Connection Diagram
CONNECTION DIAGRAM SDI monitor SDI monitor SDI monitor SDI monitor AT-3GSDI-16 SDI monitor SDI monitor SDI camera INSTALLATION: 1. Connect a camera or other SDI devices to 3G/HD/SD-SDI input. 2. Connect SDI displays or devices to 3G/HD/SD-SDI outputs. 3. Screw the 5V power supply unit to the locking power jack. -
Page 6: Safety Information
It may also cause damage to your AT-3GSDI-16. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 7: Warranty
Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, misapplication, or natural occurrence. -
Page 8: 10. Atlona Product Registration
ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates. -
Page 9: 11. Signal Measurement
SIGNAL MEASUREMENT Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
