Summary of Contents for Atlona AT-MDP14

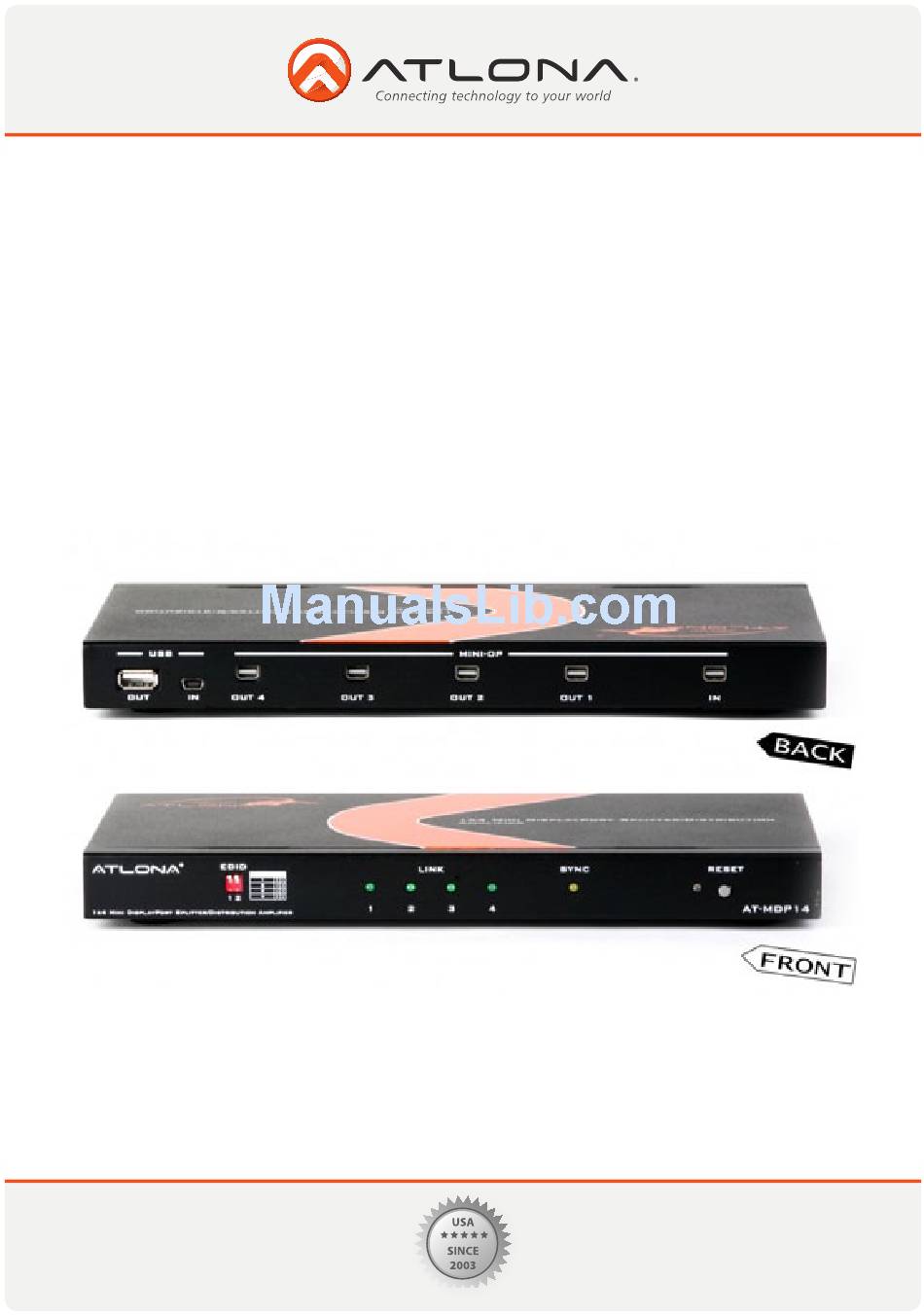

- Page 1 User Manual 1 by 4 Mini DisplayPort Splitter AT-MDP14 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
..........3 7.2 Rear Panel ..........4 8. EDID Support Format ..........5 9. Connection and Installation ..........5 10. Safety Information ..........6 11. Warranty ..........7 12. Atlona Product Registration ..........8 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
INTRODUCTION Atlona Technologies AT-MDP14 is a 1 input to 4 output Mini DisplayPort (MDP) splitter designed to allows any single Mini DisplayPort or DisplayPort source the ability to be displayed on four Mini DisplayPort or DisplayPort input monitors simultaneously. This unit supports video resolution up to 2560 x 1600 and audio of PCM 7.1 & AC3. Audio will be bypassed through the unit’s USB connection and the device’s power is supported through USB as well. -
Page 4: Specification
Relative Humidity 20~90% RH (non-condensing) PANEL DESCRIPTION 1. Front Panel 1. EDID switch: Four EDID setting *Below is the mode definition chart. Select Mode EDID Fuction Copy from Display VGA MODE 1920x1200 MODE 2560x1440 MODE Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 5: Rear Panel
3. MINI-DP OUT 1 & 2: Connect the MDP cable or MDP to DP cable to your MDP/DP input display for dis- playing a single source on two screens simultaneously. 4. MINI-DP IN: Connect the MDP cable or MDP to DP cable from the MDP/DP source for signal sending. Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 6: Edid Support Format
EDID SUPPORT FORMAT Select MODE 1920x1200 2560x1440 Video Support 640x480@60 800x600@60 1024x768@60 1920x1200@60 1280x960@60 1344x1008@60 1280x1024@60 1600x1200@60 2560x1440 720p Audio Support PCM 2CH 48K PCM 2CH 44.1K PCM 2CH 32K CONNECTION AND INSTALLATION Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 7: 10. Safety Information
It may also cause damage to your AT-MDP14. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 8: 11. Warranty
Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, misapplication, or natural occurrence. -
Page 9: 12. Atlona Product Registration
ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
