Summary of Contents for Atlona AT-3GSDI-16

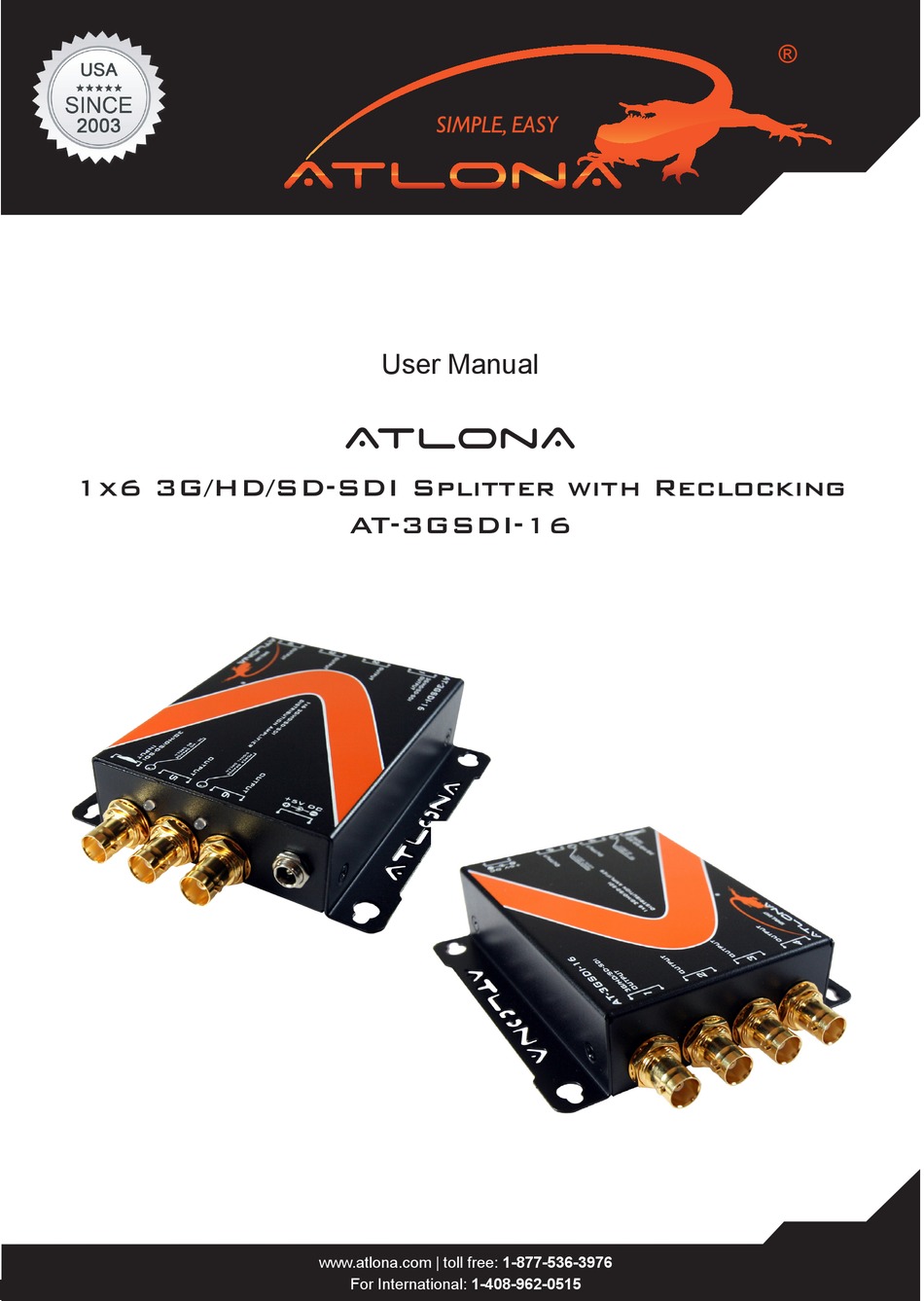

- Page 1 User Manual AtlonA 1x6 3G/HD/SD-SDI Splitter with Reclocking AT-3GSDI-16 www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515...
-
Page 2: Table Of Contents
....... 4 INTRODUCTION: The AT-3GSDI-16 1x6 3G/HD/SD-SDI Splitter with Reclocking receives one SDI input, perfectly duplicates it, and re- transmits six SDI outputs for real time multi-viewing. It is a reliable video device splitting a SDI, HD-SDI, or 3G-SDI video source to six SDI compliant displays at the same time. -
Page 3: Specifications
Weight Package 1.7lbs (785g) Fixedness Inter-locked power supply Power supply 5V 4A DC Power consumption 10 Watt (max) Operation temperature 32~104°F (0~40°C) Storage temperature -4~140°F (-20~60°C) Relative humidity 20~90% RH (no condensation) www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 4: Panel Descriptions
4. LED — Orange: Power status Green: Signal status 5. 3G/HD/SD-SDI output 6 6. 5V DC power jack 5.1.2. Rear Panel 1. 3G/HD/SD-SDI output 1 2. 3G/HD/SD-SDI output 2 3. 3G/HD/SD-SDI output 3 4. 3G/HD/SD-SDI output 4 www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 5: Connection Diagram
1. Connect a camera or other SDI devices to 3G/HD/SD-SDI input. 2. Connect SDI displays or devices to 3G/HD/SD-SDI outputs. 3. Screw the 5V power supply unit to the locking power jack. www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 6: Safety Information
It equipment. may also cause damage to your AT-3GSDI-16. Opening the product will void the warranty. Operate this product using only the included external power supply. Use of other power Do not attempt to service the unit. -
Page 7: Warranty
Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer's receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication. -
Page 8: Signal Measurement
SIGNAL MEASUREMENT : www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515...
