s e C T i o n 2 – b a s i C o p e r a T i o n

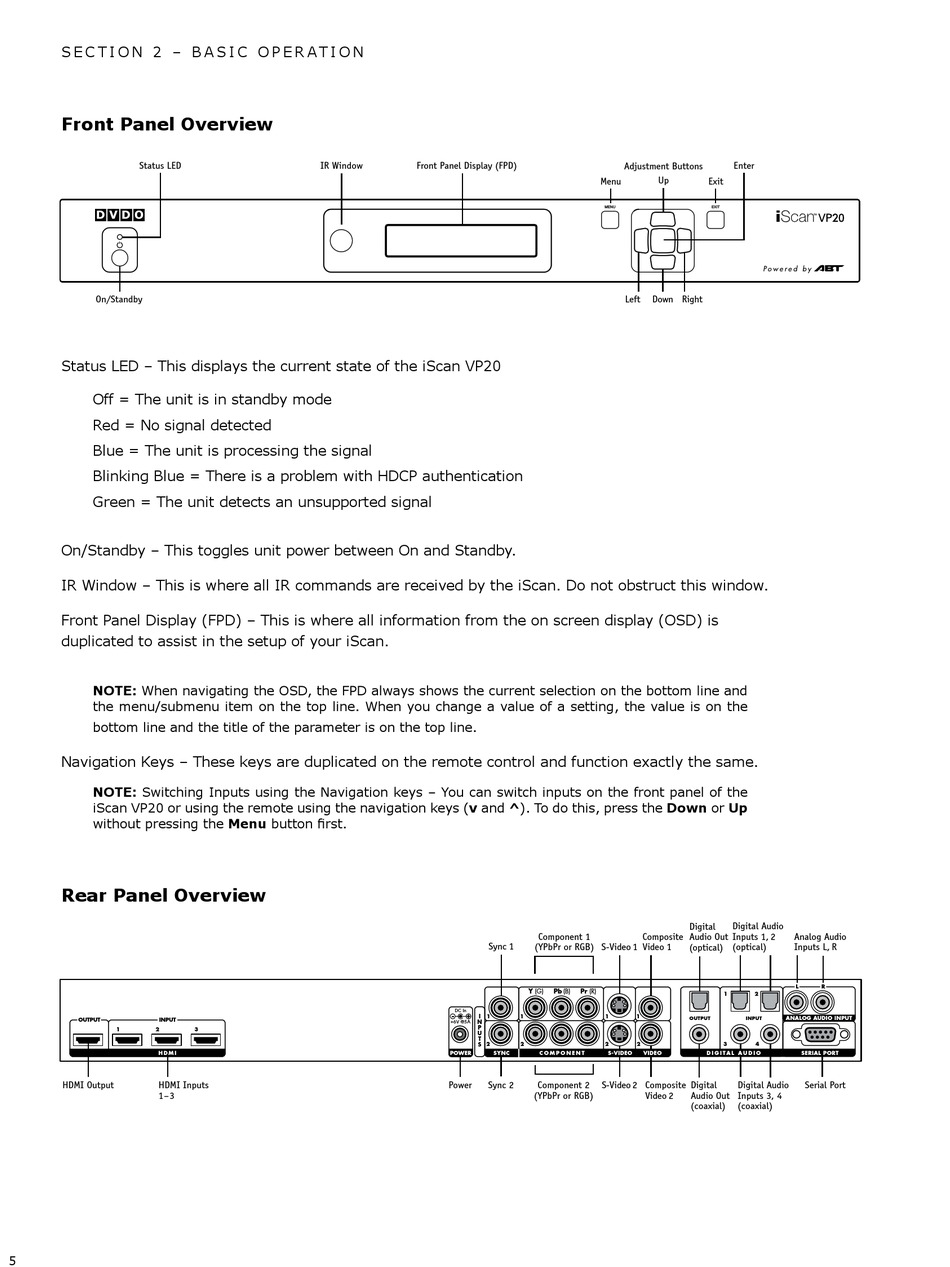

Front Panel Overview

Status LED
On/Standby
status led – This displays the current state of the iscan Vp20
off = The unit is in standby mode
red = no signal detected
blue = The unit is processing the signal
Blinking Blue = There is a problem with HDCP authentication
Green = The unit detects an unsupported signal
On/Standby – This toggles unit power between On and Standby.
ir Window – This is where all ir commands are received by the iscan. do not obstruct this window.
Status LED
OUTPUT INPUT
1 2
Front Panel Display (FPD) – This is where all information from the on screen display (OSD) is
H D M I
duplicated to assist in the setup of your iscan.
HDMI Output HDMI Inputs
1–3
NOTE: When navigating the OSD, the FPD always shows the current selection on the bottom line and
the menu/submenu item on the top line. When you change a value of a setting, the value is on the
On/Standby
bottom line and the title of the parameter is on the top line.
Navigation Keys – These keys are duplicated on the remote control and function exactly the same.
NOTE: switching inputs using the navigation keys – You can switch inputs on the front panel of the
iScan VP20 or using the remote using the navigation keys (v and ^). To do this, press the Down or Up
without pressing the Menu button first.
