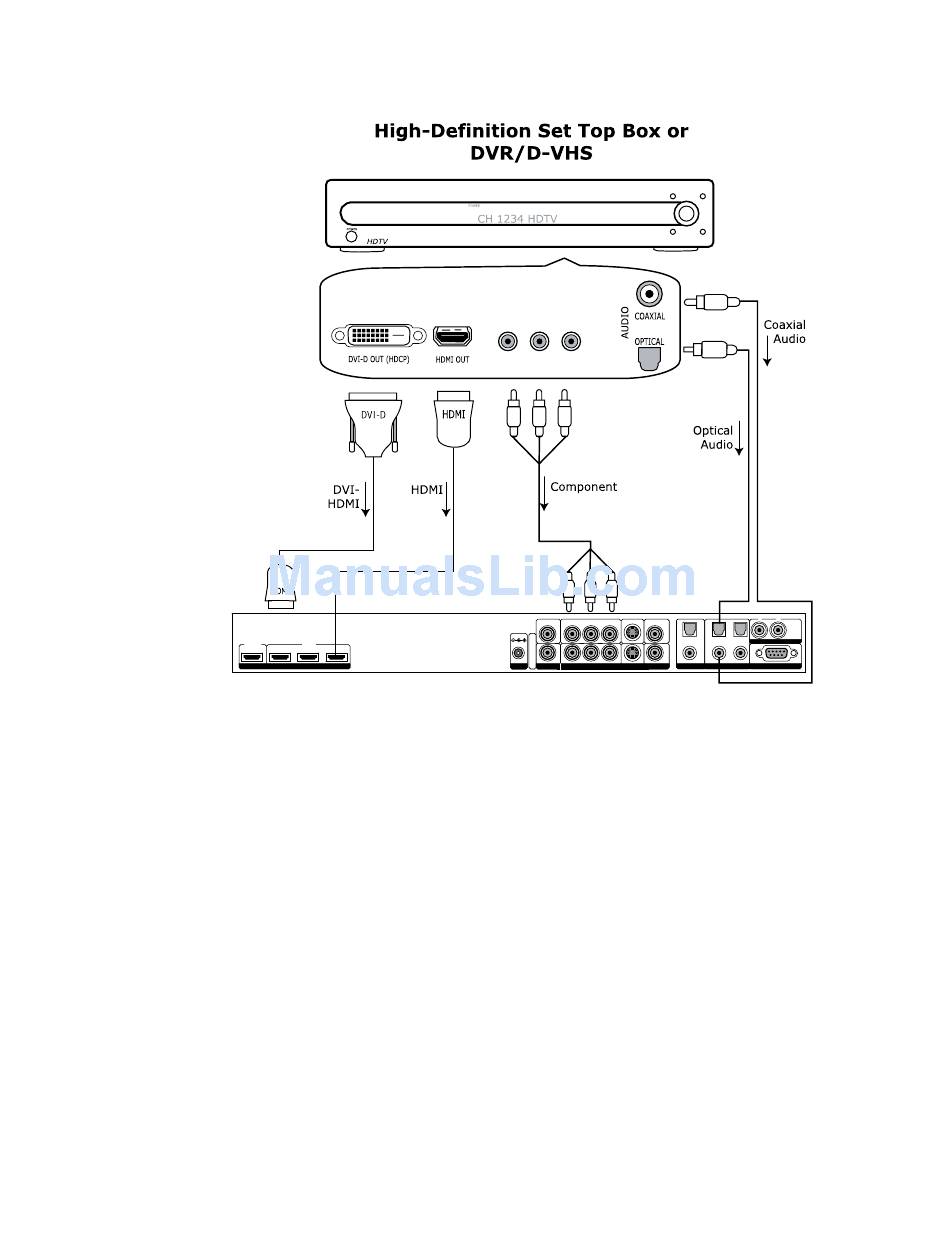

High-Definition Set Top Box or DVR/D-VHS
OUTPUT INPUT
1 2 3
H D M I
NOTE: Some set top boxes require you to switch the output resolution. This means that if you are
watching an HD channel you must manually switch the output resolution to 720p/1080i, or if you
are watching an SD channel, you must manually switch the output resolution to 480i or 480p, 480i
preferably.
COMPONENT OUT
Y (G) Pb (B) Pr (R)
DC In
I 1 1
+6V @5A N
P
U
T
S 2 2
POWER SYNC C O M P O N E N T
Back of iScan VP20
L R
1 2
1 1
ANALOG AUDIO INPUT
OUTPUT INPUT
2 2 3 4
S-VIDEO VIDEO D I G I T A L A U D I O SERIAL PORT
2
