LW2020/LW2030 SeRieS
QuiCk STaRT Guide

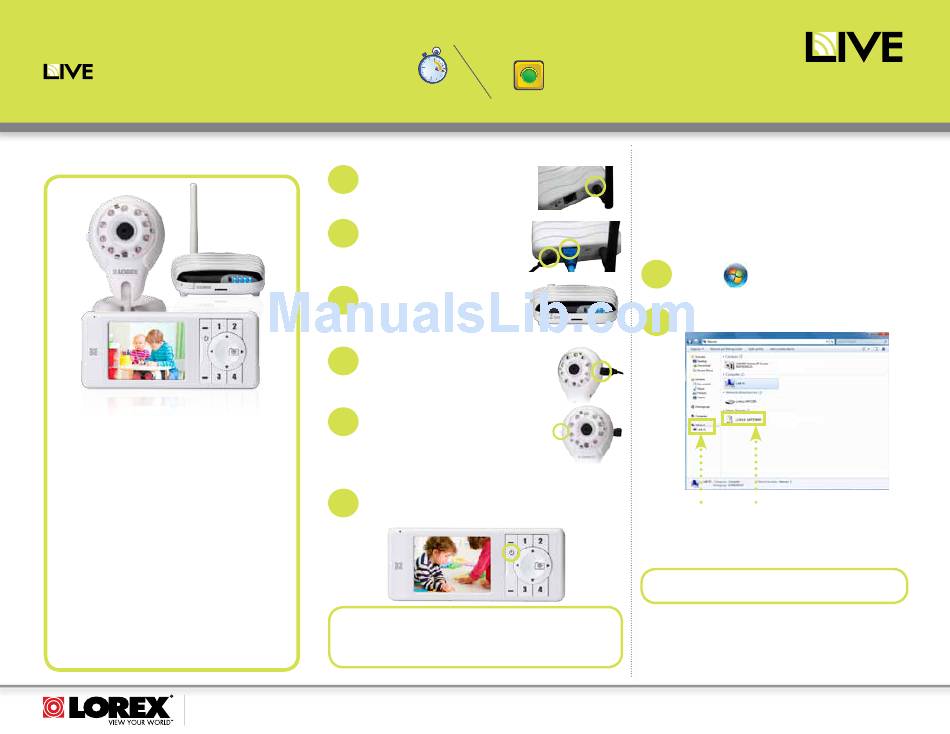

Getting Started

This Wireless Digital Security Camera System
comes with the following components:

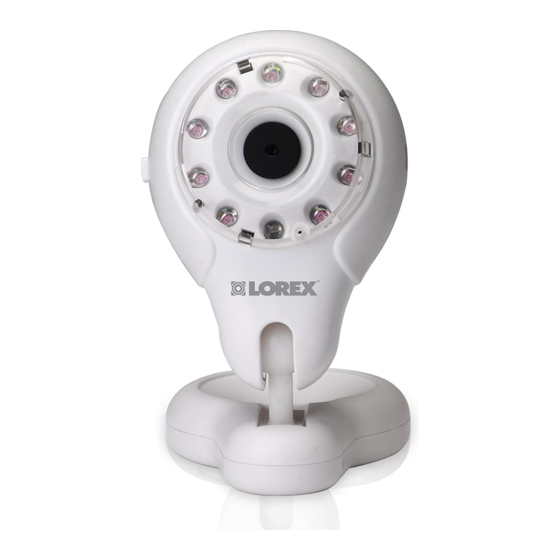

1x Digital wireless color camera*
1x Handheld wireless monitor*
(included with LW2031)
1x Gateway & antenna
1x microSD card & adapter
3x Power adaptors*
1x Network cable
1x Instruction manual
* Configuration and number of
items may vary by model. Check
your package for specific content
information.
www.lorextechnology.com
Time
Time
Under 20 Minutes*
under 15 minutes
* Installation time may vary
based on application
Hand Tools
a. Gateway Setup
Screw the antenna clockwise to the
1
antenna jack on the Gateway until it
is secure.
Skill Level
Connect the power cord and ethernet
2
cable to the Gateway. Connect the
other end of the ethernet cable to your
router. Connect the other end of the
easy
power cord to a power outlet.
The Gateway will automatically
3
power on.
*
B. Camera Setup
1
Plug the power adapter into the camera,
and plug the other end into a power outlet.
2
Turn the camera on.
C. Handheld Monitor Setup
Press the Power Button to power on the handheld monitor.
1
The monitor and camera are pre-paired and ready to use
right out of the box.
NOTe: The handheld monitor is for local viewing only. When viewing
via Skype™ using the Gateway, the handheld monitor will show
"Remote monitor on", Press any paired camera channel to view from
handheld monitor. This will stop remote viewing through Skype™ until
handheld monitor is turned off.
Router
Skills - easy
Skill Level
under 30 minutes under 60 minutes over 60 minutes
Plug & Play connections,
Intermediate advanced
easy
On screen set up
Hardware
Hi Speed
Step 1: Log in to the Gateway
Once you have connected the Gateway to your network, you
Router
can browse the Gateway on your Local Area Network (LAN).
Use the following steps depending on which operating system
you are using.
Connecting with Windows™ 7/Vista
Intermediate advanced
If you are connecting with Windows XP or Mac, please refer to
the User's Manual for more information.
NOTe: Make sure UPnP is enabled if you run Windows™
Vista/XP. For details, refer to your User's Manual.
LW2020/LW2030 Series Quick Start Guide_R2
1
Click Start > Computer > Network
2 Under "Other Devices", double-click LOReX GaTeWay
Network LOREX GATEWAY
