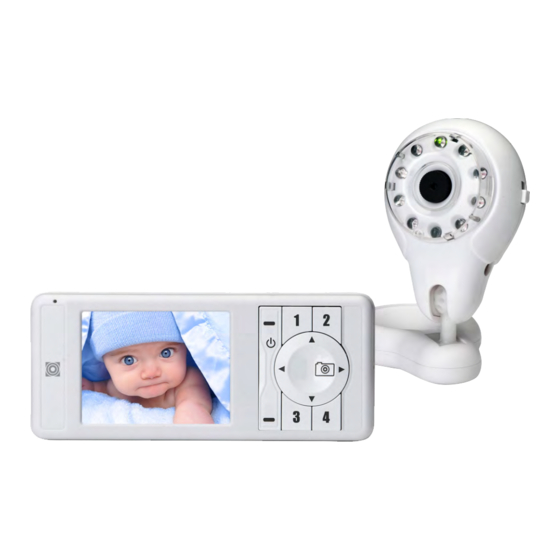

- Page 1 VIDEO BABY MONITOR USER’S GUIDE ENGLISH VERSION 1.0 LW20 0 www.lorextechnology.com...
- Page 2 Welcome! Thank you for purchasing this Lorex LIVE video monitor. This manual covers the following models: • LW200 Before you start... Please make sure to charge the handheld monitor and camera(s) before use. See the Quick Start Guide or “Getting Started”...
-
Page 3: Safety Instructions
Safety Instructions WARNING This baby monitor is compliant with all relevant standards regarding electromagnetic fields and is, when handled as described in the User’s Guide, safe to use. Therefore, always read the instructions in this User’s Guide carefully before using the device. - Page 4 To Avoid Injury to Children/Infants: We advise you to take the following precautions to avoid possible injury to infants: • DO NOT place baby audio and video camera monitors too close to cribs, bassinets, play yards, and other safe sleep environments for infants.
-
Page 5: Table Of Contents
TABLE OF CONTENTS 1. Handheld Monitor Overview ..... . 1 2. Camera Overview ....... 4 3. -
Page 7: Handheld Monitor Overview
1. HANDHELD MONITOR OVERVIEW 1. Power LED: Glows green to indicate handheld monitor is powered on. 2. Display: Displays video from the camera(s). 3. Power / OK: Press and hold to turn handheld monitor ON/OFF. Press to confirm certain menu options. 4. - Page 8 Handheld Monitor Overview microSD memory slot: Insert a microSD memory card (not included) to enable snapshot and video recording. The handheld monitor supports microSD cards up to a maximum size of 16GB. 8. Battery cover: Press firmly and slide to remove battery cover. 9.
- Page 9 Handheld Monitor Overview Icons Overview Camera number Battery life indicator Camera signal strength Power Save mode Audio indicator Charging indicator Reading the battery indicator Low battery Full battery Reading the signal indicator Low signal Full signal NOTE: If your handheld monitor displays "CAMERA NOT DETECTED": •...
-
Page 10: Camera Overview
Camera Overview 2. CAMERA OVERVIEW 1. Status LED: Glows green to indicate camera is active. 2. Charging LED: Glows red to indicate camera is charging. 3. Infrared LEDs: Allow the camera to view in the dark. Glow red during night time viewing. 4. -
Page 11: Getting Started
Getting Started 3. GETTING STARTED It is recommended to charge your handheld monitor and camera for 6 hours before initial use. 3.1 CHARGING THE CAMERA Power adapter Power Outlet Power adapter port To charge the camera: 1. Plug the power adapter into the power adapter port on the camera and connect the other end to a power outlet. -
Page 12: Installing The Handheld Monitor Battery
Getting Started 3.2 INSTALLING THE HANDHELD MONITOR BATTERY To install the handheld monitor battery: 1. Slide the cover off of the back of the handheld monitor. 2. Align the metallic contact points on the battery with the metallic contact points on the handheld monitor by ensuring the symbols are shown in the bottom right corner. -
Page 13: Charging The Handheld Monitor
Getting Started 3.3 CHARGING THE HANDHELD MONITOR TIP: Charge the handheld monitor for 6 hours to fully charge. The handheld monitor can remain on while charging. Power adapter Power Outlet 1. Connect the power adapter to the handheld monitor. Connect the other end of the power adapter to a power outlet. -
Page 14: Positioning The Camera
Positioning The Camera 4. POSITIONING THE CAMERA • Place the camera in a location where the baby cannot easily reach or knock over the camera. • Keep all power cables out of arms reach of your baby (at least 3ft / 1m away) •... -
Page 15: Using The Handheld Monitor
Using the Handheld Monitor 5. USING THE HANDHELD MONITOR 5.1 CHANGING CAMERA VIEWS • Press 1, 2, 3, or 4 to view the desired camera. Camera buttons (1~4) 5.2 ADJUSTING THE VOLUME • Press to increase or decrease the volume. ... -
Page 16: Configuring The Power Save Feature
Using the Handheld Monitor 3. Press to select the desired brightness level. Press Menu to exit. NOTE: Decreasing brightness will help save battery power, so you can use the handheld monitor longer without charging. 5.4 CONFIGURING THE POWER SAVE FEATURE Power Save mode allows the handheld monitor display to be turned off while continuing audio monitoring. -
Page 17: Snapshot And Video Recording
Snapshot and Video Recording 6. SNAPSHOT AND VIDEO RECORDING You can take picture snapshots or videos on the handheld monitor. A microSD card (not included) is required for snapshot or video recording. NOTE: The handheld monitor supports microSD cards up to a maximum size of 16GB. -
Page 18: Taking A Snapshot
Snapshot and Video Recording To remove a microSD memory card: • Press the microSD card with a small, rigid object (such as a paper clip or finger nail). The microSD card should eject from the slot. microSD card slot 6.2 TAKING A SNAPSHOT The Snapshot function lets you take pictures of what you see on screen. -
Page 19: Recording Video
Snapshot and Video Recording 6.3 RECORDING VIDEO You can record live video onto a microSD card (not included). NOTE: Videos are saved in AVI (.avi) format. To record live video: 1. Press and hold the ) button until a timer appears in the top-left corner of the screen. -
Page 20: Viewing Pictures And Videos On Your Handheld Monitor
Snapshot and Video Recording 6.4 VIEWING PICTURES AND VIDEOS ON YOUR HANDHELD MONITOR You can view images and videos recorded on your handheld monitor. To view pictures or video on your handheld monitor: 1. Press the Menu button. 2. Press to select Memory ( ), and press the OK button. -
Page 21: Opening Images And Videos On Mac Or Pc
Use an SD card adapter (not included) if your memory card reader does not support microSD memory cards. 3. On your computer, browse for the memory card directory and locate the folder named LOREX. 4. Double-click the LOREX folder to access your pictures or videos. -
Page 22: Pairing Up Cameras
Pairing Up Cameras 7. PAIRING UP CAMERAS The camera(s) included with the handheld monitor have already been paired up with the handheld monitor. If for any reason your handheld monitor and camera are not paired up, OR you purchased additional add-on cameras (model # LW2031AC1), follow the steps below. -
Page 23: Help
Help 8. HELP Handheld monitor screen keeps turning off • Power Save mode is on. To turn off Power Save mode, press Menu and select . Press to select Off, and press Menu to exit. No video displayed on the handheld monitor •... - Page 24 Help The camera and handheld monitor are not detecting each other • Ensure you have selected the correct camera. • Make sure the camera is turned on. • Make sure the camera is charged. • The camera and handheld monitor may be out of range. Move the handheld monitor and camera closer together.
-
Page 25: Cleaning And Disposal
Cleaning and Disposal 9. CLEANING AND DISPOSAL 9.1 CLEANING Clean the monitor and camera with a slightly damp cloth or an anti-static cloth. Never use cleaning agents or abrasive solvents. • Do not clean any part of the product with cleaners with thinners or other solvents and chemicals. -
Page 26: Notices
Notices 10. NOTICES Warning: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the device. FCC Notice This device complies with Part 15, subpart C, of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 27: Wall Mounting The Camera
Wall Mounting the Camera 11. WALL MOUNTING THE CAMERA 1. Mark two holes for the mounting screws 60mm away from each other in a vertical line. See below for reference. Drill holes for the mounting screws. 2. Insert included screws into the holes and tighten the screws 3/4 of the way. - Page 28 LW200 Version 1.0 www.lorextechnology.com Copyright © 2012 Lorex Technology Inc.
