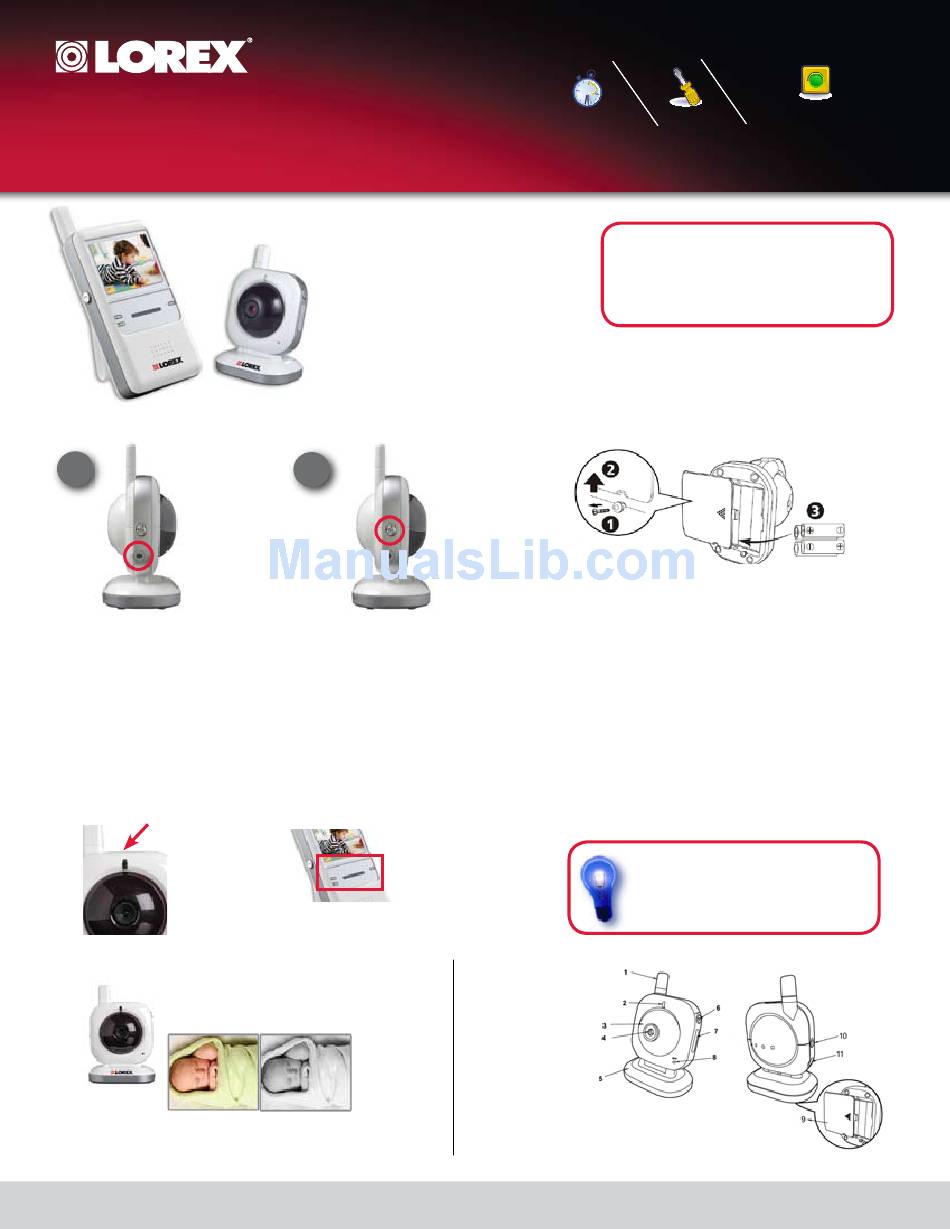

Lorex LW2001 Quick Start Manual

Portable Wireless Color Video
Monitor And Camera
LW2001 Quick Start Guide
Step 1 - Wireless Camera Installation
1
Plug the Camera power cable into the
socket on the side of the camera. Plug
the power adaptor into a wall outlet
or surge protector.
NOTE: Wireless cameras require a power source (either an electrical outlet or battery power) to
operate. Battery operation option is offered for convenience in case of temporary portable camera
use (i.e. watch the kids play in the back yard). To prevent interruptions in the image, we recommend
using the included power adapter whenever possible.
NOTE: POWER uP ThE CAMERA BEfORE POWERING uP ThE VIdEO MONITOR TO ENSuRE
A PROPER CONNECTION.

how to use the Night Light

Press the night light button,
the night light LEDs will
remain ON.

Night Vision

The camera has nine high-intensity LEDs for picking up clear
images in the dark. When the built-in photo sensor detects
low ambient light levels, the LEDs will automatically activate.
NOTE that the picture will turn black and white when the night vision feature
is activated because color cannot be reproduced in the dark.
Includes:
1 x Video Monitor with 2.4" LCD screen
2 x Power Adapters (for video monitor & camera)
1 x Wireless IR Night Vision Camera
1 x Rechargeable battery for video monitor
2
Slide the ON/OFF switch to the ON
position. The LED on the camera
will light up (red).

Audio Level Indicator

LED indicator lights display audio
level detected by the camera.
When the audio level increases an
increasing amount of lights light
up. This is perfect for situations
where surrounding noise (i.e.
running water makes hearing the
video monitor difficult)
Camera:
1. Antenna
2. Power indicator LED
3. Infrared LEDs
4. Lens
5. Supporting stand
6. Night-light button
7. Night-light
8. Microphone
9. Battery compartment
10. Power ON / OFF switch
11. Power adapter socket
under 15 minutes under 30 minutes
Tools
Time Hand Tools
Under 5 Minutes*
Screw driver*
* Installation time may vary based on
*only for optional battery
Skill Level
application and camera cabling
operated use of the camera
easy
NOTE: AVOID INSTALLING IN A LOCATION WHICH
REQUIRES THE WIRELESS SIGNAL TO PASS
THROUGH CEMENT, CONCRETE AND METAL
STRUCTURES. THIS WILL REDUCE THE
TRANSMISSION RANGE.

Optional - Battery Operation

The camera uses 4 AAA-Size batteries (not included)

LOAdING ThE BATTERIES

1. Loosen the screw on the bottom of the camera by using a
screw driver.
2. Open the battery compartment cover.
3. Insert 4 AAA-size batteries (follow the plus (+) and minus
(-) signs inside the battery compartment).
4. Close the battery compartment cover, and make sure it is
locked securely.
NOTE 1: When the battery power is sufficient, the light is
constantly red; when the battery is low, the LED light will
start blinking.
NOTE 2: Remove the batteries from the camera if you do not
plan to use it for a prolonged period of time.
NOTE 3: Do not mix old batteries with new ones.
did you know?
You can move your camera around the house
or from one room to another with the use of
the included battery compartment.
LW2001 Quick Start Guide_EN_R2 - Page 1
