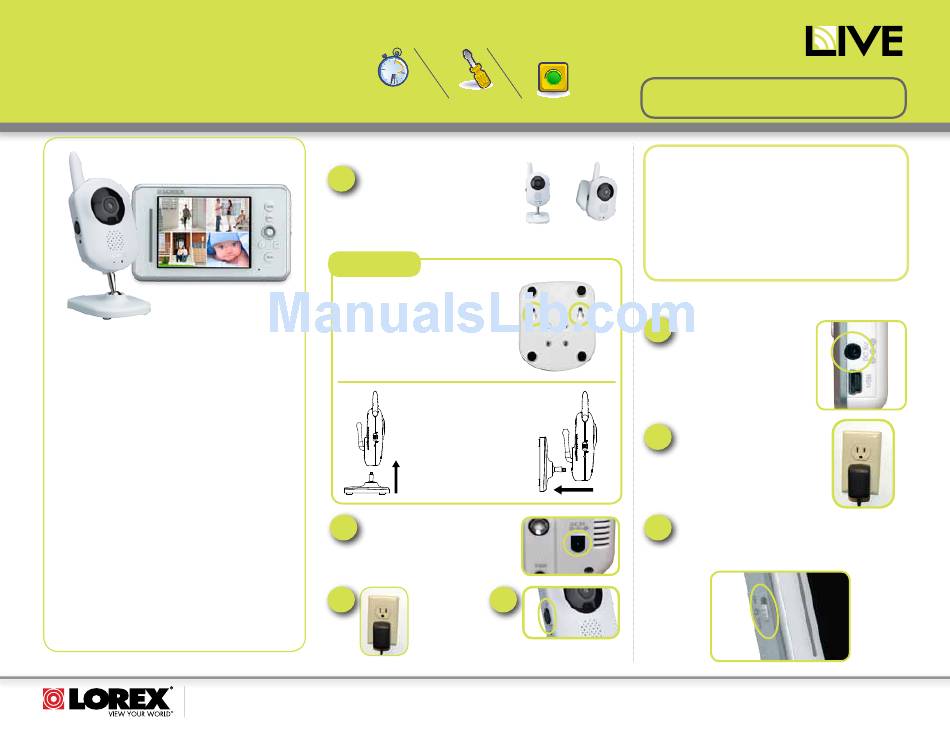

Lorex LW2400 Quick Start Manual

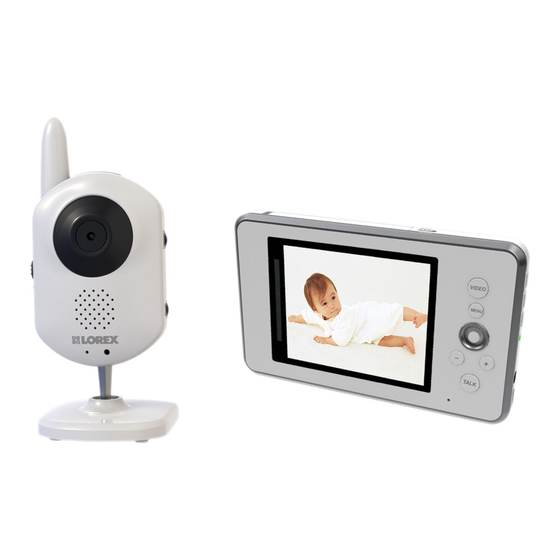

WiReLeSS ViDeO MONiTOR
LW2400
Quick STaRT GuiDe
Getting Started
*
This wireless video monitor comes with the
following components:
• 1x Video Monitor
• 1x Camera*
• 1x Camera Power Adapter*
• 1x Video Monitor Power Adapter
• 1x mini-USB Cable
• 1x User's Guide
• 1x Quick Start Guide
• 1x Driver CD
• 3x Cable Clips*
Check the "Inside the Box" panel on the product
package for configuration.
*
Number of cameras, camera type, power
adaptors may vary by model.
www.lorextechnology.com
under 15 minutes under 30 minutes
Hand Tools
Time Tools Skills - easy
Under 10 Minutes*
* Installation time may vary Hand Tools
based on application and
camera location
Skill Level
a. camera Setup
The Camera can be placed on a flat
1
surface, or wall mounted.
easy Intermediate
Determine where you want to locate
the camera.
NOTe: Keep cables and wires at least
3 feet (1 meter) away from infants or
young children. Use the included cable
clips as necessary.
OPTiONaL
The camera features mounting holes
on the bottom of the base and can be
mounted to a wall if desired.
Determine the camera position that
will give you the best view before
permanently wall mounting the
camera. Ensure the power cable is
long enough to power the camera.
To wall-mount the camera,
you must unscrew the camera
from the mounting stand and
reattach it to the back of the
camera, as shown.
Please refer to the User's
Guide for full mounting
instructions.
Connect the Power Adaptor to the 5V
2
Input on the back of the camera.
Connect the
3 4
power adapter to
a power outlet.
under 60 minutes over 60 minutes
Router
Hardware Hi Speed
Skill Level
NOTE: AVOID INSTALLING IN A LOCATION WHICH REQUIRES THE
Router
WIRELESS SIGNAL TO PASS THROUGH CEMENT, CONCRETE AND METAL
Plug & Play connections,
Intermediate STRUCTURES. THIS WILL REDUCE THE TRANSMISSION RANGE. advanced
easy
On screen set up
NOTe: Before you install a camera, carefully plan where
and how it will be positioned, and where you will route
the cable that connects the camera to the power adaptor.
advanced
Before starting permanent installation, verify its performance
by observing the image on a monitor when the camera is
positioned where it will be permanently installed. Cameras
are rated for indoor installation only.
NOTe: When adding cameras that were not included in
Desk/Counter Wall Mount
Mount the original box, you will need to pair up the camera with
the receiver. Please refer to the camera pairing section of the
User's Guide.
B. Video Monitor Setup
Connect the power adapter to
1
the video monitor.
The video monitor's charging
LED indicator glows red to
indicate charging is in progress.
Plug the power adapter into a
2
power outlet.
NOTe: It takes 6 hours to fully
charge the video monitor.
Slide the power switch up to the ON position. The video
3
monitor will automatically scan for cameras in range.
NOTe: Make sure the camera is powered up before
turning on the video monitor.
Slide the power switch
up, to the ON position.
SIMPLY AWARE
LW2400 Quick Start Guide_R1 Page 1
™
