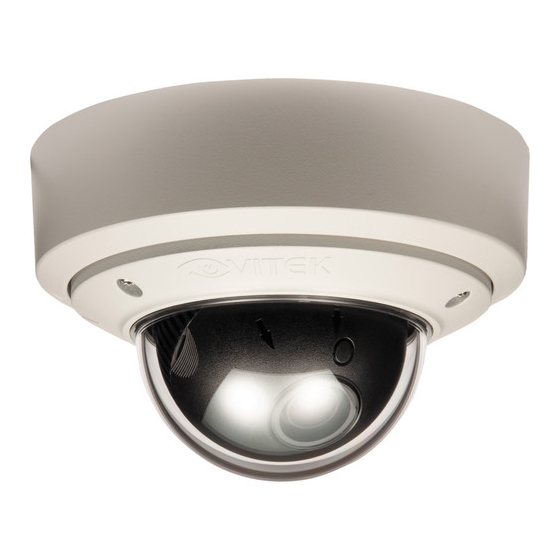

Vitek Mighty Series Manual

Vitek Mighty Series Manual

Mighty series true day & night dome cameras, 700 tvl day & night dome cameras
Hide thumbs Also See for Mighty Series:

Advertisement

Quick Links

1/3" Sony High Density EXVIEW CCD
700 TVL High Resolution
Sony Effio-E Digital Signal Processor
0.0003Lux (F1.2@50IRE)
2DNR - Two Dimensional Noise Reduction
Motion Detection
Privacy Mask
Adaptive Tone Reproduction
Secondary Video Output (Cable Included)
OSD (On Screen Display) for Camera Function Setup
Flush or Surface Mount
Infinity Ball Mount for Any Viewing Angle
UTP Interface and Heater / Blower Options Available
¾" Conduit Knockouts
Indoor and Outdoor IP 686 Vandal Versions
35 IR LED's with 90ft Range (Model L35)
Optional Extreme Cold (-60°F) Temperature Kit Available
Available in Ivory or Black
Dual Voltage 12VDC & 24VAC
Mighty Series True
Day & Night Dome
Cameras
700 TVL Day & Night
Dome Cameras

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mighty Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Vitek Mighty Series

  • Page 1 Mighty Series True Day & Night Dome Cameras 700 TVL Day & Night Dome Cameras • 1/3” Sony High Density EXVIEW CCD • 700 TVL High Resolution • Sony Effio-E Digital Signal Processor • 0.0003Lux (F1.2@50IRE) • 2DNR - Two Dimensional Noise Reduction •...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS BOX CONTENTS INCLUDED ACCESSORIES AVAILABLE MODELS/ACCESSORIES MIGHTY DOME LAYOUT INSTALLATION JUNCTION BOX INSTALLATION OPEN GIMBAL COVER CONNECTIONS LENS ADJUSTMENT INFINITE AXIS GIMBAL ADJUSTMENT OSD MENU FEATURES/SETUP 1. In the menu 2. MAIN menu 3. MAIN menu - 1 4.
  • Page 3 TABLE OF CONTENTS 17. LANGUAGE menu 18. CAMERA ID menu 19. CAMERA RESET 20. EXIT DIMENSIONS HEATER/BLOWER SPECIFICATIONS INDOOR MIGHTY DOME SPECIFICATIONS VANDAL MIGHTY DOME SPECIFICATIONS IR MIGHTY DOME SPECIFICATIONS WARRANTY...
  • Page 4: Box Contents

    BOX CONTENTS 1) Dome Camera 2) Accessories 3) VT-MD-2VOC (Secondary Video Output Cable) 4) Instruction Manual & Mounting Template INCLUDED ACCESSORIES Torx Wrench - (Vandal & IR Versions Only) Type #: T20 Length: 63mm / Diameter: 4mm Qty: 1 Phillips head Screws - (Vandal & IR Versions Only) For attaching the dome cover to the flush housing.
  • Page 5: Available Models/Accessories

    AVAILABLE MODELS / ACCESSORIES INDOOR MIGHTY DOME CONFIGURATIONS: VTD-MP2810DN: Indoor True Day and Night Color Dome Camera with 2.8-10mm Varifocal Lens & 700TVL VTD-MP922DN: Indoor True Day and Night Color Dome Camera with 9-22mm Varifocal Lens & 700TVL VTD-MP1850DN: Indoor True Day and Night Color Dome Camera with 18-50mm Varifocal Lens &...
  • Page 6: Mighty Dome Layout

    MIGHTY DOME LAYOUT 1) Lens 8) Dome Cover Ring 2) Power Input Connector(12VDC / 9) Flush Mount Base 24VAC) 10) Surface Mount Plate 3) Video Output Connector - BNC 11) Assembly Screws - Torx M4x9 4) Camera Holder and 2nd Video (Vandalproof) output 12) Assembly Screws - Phillips...
  • Page 7: Installation

    INSTALLATION 1) Dome Cover 1.1 Vandal Proof Domes - Use the provided Torx wrench to unscrew the vandal proof screws and remove the dome cover. 1.2 Indoor Domes - Turn the dome cover to the left to remove the dome cover. 2) Flush Mount Installation: Using four St4x30 screws, attach the flush mount base to a sturdy surface.
  • Page 8: Junction Box Installation

    JUNCTION BOX INSTALLATION Mighty Domes can easily be flush or surface mounted to an electrical junction box (4S J-Box) using the pre-drilled mounting holes on either the surface mount housing or the the flush mount base.
  • Page 9: Open Gimbal Cover

    OPEN GIMBAL COVER To adjust the zoom and the focus, the gimbal needs to be removed temporarily from its base. 1) Remove the ball gimbal from its socket, and hold the base firmly with one hand. 2) Gently squeeze Point A and B and pull away from the base until the gimbal is removed from the base.
  • Page 10: Connections

    CONNECTIONS • Power connection: 12VDC or 24VAC dual input. • All Mighty Dome cameras come standard with a secondary video output. The secondary video cable (VT-MD-2VOC) is included in the box. VTM-LCD...
  • Page 11: Lens Adjustment

    LENS ADJUSTMENT LENS ADJUSTMENT 1) Remove the Gimbal cover from the Gimbal base. 1.) Remove the Gimbal Cover from the Gimbal Base 2) Loosen Zoom & Focus screws and make necessary adjustments as shown. 2.) Loosen Zoom & Focus screws and make necessary adjustments as shown. Field of view: Telephoto(T) to Wide(W) Field of View: Telephoto (T) to Wide (W) Focus: Near(N) to infinity( )
  • Page 12: Infinite Axis Gimbal Adjustment

    INFINITE AXIS GIMBAL ADJUSTMENT Rotation and “Friction Hold” Placement The Gimbal mechanism yields maximum rotation and placement as shown below.
  • Page 13: Osd Menu Features/Setup

    OSD Menu Features/Setup SETUP menu 1 In the menu buttons to move the cursor and buttons to change the settings. Press button to select or enter. button stands for MENU or ENTER button. 2 MAIN menu Follow the chart for submenu settings MAIN menu-1 MAIN menu-2 3 MAIN menu-1...
  • Page 14: Shutter/Agc Menu

    OSD Menu Features/Setup 4 MAIN menu-2 MAIN menu-2 Default Descriptions Sets the noise reduction parameters for NR MODE, Y LEVEL and C LEVEL. See page 18 for ‘NR menu' details. Sets ON/OFF for enabling/disabling MOTION DET. MOTION DET See page 19, ‘MOTION DET menu' for the parameter settings. Sets ON/OFF for enabling/disabling PRIVACY.
  • Page 15: Shutter/Agc > Auto Setup Menu

    OSD Menu Features/Setup 6 SHUTTER/AGC>AUTO SETUP menu AUTO SETUP Default Descriptions Selects the shutter mode from AUTO IRIS or SHUT+AUTO IRIS when MAIN>LENS>AUTO but it is fixed to SHUT if MAIN>LENS>MANUAL. AUTO IRIS - Light level is controlled by an auto iris lens only. For proper auto iris operation, the auto iris operation mode in MAIN>...
  • Page 16: Shutter/Agc > Manual Setup Menu

    OSD Menu Features/Setup 7 SHUTTER/AGC>MANUAL SETUP menu MANUAL Default Descriptions SETUP SHUT MODE Compensates the video level by the manual shutter control and AGC. +AGC Sets the manual shutter to 1/60(1/50), 1/100(1/120), 1/250,1/500,1/1000, 1/60 SHUTTER 1/2000,1/4000 or 1/10000. (1/50) Manual shutter is only useful when luminance is unchanged. Sets AGC gain in dB.
  • Page 17 OSD Menu Features/Setup IMPORTANT ACTIVITY!!! DAY->NIGHT and NIGHT->DAY operations must be examined and verified at the final installation. Block the lens for a few seconds for NIGHT mode, then release and let it return to DAY mode. If camera stays at NIGHT mode for more than 10sec, slightly increase ‘N→D THRES’ and repeat the fore- mentioned steps.
  • Page 18: Pict Adjust Menu

    OSD Menu Features/Setup 10 PICT ADJUST menu To enter PICT ADJUST menu, press button at MAIN menu-1>PICT ADJUST. PICT ADJUST Default Descriptions MIRROR Picture will be flipped horizontally if it turns ON. Increases or decreases the brightness of the picture. This is different from that of DC iris lens because it simply increases or BRIGHTNESS decreases the digital gain of the video.
  • Page 19 OSD Menu Features/Setup MANUAL white balance is a kind of fixed white balance which is user-programmable by B-GAIN. (R-GAIN will be automatically adjusted in accordance with B-GAIN) and useful only for the steady light. PUSH LOCK is a fixed white balance where the white balance is compensated only while the button is pressed at MAIN>WHITE BAL>PUSH LOCK and finishes the white balance when button is...
  • Page 20: Atr (Adaptive Tone Reproduction) Menu

    OSD Menu Features/Setup 12 ATR (Adaptive Tone Reproduction) menu The ATR feature improves the dynamic range and the visibility of the image by providing the optimal gradation compensation of the image in one field. This is achieved by two ways of image processing, luminance compression and contrast enhancement, so that the tone can be enhanced at highlighted and dark areas.
  • Page 21: Backlight Menu

    OSD Menu Features/Setup 13 BACKLIGHT menu To enter BACKLIGHT menu, press button at MAIN menu-1>BACKLIGHT. BLC ON BLC OFF HLC ON HLC OFF 14 NR menu To enter NR menu, press button at MAIN menu-2>NR. Default Descriptions NR MODE Selects OFF, Y, C or Y/C which noise reduction is performed with. Indicates the noise reduction strength for the luminance signal.
  • Page 22: Motion Det Menu

    OSD Menu Features/Setup 15 MOTION DET menu Up to 4 motion detection areas are available and each area is programmable in size and location. The motion is displayed by means of blocks when MAIN menu-2>MOTION DET and MOTION DET>BLOCK DISP are ON. To enter MOTION DET menu, press button at MAIN menu-2>MOTION DET>ON.
  • Page 23: Language Menu

    OSD Menu Features/Setup PRIVACY Default Descriptions Selects one of AREA1~AREA8 to be adjusted. TOP(BOTTOM) - button moves up and button moves down the top AREA SEL (bottom) border of the selected window at AREA SEL. LEFT(RIGHT) - button moves left and button moves right the left (right) border of the selected window at AREA SEL COLOR...
  • Page 24: Camera Reset

    OSD Menu Features/Setup 19 CAMERA RESET Camera loads Factory defaults. To save them, go to SAVE ALL and press button. 20 EXIT Exits SETUP MENU and returns to the normal display...
  • Page 25: Dimensions

    DIMENSIONS Indoor Vandal...
  • Page 26: Heater/Blower Specifications

    HEATER / BLOWER SPECIFICATIONS HEADER Specifications Power Supply 24 VAC Power Consumption 10W (Heater) / .7W (Blower) Heater On: at 41ºF / Off at 59ºF Blower Continuous 24 Hour Operation Extreme Weather Heater - Optional On: -60ºF...
  • Page 27: Indoor Mighty Dome Specifications

    INDOOR MIGHTY DOME SPECIFICATIONS HEADER Specifications NTSC Image Device 1/3” Sony High Density EXVIEW CCD Image Processor Sony Effio-E Digital Signal Processor Effective Pixels 976(H) x 494(V) 976(H) x 582(V) Scan System 2:1 Interlace Scan Frequency 59.94Hz(V), 15.734Khz(H) 50Hz(V), 15.625Khz(H) Synchronization Internal Horizontal Resolution...
  • Page 28: Vandal Mighty Dome Specifications

    VANDAL MIGHTY DOME SPECIFICATIONS HEADER Specifications NTSC Image Device 1/3” Sony High Density EXVIEW CCD Image Processor Sony Effio-E Digital Signal Processor Effective Pixels 976(H) x 494(V) 976(H) x 582(V) Scan System 2:1 Interlace Scan Frequency 59.94Hz(V), 15.734Khz(H) 50Hz(V), 15.625Khz(H) Synchronization Internal Horizontal Resolution...
  • Page 29: Ir Mighty Dome Specifications

    IR MIGHTY DOME SPECIFICATIONS HEADER Specifications NTSC Image Device 1/3” Sony High Density EXVIEW CCD Image Processor Sony Effio-E Digital Signal Processor Effective Pixels 976(H) x 494(V) 976(H) x 582(V) Scan System 2:1 Interlace Scan Frequency 59.94Hz(V), 15.734Khz(H) 50Hz(V), 15.625Khz(H) Synchronization Internal Horizontal Resolution...
  • Page 30 VTM-LCDP Series 15”, 17“, and 19” Professional LCD Monitors • 15”, 17“, and 19” Professional LCD Display Panels • Designed for continuous 24/7 operation • VGA, Looping BNC Composite, and S-Video Video Inputs. DVI & HDMI Inputs on 17“ & 19” Versions •...
  • Page 31 CHRONO Series 8, and 16 Channel Digital Video Recorders • Highly efficient H.264 compression H.264 • Built-in Data Redundancy • Real-time recording and real-time playback • System Setup Wizard and User Friendly GUI • Multi-Resolution recording • 4 Spot Output (8 &16 Channel) •...
  • Page 32: Warranty

    (3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is non-transferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
