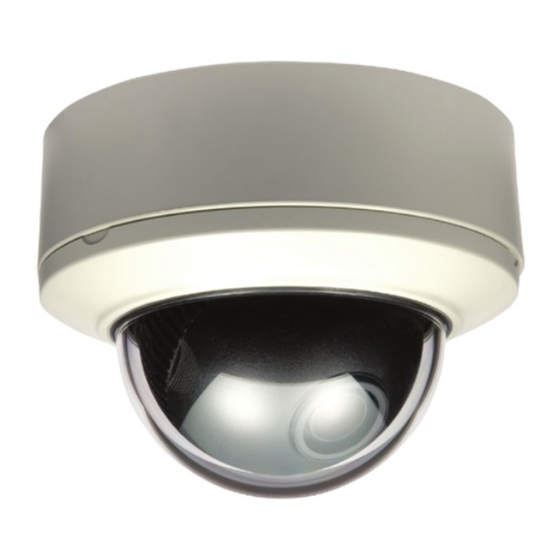

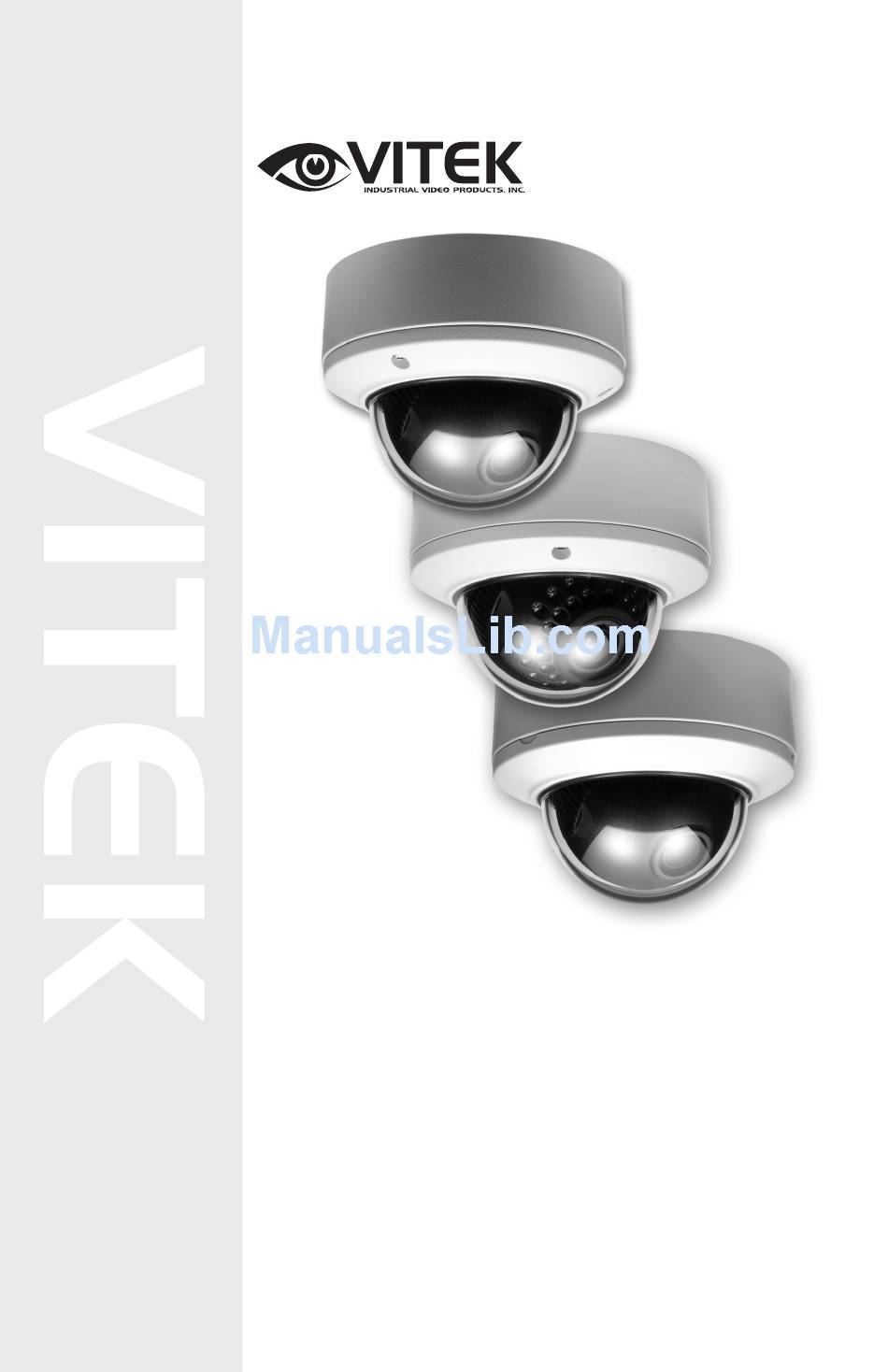

480 and 550 TV Line versions
•
True Day/Night function available
•
Flush or Surface Mount
•
UTP interface, IP Integration, and Heater / Blower Options
Available
•
Dual Voltage 12VDC & 24VAC
•
Infinity Ball Mount for Any Viewing Angle
•
Indoor and Vandal Proof IP 68 Rated Models Available
•
Lens options include: 2.9-10mm & 9-22mm
•
Available in off white or black color
Mighty Dome
Color Dome Camera Series
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vitek VTD-MH2910
Summary of Contents for Vitek VTD-MH2910
- Page 1 • 480 and 550 TV Line versions • True Day/Night function available • Flush or Surface Mount • UTP interface, IP Integration, and Heater / Blower Options Available • Dual Voltage 12VDC & 24VAC • Infinity Ball Mount for Any Viewing Angle •...
-
Page 2: Box Contents
BOX CONTENTS 1) Dome Camera 2) Mounting Accessories 3) Instruction Manual & Mounting Template MOUNTING ACCESSORIES Torx Wrench - (Vandal & IR Versions Only) Type #: T20 Length: 63mm / Diameter: 4mm Qty: 1 Phillips head Screws - (Vandal & IR Versions Only) For attaching the dome cover to the flush housing. -
Page 3: Available Models / Accessories
AVAILABLE MODELS / ACCESSORIES Indoor Mighty Dome Configurations: VTD-MH2910 / MH922: Indoor Color Dome Camera w/2.9-10mm or 9-22mm Varifocal Lens & 480TVL VTD-MX2910 / MX922: Indoor Color Dome Camera w/2.9-10mm or 9-22mm Varifocal Lens & 550TVL IR Mighty Dome Configurations: VTD-MVH2910/L35 / MVH922/L35: Vandal Proof Color Dome Camera w/2.9-10mm or 9-22mm Varifocal Lens, 480TVL &... -
Page 4: Mighty Dome Layout
MIGHTY DOME LAYOUT 1) Lens 2) Power Input Connector(12VDC / 24VAC) 3) Video Output Connector - BNC 4) Camera Holder and 2nd Video output 5) Ball with the Camera Assembly 6) Safety Wire 7) Bubble 8) Dome Cover Ring 9) Flush Mount Base 10) Surface Mount Plate 11) Assembly Screws - Torx M4x9 (Vandalproof) -
Page 5: Installation
1) Dome Cover 1.1 Vandal Proof Domes - Use the provided Torx wrench to unscrew the vandal proof screws and remove the dome cover. 1.2 Indoor Domes - Turn the dome cover to the left to remove the dome cover. 2) Flush Mount Installation: Using four St4x30 screws, attach the flush mount base to a sturdy surface. -
Page 6: Junction Box Installation
JUNCTION BOX INSTALLATION Mighty Domes can easily be flush or surface mounted to an electrical junction box (J-Box) using the pre-drilled mounting holes on either the surface mount housing or the the flush mount base. -
Page 7: Open Gimbal Cover
To adjust the zoom and the focus, the gimbal needs to be removed temporarily from its base. 1) Remove the ball gimbal from its socket, and hold the base firmly with one hand. 2) Gently squeeze Point A and B and pull away from the base until the gimbal is removed from the base. - Page 8 CONNECTIONS • Power connection: 12VDC and 24VAC dual input. • All Mighty Dome cameras come standard with a secondary video output. Please contact your distributor or the VITEK Sales Department for availability of the optional secondary video cable (VT-MD-2VOC).
-
Page 9: Lens Adjustment
1) Remove the Gimbal cover from the Gimbal base. 2) Loosen Zoom & Focus screws and make necessary adjustments as shown. Field of view: Telephoto(T) to Wide(W) Focus: Near(N) to infinity( ) 3) DC Level: Adjust left or right if the picture is too dark. 4) Dip Switches. - Page 10 DIP SWITCH ADJUSTMENTS Indoor & Vandal-Proof Mighty Domes (Non-Day/Night): Function ELC/ALC Back Light Control (BLC) Auto Gain Control (AGC) Day/Night & IR Mighty Domes: Function ELC/ALC Back Light Control (BLC) Auto Gain Control (AGC) Flickerless Sharpness Day/Night IR Mode (IR Model Only) Factory Default: Normal Factory Default:...
-
Page 11: Axis Gimbal Adjustment
3-AXIS GIMBAL ADJUSTMENT The Gimbal mechanism yields maximum rotation and placement as shown below. -
Page 12: Heater / Blower Specifications
HEATER / BLOWER SPECIFICATIONS Specifications Power Supply Power Consumption Heater Blower EXTERNAL DIMENSIONS 24 VAC 10W (Heater) / .7W (Blower) On: at 41ºF / Off at 59ºF Continuous 24 Hour Operation... -
Page 13: Indoor Mighty Dome Specifications
INDOOR MIGHTY DOME SPECIFICATIONS Specifications Image Sensor Sync System Scanning system Lens Options Horizontal Resolution Min. Illumination S/N Ratio Video Output Effective Pixels Electronic Shutter White Balance Operating Temperature Operating Humidity Power Consumption Power Requirement Dimensions (H x Dia.) VTD-MH 1/3”... -
Page 14: Vandal Mighty Dome Specifications
VANDAL MIGHTY DOME SPECIFICATIONS Specifications VTD-MVH Image Sensor Sync System Scanning system Lens Options Horizontal Resolution 480 TV Lines Min. Illumination S/N Ratio Video Output Effective Pixels Electronic Shutter White Balance Weatherproof Operating Temperature Operating Humidity Power Consumption Power Requirement Dimensions (H x Dia.) VTD-MVX 1/3”... -
Page 15: Ir Mighty Dome Specifications
IR MIGHTY DOME SPECIFICATIONS Specifications VTD-MVH (L35) VTD-MVX (L35) Image Sensor 1/3” Super HAD CCD Sync System Internal Scanning system 2:1 Interlace Lens Options 2.9-10mm or 9-22mm Horizontal Resolution 480 TV Lines 550 TV Lines Min. Illumination Day/Night: 0.02Lux (F1.2@40IRE) / Standard: 0.2Lux (F1.2@40IRE) S/N Ratio More than 50dB AGC OFF at 50IRE Video Output... - Page 16 The product must not have been tampered with in any way then the guarantee will be considered null and void. This guarantee does not affect your statutory rights. Contact VITEK directly for all servicing. 28492 CONSTELLATION ROAD VALENCIA, CA 91355 WWW.VITEKCCTV.COM | 888-VITEK-70...
