INSTALLATION GUIDE
FEATURES:
• Sony® 1/2.8" Progressive Scan CMOS Sensor
• Up to 30fps live view @ 2048 x 1536 (3.15 MegaPixel)
• MegaPixel IR Corrected Fixed 3.6mm & 2.8-12mm Motorized Varifocal Lens
Options with 1 click focus for easy Configuration
• Optional 35 Dynamic Infrared LEDs at 850nm enable viewing in total
darkness up to 120 feet
• XD-DNR (2D-DNR + 3D-DNR) Noise Reduction
• True Day/Night by ICR - Dual Filter Switch
• Triple Streaming (H.264/MJPEG) offering Extensive Integration Possibilities
• Real-time Lens Distortion Correction (LDC) for an optically correct picture
• Compliance with the latest Onvif Profile S
• On-board network security with IP address filtering
• Advanced OSD Features including Image Stabilization & Corridor Mode
• MicroSD memory card slot for Local recording supporting up to 128GB
MicroSDXC cards
• Ultra Versatile Design with Infinity Ball Mount for Any Viewing Angle
• Can be Flush or Surface mounted and Fits Perfectly in 4S (indoor domes) &
4-11 (vandal domes) Backboxes
• Outdoor Vandal Resistant Versions Feature Fully Gasket Sealed with an IP-68
Water tight NEMA Rating & Optional Extreme Cold (-60°F) Temperature Kits
• Optional Mounts Available
• Available in Ivory or Black
• 12VDC & PoE (Power over Ethernet) Operation

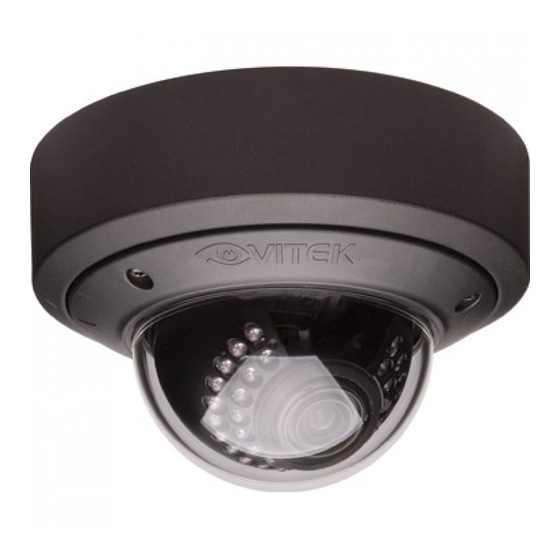

VTD-M30 / VTD-MV30
Virtuoso Series 3.15MP WDR IP
Mighty Dome Camera Series
Advertisement
Table of Contents
Related Manuals for Vitek VTD-M30
Summary of Contents for Vitek VTD-M30
-

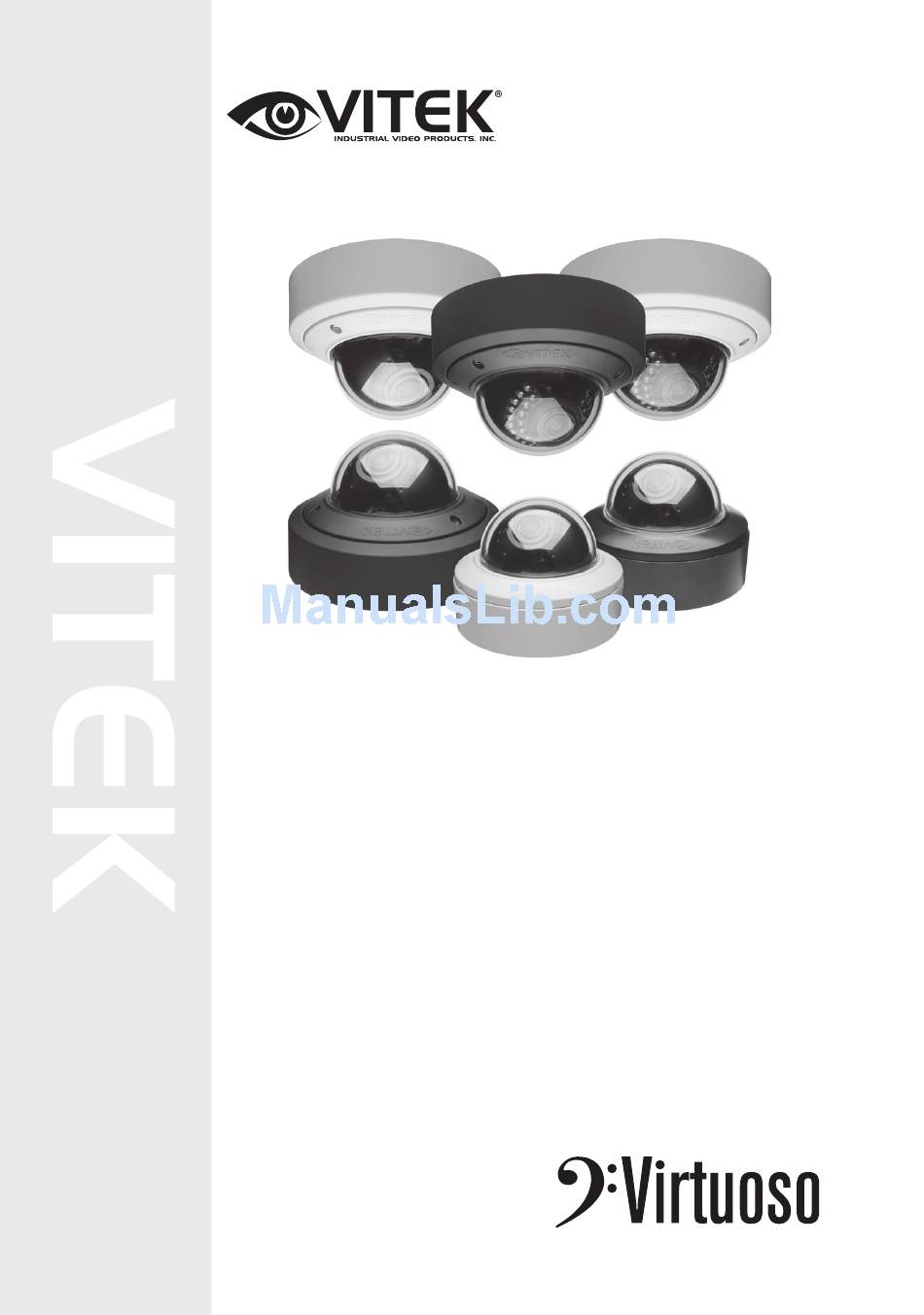

Page 1: Installation Guide
VTD-M30 / VTD-MV30 Virtuoso Series 3.15MP WDR IP Mighty Dome Camera Series INSTALLATION GUIDE FEATURES: • Sony® 1/2.8” Progressive Scan CMOS Sensor • Up to 30fps live view @ 2048 x 1536 (3.15 MegaPixel) • MegaPixel IR Corrected Fixed 3.6mm & 2.8-12mm Motorized Varifocal Lens Options with 1 click focus for easy Configuration •... -
Page 2: Safety Precaution
Safety Precaution To prevent fire or shock hazard, do not expose the unit to rain or moisture. To prevent electric shocks and risk of fire hazards, do NOT use other than specific power source. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). -
Page 3: Package Contents
Package Contents Torx Wrench (Outdoor Vandal Versions Only) Type #: T20 Length: 63mm / Diameter: 4mm Qty: 1 Phillips head Screws (Outdoor Vandal Versions Only) For attaching the dome cover to the flush housing. Type #: Phillips head M4x10 Length: 10mm / Diameter: 4mm Qty: 4 Self Tapping Screws For attaching the surface mount housing or the the flush mount base to a... -
Page 4: Part Names
Part Names 1) Lens 8) Dome Cover Ring 2) 12VDC Power Input Connector 9) Flush Mount Base (Not for use with PoE) 10) Surface Mount Base 3) RJ45 Ethernet Connector 11) Assembly Screws - Torx M4x9 4) Camera Holder (Vandalproof) 5) Ball with the Camera Assembly 12) Assembly Screws - Phillips ST4x12 (Indoor) / Phillips M4x10... -
Page 5: Installation Instructions
Installation Instructions 1) Remove Dome Cover Use the provided Torx wrench to unscrew the vandal proof screws and remove the dome cover. 2) Choose Installation Method: A) Flush Mount Installation: Using four St4x30 screws, attach the flush mount base to a sturdy surface. Optional flush mount decorator plate. - Page 6 Installation Instructions MicroSD Card Installation For recording directly on the camera you will need to install a MicroSD card, this will allow you to record video directly on-board the camera. (Class 10 MicroSD cards recommended) 1) Remove the ball gimbal from the socket, and MicroSD hold the base firmly with one hand.
-
Page 7: Flush Mount
Installation Instructions Flush Mount 4.29” 5.63” 4.51” 0.2” 1.57” 2.76” 2.70” R1.95” Vandal Surface Mount 2.76” 0.2” 6.77” 1.85” 4.29” 2.46” R1.95” Indoor Surface Mount 3.37” 2.76” 5.75” 0.22” 1.69” 3.37” 4.29” 4.88” 2.66” R1.95”... - Page 8 Detailed Specifications VTD-M30F3NP Sensor Sony 1/2.8” Progressive Scan CMOS Sensor Resolution 3.15 MegaPixel (2048x1536) Video Encoding H.264 / MJPEG Video Output Ethernet (RJ45) Frame Rate 30fps max Dynamic Intensity IR LEDs IR Range Lens 3.6mm Fixed Lens Corridor Format 90° / 270° Minimum Illumination 0.15 lux (Color) / 0.03 lux (B/W) Day/Night...
- Page 9 Detailed Specifications VTD-M30FR3NP Sensor Sony 1/2.8” Progressive Scan CMOS Sensor Resolution 3.15 MegaPixel (2048x1536) Video Encoding H.264 / MJPEG Video Output Ethernet (RJ45) Frame Rate 30fps max Dynamic Intensity IR LEDs 35 850nm IR LEDs IR Range 120’ Lens 3.6mm Fixed Lens Corridor Format 90°...
- Page 10 Detailed Specifications VTD-M30V212NP Sensor Sony 1/2.8” Progressive Scan CMOS Sensor Resolution 3.15 MegaPixel (2048x1536) Video Encoding H.264 / MJPEG Video Output Ethernet (RJ45) Frame Rate 30fps max Dynamic Intensity IR LEDs IR Range Lens 2.8-12mm Motorized Varifocal Lens with 1 click focus for easy Configuration Corridor Format 90°...
- Page 11 Detailed Specifications VTD-M30VR212NP Sensor Sony 1/2.8” Progressive Scan CMOS Sensor Resolution 3.15 MegaPixel (2048x1536) Video Encoding H.264 / MJPEG Video Output Ethernet (RJ45) Frame Rate 30fps max Dynamic Intensity IR LEDs 35 850nm IR LEDs IR Range 120’ Lens 2.8-12mm Motorized Varifocal Lens with 1 click focus for easy Configuration Corridor Format 90°...
- Page 12 Detailed Specifications VTD-MV30V212NP Sensor Sony 1/2.8” Progressive Scan CMOS Sensor Resolution 3.15 MegaPixel (2048x1536) Video Encoding H.264 / MJPEG Video Output Ethernet (RJ45) Frame Rate 30fps max Dynamic Intensity IR LEDs IR Range Lens 2.8-12mm Motorized Varifocal Lens with 1 click focus for easy Configuration Corridor Format 90°...
- Page 13 Detailed Specifications VTD-MV30VR212NP Sensor Sony 1/2.8” Progressive Scan CMOS Sensor Resolution 3.15 MegaPixel (2048x1536) Video Encoding H.264 / MJPEG Video Output Ethernet (RJ45) Frame Rate 30fps max Dynamic Intensity IR LEDs 35 850nm IR LEDs IR Range 120’ Lens 2.8-12mm Motorized Varifocal Lens with 1 click focus for easy Configuration Corridor Format 90°...
- Page 14 CONSIDER THESE OTHER GREAT PRODUCTS FROM VT-NV Series On Cue Series 4, 8, 16 and 32 Stand-Alone Real-time 1080p HD-SDI Network Video Recorders • 4, 8, 16, or 32 Channel Stand-alone Real-time IP Network Video Recorders • Full HD (720/1080p) Real-time recording, live display, and playback •...
-
Page 15: Limited Product Warranty
This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning. - Page 16 Version 1.0 28492 CONSTELLATION ROAD VALENCIA, CA 91355 December 2015 WWW.VITEKCCTV.COM...
