• Sony 1/2.8" 2 MegaPixel "STARVIS" CMOS Image Sensor
• Up to 2.1 Megapixel with EX/HD-SDI, TVI, and 960H Video Output
• Up to 30fps live view @ 1080p
• MegaPixel IR Corrected 2.8-12mm Varifocal Lens
• Optional 35 Dynamic Infrared LEDs at 850nm enable viewing in total darkness up to 120
feet
• True Day/Night by ICR - Dual Filter Switch
• Block & Polygon Privacy Masking with 24 Programmable Zones
• XD-DNR (2D+3D DNR) Noise Reduction
• OSD (On Screen Display) for Camera Setup
• Wired Remote Control with Secondary Video Output Included
• Ultra Versatile Design with Infinity Ball Mount for Any Viewing Angle
• Can be Flush or Surface mounted and Fits Perfectly in 4S Back boxes (Indoor Versions) /
4-11S Back boxes (Vandal Versions)
• IP68 Weather Resistance with Extreme Cold Temperature Kit Available (Vandal Versions)
• Extensive mounting options available
• 1" Conduit Knockout
• Available in Ivory or Black
• 12VDC/24VAC Dual Voltage Operation

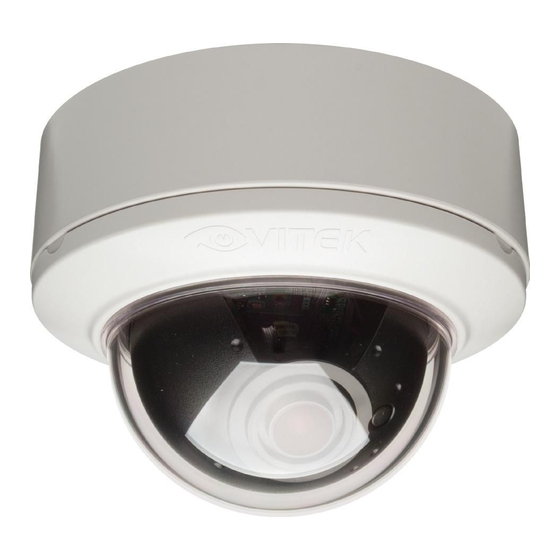

MIGHTY DOME TRIO
2.1 Megapixel EX/HD-SDI/TVI/960H
All-in-One Dome Camera Series
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vitek VTD-M2HET2812
Summary of Contents for Vitek VTD-M2HET2812

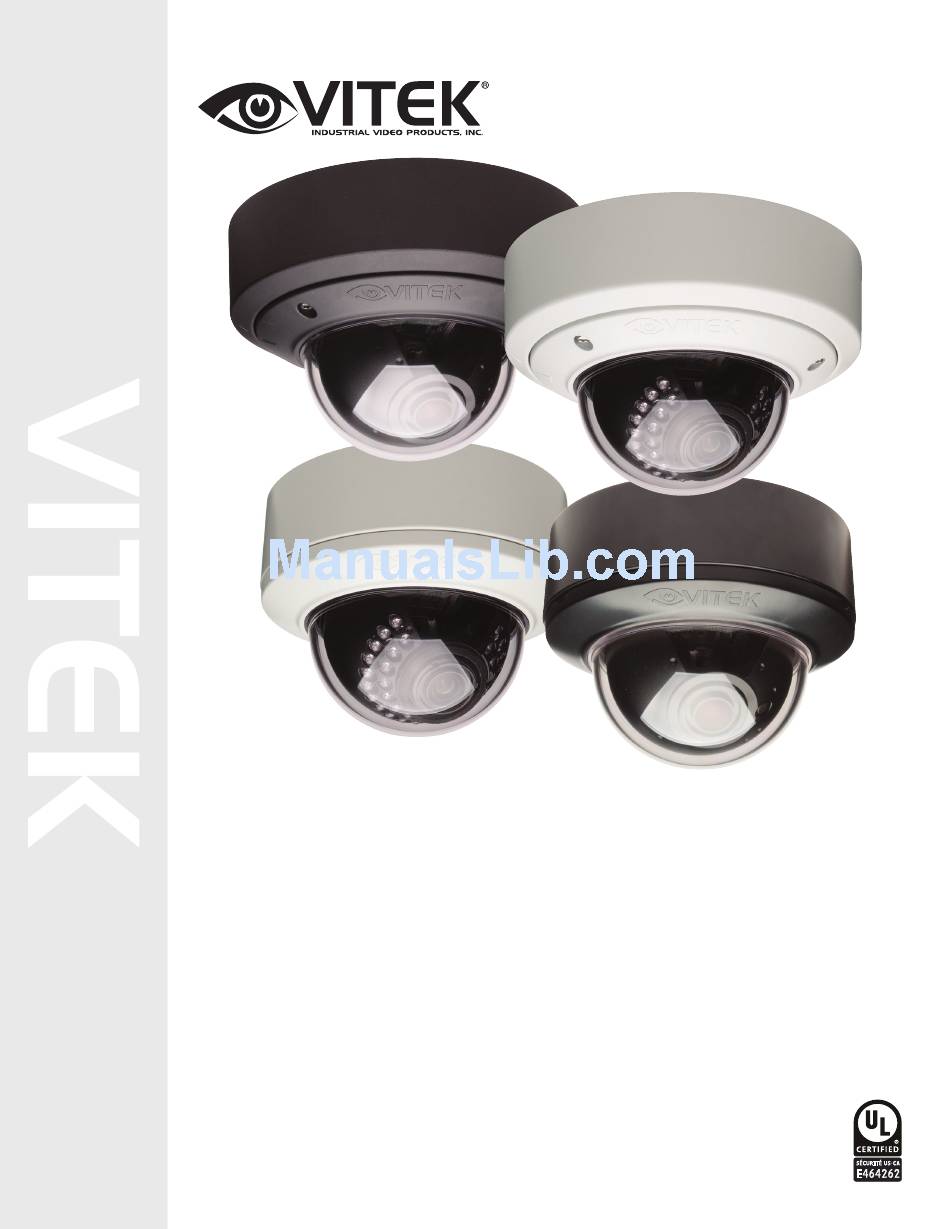

- Page 1 MIGHTY DOME TRIO 2.1 Megapixel EX/HD-SDI/TVI/960H All-in-One Dome Camera Series • Sony 1/2.8” 2 MegaPixel “STARVIS” CMOS Image Sensor • Up to 2.1 Megapixel with EX/HD-SDI, TVI, and 960H Video Output • Up to 30fps live view @ 1080p • MegaPixel IR Corrected 2.8-12mm Varifocal Lens •...
-
Page 2: Package Contents
4. Instruction Manual & Mounting Template If any of these materials are missing, please contact the vendor help desk immediately. Available Models Model Description VTD-M2HET2812 Mighty Dome Trio Indoor EX-SDI/TVI/CVBS Camera VTD-M2RHET2812 Mighty Dome Trio Indoor EX-SDI/TVI/CVBS IR Camera VTD-MV2HET2812... -
Page 3: Disclaimer
DISCLAIMER • While every effort has been made to ensure that the information contained in this guide is accurate and complete, no liability can be accepted for any errors or omissions. • Our reserves the right to change the specifications of the hardware and software described herein at any time without prior notice. -
Page 4: Warning And Caution
WARNING AND CAUTION WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION EXPLANATION OF GRAPHICAL SYMBOLS The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"... -
Page 5: Fcc Compliance Statement
FCC COMPLIANCE STATEMENT FCC INFORMATION: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT. -
Page 6: Important Safeguards
IMPORTANT SAFEGUARDS 1. Read these instructions. 2. Heed all warnings. 3. Follow all instructions. 4. Do not use this equipment near water. 5. Clean only with dry cloth. 6. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. -
Page 7: Table Of Contents
TABLE OF CONTENTS DISCLAIMER ........................1 I. INSTALLATION AND CONFIGURATION..............7 2.1 Installation ............................7 2.2 Camera Control & Setup ........................9 2.3 Varifocal, DC Auto Iris Lens Adjustments ................... 10 2.4 VIDEO OUT ............................. 10 III. PROGRAM & OPERATION ..................11 Main Menu ............................. - Page 8 3.9.7 COLOR BAR ..................................23 3.9.8 LANGUAGE ..................................23 3.9.9 CAM TITLE ..................................24 3.9.10 RESET ................................... 24 Appendix A — SPECIFICATIONS ....................... 25 Appendix B — DIMENSIONS ......................27...
-
Page 9: Installation And Configuration
I. INSTALLATION AND CONFIGURATION 2.1 Installation 1) Dome Cover • Vandal Proof Domes - Use the provided Torx wrench to unscrew the vandal proof screws and remove the dome cover. • Indoor Domes - Turn the dome cover to the left to remove the dome cover. 2) Flush Mount Installation: •... -
Page 11: Camera Control & Setup
2.2 Camera Control & Setup... -
Page 12: Varifocal, Dc Auto Iris Lens Adjustments
2.3 Varifocal, DC Auto Iris Lens Adjustments Loosen Zoom & Focus screws and make necessary adjustments as shown. Field of View: Telephoto (T) to Wide (W) Focus: Near (N) to Far (F) 2.4 VIDEO OUT CVBS... -
Page 13: Program & Operation
III. PROGRAM & OPERATION Main Menu Sub Menu Descriptions FOCUS ADJ OFF / ON LENS DC / MANUAL BRIGHTNESS 10(0 ~ 20) AUTO(OUTDOOR / INDOOR / DEBLUR) EXPOSURE SHUTTER MANUAL(1/25(30), ---, 1/30,000) FLICKER SENS-UP X2 / OFF, ---, X32 9(0 ~ 10) 10(0~20) / COLOR(8kinds) BACKLIGHT H(V)-POS(0~20) / H(V)-SIZE(0~20) -
Page 14: Main Menu
Main Menu MENU FOCUS ADJ EXPOSURE BACKLIGHT DAY&NIGHT WHITE BAL MIDDLE ADJUST MOTION SYSTEM EXIT 3.1 FOCUS ADJ Focus ADJ displays the input data from the FA Detector Mode in a Graphic Bar form. This function provides convenience to the user by allowing a more accurate focusing by utilizing a bar graph, there are 3 bars to adjust by Left, Center and Right. -
Page 15: Lens
3.2.1 LENS Using this function, you can control the screen brightness DC : Select Auto Iris Lens MANUAL : The shutter does not automatically move but is fixed to the maximum in this mode. 3.2.2 BRIGHTNESS Adjusts the video brightness.(0~20) 3.2.3 SHUTTER AUTO : Select this mode to control the shutter speed automatically. -
Page 16: Hlc
3.3.1 HLC BACKLIGHT LEVEL 10 | ||||| ||||| COLOR RETURN This function masks strong light to minimize white out due to over exposure and preserve much of the on-screen details when the camera sees a strong light source. LEVEL : 0 ~ 20 COLOR : BLACK, WHITE, YELLOW, CYAN, GREEN, MAGENTA, RED, BLUE 3.3.2 BLC BACKLIGHT... -
Page 17: Wdr
3.3.3 WDR BACKLIGHT WEIGHT MIDDLE RETURN Wide Dynamic Range. WEIGHT : LOW, MIDDLE, HIGH No support for CVBS. 3.4 DAY&NIGHT 3.4.1 AUTO Optimized for standard cameras without IR DAY&NIGHT ANTI-SAT. ||||||||||| AGC THRES ||||||||| AGC MARGIN ||||||| DELAY ||||||||| RETURN 3.4.2 COLOR The picture is always displayed in color. -
Page 18: Ext
DAY&NIGHT ANTI-SAT. ||||||||||| RETURN 3.4.4 EXT. DAY&NIGHT ANTI-SAT. ||||||||||| EXTERN SW DELAY ||||||||| RETURN Optimized for IR Cameras Anti Saturation This function automatically controls the brightness for saturated object from the IR light. It prevents saturation and expands dynamic range. Also saturation level can be controlled. -
Page 19: Manual
3.5.4 MANUAL C-TEMP 5000K R-GAIN 10 | ||||| ||||| B-GAIN 10 | ||||| ||||| RETURN Select this to fine-tune White Balance manually. Set White Balance first by using the C-TEMP mode. After that adjust the R-GAIN & B-GAIN mode, fine-tune the white balance. 3.6 DNR DNR reduces noise by amplifying gain in low light. -
Page 20: Color Gain
ADJUST COLOR GAIN 12 | |||||| |||| SHARPNESS ||||| ||||| GAMMA MIRROR FLIP D-ZOOM 1.0X DEFOG SHADING PRAVACY RETURN 3.7.1 COLOR GAIN The setting range is 0 ~ 20. The smaller the setting value the smaller the color gain gets and the image will lose most of the color. -
Page 21: Ace
3.7.7 ACE This function is a local adaptive contrast enhancement. It uses a histogram analysis and tone mapping method in pixels domain. 3.7.8 DEFOG DEFOG MODE AUTO LEVEL MIDDLE RETURN You can use the defog mode to allow the camera to automatically detect the fog density of the scene and display a clear image despite smog, or general poor visibility. - Page 22 ZONE NUM ZONE DISPLAY H-POS V-POS H-SIZE V-SIZE CB LEVEL 10 | ||||| ||||| CR LEVEL 10 | ||||| ||||| TRANS RETURN POLYGON ZONE NUM ZONE DISPLAY POS0-X POS0-Y POS1-X POS1-Y POS2-X POS2-Y POS3-X POS3-Y CB LEVEL 10 | ||||| ||||| CR LEVEL 10 |...
-
Page 23: Det Window
MOTION DET WINDOW SENSITIVITY ||||| ||||| MOTION OSD TEXT ALARM SIGNAL OUT RETURN This product generates signals each time an object movement is detected in the four areas of the screen so efficient monitoring can be achieved. 3.8.1 DET WINDOW DET WINDOW WINDOW USE WINDOW ZONE... -
Page 24: Text Alarm
3.8.4 TEXT ALARM If an object moves in an area set by the user, it will be displayed on the screen as a message. 3.8.5 SIGNAL OUT Not supported. 3.9 SYSTEM SYSTEM COM. IMAGE RANGE FULL TVI OFFSET EXSDI FRAME RATE 1080_30p FREQ 60HZ... -
Page 25: Image Range
COM. CAM ID BAUDRATE 9600 RETURN Not supported. 3.9.2 IMAGE RANGE This is Digital output data scale mode for adjusting the black level. Full : full digital data COMP : scaling down mode USER : user setting 3.9.3 TVI OFFSET If you use HD-TVI, you should change TVI OFFSET to ON. -
Page 26: Cam Title
3.9.9 CAM TITLE This function allows the users to set the title of camera as well as the usage of on screen display of the title. 3.9.10 RESET Reset camera to factory settings. -
Page 27: Appendix A - Specifications
APPENDIX A — SPECIFICATIONS Detailed Specifications VTD-M2HET2812 VTD-M2RHET2812 Image Sensor Sony® 1/2.8” STARVIS CMOS Image Sensor Video Output EX/HD-SDI / TVI / 960H Resolution 2.1 MegaPixel (1920p x 1080p) Effective Pixels 1920(H) x 1080(V) Lens Type MegaPixel IR Corrected 2.8-12mm Varifocal... - Page 28 Detailed Specifications VTD-MV2HET2812 VTD-MV2RHET2812 Image Sensor Sony® 1/2.8” STARVIS CMOS Image Sensor Video Output EX/HD-SDI / TVI / 960H Resolution 2.1 MegaPixel (1920p x 1080p) Effective Pixels 1920(H) x 1080(V) Lens Type MegaPixel IR Corrected 2.8-12mm Varifocal Electronic Iris 1/60 ~ 1/100,000sec DAY / NIGHT Mechanical IR Cut Filter (True Day/Night) Sensitivity...
-
Page 29: Appendix B - Dimensions
APPENDIX B — DIMENSIONS INDOOR DOMES VANDAL DOMES... - Page 30 VITEK products carry a three (3) year limited warranty. VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and work- manship for a period of three (3) years, or as otherwise stated above, from the date of purchase by the end user.
