ScanPlus 1800ST Service Manual
Replacing Parts
1-4

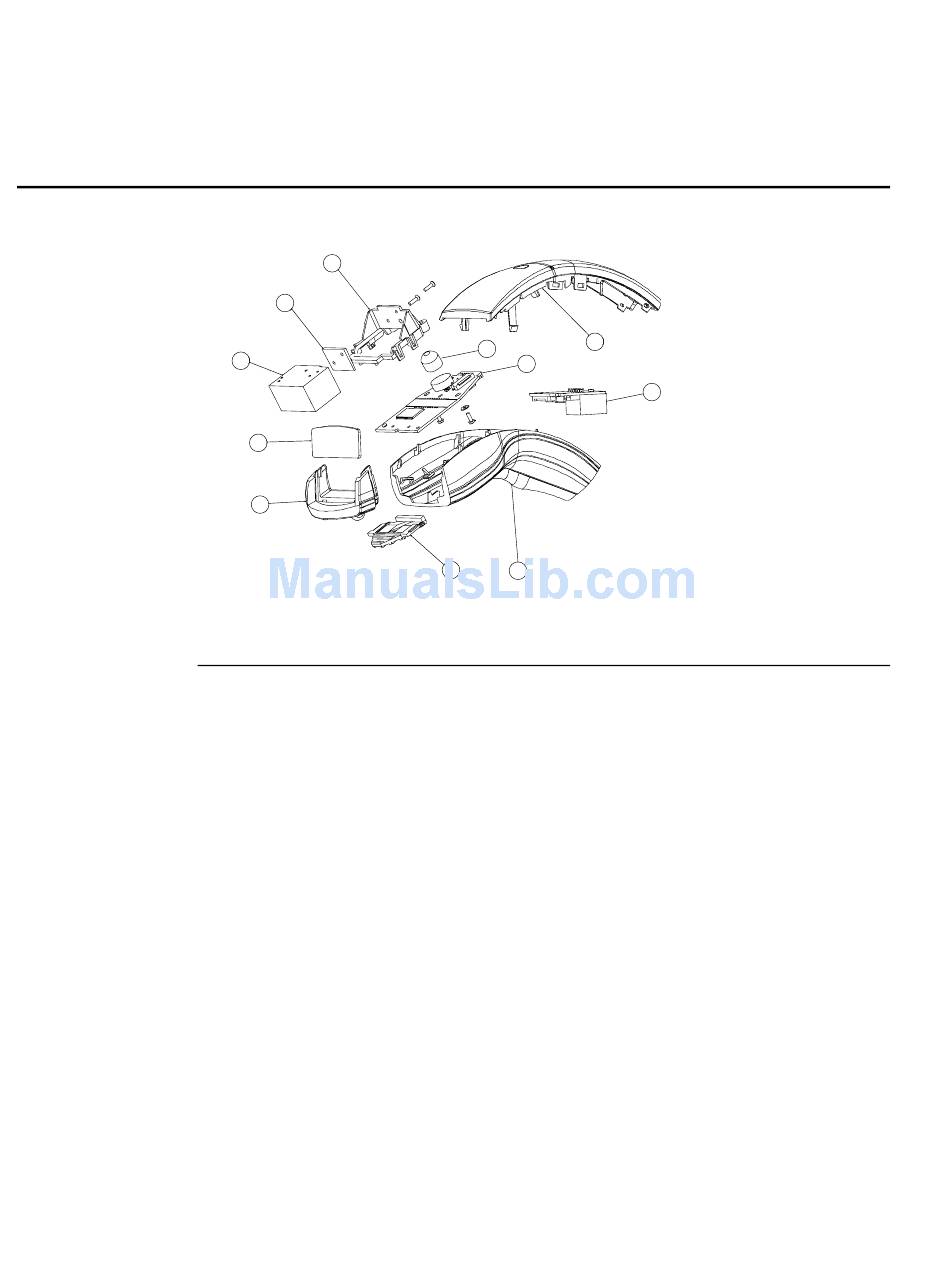

The next illustration shows the parts of the 1800.
8
7
6
2
1
Spare Parts List
Description
Front rubber enclosure
Exit window
Top shell assembly
Trigger spring
Bottom shell assembly
Scan engine
Laser absorber
Laser frame
Buzzer cap
Main PCB with laser flex
Connector PCB with connector flex
3
9
10
1800M001.eps
4
5
Callout
Number
Part Number
1
3-360039-31
2
3-360039-31
3
3-360039-30
4
3-360039-31
5
3-360039-31
6
3-360039-08
7
3-360039-32
8
3-360039-32
9
3-360039-32
10
3-360039-32
11
3-360039-33
11
