Intermec Sabre 1551B Quick Reference Manual

Intermec Sabre 1551B Quick Reference Manual

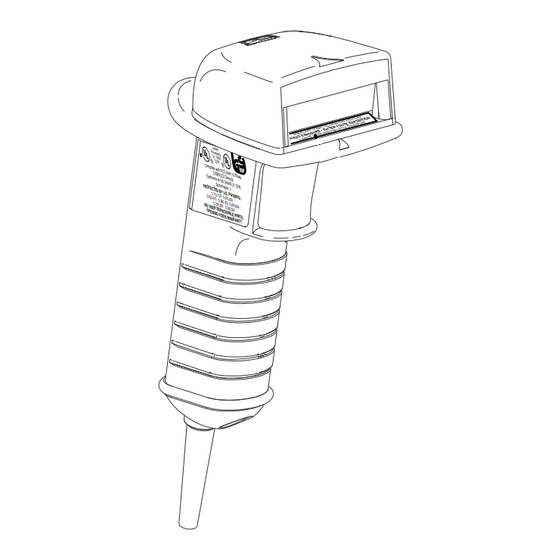

Decoding laser scanner
Hide thumbs Also See for Sabre 1551B:
Table of Contents

Advertisement

Quick Links

Download this manual
Quick
Reference
Guide
1551B Decoding
Laser Scanner
P/N 065542-003

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sabre 1551B and is the answer not in the manual?

Questions and answers

Related Manuals for Intermec Sabre 1551B

Summary of Contents for Intermec Sabre 1551B

  • Page 1 Quick Reference Guide 1551B Decoding Laser Scanner P/N 065542-003...
  • Page 2 U.S. media supplies ordering information: 1-800-227-9947 Canadian service and technical support: 1-800-688-7043 Canadian media supplies ordering information: 1-800-268-6936 Outside U.S. and Canada: Contact your local Intermec service supplier. The information contained herein is proprietary and is provided solely for the purpose of allowing customers to operate and/or...

  • Page 3: Table Of Contents

    1233* 1233* FranklinGothic Helv Condensed Contents Overview of the 1551B Laser Scanner 1 Unpacking the 1551B Laser Scanner 2 Understanding the Scanner Features 3 Light 3 Beeps 3 Electrical Rating 4 Ordering Cables 4 Connecting the 1551B Laser Scanner 7...
  • Page 4 C o d e Regulatory Statements For Users Outside of Canada and the United States 19 European Union Compliance 19 Agency Approvals 20 Additional EMI/RFI Compliance 20 1551 Laser Compliance and Precaution 20 Patents 22...

  • Page 5: Overview Of The 1551B Laser Scanner

    Overview of the 1551B Laser Scanner The Intermec 1551B Laser Scanner delivers quick, effortless bar code scanning. You can use each type of scanner with a portable terminal in Wand Emulation mode, but it is also designed to collect data for a specific type of terminal as listed in this table.

  • Page 6: Unpacking The 1551B Laser Scanner

    Terminals are continually being added to this list. Consequently, some of the most recent additions may not be shown here. Contact your local Intermec representative for a current list. Unpacking the 1551B Laser Scanner Your 1551B laser scanner was thoroughly tested and inspected before it was shipped from the factory.

  • Page 7: Understanding The Scanner Features

    Green The bar code has been successfully scanned. None The device is not scanning. Beeps The scanner emits these beeps to indicate either a successful scan or a situation that requires your attention. Beep Description One medium beep A bar code has been read successfully and you may scan another.

  • Page 8: Electrical Rating

    Trigger 1551Q.001 Electrical Rating The 1551B laser scanner electrical ratings are 215 mA. Ordering Cables To order a cable, contact your local Intermec representative. Use this table to determine which cable to order. 1551B020X Reader/Terminal Cable Connector DEC VT220/320/420 8 Pin Modular...
  • Page 9 9 Socket D-Sub 1551B0300 IBM 4683 Port 9A/9B, 4 Position SDL 4684, 4693, 4694 IBM 4683 Port 5B 8 Position SDL Intermec 944X, 9430, RJ11 Modular 95XX Intermec J2010, 10 Pin Modular JG2010, 97XX, T242X NCR 1255 Mod IV 12 Position...
  • Page 10 Y 5 Pin DIN IBM 3151, 347X Y 8 Pin Modular IBM 317X, 318X, 319X 5 position DIN IBM ThinkPad 6 Pin Mini-DIN Intermec 944X, 9430, RJ11 Modular 95XX Intermec 9465/9450 11 Pin Fisher Intermec J2010, 10 Pin Modular JG2010, 97XX, T242X...

  • Page 11: Connecting The 1551B Laser Scanner

    Connecting the 1551B Laser Scanner You can connect the 1551B scanner to these Intermec products: 944X Portable Terminals 95XX Network Terminals TRAKKER Antares 242X Terminals 97XX Wedge Readers JANUS™ 2010 Terminals (J2010 and JG2010) To connect the scanner 1. Turn off the reader/terminal.

  • Page 12: Operating The 1551B Laser Scanner

    To scan bar codes 1. Aim the scanner at a slight angle or pitch to the bar code and press the trigger. To help you center the laser beam on the...

  • Page 13: Hands-Free Scanning

    To order a scanner stand, see “Accessories for the Scanner” later in this guide. Note: If your scanner stand does not have a small magnet in the holder, you need to upgrade your stand using upgrade kit part number 066799.

  • Page 14: Configuring The Marker Beam

    If you remove the scanner from the stand, it will immediately reset to hand-held scanning. You can scan bar codes by pressing the trigger. Configuring the Marker Beam This section explains how to configure the marker beam on long-range and high-visibility scanners.

  • Page 15: Configuring For Selected Terminals

    Configuring for Selected Terminals The next instructions are for configuring the scanner to work with selected popular terminals or computers. If you have a DEC VT510/520, you can plug and play by scanning one of these bar codes: DEC VT 510/520 with...
  • Page 16 Decoding Laser Scanner User’s Manual (Part No. 066104). You can also find the manual on the internet at www.intermec.com/manuals/1551b/1551.htm. To configure a scanner for a laptop or pen-based terminal 1. Scan this bar code. 2. (Optional) If your laptop has an...

  • Page 17: Troubleshooting The 1551B Laser Scanner

    The scanner operate. will retain its configuration. Scanner cannot The scanner was not set up to read this type of read certain bar bar code, or the bar code is damaged, covered codes. up, or poor quality.

  • Page 18: Maintaining The 1551B Laser Scanner

    If you continue to encounter problems with your scanner, contact your local Intermec representative. Maintaining the 1551B Laser Scanner Water or grime on the window of the scanner will distort the laser beam and impair performance. Moving from one temperature extreme to another causes condensation to form on the optical surfaces and also affects scanner performance.

  • Page 19: Accessories For The Scanner

    Accessories for the Scanner These accessories are available for your 1551B scanner. To order an accessory or the 1551B Decoding Laser Scanner User’s Manual (Part No. 066104), call your local Intermec representative. Holster and Belt Part No. 063793 You can store your scanner on you when it is not in use.

  • Page 20: Regulatory Statements For Users In Canada And The United States

    Note: In order to maintain compliance with FCC Rules, the I/O cables that interconnect between the device and any peripheral (such as a reader, etc.) must be as specified by Intermec.

  • Page 21: Laser Compliance And Precaution

    The 1551 is UL Listed (UL 1950/C22.2 No. 950) and TÜV GS licensed (EN 60950 and EN 60825-1) for safety when powered by a host system or by an external Intermec power supply. UL and TÜV have approved the following power supplies for use...

  • Page 22: Scanner Laser Labels

    Catalog Number - 047794 (Part Number 5014UK) - 240V, 50 Hz If the 1551 is powered by a host system the output to the 1551 must be limited to 14,75V at 1 A. Scanner Laser Labels These labels provide important laser safety information. 155XQG.012...

  • Page 23: Regulatory Statements For Users Outside Of Canada And The United States

    Scanner Laser Labels (continued) USA/CANADA Regulatory Statements For Users Outside of Canada and the United States These regulatory statements apply to the 1551 laser scanner. European Union Compliance This product complies with EN 55022, EN 50082-1, EN 60950, and EN 60825-1 as required...

  • Page 24: Agency Approvals

    The 1551 is UL Listed (UL 1950/C22.2 No. 950) and TÜV GS licensed (EN 60950 and EN 60825-1) for safety when powered by a host system or by an external Intermec power supply. UL and TÜV have approved the following power supplies for use...
  • Page 25 Laser Safety Labels 155XQG.015...

  • Page 26: Patents

    C o d e Patents The 1551B decoding laser scanner is covered by one or more of these U.S. Patents: 4,360,798; 4,369,361; 4,387,297; 4,460,120; 4,496,831; 4,593,186; 4,603,262; 4,607,156; 4,652,750; 4,673,805; 4,736,095; 4,758,717; 4,816,660; 4,845,350; 4,896,026; 4,897,532; 4,923,281; 4,933,538; 4,992,717; 5,015,833; 5,017,765; 5,021,641; 5,029,183; 5,047,617;...
