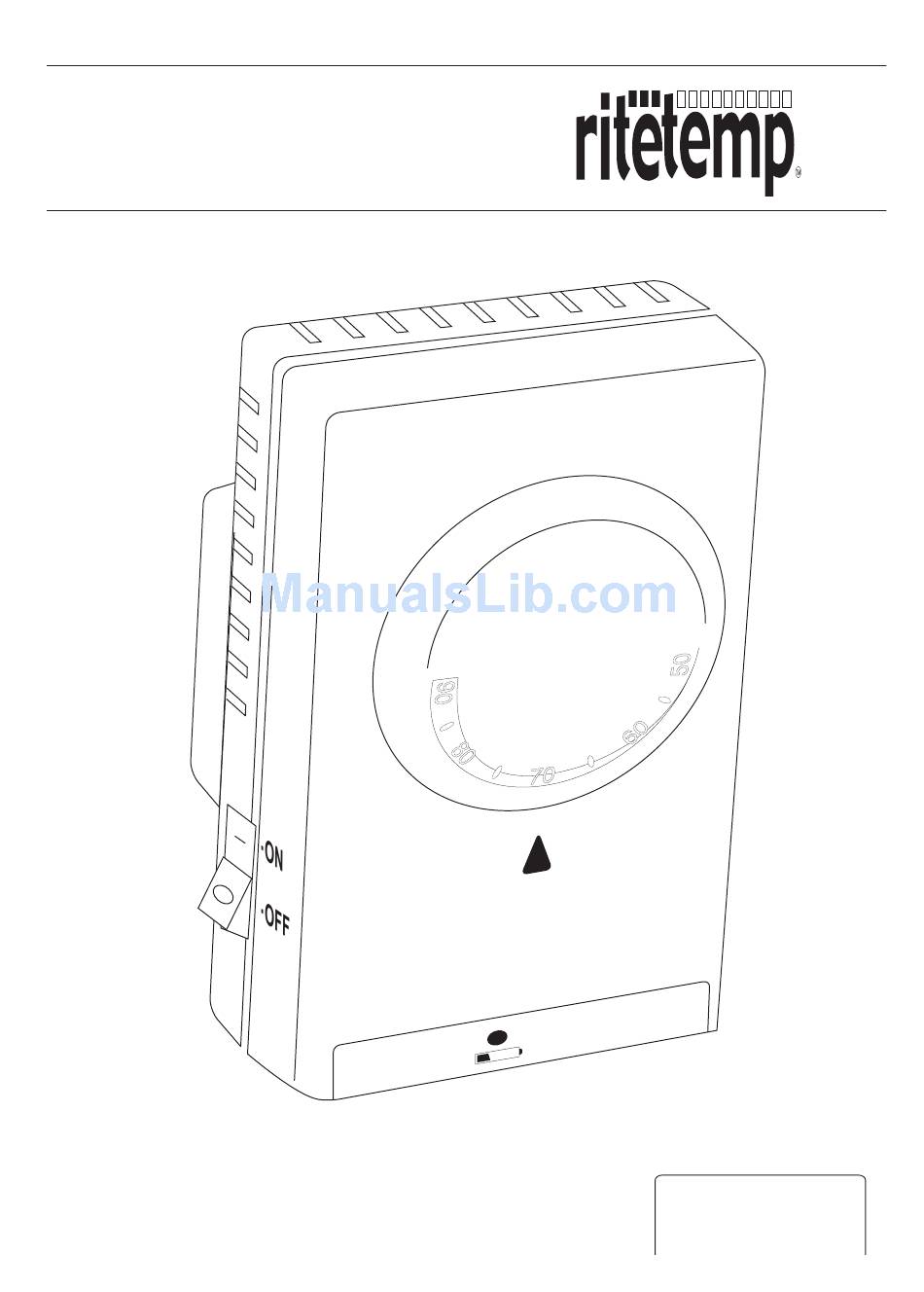

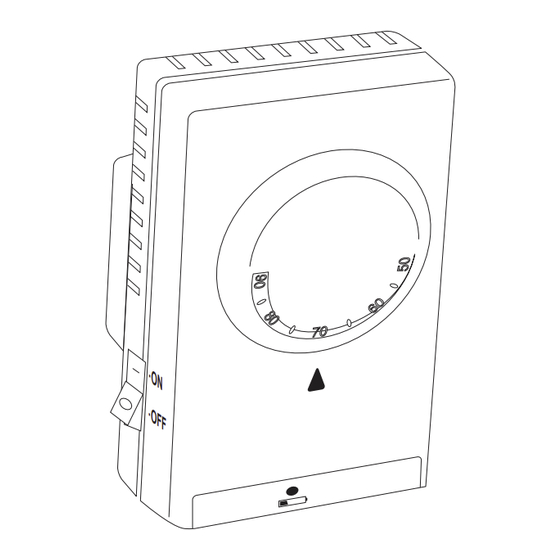

- Page 1 Install Guide 6004 ENGLISH...
- Page 2 Install Guide 6004 To avoid electrical shock and to prevent damage to the heating system, Caution and thermostat, disconnect the power supply before beginning work. This can be done at the circuit breaker, or at the appliance. Tools You will need #1 Phillips screwdriver (small)
- Page 3 Remove old unit Switch electricity to the heater OFF at the circuit breaker; then proceed with the following steps. Remove cover from old thermostat. Most are snap-on types and simply pull off. Some have locking screws on the side or front. These must be loosened to remove cover.
- Page 4 Connect wires cont. If you have 2 wires (Single Pole) inside the wall box, follow these wiring instructions. Connect the LOAD to the RED wire (T1) and the LINE to the BLACK wire (L1). Connect BLACK-L2 and RED-T2 from the back of the thermostat together.
- Page 5 Install Batteries The 6004 requires 2AA batteries. On the control unit, Switch AC POWER switch to OFF. Install 2 AA alkaline batteries according to the polarity noted in the compartment. DO NOT USE Rechargeable Batteries. Caution: The thermostat will go "off" if the batteries die.
- Page 6 6004 Features The 6004 can be used with most 120/208/240 volt electric heating devices. It provides Line voltage control for radiant cable, electric baseboard, and wall heaters within the ratings listed. Electrical Rating - 120/208/240 Vac; 16A max load Notes...
