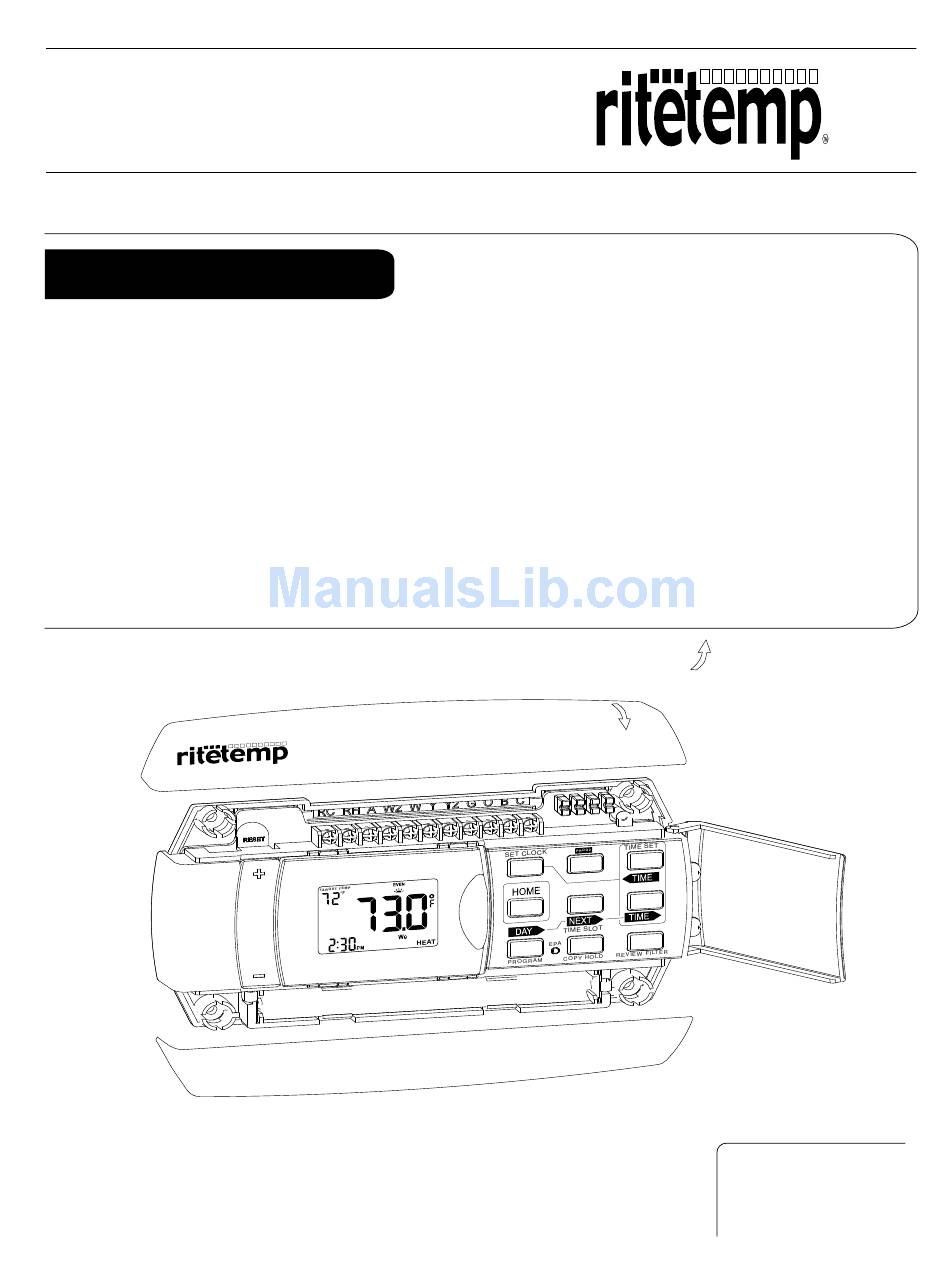

Page 1
Install guide 6022 Caution • Your thermostat is a precise instrument, handle it with care. • Turn off electricity to the appliance before installing or servicing thermostat or any part of the system. • Do not turn electricity back on until work is completed.
Page 2
Install guide 6022 To avoid electrical shock and to prevent damage to the furnace, air conditioner, Caution and thermostat, disconnect the power supply before beginning work. This can be done at the circuit breaker, or at the appliance. You will need a small Phillips screwdriver and possibly a drill Tools with 3/16-in.
• Fill wall opening with non-combustible insulation to prevent drafts. Prepare wires • You will need at least 2.6" of wire for each of your connections to the 6022. 2.6" • If you do not have enough wire, splice additional wire to allow enough slack.
• Wires will dress behind the 6022 and up over the terminal area. • Use the Step-By-Step diagram as your guide. • Do not bunch wires behind 6022. Feed slack back into the wall opening. • Connect labeled wires only to a terminal with corresponding letter.
Find the set-up diagram for your system • Find the referenece page with your wiring C W RH Go To Page 15 diagram and jumper set-up information. F r o m 2 Wire F u r n a c e Remember, the C wire is optional.
Mount the 6022 Wall 6022 • Hold the 6022 against the wall, with the wires coming over the top above terminal block. The 6022 will cover the hole in the wall. • Position 6022 for best appearance. Use the optional stand- offs if more space for wires is needed behind the 6022.
• Verify that cool air is blowing from the system. Congratulations, you have successfully installed your unit. Please proceed to the OPERATING Guide to initialize the 6022. NOTE: If you have labeled your wires, follow the correct Step-By-Step, and these Check procedures do not operate your system call support at...
Open Key pad door. Locate the TIME SET button and press it. The current calibration factor (+/-) of the 6022 will appear in the LCD display as well as the modified temp. Push the UP or DOWN arrows until the desired calibration factor is reached.
Page 9
STEP 1 - Connect the R (or RH) wire to the RH the 6022. This connects the Heater Power to the thermostat. STEP 2 - Connect the W wire to the W on the 6022. 1 2 3 This connects the heater control line to the 6022.
Page 10
1 2 3 STEP 3 - Connect the RH wire to the RH terminal and the RC wire to the RC terminal on the 6022. This connects the Heater and Cooler Power. STEP 4 - Connect the G wire to the G terminal on the Thermostat.
Page 11
STEP 1 - Connect O wire to the O terminal or B wire to the B terminal on the 6022. (If you have both O and B -connect O wire to O terminal DO NOT connect B to B terminal - see pg 24 Trane for B wire terminal) STEP 2 - Connect the W2 wire to W2 on the 6022.
Page 12
SET JUMPERS Motor driven Valve- Connect the R (or RH) wire to the RH terminal on the 6022. Connect the W wire to the W terminal 1 2 3 on the 6022. Connect the remaining wire to the A terminal.
6022 Features This thermostat can be used with all millivolt and 24VAC heating and cooling systems. It cannot be used with line voltage systems. This thermostat is digital and your desired heat or cool temperatures can easily be set on the large screen with the +/- buttons on the front. A minimum 4 minute off time protects heating and cooling systems from damage.
3 Wire Zoned Hot Water Solenoid Valves W or W1 Y (the 3rd wire) W Jumper Reference Configuration jumpers allow your 6022 to be adapted to many different HVAC control RESET UNIT AFTER CHANGING JUMPERS GAS/ELEC HEAT 12hr clock CELSIUS...
