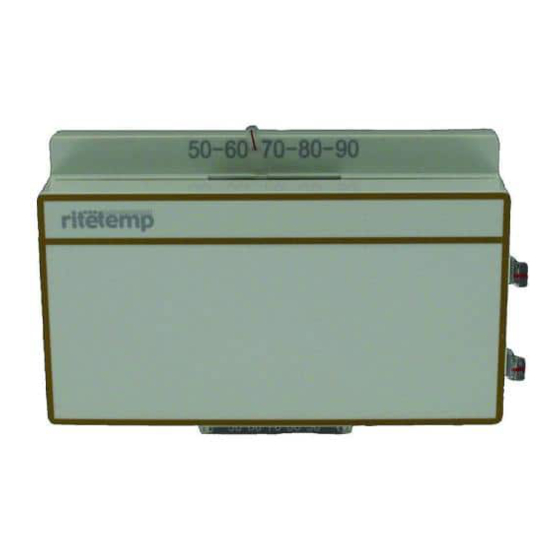

ritetemp 6010 Operation Manual

Operation 6010
Thermometer
Statement of use: The 6010 can be used with most 24
volt gas, oil or electric heating systems, zoned heating
systems, heat pumps with or without auxiliary heat, or
gas millivolt heating systems. It cannot be used with
120 volt heating systems.

Operate

Your thermostat is now in operation.
• In the winter, set the mode switch to
HEAT to control your heating system.
• In the summer, set the mode switch to
COOL to control your air conditioner.
• In spring and fall or when windows are
open, you can set the mode switch OFF.
• Setting the FAN switch to AUTO
automatically runs your system's fan
during heating and cooling.
• Setting the FAN switch to ON runs your
system's fan continuously even without
heating or cooling.
NOTE: LED blinks when batteries are low.
Caution: System will stop when batteries die.
Temperature
Control
Low Battery
indicator
HEAT/COOL
Fan
Mode Switch
Switch
Once you have installed the
thermostat, follow the instructions
below to operate your new
thermostat.

Configure

• Set HEAT/COOL mode switch to
HEAT or COOL. Set the Fan
switch to AUTO (automatic).

Set Temp

Turn the Temperature control to
select the desired temperature.
• Warmer - to the right
• Cooler - to the left.
1
PG
COOLER
ENGLISH
WARMER
2
PG
