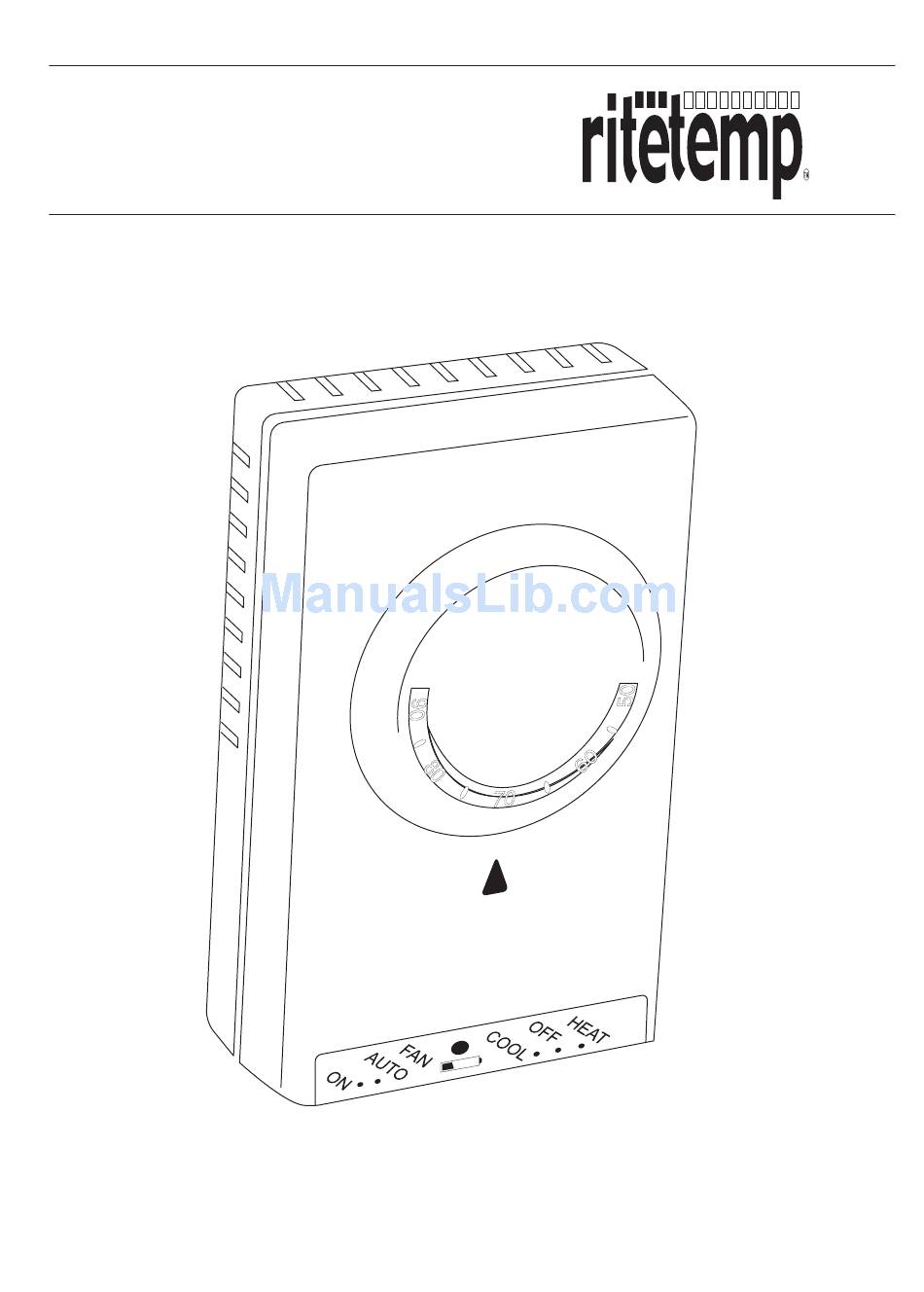

- Page 1 Install Guide 6008...
- Page 2 Install Guide 6008 To avoid electrical shock and to prevent damage to the furnace, air conditioner, Caution and thermostat, disconnect the power supply before beginning work. This can be done at the circuit breaker, or at the appliance. You will need #1 Phillips screwdriver (small) and Tools Drill with 3/16-in.
- Page 3 Hold the base against the wall, with the wires coming through the opening below the terminal block. Position the base for best appearance The 6008 can be mounted vertically or horizontally. chose the position that best suites your wall. Attach the base to the wall with the two screws provided.
- Page 4 G - FAN RELAY C - Common side of Heating Power Y - COMPRESSOR O - If you have this wire the 6008 will not control your system. B - If you have this wire the 6008 will Go To Page 14 Go To Page 13 not control your system.
-
Page 5: Install Batteries
Re-attach the the body onto the base by pressing it firmly onto the base. Install Batteries The 6008 requires 2AA batteries if the C-wire is not available in your furnace installation. Switch MODE switch to OFF and the FAN switch to AUTO. -
Page 6: Power Options
The batteries will last well over 1 year. If the batteries are not replaced the thermostat will stop working. 2) The 6008 can run on the C wire if available. 24VAC ONLY As shown in the wiring diagrams, The C wire is the other side of the 24VAC... - Page 7 a c e F ro m F u rn 2 WIRE Heating STEP 1 - Connect the R (or RH) wire to (GAS MILLIVOLT or 24vac the RH terminal on the thermostat. This connects the Heater Power to the Thermostat thermostat.
-
Page 8: Hvac System
a c e F ro m F u rn STEP 1 - Connect the Y wire to the 4 WIRE a n d A C u n Y terminal on the thermostat. This Thermostat connects to the Cooler compressor. STEP 2 - Connect the RH or R wire to the RH terminal on the thermostat.
