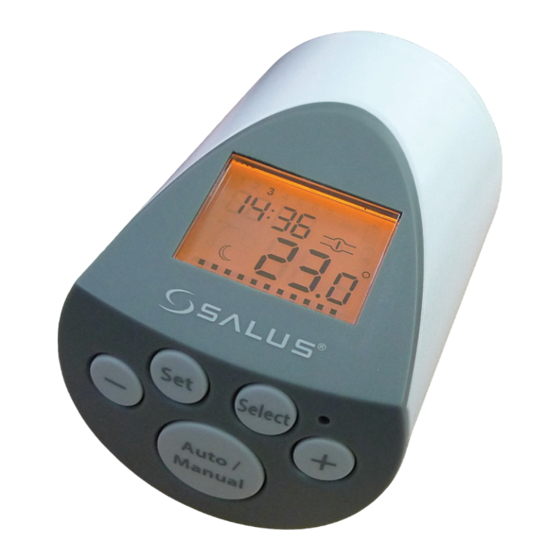

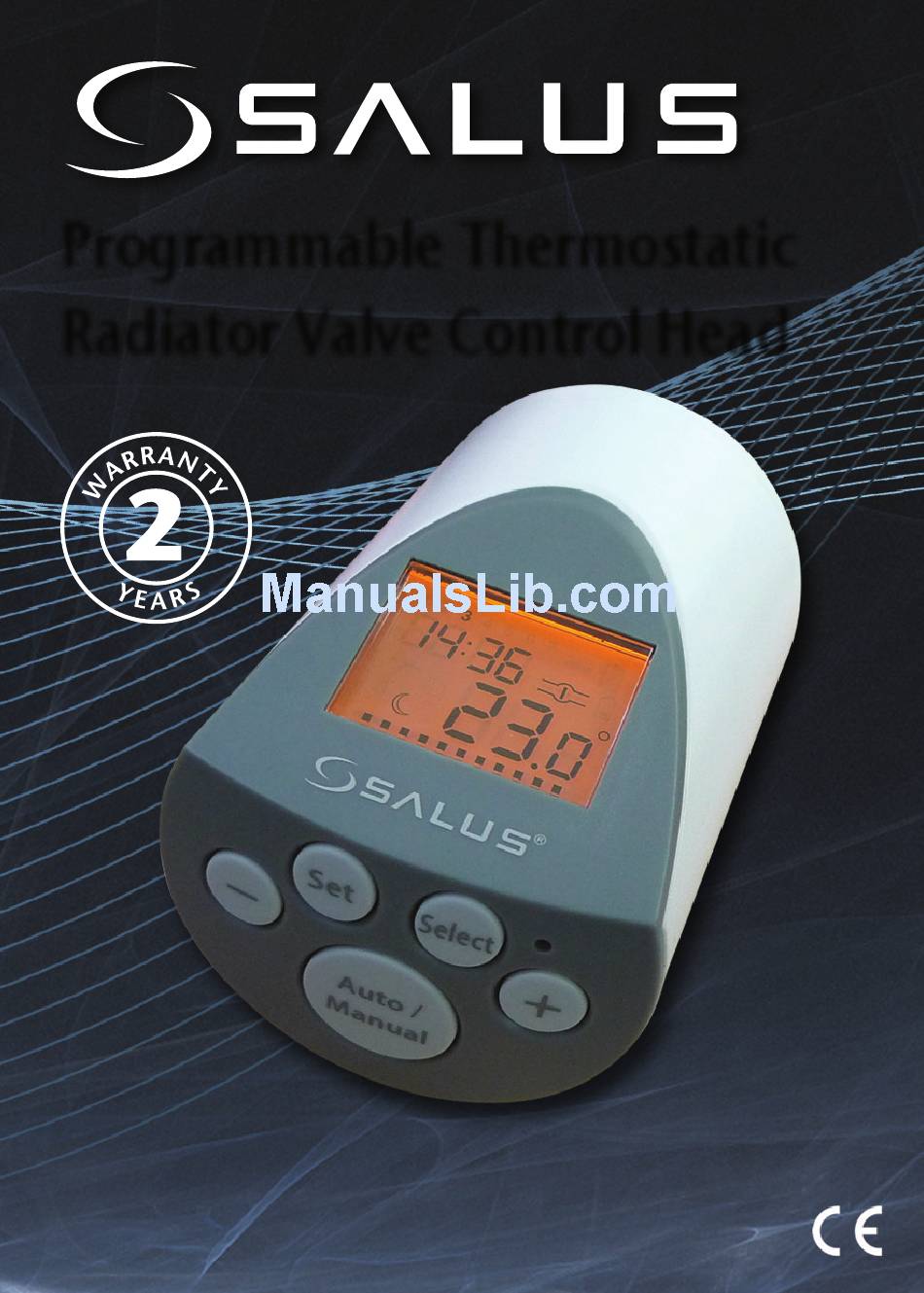

- Page 1 Programmable Thermostatic Radiator Valve Control Head Instruction Manual Model No’s PH60/PH60-1/PH60-C PI Control...
-
Page 2: Product Compliance
• EC Marking directive 93/68/EEC SAFETY INFORMATION These instructions are applicable to the SALUS Controls model stated on the front cover of this manual only, and must not be used with any other make or model. These instructions should be followed along with any other statutory obligations - if you are in any doubt, please contact the SALUS Controls technical helpline. - Page 3 The PH60 is fitted with an easy to read Liquid Crystal Display (LCD) and a five key operating panel, which is coupled with a unique, smart design that makes the PH60 easy to programme and operate.
-
Page 4: Battery Installation And Replacement
After completing installation and powering up the PH60 for the first time the controller will go through an adaptation procedure to check that the valve has been installed correctly. The PH60 will behave in the following way: PH60 INSTRUCTION MANUAL... - Page 5 PH60 controller) The PH60 will then enter ADAPTATION mode. If there are no problems with the battery or gear assembly, the display will be as shown in this example. The flashing indicator shows the motor is operating and retracting the control pin.
- Page 6 Unequal stroke. The measured strokes during stages ‘P2’ and ‘P3’ are not equal (this is normally caused by weak batteries). Operation over time. The motor has been operating for over 100 seconds before reaching the end point. PH60 INSTRUCTION MANUAL...
- Page 7 Pressing any key will restart the adaptation process. It is also possible to enter ADAPTATION mode manually if the PH60 is in NORMAL mode. This is done by pressing the SET key until ‘AdAP’ is shown on the display. Releasing the SET key will start the adaptation process.
-
Page 8: User Interface And Controls
USER INTERFACE AND CONTROLS The status and operation of the PH60 can be clearly seen on the backlit Liquid Crystal Display (LCD) - this display allows the user to see at a glance the current status of the valve controller. - Page 9 Comfort In AUTO mode indicates the set Temperature temperature is ‘Comfort’. Mode Indicator In MANUAL mode indicates the set temperature is ‘Comfort’. In PROGRAMME SETTING mode indicates the set temperature selected for the hour is ‘Comfort’. PH60 INSTRUCTION MANUAL...
- Page 10 ‘Holiday’. Mode In MANUAL mode indicates the Indicator set temperature is ‘Holiday’. Frost Protection In NORMAL mode indicates the Temperature set temperature is ‘Frost Mode Indicator Protection’. In MANUAL mode indicates the set temperature is ‘Frost Protection’. PH60 INSTRUCTION MANUAL...
- Page 11 Indicator Description Function ‘OFF’ Mode Indicates the PH60 is operating Indicator in ‘OFF’ mode - a special manual control mode that closes the TRV regardless of the room temperature or set temperature. Programme In NORMAL mode indicates the Profile Indicator controller is running in AUTO (Programme) control mode.
-
Page 12: Operation
MANUAL control modes. Reset Button Press and hold for more than one second to reset the controller to default (original factory) settings. OPERATION The PH60 is configured and adjusted by the use of five touch sensitive buttons. PH60 INSTRUCTION MANUAL... -
Page 13: Normal Mode
• The ‘Econ’ indicator shows the PH60 set temperature mode is ‘Econ’ Auto and Manual Control Modes When the PH60 is operating in AUTO mode, TRV control is based on the programme currently set. In MANUAL mode, the set temperature is fixed depending on which set temperature mode (Off, Comfort, Econ, Party, Holiday or Frost) has been selected. -
Page 14: Changing Control Mode
– the profile indicator is not displayed, and the set temperature is fixed to the temperature selected by the user. The images below show the PH60 operation in MANUAL mode with the set temperature in ‘Comfort’, ‘Econ’, ‘Party’, ‘Holiday’ and ‘Frost’ modes:... -
Page 15: Display Operation
Display Operation Press the AUTO/MANUAL key once and the PH60 will display ‘SEt’ and the current control mode. Press and hold the SET key or wait for 8 seconds to return to NORMAL mode without making any changes. Press the AUTO/MANUAL key again (or the SELECT key) to change the control mode. - Page 16 Press and hold the SET key for 13 seconds to enter the adaptation mode. The display will change to show ‘AdAP’. Press and hold the SET key for 16 seconds to return the PH60 to NORMAL mode. PH60 INSTRUCTION MANUAL...
-
Page 17: Time Setting Mode
PH60 to NORMAL mode. Programme Setting Mode The PH60 offers great versatility with its programming options, allowing the user to programme the controller to operate on a 7 day individual, 5/2 or 7 day control cycle. The controller has... - Page 18 In the examples shown above, the time between 0600 to 2200 will represent a ‘Comfort’ setting ( High set point temperature) The blank areas will represent an Econ setting ( Low set point temperature) Please note, Econ temperature cannot be set higher than Comfort temperature setting. PH60 INSTRUCTION MANUAL...
- Page 19 All the set temperatures are adjustable in 0.5 ºC steps. ‘Comfort’ and ‘Econ’ are used in programmes. If these default programmes are not suitable for your particular situation, reprogramming the PH60 with your own settings is a very straightforward operation. After entering the Programme Setting mode, the programme...
- Page 20 The temperature indicator, set temperature and programme profile will then be displayed to allow you to continue adjusting the programme settings. If no keys are pressed for 30 seconds, the PH60 will automatically return to NORMAL mode. PH60 INSTRUCTION MANUAL...
- Page 21 Programme Copy Mode The PH60 programme copy mode allows the user to copy one day’s programme settings to another day. Display Operation On entering programme copy mode, day 1 (Monday) is displayed and flashing. The programme copy indicator is also displayed with an animated pointer pointing towards the clipboard.
-
Page 22: Option Setting Mode
The first option is Language. "LAnG" for English. "SPrA" for German. The current language setting is displayed. The default language setting for the PH60 is English (‘EnG’). Pressing the + or – keys will allow you to change the setting. Pressing the SET key will confirm the choice and move to the next screen. - Page 23 ‘YES’ or ‘NO’. Pressing the SET key will confirm the choice and return the PH60 to NORMAL mode. If no keys are pressed for 30 seconds, the PH60 will automatically return to NORMAL mode. PH60 INSTRUCTION MANUAL...
- Page 24 Adaptation Mode It is possible to enter ADAPTATION mode manually if the PH60 is in NORMAL mode. This is done by pressing the SET key until ‘AdAP’ is shown on the display. Releasing the SET key will start the adaptation process. If an...
- Page 25 OTHER FUNCTIONS AND CONTROLS Valve Status Indication The status of the TRV is displayed on the PH60 is shown by the valve status indicator: Display Status When the TRV is closed, the PH60 will display a ‘closed valve’ indicator. When the TRV is open, the PH60 will display a ‘water flow’...
- Page 26 TRV at least once a day. At 13:00 every day, if the valve has not been operated in the last 24 hours the PH60 will open and close the valve once. This will be indicated on the display as shown: When enabled, limescale protection will continue to operate even if the ‘Off’...
- Page 27 If the temperature falls quickly (within a user selectable setting of 1.0, 1.5 or 2.5 ºC) the PH60 will enter Open Window mode and close the TRV. If the room temperature stops falling (or starts to rise) the Open Window mode will stop and reset the detection state.
-
Page 28: Reset Button
Reset Button The Reset Button is provided as a way to restore the PH60 to its default factory settings. Pressing this button will delete any previously entered settings. The default factory settings for the PH60 are: Function Default Setting Operating Mode... - Page 29 The PH60 keypad can be locked to prevent any accidental changing of the controller settings. The keylock mode can be turned on when the PH60 is in NORMAL mode by pressing and holding the SELECT key for three seconds. Once active, pressing any key will show ‘LOC’ on...
-
Page 30: Low Battery Detection
The PH60 will also monitor the maximum motor speed achieved when the valve is being operated. If the motor speed is too low, the PH60 will assume that the battery is low or there is some problem with the valve actuator. -
Page 31: Off Mode
Off Mode The PH60 has a special manual control mode (‘Off’ mode) that will close the TRV regardless of the room temperature or set temperature. Off mode is generally used when heating is not needed, for example in the summer. When Off mode is operating, it will... -
Page 32: Maintenance
You can do this by setting the PH60 to a low temperature, (for example 17 °C) and then increasing the setting by one degree each day until you are comfortable with the room temperature - you won’t have to adjust the thermostat further, as adjustment... -
Page 33: Product Specification
‘Econ’ set points Group programming function Override Facility: User selectable programme override facility. Temperature Scale: Celsius Tolerance: Less than ± 0.5 ºC at 25 ºC Display Range: 0.0 ºC to 40.0 ºC Display Resolution: 0.5 ºC PH60 INSTRUCTION MANUAL... -
Page 34: Control Modes
2 x AA (LR6) alkaline batteries Battery Life: Approximately 1 year Memory and Operating Backup Memory Backup: Electrically Erasable Programmable Read Only Memory (EEPROM) Environment Operating Temperature: 0 ºC to + 50 ºC Storage Temperature: - 20 ºC to + 60 ºC PH60 INSTRUCTION MANUAL... - Page 35 Salus Controls warrants that this product will be free from any defect in materials or workmanship, and shall perform in accordance with its specification, for a period of two years from the date of purchase. Salus Controls sole liability for breach of this warranty will be (at its option) to repair or replace the defective product.
- Page 36 Email: sales@salus-tech.com Tel: 01226 323961 Sales Email: tech@salus-tech.com Tel: 01226 323961 Technical SALUS Controls plc, Salus House, Dodworth Business Park South, Whinby Road, Dodworth, Barnsley S75 3SP 15/05/2013 Ver013...
