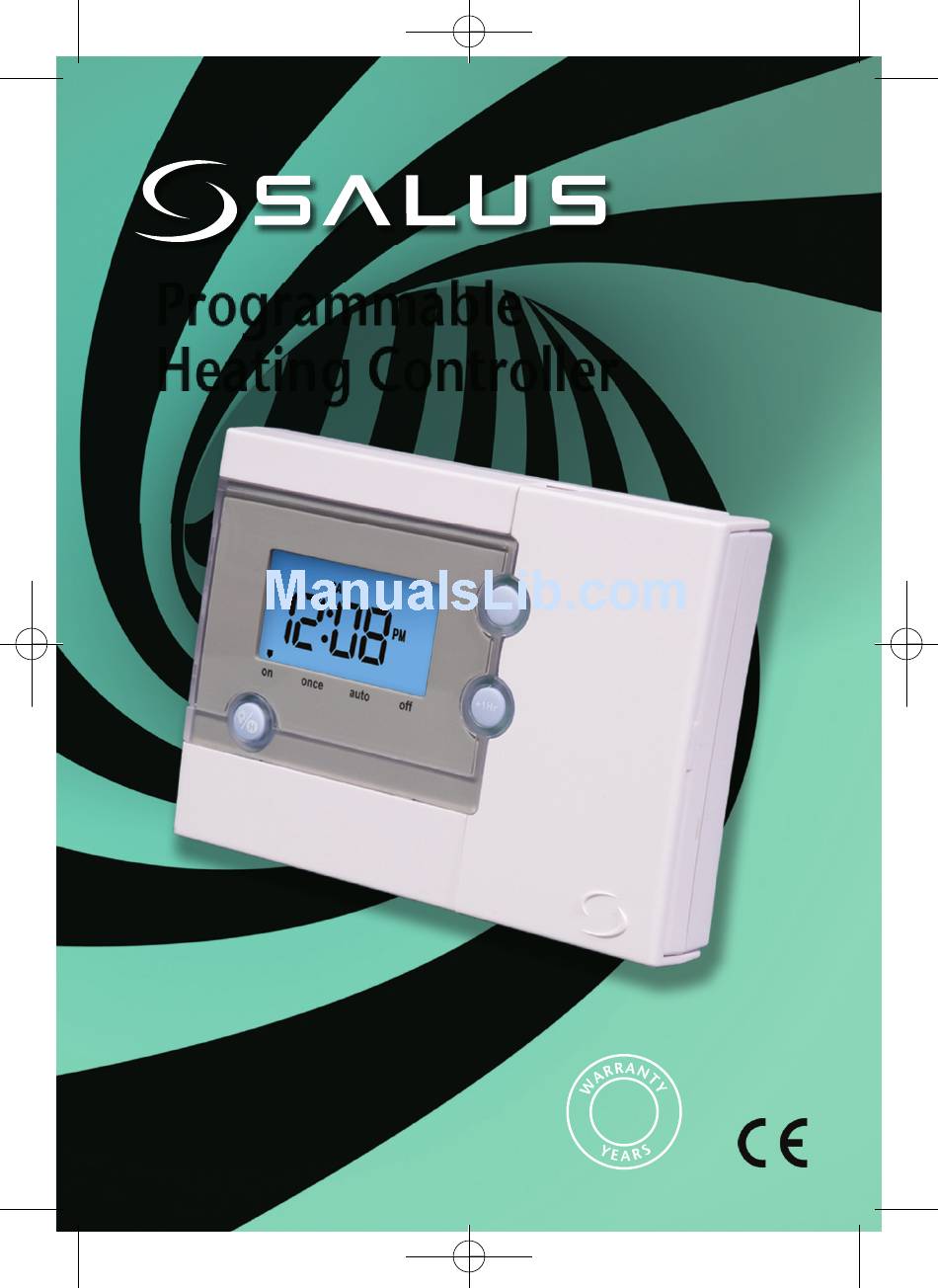

- Page 1 Salus EP101 Manual 001:89 21/11/10 11:49 Page 1 Programmable Heating Controller Instruction Manual Model No EP101...
- Page 2 Salus EP101 Manual 001:89 21/11/10 11:49 Page 2...
- Page 3 • EC Marking directive 93/68/EEC SAFETY INFORMATION These instructions are applicable to the Salus Controls model stated on the front cover of this manual only, and must not be used with any other make or model. These instructions are intended to apply in the United Kingdom only, and should be followed along with any other statutory obligations.
- Page 4 It works by controlling the heating boiler according to a series of programmed settings that take effect at different times of the day. The EP101 from Salus Controls is a stylish and accurate 5/2 or 7 day programmable heating controller...
- Page 5 Salus EP101 Manual 001:89 21/11/10 11:49 Page 5 INSTALLATION Please read the important safety information at the start of this manual before you begin to install the device. The ideal position to locate the EP101 programmable heating controller is about 1.5m above floor level. It should be mounted in a location where the controller is easily accessible, reasonably lit and free from extremes of temperature.
- Page 6 Salus EP101 Manual 001:89 21/11/10 11:49 Page 6 Volt Free Switching Terminal Description Backplate Mains Neutral Mains Live Normally Closed (NC) No Connection Normally Open (NO) Volt Free Common Earth Parking (no electrical connection) After installing the backplate in a suitable location, wiring connections can be made as shown above.
- Page 7 Salus EP101 Manual 001:89 21/11/10 11:49 Page 7 JUMPER SETTINGS Changes to the jumper settings should only be made by the Engineer carrying out the installation or other qualified person. The installer should select the jumper positions required if changes need to be made to the factory default settings.
- Page 8 Salus EP101 Manual 001:89 21/11/10 11:49 Page 8 AFTER INSTALLATION After completing installation and powering up the EP101 for the first time the controller will behave in the following way: All the indicators on the display and the backlight will be turned on for two seconds.
- Page 9 Salus EP101 Manual 001:89 21/11/10 11:49 Page 9 USER INTERFACE AND CONTROLS The status and operation of the EP101 can be clearly seen on the large backlit Liquid Crystal Display (LCD) - this display allows the user to see at a glance the current status of the heating system.
- Page 10 Salus EP101 Manual 001:89 21/11/10 11:49 Page 10 OPERATION The EP101 is configured and adjusted by the use of an intuitive user interface with a minimal number of user controls. The backlit LCD gives a highly visible, easily readable indication of the controller status.
- Page 11 Salus EP101 Manual 001:89 21/11/10 11:49 Page 11 Pressing and releasing SELECT again will then display the year as displayed Press the UP or DOWN keys to increase or decrease the year – valid settings are between 05 and 99 (indicating a year range of 2005 to 2099).
- Page 12 Salus EP101 Manual 001:89 21/11/10 11:49 Page 12 PROGRAMMING THE EP101 The EP101 offers great versatility with its programming options, allowing the user to programme the unit to operate on a 5/2 or 7 day control cycle. The controller has a default set of programmes that have been designed to meet the needs of most users.
- Page 13 Salus EP101 Manual 001:89 21/11/10 11:49 Page 13 Press the SELECT key to confirm the Weekday or Weekend selection. Once this is set, the ‘Hour’ will flash to indicate that it is the selected item and is the next item to be adjusted:...
- Page 14 Salus EP101 Manual 001:89 21/11/10 11:49 Page 14 7 Day Mode The EP101 also offers a 7 day programming mode, which allows you to programme three different sets of on/off times for each day of the week to give a total of 21 separate programme settings.
- Page 15 Salus EP101 Manual 001:89 21/11/10 11:49 Page 15 Pressing the SELECT key allows you to step through each of the items to be reviewed or adjusted within the programmes in the following sequence: Programme Status Function Sequence Hour Minutes Hour...
-
Page 16: Operating Mode Selection
Salus EP101 Manual 001:89 21/11/10 11:49 Page 16 OPERATING MODE SELECTION The EP101 operating mode is selected by pressing the MODE key. There are four operating modes for the controller: ON, ONCE, AUTO and OFF The mode can be changed when the controller is in NORMAL mode by pressing the MODE key. - Page 17 Salus EP101 Manual 001:89 21/11/10 11:49 Page 17 Holiday Override Mode The holiday override mode allows the user to override all the current programme settings and turn off the heating for up to 31 days. When the EP101 is in Normal mode, pressing the BACKLIGHT/HOLIDAY key for 3 seconds or longer allows you to turn on the holiday override mode.
- Page 18 Salus EP101 Manual 001:89 21/11/10 11:49 Page 18 Temporary Override Mode The temporary override mode allows the user to override the current programme settings and turn the heating on for a preset period. This mode is activated by pressing the +1Hr key.
-
Page 19: Reset Button
Salus EP101 Manual 001:89 21/11/10 11:49 Page 19 OTHER FUNCTIONS AND CONTROLS Backlight The backlight of the EP101 is switched on automatically whenever any of the keys are pressed. The backlight will remain illuminated for approximately 5 seconds after the last key press, except if you are changing settings within the Clock, Programme or Temporary Override modes –... - Page 20 There are no user serviceable parts within the unit; any servicing or repairs should only be carried out by Salus Controls or their appointed agents. Should the EP101 programmable heating controller fail to function correctly, check: •...
- Page 21 Salus EP101 Manual 001:89 21/11/10 11:49 Page 21 PRODUCT SPECIFICATION Model: EP101 Type: Programmable heating controller designed for 230V AC and Volt Free heating applications. Programming Programming Modes: User selectable for 5/2 or 7 day option Number of Programmes: Three (3) user programmes plus factory default programme.
- Page 22 Page 22 EP101 Warranty Salus Controls warrants that this product will be free from any defect in materials or workmanship, and shall perform in accordance with its specification, for a period of two years from the date of purchase. Salus Controls sole liability for breach of this warranty will be (at its option) to repair or replace the defective product.
- Page 23 Salus EP101 Manual 001:89 21/11/10 11:49 Page 23...
- Page 24 Salus EP101 Manual 001:89 21/11/10 11:49 Page 24 salus-tech. Email: sales@salus-tech.com Tel: 01226 323961 Sales Email: tech@salus-tech.com Tel: 01226 323961 Technical Salus Controls plc, Salus House, Dodworth Business Park South, Whinby Road, Dodworth, Barnsley S75 3SP...
