- Page 1 Salus RT100 Manual 001:89 17/11/10 19:34 Page 1 Electronic Room Thermostat Instruction Manual Model No RT100...
- Page 2 Salus RT100 Manual 001:89 17/11/10 19:34 Page 2 RT100 INSTRUCTION MANUAL...
-
Page 3: Product Compliance
EC Marking directive 93/68/EEC SAFETY INFORMATION These instructions are applicable to the Salus Controls model stated on the front cover of this manual only, and must not be used with any other make or model. These instructions are intended to apply in the United Kingdom only, and should be followed along with any other statutory obligations. -
Page 4: Operation

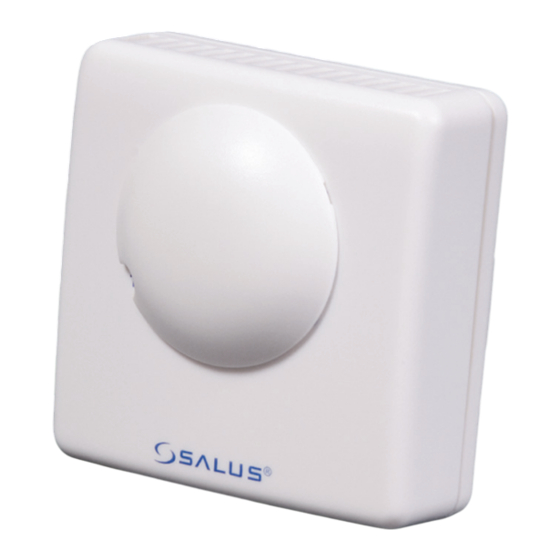

The RT100 from Salus Controls is a stylish and accurate mechanical thermostat with a large, easy to adjust setting dial. The thermostat has been specifically designed to be used Volt Free. -
Page 5: Installation
Salus RT100 Manual 001:89 17/11/10 19:34 Page 5 INSTALLATION Please read the important safety information at the start of this manual before you begin to install the thermostat. Location The ideal position to locate the RT100 thermostat is about 1.5m above floor level, in a location where the thermostat is accessible, reasonably lit and free from extremes of temperature and draughts. -
Page 6: Electrical Connections
Salus RT100 Manual 001:89 17/11/10 19:34 Page 6 ELECTRICAL CONNECTIONS Terminal Description Wiring Diagram Mains Neutral Mains Live Common Normally Open Contact Normally Closed Contact NO contact is used for heating; NC contact for cooling Do not restore the mains supply to the system until all associated items are fully installed. - Page 7 Salus RT100 Manual 001:89 17/11/10 19:34 Page 7 REASSEMBLING THE THERMOSTAT Reassembly of the RT100 is very straightforward; just a reversal of the steps taken earlier. Refit the cover and secure with the securing screw, and refit the setting dial: do not force the dial - it will only locate in one position.
-
Page 8: Maintenance
• Heating system time switch or programmer is switched on. WARRANTY Salus Controls warrants that this product will be free from any defect in materials or workmanship, and shall perform in accordance with its specification, for a period of two years from the date of purchase. Salus Controls sole liability for breach of this warranty will be (at its option) to repair or replace the defective product. -
Page 9: Product Specification
Salus RT100 Manual 001:89 17/11/10 19:34 Page 9 PRODUCT SPECIFICATION Model: RT100 Type: Surface mounted mechanical room thermostat designed for volt free heating applications. heating applications. Switching Switching Voltage: 230V AC / 50Hz Switching Current: 1A inductive Contact Type: Volt Free... - Page 10 Page 10 RT100 Warranty Salus Controls warrants that this product will be free from any defect in materials or workmanship, and shall perform in accordance with its specification, for a period of two years from the date of purchase. Salus Controls sole liability for breach of this warranty will be (at its option) to repair or replace the defective product.
