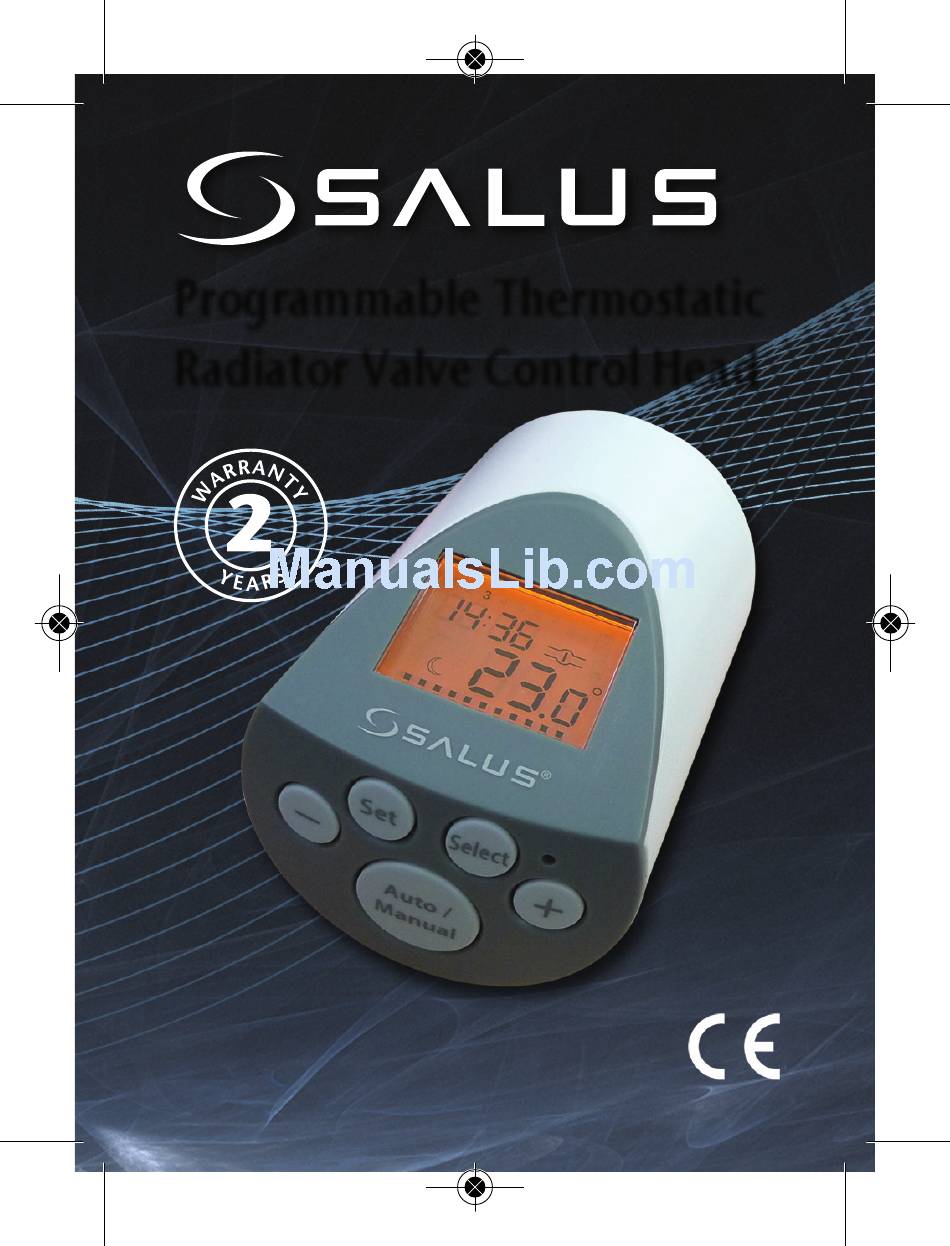

- Page 1 Salus PH60 Manual 008_89 18/01/2013 11:09 Page 1 Programmable Thermostatic Radiator Valve Control Head Instruction Manual Model No PH60 PI Control...
-
Page 2: Product Compliance
Salus PH60 Manual 008_89 18/01/2013 11:09 Page 2 PRODUCT COMPLIANCE This product complies with the essential requirements of the following EC Directives: • Electro-Magnetic Compatibility directive 2004/108/EC • Low Voltage Directive 2006/95/EEC • EC Marking directive 93/68/EEC SAFETY INFORMATION These instructions are applicable to the SALUS Controls model stated on the front cover of this manual only, and must not be used with any other make or model. - Page 3 The PH60 is fitted with an easy to read Liquid Crystal Display (LCD) and a five key operating panel, which is coupled with a unique, smart design that makes the PH60 easy to programme and operate.
-
Page 4: Battery Installation And Replacement
PH60, TRV or both. Battery Installation and Replacement Installation of the batteries is a straightforward operation. Unscrew the end cap from the PH60 body as shown in this picture, and insert the batteries – please make sure that the batteries are inserted correctly. - Page 5 PH60 controller) The PH60 will then enter ADAPTATION mode. If there are no problems with the battery or gear assembly, the display will be as shown in this example. The flashing indicator shows the motor is operating and retracting the control pin.
- Page 6 Salus PH60 Manual 008_89 18/01/2013 11:09 Page 6 At the start of the adaptation procedure, the controller will check the battery and gear assembly; if there are any problems, the following screens will be displayed: Display Error This example shows the battery voltage is low.
- Page 7 Pressing any key will restart the adaptation process. It is also possible to enter ADAPTATION mode manually if the PH60 is in NORMAL mode. This is done by pressing the SET key until ‘AdAP’ is shown on the display. Releasing the SET key will start the adaptation process.
-
Page 8: User Interface And Controls
Salus PH60 Manual 008_89 18/01/2013 11:09 Page 8 USER INTERFACE AND CONTROLS The status and operation of the PH60 can be clearly seen on the backlit Liquid Crystal Display (LCD) - this display allows the user to see at a glance the current status of the valve controller. - Page 9 Salus PH60 Manual 008_89 18/01/2013 11:09 Page 9 Indicator Description Function Temperature In NORMAL mode indicates the Indicator room temperature. In PROGRAMME mode indicates the set temperature. In TEMPERATURE mode indicates the set temperature. Valve Status A ‘water flow’ animation is Indicator shown when the valve is opened.
- Page 10 Salus PH60 Manual 008_89 18/01/2013 11:09 Page 10 Indicator Description Function Econ In AUTO mode indicates the set Temperature temperature is ‘Econ’. Mode Indicator In MANUAL mode indicates the set temperature is ‘Econ’. In PROGRAMME SETTING mode indicates the set temperature selected for the hour is ‘Econ’.
- Page 11 Salus PH60 Manual 008_89 18/01/2013 11:09 Page 11 Indicator Description Function ‘OFF’ Mode Indicates the PH60 is operating Indicator in ‘OFF’ mode - a special manual control mode that closes the TRV regardless of the room temperature or set temperature.
-
Page 12: Operation
Salus PH60 Manual 008_89 18/01/2013 11:09 Page 12 User control function summary: Key / Operation Functions Increases or changes the selected setting. Decreases or changes the selected setting. Enters Menu or confirms a menu selection SELECT Selects item when in SET mode... -
Page 13: Normal Mode
• The ‘Econ’ indicator shows the PH60 set temperature mode is ‘Econ’ Auto and Manual Control Modes When the PH60 is operating in AUTO mode, TRV control is based on the programme currently set. In MANUAL mode, the set temperature is fixed depending on which set temperature mode (Off, Comfort, Econ, Party, Holiday or Frost) has been selected. -
Page 14: Changing Control Mode
– the profile indicator is not displayed, and the set temperature is fixed to the temperature selected by the user. The images below show the PH60 operation in MANUAL mode with the set temperature in ‘Comfort’, ‘Econ’, ‘Party’, ‘Holiday’ and ‘Frost’ modes:... - Page 15 Press and hold the SET key or wait for 8 seconds to return to NORMAL mode and the PH60 will start to operate in the new mode. When choosing the control mode, you can use the + or – keys to change the set temperature setting.
- Page 16 Salus PH60 Manual 008_89 18/01/2013 11:09 Page 16 Accessing the Menus To access the Mode screens, press the SET key as indicated in the table below: Display Operation Press and hold the SET key for one second to enter the time setting mode. The display will change to show ‘CLOC’.
-
Page 17: Time Setting Mode
PH60 to NORMAL mode. Programme Setting Mode The PH60 offers great versatility with its programming options, allowing the user to programme the controller to operate on a 7 day individual, 5/2 or 7 day control cycle. The controller has... - Page 18 Salus PH60 Manual 008_89 18/01/2013 11:09 Page 18 Day of Week Factory Preset Programme Monday Tuesday Wednesday Thursday Friday Saturday Sunday The PH60 has 5 preset set temperature modes: No Programme Description Comfort A warm, comfortable setting. Adjustable between 7 – 30 ºC Econ A lower setting than ‘Comfort’...
- Page 19 All the set temperatures are adjustable in 0.5 ºC steps. ‘Comfort’ and ‘Econ’ are used in programmes. If these default programmes are not suitable for your particular situation, reprogramming the PH60 with your own settings is a very straightforward operation. After entering the Programme Setting mode, the programme...
- Page 20 The temperature indicator, set temperature and programme profile will then be displayed to allow you to continue adjusting the programme settings. If no keys are pressed for 30 seconds, the PH60 will automatically return to NORMAL mode. PH60 INSTRUCTION MANUAL...
- Page 21 Salus PH60 Manual 008_89 18/01/2013 11:09 Page 21 Programme Copy Mode The PH60 programme copy mode allows the user to copy one day’s programme settings to another day. Display Operation On entering programme copy mode, day 1 (Monday) is displayed and flashing. The programme copy indicator is also displayed with an animated pointer pointing towards the clipboard.
-
Page 22: Option Setting Mode
The first option is Language. ‘LANg’ and the current language setting is displayed. The default language setting for the PH60 is German (‘dEu’). Pressing the + or – keys will allow you to change the setting. Pressing the SET key will confirm the choice and move to the next screen. - Page 23 ‘YES’ or ‘NO’. Pressing the SET key will confirm the choice and return the PH60 to NORMAL mode. If no keys are pressed for 30 seconds, the PH60 will automatically return to NORMAL mode. PH60 INSTRUCTION MANUAL...
- Page 24 Salus PH60 Manual 008_89 18/01/2013 11:09 Page 24 Adaptation Mode It is possible to enter ADAPTATION mode manually if the PH60 is in NORMAL mode. This is done by pressing the SET key until ‘AdAP’ is shown on the display.
- Page 25 Salus PH60 Manual 008_89 18/01/2013 11:09 Page 25 OTHER FUNCTIONS AND CONTROLS Valve Status Indication The status of the TRV is displayed on the PH60 is shown by the valve status indicator: Display Status When the TRV is closed, the PH60 will display a ‘closed valve’...
- Page 26 TRV at least once a day. At 13:00 every day, if the valve has not been operated in the last 24 hours the PH60 will open and close the valve once. This will be indicated on the display as shown: When enabled, limescale protection will continue to operate even if the ‘Off’...
- Page 27 If the temperature falls quickly (within a user selectable setting of 1.0, 1.5 or 2.5 ºC) the PH60 will enter Open Window mode and close the TRV. If the room temperature stops falling (or starts to rise) the Open Window mode will stop and reset the detection state.
-
Page 28: Reset Button
Salus PH60 Manual 008_89 18/01/2013 11:09 Page 28 Reset Button The Reset Button is provided as a way to restore the PH60 to its default factory settings. Pressing this button will delete any previously entered settings. The default factory settings for the PH60 are:... - Page 29 The PH60 keypad can be locked to prevent any accidental changing of the controller settings. The keylock mode can be turned on when the PH60 is in NORMAL mode by pressing and holding the SELECT key for three seconds. Once active, pressing any key will show ‘LOC’ on...
-
Page 30: Low Battery Detection
The PH60 will also monitor the maximum motor speed achieved when the valve is being operated. If the motor speed is too low, the PH60 will assume that the battery is low or there is some problem with the valve actuator. -
Page 31: Off Mode
Salus PH60 Manual 008_89 18/01/2013 11:09 Page 31 Off Mode The PH60 has a special manual control mode (‘Off’ mode) that will close the TRV regardless of the room temperature or set temperature. Off mode is generally used when heating is not needed, for example in the summer. -
Page 32: Maintenance
You can do this by setting the PH60 to a low temperature, (for example 17 °C) and then increasing the setting by one degree each day until you are comfortable with the room temperature - you won’t have to adjust the thermostat further, as adjustment... -
Page 33: Product Specification
Salus PH60 Manual 008_89 18/01/2013 11:09 Page 33 PRODUCT SPECIFICATION Model: PH60 Type: Electronic programmable thermostat for radiator valve control. Clock Display Modes: 24 hour clock with Day of Week display. Tolerance: ±60 seconds per month Programming Programming Modes: User selectable for 7 day individual, 5/2 or 7 day options Hourly programming to ‘Comfort’... - Page 34 Salus PH60 Manual 008_89 18/01/2013 11:09 Page 34 Control Modes Operating Modes: Auto (program) or Manual (in manual mode, user can select one of 6 preset temperature modes) Programme Range Step Comfort 7 – 30 ºC 0.5 ºC Econ 7 – 30 ºC 0.5 ºC Party 15 –...
- Page 35 Salus Controls warrants that this product will be free from any defect in materials or workmanship, and shall perform in accordance with its specification, for a period of two years from the date of purchase. Salus Controls sole liability for breach of this warranty will be (at its option) to repair or replace the defective product.
- Page 36 Salus PH60 Manual 008_89 18/01/2013 11:09 Page 36 salus-tech. Email: sales@salus-tech.com Tel: 01226 323961 Sales Email: tech@salus-tech.com Tel: 01226 323961 Technical SALUS Controls plc, Salus House, Dodworth Business Park South, Whinby Road, Dodworth, Barnsley S75 3SP 17/01/2013 V008...
