Page 1: User Manual

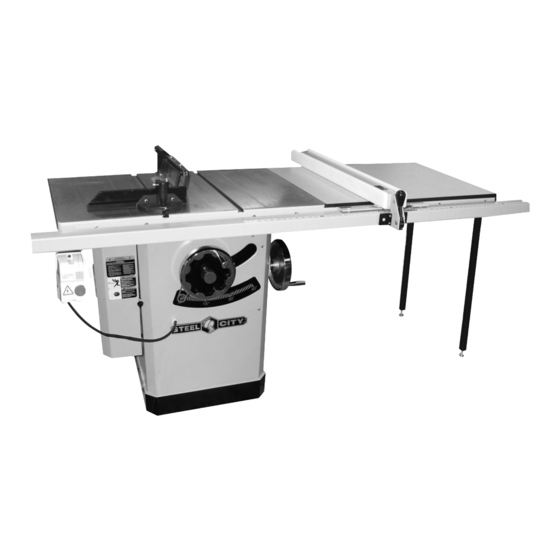

User Manual Read and understand this manual before using machine. 10" TABLE SAW Shown with optional industrial fence. Model Numbers 35619, 35639 ® STEEL CITY TOOL WORKS Manual Part No. OR73339 VER. 11.06... -
Page 3: Table Of Contents
The drawings, illustrations, photographs, and specifications in this user manual represent your machine at time of print. However, changes may be made to your machine or this manual at any time with no obligation to Steel City Tool Works. -
Page 4: Warranty
STEEL CITY TOOL WORKS 5 YEAR LIMITED WARRANTY Steel City Tool Works, LLC (“SCTW”) warrants all “STEEL CITY TOOL WORKS” machinery to be free of defects in workmanship and materials for a period of 5 years from the date of the original retail purchase by the original owner. - Page 5 City:______________________________________________ ___ Vacuum Veneer Press ___ Wide Belt Sander Other____________________________________________ How did you first learn of Steel City Tool Works? ___ Advertisement ___ Mail Order Catalog 11. Which benchtop tools do you own? Check all that apply. ___ Web Site...
- Page 6 FOLD ON DOTTED LINE PLACE STAMP HERE Steel City Tool Works P.O. Box 10529 Murfreesboro, TN 37129 FOLD ON DOTTED LINE...
-
Page 7: Product Specifications
3450 ACCESSORIES AND ATTACHMENTS There are a variety of accessories available for your Steel City Product. For more information on any accessories associated with this and other machines, please contact your nearest Steel City distributor, or visit our website at: www.steelcitytoolworks.com. -
Page 8: Definition Of Terms
DEFINITION OF TERMS Anti-Kickback Fingers – A safety device attached to Heeling – The misalignment of the blade to the miter the blade guard and splitter assembly designed to mini- slots; when the blade is not parallel to the miter slots. mize the chance of a workpiece being thrown back dur- ing a cutting operation. -
Page 9: Feature Identification
FEATURE IDENTIFICATION A. Miter Gauge Assembly B. Blade Guard Assembly C. Blade Height Adjustment Handwheel D. Blade Height Lock Knob E. Bevel Adjustment Handwheel F. Switch G. Motor Cover... -
Page 10: General Safety
GENERAL SAFETY WARNING WARNING TO AVOID serious injury and damage to the machine, read and follow all Safety and Operating Instructions before assembling and operating this machine. This manual is not totally comprehensive. It does not Exposure to the dust created by power sanding, saw- and can not convey every possible safety and opera- ing, grinding, drilling and other construction activities tional problem which may arise while using this... - Page 11 11. DO NOT FORCE the machine to perform an opera- WARNING tion for which it was not designed. It will do a safer and higher quality job by only performing operations for which the machine was intended. 12. DO NOT stand on a machine. Serious injury could result if it tips over or you accidentally contact any 3.
-
Page 12: Product Safety
WARNING 9. DO NOT handle the plug or table saw with wet hands. 10. USE accessories only recommended by Steel City. 4. TO REDUCE the risk of electrical shock. DO NOT use this machine outdoors. DO NOT 11. DO NOT pull the table saw by the power cord. -
Page 13: Electrical Requirements
12. DO NOT unplug the table saw by pulling on the 20. DO NOT execute a cut when you do not have power cord. ALWAYS grasp the plug, not the cord. complete control of the situation. 13. REPLACE a damaged cord immediately. DO NOT 21. -
Page 14: Extension Cords
GROUNDING INSTRUCTIONS The motor supplied with your machine is a 230 volt, WARNING 60 hertz, single phase motor. Never connect the green or ground wire to a live terminal. A machine with a 230 volt plug should only be connect- ed to an outlet having the same configuration as the plug. -
Page 15: Unpacking & Inventory
“ON” after all the parts have been work surface. obtained and installed correctly. For missing parts, contact Steel City at 1-877-SC4-TOOL. Remove any protective materials and coatings from all of the parts and the table saw. The protective coatings A. - Page 16 Blade Guard Assembly J. Cast Iron Wings K. Motor Cover...
-
Page 17: Assembly
ASSEMBLY Fig. 1 WARNING MAKE CERTAIN THAT THE SAW IS DISCONNECT- ED FROM THE POWER SOURCE. INSTALLATION AND LEVELING Final location for the saw must be level, dry, well light- ed, and have enough room to allow movement around the saw with long pieces of wood stock. Level the saw front to back and side to side, using a carpenter’s level placed on the table. -
Page 18: Section 11 Adjustments
HANDWHEEL ASSEMBLY Fig. 5B Fig. 3 3. If an adjustment is necessary, loosen the two socket head cap screws(C), and reposition the 1. Line up the key on the shaft with the keyway in the bracket so that it is in line with the machined face handwheel (A), and slide the handwheel onto the of the arbor flange. -
Page 19: Installing Blade
INSTALLING BLADE 5. If an adjustment is necessary, loosen the two sock- et head cap screws(C), and reposition the bracket until the machined face of the bracket is square to WARNING the table top. Retighten the screws once square- ness is achieved. SEE FIG. 5C. MAKE CERTAIN THAT THE SAW IS DISCONNECT- 6. -
Page 20: Adjustments
ADJUSTMENTS ALIGNING BLADE GUARD 3. Adjust the table insert flush with the table by turning four leveling screws and using a straight edge. ASSEMBLY SEE FIG. 8. Fig. 8 WARNING MAKE CERTAIN THAT THE SAW IS DISCONNECT- ED FROM THE POWER SOURCE. Fig. -
Page 21: Blade Alignment
BLADE RAISING AND BLADE ALIGNMENT TILTING MECHANISM Blade alignment with the table is adjusted at the factory. After a period of use, or after moving the saw to an- Fig. 10 other location, the blade may no longer be aligned with the table. -
Page 22: Positive Stops
Fig. 13 3. Place a square on the table and check to see that the blade is at a 90° angle to the table. Make sure square is not touching a blade tooth. SEE FIG. 14. Fig. 14 3. If they are not the same, loosen the four socket head cap screws(A) that hold the table to the base. - Page 23 MOUNTING RAILS, FENCE 5. Tighten the lock nut (A). AND EXTENSION TABLE 6. Set the blade at 45 degrees to the table by turning the blade tilting handwheel counterclockwise as far as With the extension wings properly aligned, the rail and it will go.
-
Page 24: Operations
OPERATIONS PRE-RUN CHECK WARNING Before you begin to use your Table Saw, you should MAKE CERTAIN THAT THE SAW IS DISCONNECT- give it a thorough inspection, making sure you ask ED FROM THE POWER SOURCE. yourself the following questions: 1. Is the blade mounted correctly? 2. -
Page 25: Blade Selection
BLADE SELECTION 3. Combination Blade: Used for cutting with and across the grain. A compromise between a rip blade Choosing the correct blade for the job is essential for and a cross-cut blade, a 10” combination blade will the safe and efficient use of your table saw. Ignoring typically have between 40-50 teeth. - Page 26 CROSSCUTTING RIPPING Crosscutting means cutting across the grain of the Ripping means to cut with the grain of the wood. In wood. In wood products without grain (i.e. MDF, other materials such as MDF or plywood, ripping simply means to cut lengthwise. To rip a board: particleboard), crosscutting simply means cutting across the width of the stock.
-
Page 27: Dado Operations
Do not stand directly behind the workpiece when WARNING ripping. SEE FIG. 24. Fig. 24 Dado operations present very real hazards requiring proper procedures to avoid serious injury. The chance of kickback is always greater when dado blades are used so extra precautions must be used. -
Page 28: Maintenance
1. Lower the blade to its lowest point. 2. Loosen the hex cap bolt (A). SEE FIG. 1. MODEL 35619 ONLY 3. Take the tension off of the belts (B) by lifting up on the motor. -
Page 29: Troubleshooting
TROUBLESHOOTING GUIDE This section covers the most common processing problems encountered in sawing and what to do about them. Do not make any adjustments until the table saw is unplugged and moving parts have come to a complete stop. PROBLEM LIKELY CAUSE(S) SOLUTION Saw stops or... -
Page 30: Parts List
PARTS... - Page 31 PART PART DESCRIPTION QTY. DESCRIPTION QTY. OR73300 CABINET 127B OR70709 EXTENSION WING,RIGHT (TITANIUM FINISH) OR93932 M10 x 25mm SOC HEAD CAP SCREW OR90308 M8 x 30mm HEX HD SCREW OR90227 M10 LOCK WASHER OR90248 M8 LOCK WASHER OR90230 M10 FLAT WASHER OR90311 M8 FLAT WASHER OR73301...
- Page 33 PART PART DESCRIPTION QTY. DESCRIPTION QTY. OR90307 M8 HEX NUT OR90311 M8 FLAT WASHER OR70714 HAND WHEEL LOCK OR93916 8mm x 40mm SPRING PIN OR70715 HAND WHEEL ASSEMBLY OR93917 M8 x 20mm HEX HEAD SCREW OR94167 M5 x 8mm HEX SOC SET SCREW OR90307 M8 HEX NUT OR70716...
- Page 35 PART PART DESCRIPTION QTY. DESCRIPTION QTY. OR73333 BLADE GUARD ASSEMBLY CONST OF: OR70788 MITER GAGE ASSY, CONST OF: REF 306 TO REF 341 REF 401 TO REF 429 OR70766 MITER GAGE BAR OR90308 M8 x 20mm HEX HEAD SCREW OR70767 MITER GAGE BAR ADJUSTMENT BLOCK OR90248 M8 LOCK WASHER...
- Page 37 ◆ NOTES ◆...
- Page 38 ◆ NOTES ◆...
