Ethernet Ports - Supero X8SAX User Manual

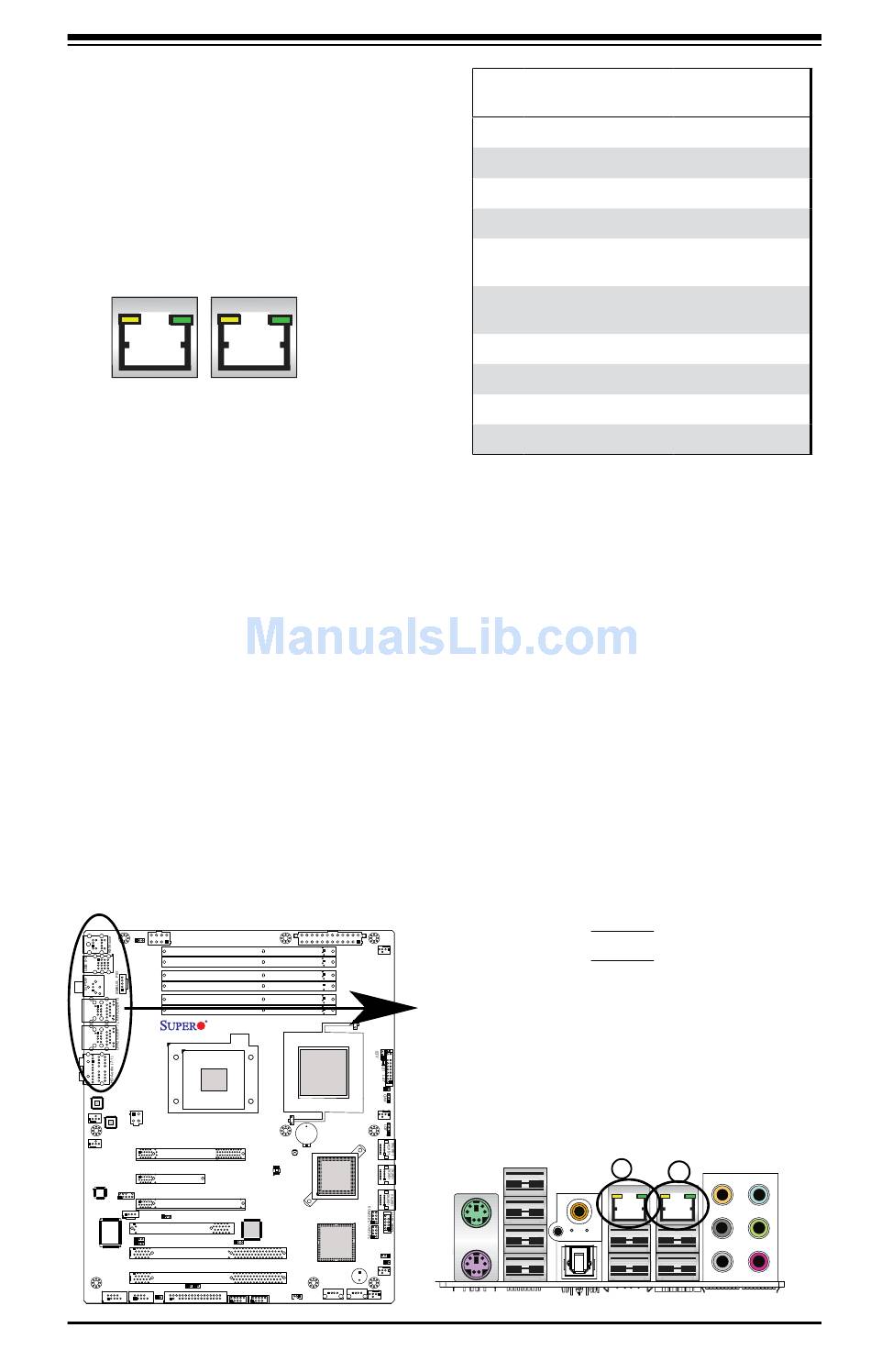

Ethernet Ports

Two Ethernet ports are located at on
the IO backplane above the backpanel
USB ports. These ports accept RJ45
type cables. (Note: Please refer to the
LED Indicator Section for LAN LED
information.)
JPUSB1
JPW2
DIMM3A
DIMM3B
DIMM2A
DIMM2B
DIMM1A
DIMM1B
X8SAX
CPU
LAN CTRL
Fan1-CPU
LAN CTRL
JPW3
Fan6
Slot6 PCI-E x16 Gen2
Slot5 PCI-E x4 in x8 Gen2
Audio FP
Audio CTRL
Slot4 PCI-E x16 Gen2
CD-In JPAC
1394a
Slot3 PCI 33MHz
S I/O
CTRL
JPL2
JPL1
JPI1
Slot2 PCI-X 133/100 MHz
Slot1 PCI-X 133/100 MHz
JI2C1 JI2C2
COM2 COM1
Floppy
1394_1
JWOR
JPW1
Fan5
Intel
X58
North Bridge
JOH
Fan2
Battery
B1
JBT1
Intel ICH10R
BIOS
South Bridge
Intel PXH-V
JPUSB2
JL1
SPKR1 Fan3
1394_2
JWOL USB8 USB9 Fan4
Pin# Definition
1 P2V5SB
2 TD0+
3 TD0-
4 TD1+
5 TD1-
6 TD2+
7 TD2-
8 TD3+
9 TD3-
(NC: No Connection)
2-15
Chapter 2: Installation
LAN Ports
Pin Definition
10 SGND
11 Act LED
12 P3V3SB
13 Link 100 LED
(Yellow, +3V3SB)
14 Link 1000 LED
(Yellow, +3V3SB)
15 Ground
16 Ground
17 Ground
88 Ground
1. LAN1
2. LAN2
1
2
