X8SAX/C7X58 User's Manual
2-2

Processor and Heatsink Installation

When handling the processor package, avoid placing direct pressure on
!
the label area of the fan.
Notes:
1. Always connect the power cord last and always remove it before adding, re-
moving or changing any hardware components. Make sure that you install the
processor into the CPU socket before you install the CPU heatsink.
2. Intel's boxed processor package contains the CPU fan and heatsink assem-
bly. If you buy a CPU separately, make sure that you use only Intel-certified
multi-directional heatsink and fan.
3. Make sure to install the motherboard into the chassis before you install the
CPU heatsink and heatsink fans.
4. When purchasing an LGA 1366 processor or when receiving a motherboard
with an LGA 1366 processor pre-installed, make sure that the CPU plastic
cap is in place, and none of the CPU pins are bent; otherwise, contact the
retailer immediately.
5. Refer to the MB Features Section for more details on CPU support.

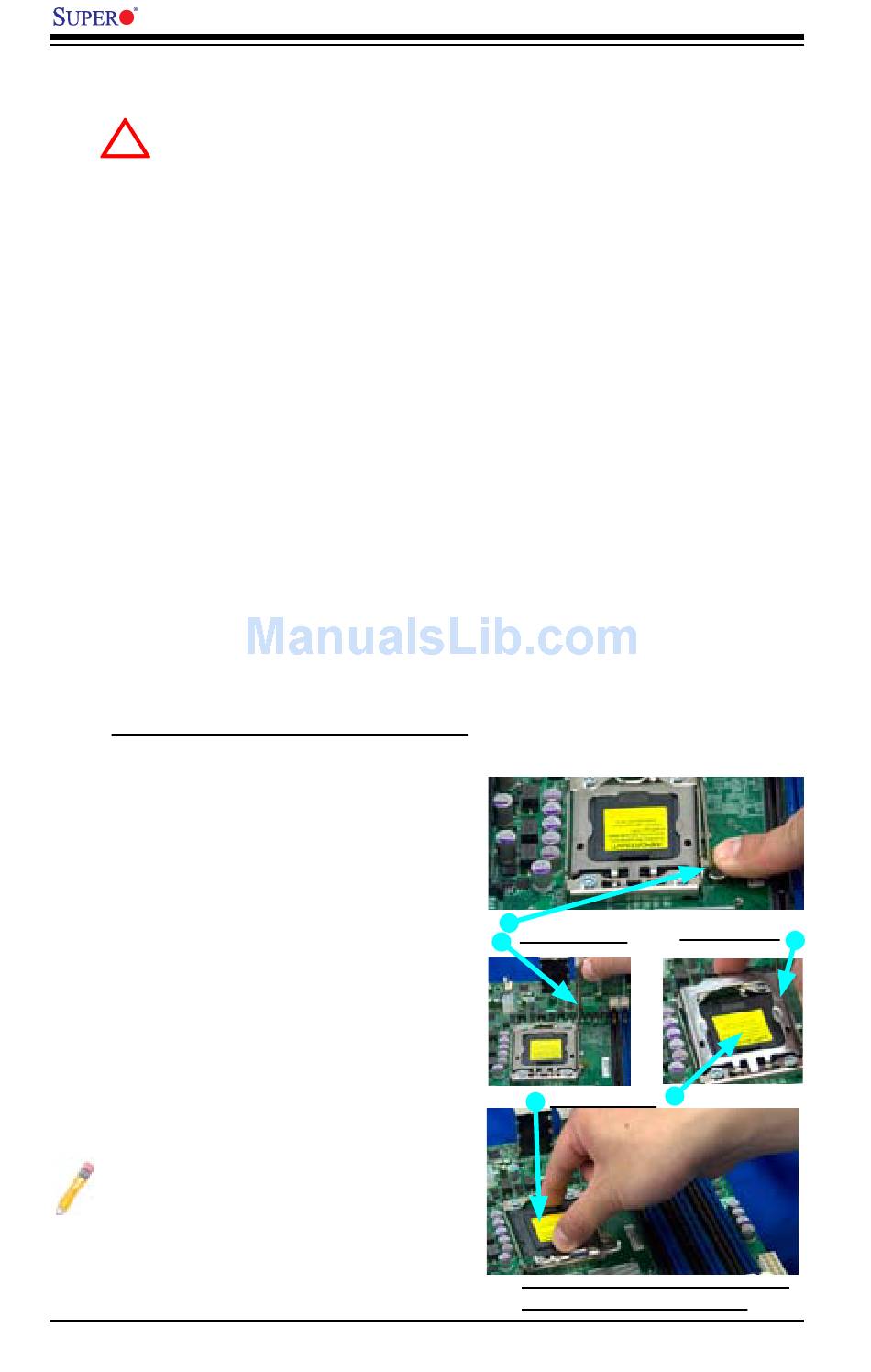

Installing an LGA 1366 Processor
1. Press the socket clip to release
the load plate, which covers the
CPU socket, from its locking
position.
2. Gently lift the socket clip to
open the load plate.
3. Hold the plastic cap at its north
and south center edges to re-
move it from the CPU socket.
Note: The photos on this page and
succeeding pages 2-3 through 2-9
are for illustration purposes only.
They do not necessarily reflect the
exact product(s) described in this
manual.
Socket Clip
Plastic Cap
Hold the north & south edges of
the plastic cap to remove it
2-2
Load Plate
