Page 1: User Manual
KRAMER ELECTRONICS, Ltd. USER MANUAL Fiber Optic Transmitter-Receiver Models: 611T 611R IMPORTANT: Before proceeding, please read paragraph entitled "Unpacking and Contents"... -
Page 2: Table Of Contents
HOW DO I GET STARTED? UNPACKING AND CONTENTS Optional Accessories FIBER OPTIC VIDEO TRANSMITTER AND RECEIVER Getting to Know Your 611T and 611R fiber optic transmitter and receiver INSTALLATION Rack Mounting Connecting to Video Devices USING the 611T and 611R Adjusting the Devices 7.1.1... -
Page 3: Introduction
The 611T/611R uses the fiber optic Multi-Mode system, which has a range of up to 5 km. Thick optic fibers are used, which are easy to manufacture and to install. -
Page 4: Factors Affecting Quality Of Results
Composite Video, 1Vpp/75 ohm on a BNC (611T), Optic Fiber ST connector (611R). Optic Fiber ST connector (611T), Composite Video, 1Vpp/75 ohm on a BNC (611R). Up to 5km (Multimode). 55 MHz (-3dB), 20 MHz (-0.1dB). Better than 60 dB. -
Page 5: Unpacking And Contents
VA-11 and VA-12 may be used to add two channels of audio to the video signal, to be transmitted using one fiber optic transmitter (611T) and receiver (611R) set. The VA-11 Video-Audio Combiner sends a color video signal and a stereo audio signal using only one standard coax cable. The VA-11 maintains the bandwidth of an industrial color video signal, and the output signal may be viewed and recorded as a normal video signal. -
Page 6: Fiber Optic Video Transmitter And Receiver

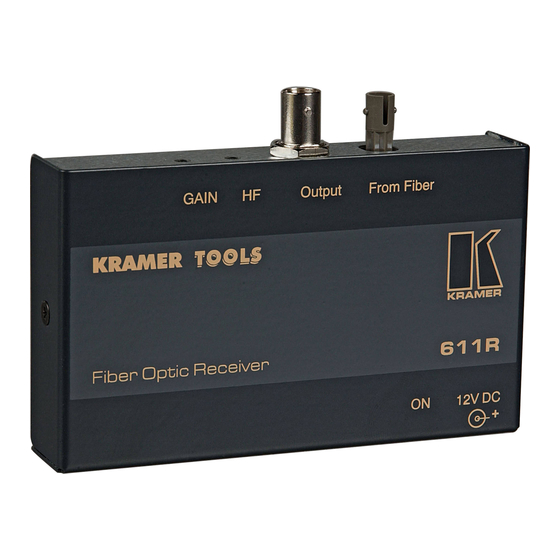

A simple system consists of a 611T located at the video source, and a 611R at the display device. Standard units use “multimode” technology allowing transmission up to 5 kilometers. A 12V power supply is provided with each unit. -
Page 7: Installation
12V DC INSTALLATION 6.1 Rack Mounting The 611T and 611R come with mounting brackets for tabletop mounting. The machines may be rack-mounted in a standard 19” (1U) EIA rack assembly using an optional rack adapter. KRAMER ELECTRONICS LTD Figure 2: 611R Front/Rear Panel Features... -
Page 8: Connecting To Video Devices
7.1 Adjusting the Devices Both the 611T and the 611R come with video level trimming devices. In normal use, the trimmers should not be touched, as the machines are pre-adjusted at the factory for transparent operation. If the optic fiber and connectors are of good quality and the operating range is not exceeded, the trimmers should be left in the factory preset state. -
Page 9: Using Component Video With The System
ADDING AUDIO TO THE SYSTEM Although the 611T and 611R pair is designed to carry video signals, audio may be added to the system. The Kramer VA-11 and VA-12 allows combining and separating two stereo audio signals and a video signal to and from one coaxial connector. -
Page 10: Troubleshooting
If not, turn the acceptor/source power switch off and on again to reset the machine. 2. If the following recommended actions still do not result in satisfactory operation, please consult your KRAMER Dealer. 11.1 Video and other High Frequency Signals Problem Remedy No signal at the output 1. -
Page 11: Limited Warranty
1) Any product which is not distributed by Kramer or which is not purchased from an authorized Kramer dealer. If you are uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the web site www.kramerelectronics.com. - Page 12 EXCLUSION OF DAMAGES Kramer’ s liability for any defective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 13 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
