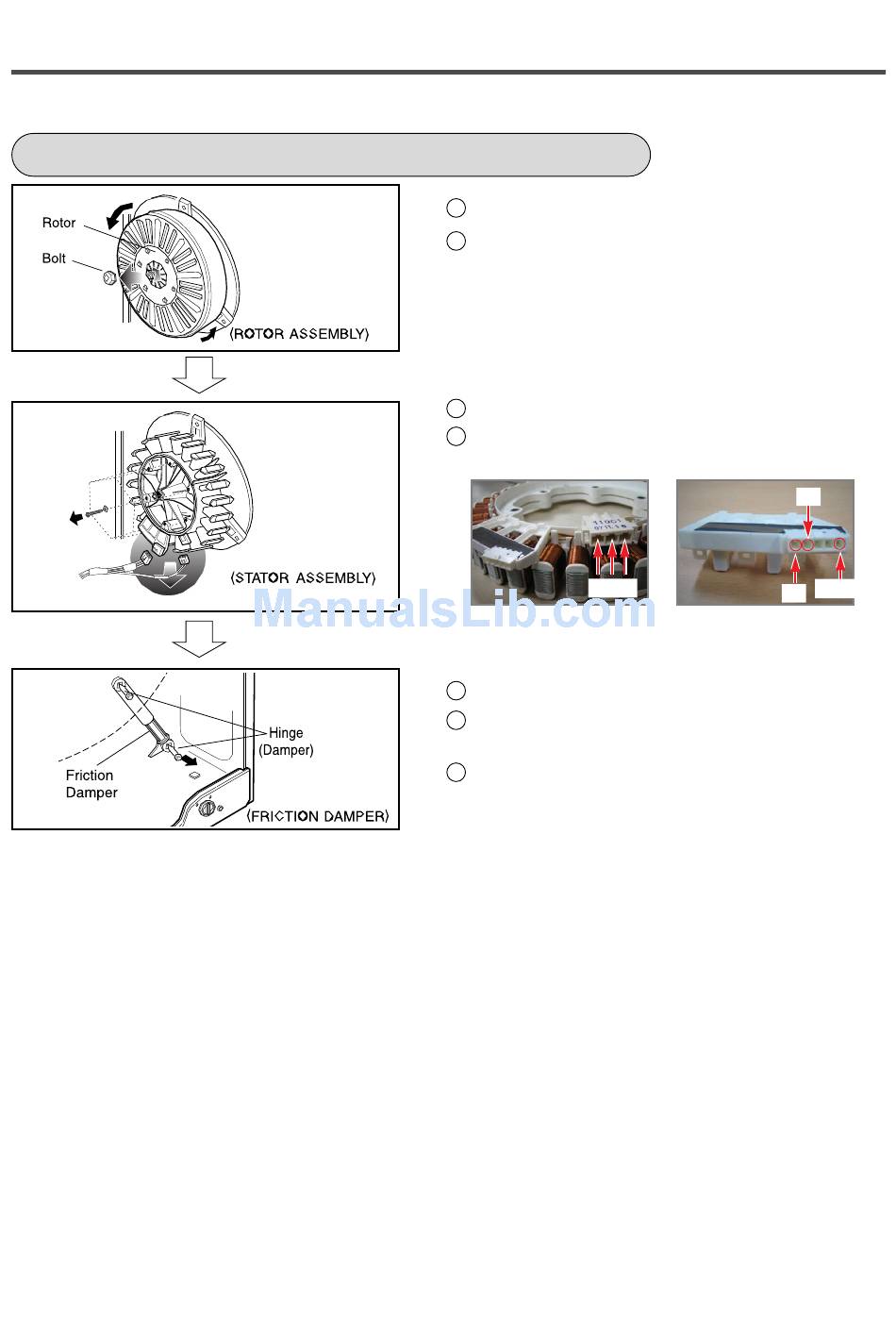

ROTOR ASSEMBLY, STATOR ASSEMBLY, FRICTION DAMPER
1 Remove the back cover.
2 After loosening the bolt, Rotor, pull out the
rotor.
1 Remove the 6 bolts from the stator.
2 Disconnect the 2 connectors.
Motor Stator
U V W
• V ~ U (8~11Ω)
• U ~ W (8~11Ω)
• W ~ V (8~11Ω)
1 Remove the hinges (Damper) at the Tub.
2 The Hinge(Damper) at the base is pulled off by
pressing on the snaps at the sharp end.
3 The hinge at the base is pulled off.
(In directions of the arrow)
53
Hall Sensor
Hb
Common
Ha
• Common ~ Ha (5~15kΩ)
• Common ~ Hb (5~15kΩ)
