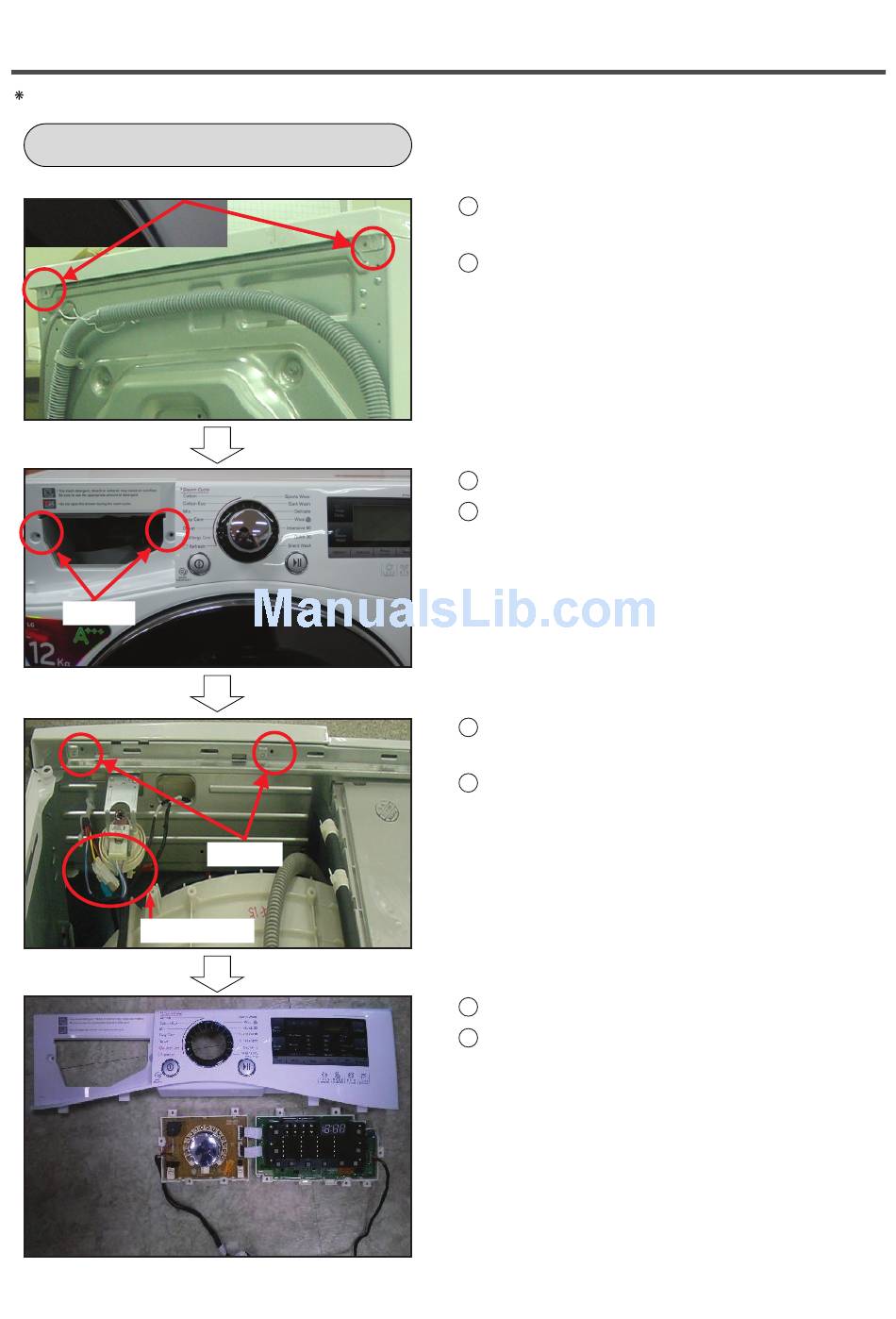

10. DISASSEMBLY INSTRUCTIONS

Remove the power cord from the outlet before disassembling or repairing the unit.
CONTROL PANEL ASSEMBLY
Screws
Screws
Connectors
Screws
1 Unfasten the screws from the parts displayed
in the fig.
2 Disassemble the top plate assembly by sliding
it back and then lifting it up.
3 Pull the drawer panel assembly out.
4 Unfasten the screws from the parts displayed
in the fig.
5 Unfasten the screws from the parts displayed
in the fig.
6 Disconnect the wiring connectors between the
multi harness and the control panel assembly.
7 Disassemble the control panel assembly.
8 Disassemble the display PCB assembly from
the control panel assembly by unfastening the
screws.
48
