Connections

before making any connections, power off your source and display devices.

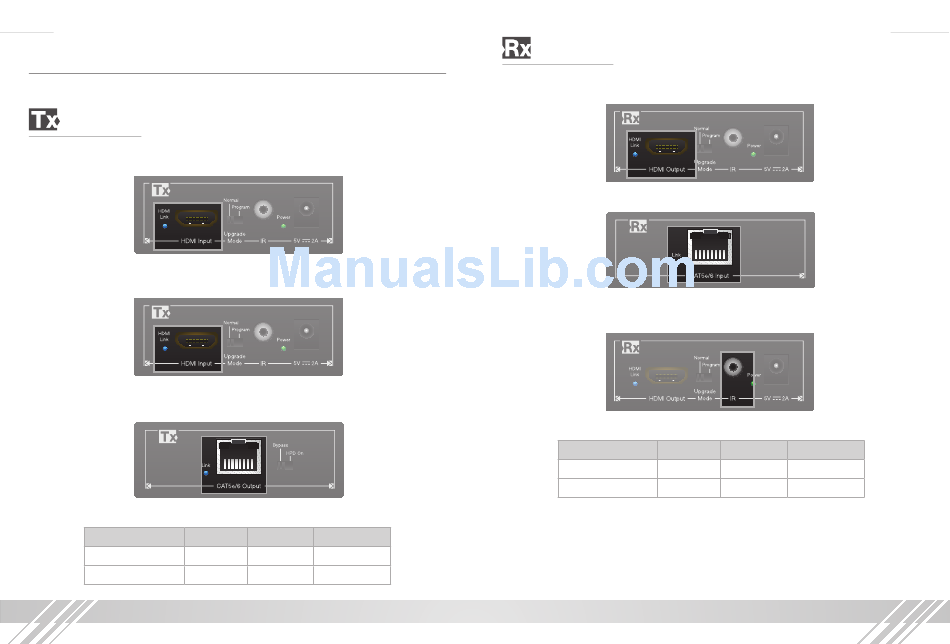

Tx Extender:
Using a short HDMI cable, connect your source device to the HDMI port labeled
➔
"HDMI Input". To connect DVI use appropriate DVI to HDMI adapters.
Connect the CAT cable on the Tx extender to the port labeled "CAT5e/6
➔
Output".
If desired, you can connect IR or RS-232 signals to the 3.5mm jack at this time.
➔
Refer to the below pin assignment chart for pin assignments.
Tx Pin Assignment Chart
➔
Mode Tip
iR iR in
RS232 RxD
Ring Sleeve
iR Out gnd
TxD gnd
Rx Extender:
Using a short HDMI cable, connect your display device to the HDMI port labeled
➔
"HDMI Output".
Connect the CAT cable on the Rx extender to the port labeled "CAT5e/6 Input".
➔
If you are extending IR or RS-232 signals, connect them to the 3.5mm jack.
➔
Refer to the below pin assignment chart for pin assignments.
Rx Pin Assignment Chart
➔
Mode Tip
iR iR Out
RS232 TxD
Power up the extenders using the included power supplies and then power up
➔
your source and display equipment.
» KD-CATHD250Lite requires power on both Tx and Rx units
» KD-CATHD250POH only requires power on the Tx unit, which extends power
to the Rx unit
Ring Sleeve
iR in gnd
RxD gnd
