KD-CAT5XCAT5

Operating Manual

CAT5 Extender

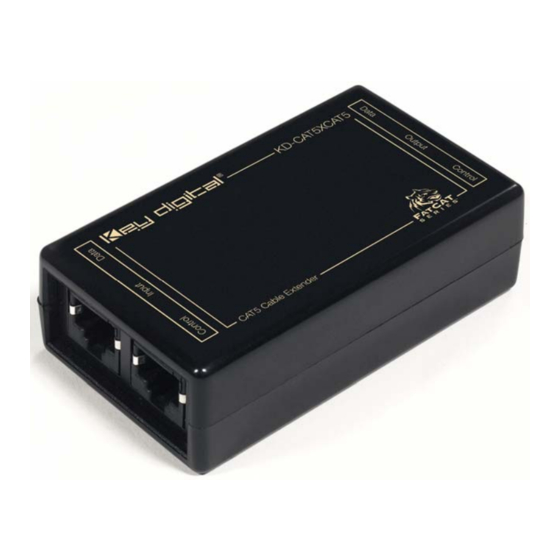

The KD-CAT5XCAT5 is a CAT5 extender capable of resolutions up to 1080P. It
can be used with or without the supplied power adapter and is intended for use with
Key Digital's KD-HDMIXCAT5, KD-VP8, KD-HDMIWPTX, KD-HDMIWPRX or
KD-CAT5XHDMI.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KD-CAT5XCAT5 and is the answer not in the manual?

Questions and answers

Related Manuals for Key Digital KD-CAT5XCAT5

Summary of Contents for Key Digital KD-CAT5XCAT5

  • Page 1: Operating Manual

    Operating Manual CAT5 Extender The KD-CAT5XCAT5 is a CAT5 extender capable of resolutions up to 1080P. It can be used with or without the supplied power adapter and is intended for use with Key Digital’s KD-HDMIXCAT5, KD-VP8, KD-HDMIWPTX, KD-HDMIWPRX or...
  • Page 2 Quick Setup Guide Connect power, then connect the CAT5 input source cables to the correct input ports (‘Data’ and ‘Control’) on the KD-CAT5XCAT5. Finally, connect the CAT5 outputs to the receiving device (KD-CAT5XHDMI, KD- HDMIWPRX)

  • Page 3: Table Of Contents

    Table of Contents Installation Instructions……………………………………………………………………4 Technical Specifications ………………………………………………………………….6 Troubleshooting…………………………………………………………………………...6 Product Warnings………………………………………………………………………….7 Warranty………………………………………………………………………………...7 Contact Information……………………………………………………………………….8...

  • Page 4: Installation Instructions

    Green LED: Power Indicator Instructions The KD-CAT5XCAT5 can receive power from either the CAT5 ‘Control’ connection or via the supplied power adapter. When using the CAT5 cable to deliver power to the unit, performance is subject to the following factors: Ability of the CAT5 cable to deliver the required power over distance Quality of the CAT5 cable.
  • Page 5 3. Connections • Plug in the CAT5 source cables to their corresponding ‘Data’ and ‘Control’ input ports of the KD-CAT5XCAT5. If you are not using the supplied power adapter, the “Power” LED should illuminate upon plugging in the ‘Control’ input cable if your HDMI source and the KD-HDMIXCAT5 or KD- CAT5XCAT5 are powered on.

  • Page 6: Technical Specifications

    1. Use the shortest possible CAT5 cables between devices. 2. Lower the output resolution of the image source. 3. Use the provided power supply for the KD-CAT5XCAT5 instead of relying on the voltage in the CAT5 cable to power the unit.

  • Page 7: Product Warnings

    Test for proper operation before securing unit behind walls or in hard to access spaces. If installing the KD-CAT5XCAT5 into wall or mounting bracket into sheet- rock, provide proper screw support with bolts or sheet-rock anchors. Read and follow all instructions.

  • Page 8: Contact Information

    Key Digital Contacts Repairs and Warranty Service To obtain a Returned Materials Authorization (RMA) number, please contact: Phone: (914)-667-9700 email: tech@KeyDigital.com rma@KeyDigital.com Technical Support Phone: (914)-667-9700 Email: tech@KeyDigital.com Customer support Phone: (914)-667-9700 Email: customersupport@KeyDigital.com...
