Rev 0 – May 2013

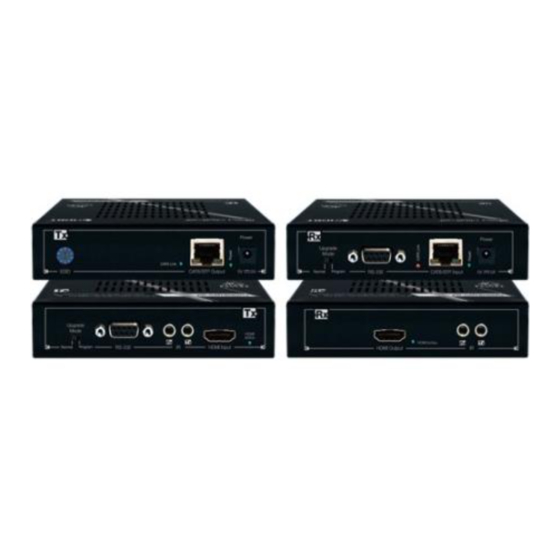

KD-CATHD300Lite
HDBT/HDMI via Single CAT6/STP (Tx/Rx)
Extenders with EDID Control, RS-232, IR
Key Digital
, led by digital video pioneer Mike Tsinberg,
®
develops and manufactures high quality, cutting-edge
technology solutions for virtually all applications where
Setup Guide
high quality video imaging is important. Key Digital
®
is at the forefront of the video industry for Home
Theater Retailers, Custom Installers, System Integrators,
Broadcasters, Manufacturers, and Consumers.
The Experts in Digital Video Technology and Solutions
™
Key Digital
Systems
::
521 East 3rd Street
::
Mount Vernon, NY 10553
®
Phone
:
914.667.9700
Fax
:
914.668.8666
Web
:
www.keydigital.com
Advertisement
Table of Contents
Related Manuals for Key Digital KD-CATHD300Lite
Summary of Contents for Key Digital KD-CATHD300Lite
-
Page 1: Setup Guide
Setup Guide high quality video imaging is important. Key Digital ® is at the forefront of the video industry for Home Theater Retailers, Custom Installers, System Integrators, Broadcasters, Manufacturers, and Consumers. -
Page 2: Table Of Contents
KD-CATHD300Lite allows extension of 1080p/60, ™ ➔ 1920x1200, 3D signals up to 250 ft. when using Key Digital Super CAT6 Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -
Page 3: Connections
Connections rx extender: Before making any connections, power off your source and display devices. Using a short HDMI cable, connect your display device to the HDMI port labeled ➔ “HDMI Output”. Tx extender: Using a short HDMI cable, connect your source device to the HDMI port labeled ➔... -
Page 4: Extending Ir And Rs-232 Control
Extending IR and RS-232 Control Application Example rS-232 ➔ Blu-Ray Blu-Ray HDMI/DVI* » You can use the KD-CATHD300Lite to send RS-232 commands for controlling HDMI/DVI* CAT6/STP CAT6/STP remote equipment. KD-CATHD300Lite KD-CATHD300Lite IR Tx IR Tx IR Emitter » Requires the use of a null-modem cable on one (either) side. -
Page 5: Settings
KD-CATHD300Lite w/ KD-CAT6STP1X Super CAT6 Shielded cabling: ➔ All resolutions up to 1080p, 1920x1200, 3D up to 250 ft. EDID from connected display KD-CATHD300Lite w/ Third-Party CAT6/STP cabling: All resolutions up to ➔ 1080i w/ PCM 2ch Digital Audio 1080p, 1920x1200, 3D up to 200 ft. -
Page 6: Important Product Warnings
You MuST use the Power Supply provided with your unit or you VOid the Accessories: (2) Mounting Brackets, (2) Locking HDMI Cable Clips, ➔ Key digital Warranty and risk damage to your unit and associated ® (1) Grounding Wire, (2) 5V 2A DC Power Supplies... -
Page 7: How To Contact Key Digital
® Phone: 914-667-9700 ➔ E-mail: tech@keydigital.com ➔ repairs and Warranty Service Should your product require warranty service or repair, please obtain a Key Digital ® Return Material Authorization (RMA) number by contacting us at: Phone: 914-667-9700 ➔ E-mail: rma@keydigital.com ➔... - Page 8 Installation Notes Installation Notes...
