Key Digital Phantom KD-HDDA1X1 Operating Instructions Manual

Key Digital
develops and manufactures high quality, cutting-edge
technology solutions for virtually all applications where
high quality video imaging is important. Key Digital
is at the forefront of the video industry for Home
Theater Retailers, Custom Installers, System Integrators,
Broadcasters, Manufacturers, and Consumers. We
provide total video system solutions because we know
and help drive the technology, the industry, the business,
and all the latest up-and-coming standards. But most
of all, we know exactly what you need for your unique
application - the right solution.
521 East 3rd Street, Mount Vernon, NY 10553
:: ::
Phone 914.667 .9700 Fax 914.668.8666
::
Web www.keydigital.com
, led by digital video pioneer Mike Tsinberg,
®
Rev 0 – July 2011

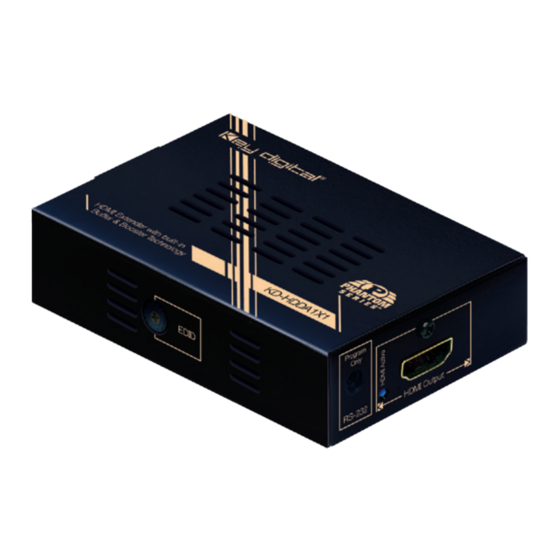

KD-HDDA 1 X 1
HDMI Extender, Booster & Buffer with EDID Control,
®
3D, Audio Return Channel and Ethernet

Operating Instructions

®
Key Digital Phantom Series
®
extending HDMI cabling while maintaining the highest possible quality of signal
over long HDMI runs. Helps buffer and negotiate HDCP and EDID data interactions
between the source and display. A built in library of default EDID files allow various
video resolutions including 3D, 4K and various Audio formats including HD Audio
types. Fully HDMI
HDMI Cable Extender and Data Buffer allows
™
1.4 compliant.
®
