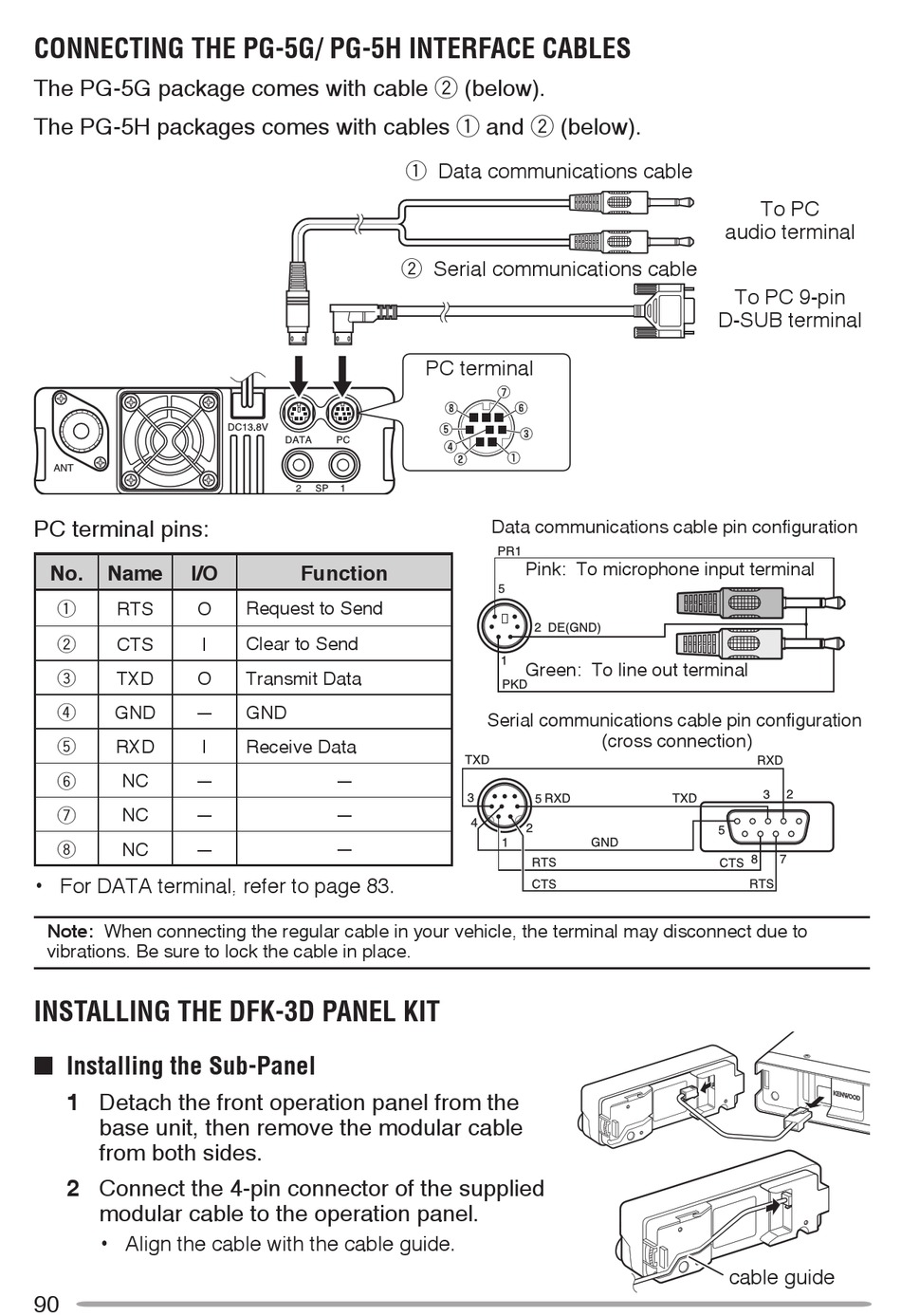

cONNecTINg The Pg-5g/ Pg-5h INTerface cableS

The PG-5G package comes with cable w (below).
The PG-5H packages comes with cables q and w (below).
PC terminal pins:
No. Name I/O
RTS O
q
CTS I
w
TXD O
e
GND —
r
RXD I
t
NC —
y
NC —
u
NC —
i
• For DATA terminal, refer to page 83.
Note: When connecting the regular cable in your vehicle, the terminal may disconnect due to
vibrations. Be sure to lock the cable in place.

INSTallINg The DfK-3D PaNel KIT

n Installing the Sub-Panel
1 Detach the front operation panel from the
base unit, then remove the modular cable
from both sides.
2 Connect the 4-pin connector of the supplied
modular cable to the operation panel.
• Align the cable with the cable guide.
90
q Data communications cable
w Serial communications cable
Function
Request to Send
Clear to Send
Transmit Data
GND
Receive Data
—
—
—
PC terminal
Data communications cable pin configuration
Pink: To microphone input terminal
Green: To line out terminal
Serial communications cable pin configuration
To PC
audio terminal
To PC 9-pin
D-SUB terminal
(cross connection)
cable guide
