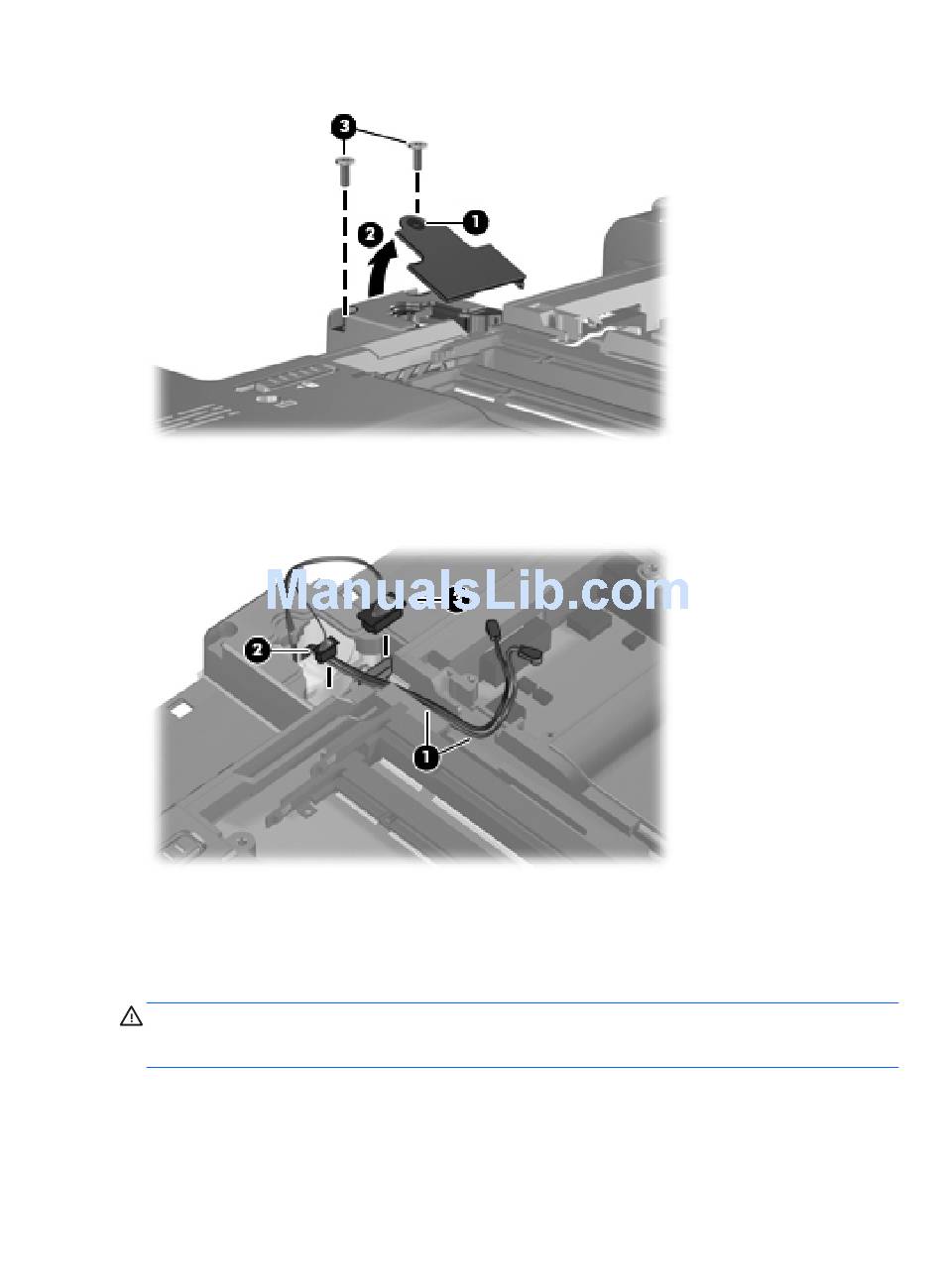

5. Remove the two Phillips PM2.5×6.0 screws (3) that secure the display assembly to the
computer.
6. Remove the wireless antenna cables (1) from the routing channel built into the base enclosure.
7. Disconnect the camera cable (2) and the microphone cable (3) from the system board.
8. Turn the computer display-side up, with the front toward you.
9. Open the computer.
10. Remove the display convertible hinge cover (1).
CAUTION:
support the display assembly can result in damage to the display assembly and other computer
components.
11. Remove the two Phillips PM2.5×6.0 screws (2) that secure the display assembly to the
computer.
54 Chapter 4 Removal and replacement procedures
Support the display assembly when removing the following screws. Failure to
