GR380 F1 specifications
Product overview
The Gateway GR380 F1 is a dual socket 2U server for space-conscious users who demand highest
performance and utmost expansion capability. Offering high performance, latest technology, cost-effective
growth, and comprehensive management features, Gateway GR380 F1 delivers optimized performance
per cost solution in enterprise environment deployments.

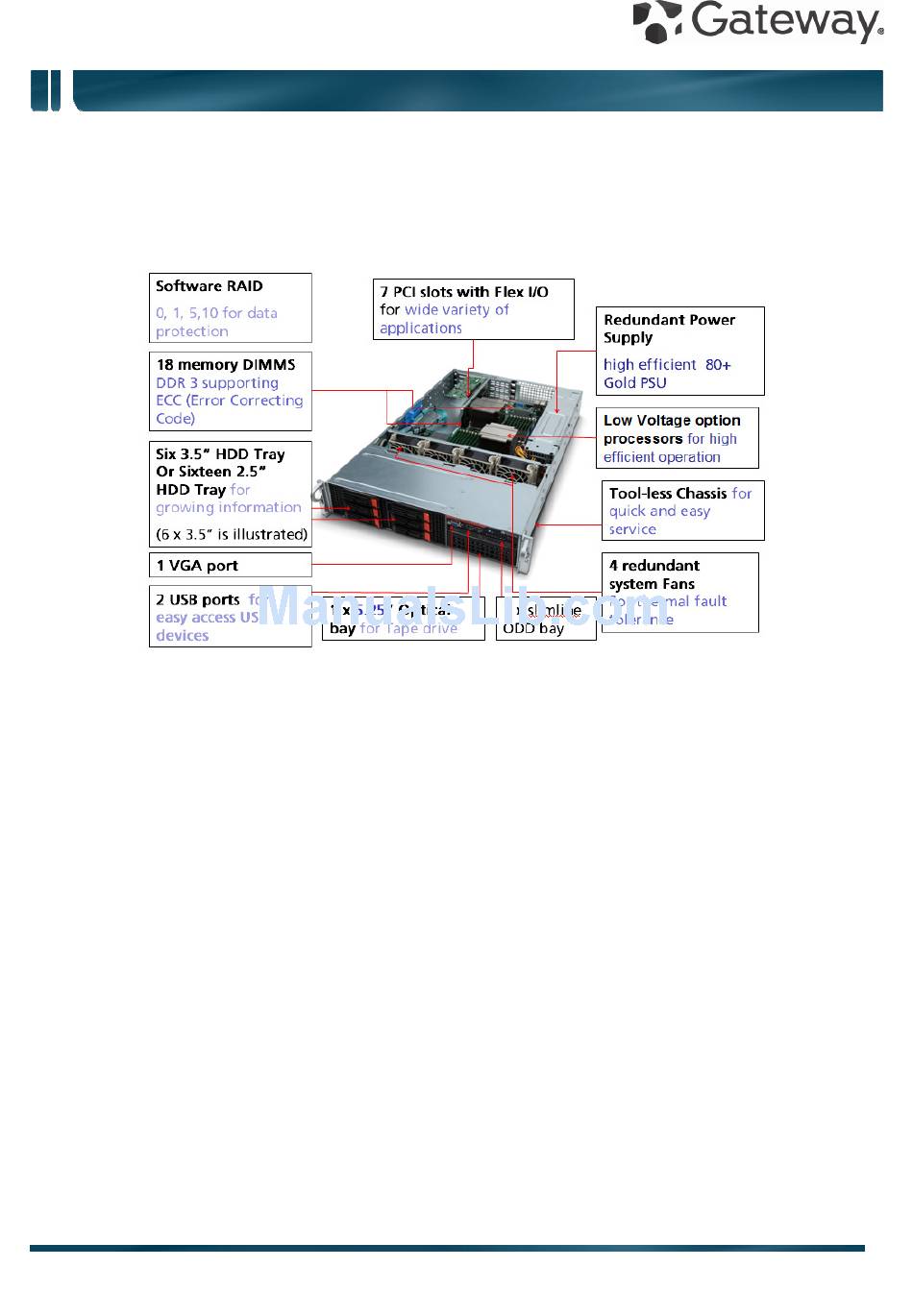

Internal view
1
2 x 720 W 80 PLUS
2
2 x Intel® Xeon® X5600 series processors
3
18 x DDR3 ECC registered / unbuffered DIMMs
4
3+1 redundant cooling fans
5
7 x PCIe expansion slots
6
1 x 5.25" media expansion bay
7
1 x slimline ODD bay
8
16 x 2.5" hot-swappable hard drive bays or
6 x 3.5" hot-swappable hard drive bays
Note: Availability may vary by region
®
gold-level efficient easy-swap power supplies (1+1 redundant, hot-pluggable)
1
