GR160 F1 specifications
Product overview
The 1U Gateway GR160 F1 is a dual socket server for space-conscious users who demand highest
performance and expansion capability. Offering high performance, innovative technology, and
comprehensive management features, the Gateway GR160 F1 delivers a cost-optimized solution for SMB
environments.

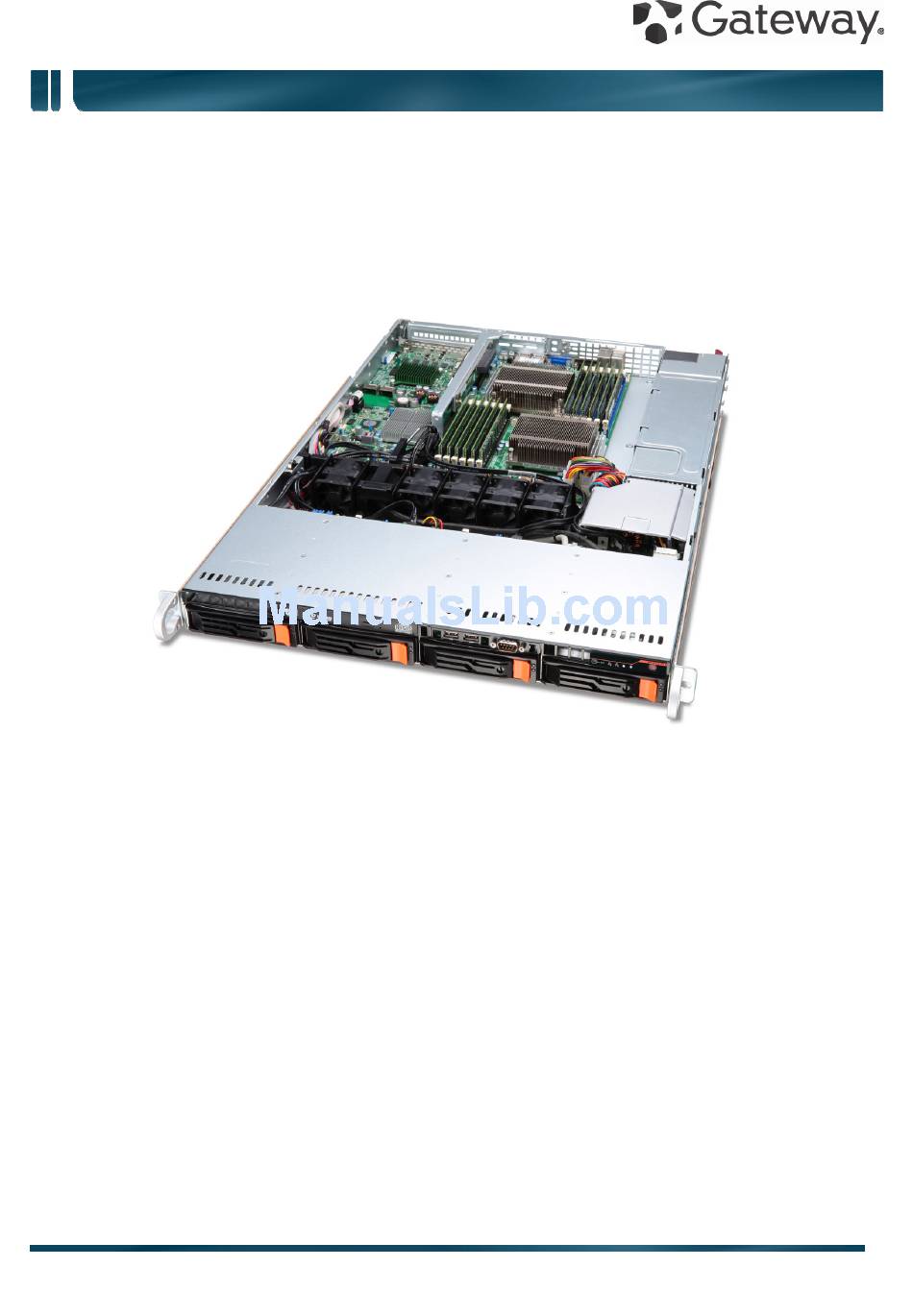

Internal view
1
1 x 720 W 80 PLUS
2
2 x Intel® Xeon® X5600 series processors
3
12 x DDR3 ECC registered / unbuffered DIMMs
4
N+1 redundant cooling fans
5
3 x PCIe expansion slots
6
1 x slimline ODD bay
7
4 x 3.5" hot-swappable hard drive bays
Front ports and I/O
1
2 x USB 2.0 ports
2
Power button, ID button, COM port, LED indicators (Power, HDD activity, LAN1 status, LAN2 status,
ID)
®
gold-level efficient easy-swap power supply
1
Advertisement
Related Manuals for Gateway GR160 F1
Summary of Contents for Gateway GR160 F1
- Page 1 GR160 F1 specifications Product overview The 1U Gateway GR160 F1 is a dual socket server for space-conscious users who demand highest performance and expansion capability. Offering high performance, innovative technology, and comprehensive management features, the Gateway GR160 F1 delivers a cost-optimized solution for SMB environments.
- Page 2 GR160 F1 specifications Rear View Rear I/O 1,2 PS2 mouse and keyboard ports 3,4 2 x USB ports Management port (RJ-45) Serial port Video port 8,9 2 x Gigabit LAN port (RJ-45) System ID LED What's New • New Intel® Xeon® 5600 Series processors Intel Xeon X5675, X5672, E5649, E5645, E5607, E5606, E5603 ®...
- Page 3 • Dual-port LAN card (PCIe x8 slot) • Flex I/O x8 slot Management • Gateway Smart Server Manager v1.1 • Gateway Smart Console • iBMC management controller, supporting base board management and KVM-over-IP Deployment/serviceability • Gateway Smart Setup •...
- Page 4 GR160 F1 specifications Chassis/form factor • 1U rack optimized Power supply • 720 W 80 PLUS® gold-level efficient easy-swap power supply Regulatory compliant standards • FCC (Class A) • CE (Class A) • BSMI (Class A) Safety • UL/cUL • CB •...
- Page 5 GR160 F1 specifications Technical specifications ® PCIe specifications The primary I/O bus for the main board is PCIe Gen2. The following table lists the characteristics of the PCI-E bus segments. Details about each bus segment follow the table. NOTE: The signaling bit rate of PCI Express is 2.5Gbit/s one direction per lane for Gen 1 and 5.0Gbit/s one direction per lane for Gen 2.
- Page 6 Registered DDR3 1066 / 1333 MHz • Unbuffered DDR3 1066 / 1333 MHz • NOTE: Gateway does not qualify mixed memory configurations of memory type, capacity or make. Population Gateway’s validated memory populations are listed below. NOTE: Support for 8 GB DIMMs may vary by regional availability.
- Page 7 GR160 F1 specifications Dual processor configuration guide NOTE: Quad Rank DIMMs and Unbuffered DIMMs can only use a maximum of 6 slots per CPU (12 slots total) DIMM CPU 1 CPU 2 * support depends on 8GB DIMM available Mirroring mode: For mirroring mode, the memory contains a primary image and a copy of the primary image.
- Page 8 GR160 F1 specifications Sparing mode: In this mode, if system detects degrading memory and system still not crash, the data in failed channel • will be copied to spare channel. Failed channel is then isolated and spare channel becomes active. But if any uncorrectable error happens before the isolation, it will still cause the system stop normal operation.
- Page 9 GR160 F1 specifications Power specifications 720W Power Supply Operational Input 100 to 240 Voltage Range (Vrms) Frequency 60/50 Range (Nominal) (Hz) Nominal Input Voltage (Vrms) Max. Rated Output Wattage Nominal Input 8.46 6.97 3.80 3.87 3.74 3.29 Current (A rms) Max.
- Page 10 DVD or a downloadable file to be put into a USB 2.0 device, and eases the deployment of Gateway servers for any certified OS. Through its unique interface, users may select to have all the correct...
- Page 11 GR160 F1 specifications Available options Processors (up to 2) Intel® Xeon® processor (Six Core) X5675 (12 MB L3 cache, 3.06 GHz, DDR3-1333 MHz, 95W) X5670 (12 MB L3 cache, 2.93 GHz, DDR3-1333 MHz, 95 W) X5660 (12 MB L3 cache, 2.80 GHz, DDR3-1333 MHz, 95 W) X5650 (12 MB L3 cache, 2.66 GHz, DDR3-1333 MHz, 95 W)
- Page 12 GR160 F1 specifications E5503 (4 MB L3 cache, 2 GHz, DDR3-800 MHz, 80 W) E5502 (4 MB L3 cache, 1.86 GHz, DDR3-800 MHz, 80 W) Memory Memory type Registered / Unbuffered DDR3 ECC memory Capacities 1 / 2 / 4 / 8 GB DIMMs...
- Page 13 GR160 F1 specifications Ethernet network cards Model Port number Bandwidth ® Intel Gigabit CT2 desktop 10/100/1000 Mbps adapter Supermicro AOC-SG-i2 server 10/100/1000 Mbps adapter Supermicro AOC-SG-i4 server 10/100/1000 Mbps adapter Supermicro AOC-STGN-i2S 10 Gbps server adapter (DA2)* ® Intel X520-SR1 server adapter* 10 Gbps ®...
- Page 14 GR160 F1 specifications Service and support Gateway Servers offer a comprehensive service suite to take care of daily IT needs. Users can select the 3- year standard warranty or choose extended warranties and services. In a continuing effort to improve the quality of our products, information in this document is subject to change without notice.
