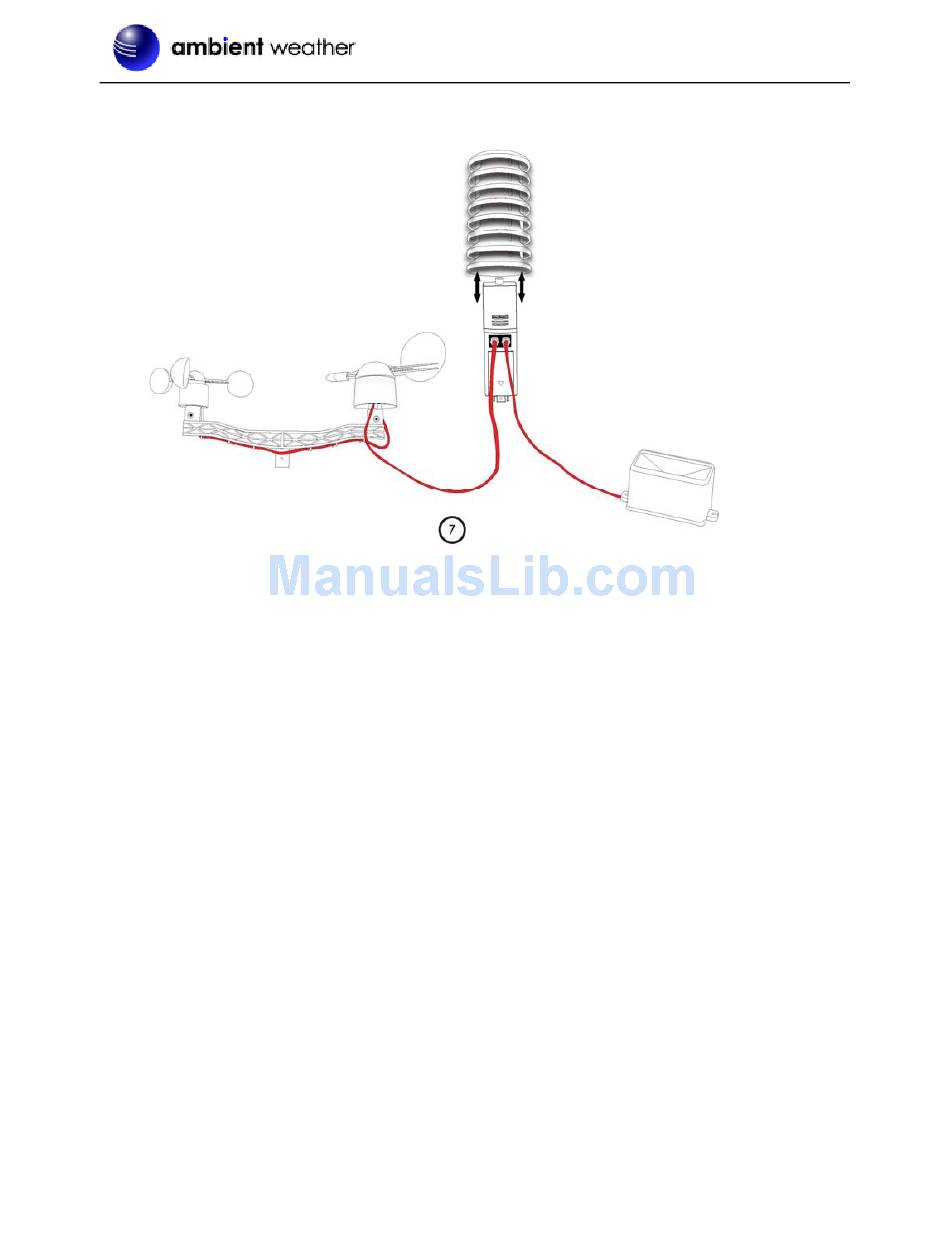

Install the rain shield over the thermo-hygrometer/transmitter, as shown in Figure 9, and use the
enclosed zip ties to clean up the cables.
3.4 Display Console
3.4.1 Display Console Layout
The display console layout is shown in Figure 10.
Version 1.10
Figure 9
©Copyright 2011, Ambient LLC. All Rights Reserved.
Page 12
