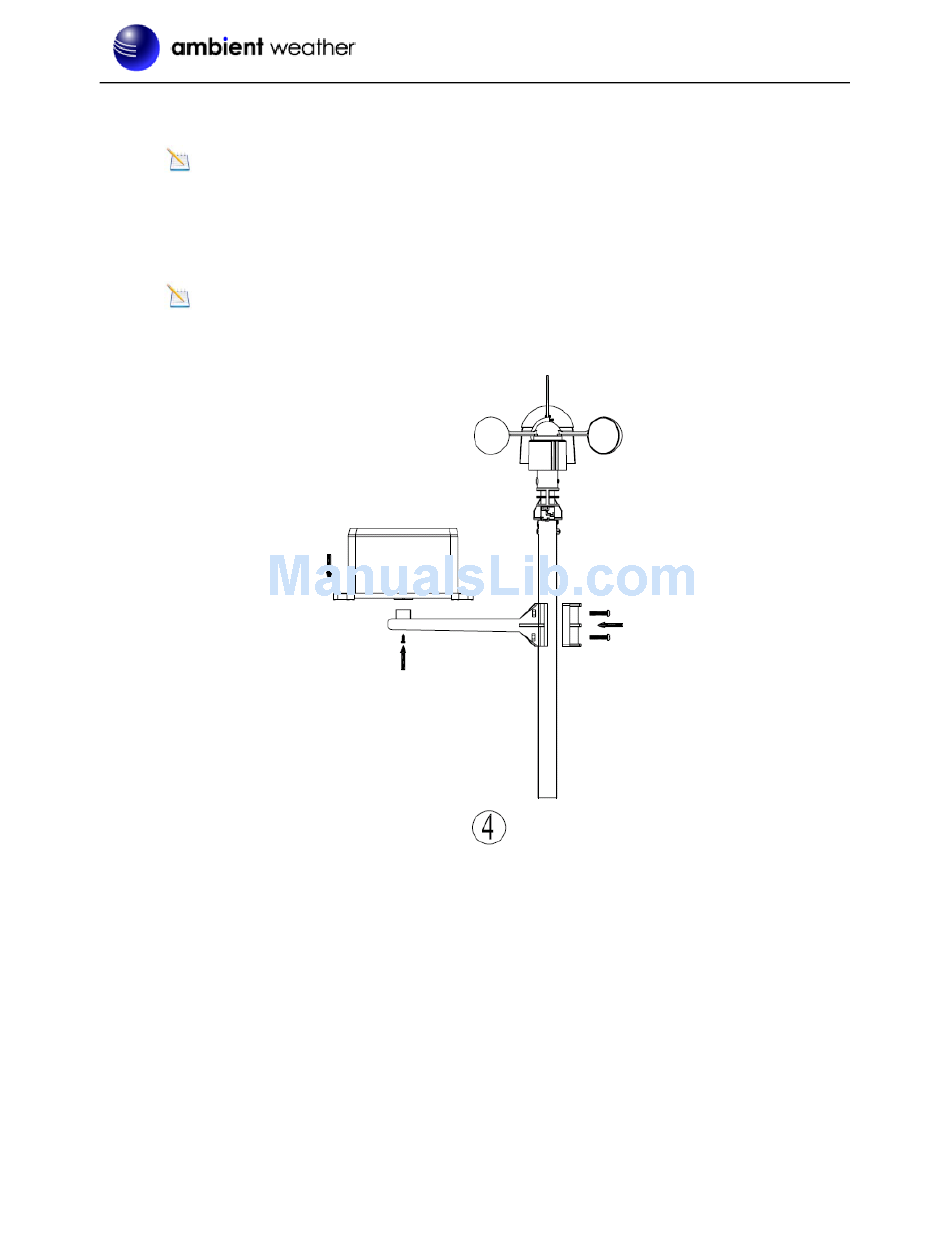

4. Connect the rain gauge with long set screw. Tighten with precision screwdriver, as shown
in Figure 4.
Note: There may be a slight "play" in the rain gauge and the screw may not be flush.
Do not force the screw.
Attach the rain gauge mounting arm to the upper mounting pole, at right angles to the wind
speed and wind direction assembly to avoid obstruction of rainfall.
Note: There are two mounting holes on the side of the rain gauge in the event you wish to
mount the rain gauge in a different location than the mounting arm.
Version 1.10
Figure 4
©Copyright 2011, Ambient LLC. All Rights Reserved.
Page 7
