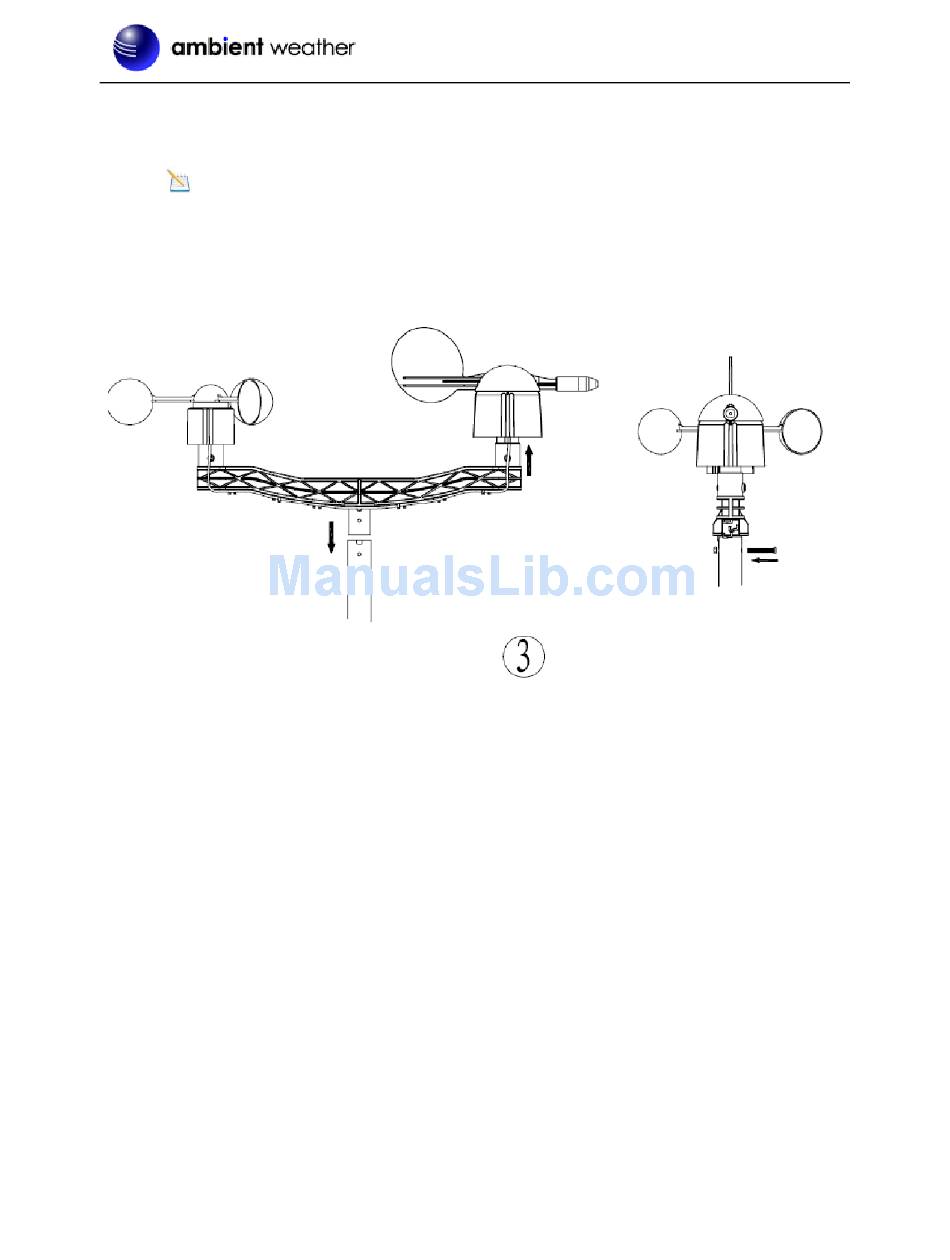

3. Connect the anemometer assembly to the top mounting pole, align the holes, and fasten with
short set screw (optional, we recommend NOT connecting this) and long bolt and nut. Tighten
with precision screwdriver while securing the nut with pliers, as shown in Figure 3.
Note: This may be a tight fit – rotate the pole back and forth to shave off some of the
plastic, and use a small hammer to tap the top of the anemometer mounting arm while
securing the pole on a solid, flat surface. Use a piece of cloth or padding to dampen the
hammer and avoid damage to the anemometer mounting arm.
Figure 3
Version 1.10
©Copyright 2011, Ambient LLC. All Rights Reserved.
Page 6
