Ambient Weather WS-2700 User Manual

Ambient Weather WS-2700 User Manual

Advanced wireless weather station

Advertisement

WS-2700

Table of Contents

1
Introduction ............................................................ 3
1.1 Features ................................................................ 4
2
Quick Start Guide ................................................... 5
3
Getting Started ........................................................ 5
3.1
Parts List ........................................................ 6
3.2
Recommend Tools ......................................... 7
3.3
3.4
Display Console ........................................... 10
3.4.1 Display Console Layout .............................. 10
3.4.2
3.4.3
3.5
Sensor Operation Verification ...................... 16
3.6
Sensor Placement ......................................... 17
3.7
4
Console Operation ................................................ 20
Version 1.0 ©Copyright 2020, Ambient LLC. All Rights Reserved.
Advanced Wireless Weather
Station User Manual
Display Front and Back View .................. 12
Display Console Set Up ........................... 13
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WS-2700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ambient Weather WS-2700

  • Page 1: Table Of Contents

    WS-2700 Advanced Wireless Weather Station User Manual Table of Contents Introduction ............3 1.1 Features ..............4 Quick Start Guide ........... 5 Getting Started ............5 Parts List ............6 Recommend Tools ......... 7 Thermo-Hygrometer Sensor Set Up ....7 Display Console ...........
  • Page 2 Set Mode ............21 4.1.1 Time Zones ..........24 Barometric Pressure ........25 4.2.1 Barometric Pressure History ....25 4.2.2 Relative Pressure Calibration ....26 4.2.3 Relative vs. Absolute Pressure ....26 Dew Point ............ 27 Multiple Channel Selection and Scroll Mode Alarms ............
  • Page 3: Introduction

    Accessories ............48 Liability Disclaimer ..........49 FCC Statement ..........50 Warranty Information ........51 California Prop 65 ..........53 1 Introduction Thank you for your purchase of the Ambient Weather Version 1.0 ©Copyright 2020, Ambient LLC. All Rights Reserved. Page 3...
  • Page 4: Features

    WS-2700 Wireless Weather Station. The following user guide provides step by step instructions for installation, operation and troubleshooting. To download the latest manual and additional troubleshooting tips, please visit: https://help.ambientweather.net/product/ws-2700 1.1 Features The WS-2700 features: • Wireless outdoor and indoor humidity (%RH) •...
  • Page 5: Quick Start Guide

    Set Up or Program Display Console Install Sensor Calibrate Barometer 4.2 and 3 Getting Started The WS-2700 weather station consists of a display console (receiver) and a thermo-hygrometer sensor. Note: The power up sequence must be performed in the order shown in this section (remote transmitter first, display console second) to properly synchronize the remote sensor to the console.
  • Page 6: Parts List

    3.1 Parts List Item Image Display Console (WS-2700-C) Frame Dimensions (LxHxW): 6.36 x 3.39 x 0.86” (161.5 x 86 x 21.5 mm) Thermo-hygrometer transmitter (WH32M) Dimensions (LxHxW): 4.80 x 1.57 x 0.71” (122 x 40 x 18 mm) Optional Power Adapter...
  • Page 7: Recommend Tools

    3.2 Recommend Tools • Hammer and nail for hanging remote thermo-hygrometer transmitter. 3.3 Thermo-Hygrometer Sensor Set Up Remove the battery door on the back of the sensor, as shown in Figure 2. Figure 2 Version 1.0 ©Copyright 2020, Ambient LLC. All Rights Reserved. Page 7...
  • Page 8 1. BEFORE inserting the batteries, switch the channel switch to the appropriate channel. If you have one sensor, set the switch to Channel 1. If you have two sensors, set the second sensor to Channel 2. If you own three sensors, set the third sensor to Channel 3.
  • Page 9 Note: We recommend lithium batteries for cold weather climates, but alkaline batteries are sufficient for most climates. We do not recommend rechargeable batteries. They have lower voltages, do not operate well at wide temperature ranges, and do not last as long, resulting in poorer reception. Note: If the incorrect channel number is selected, change the channel number switch on the back of the sensor, and remove and reinsert the batteries for...
  • Page 10: Display Console

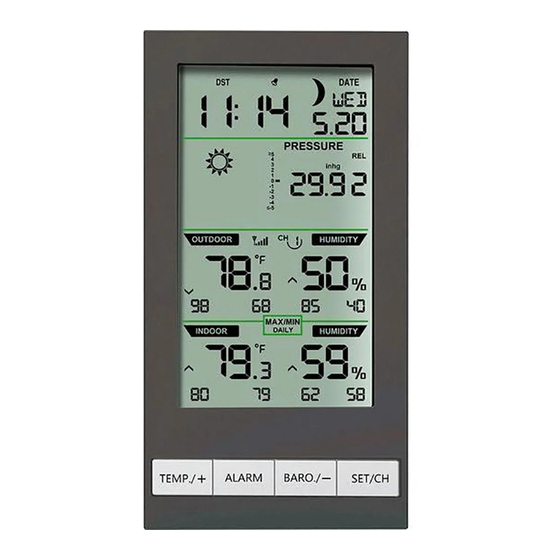

    3.4 Display Console 3.4.1 Display Console Layout The display console layout is shown in Figure 4. Figure 4 1. Time 2. Weather forecast icon 14. Min outdoor humidity based on barometer 3. Transmitter signal 15. Outdoor humidity strength Version 1.0 ©Copyright 2020, Ambient LLC. All Rights Reserved. Page 10...
  • Page 11 4. Outdoor temperature 16. Sensor channel number 5. Max outdoor 17. Barometric pressure trend temperature arrow 6. Min outdoor 18. Barometric pressure temperature 7. Indoor temperature 19.Pressure rate of change 8. Max indoor temperature 20. Date 9. Min indoor temperature 21.
  • Page 12: Display Front And Back View

    3.4.2 Display Front and Back View Version 1.0 ©Copyright 2020, Ambient LLC. All Rights Reserved. Page 12...
  • Page 13: Display Console Set Up

    Figure 5 3.4.3 Display Console Set Up Place the wireless thermo-hygrometer sensor about 5 to 10 feet away from the display console (if the sensor is too close, it may not be received by the display console). 1. Remove the battery door on the back of the display. Insert three AAA (alkaline or lithium, avoid rechargeable) batteries in the back of the display Version 1.0 ©Copyright 2020, Ambient LLC.
  • Page 14 console. Looking at the back of the unit (left to right), the polarity is (-) (+) for the top battery, (+) (-) for the middle battery and (-) (+) for the bottom battery. The LCD display will beep once and then light up.
  • Page 15 turn on: Do not touch any buttons until the remote sensor reports in, otherwise the remote sensor search mode will be terminated, and the search icon will turn off. When the remote sensor data has been received, the console will automatically switch to the normal mode, and all further settings can be performed.
  • Page 16: Sensor Operation Verification

    If the signal reception is not successful (normally during the day due to solar interference), the sensor search will be cancelled, the outdoor temperature and humidity will update as normal, and the RCC search will automatically resume every two hours until the signal is successfully captured.
  • Page 17: Sensor Placement

    3.6 Sensor Placement It is recommended you mount the remote sensor outside on a north facing wall, in a shaded area, at a height at or above the receiver. If a north facing wall is not possible, choose a shaded area, under an eve. Direct sunlight and radiant heat sources will result in inaccurate temperature readings.
  • Page 18 example). Figure 6 Figure 7 Version 1.0 ©Copyright 2020, Ambient LLC. All Rights Reserved. Page 18...
  • Page 19: Best Practices For Wireless Communication

    3.7 Best Practices Wireless Communication Wireless communication is susceptible to interference, distance, walls and metal barriers. We recommend the following best practices for trouble free wireless communication. 1. Electro-Magnetic Interference (EMI). Keep the console several feet away from computer monitors and TVs.
  • Page 20: Console Operation

    transmission medium. Each “wall” or obstruction decreases the transmission range by the factor shown below. RF Signal Strength Medium Reduction Glass (untreated) 5-15% Plastics 10-15% Wood 10-40% Brick 10-40% Concrete 40-80% Metal 90-100% 4 Console Operation Note: The console has four keys for easy operation: TEMP/+ key, ALARM key, BARO/- key and SET/CH/CH key.
  • Page 21: Set Mode

    4.1 Set Mode The Set Mode allows you to change date, time, units of measure and other important functions, as referenced in Figure 8. To enter the Set Mode, press and hold the SET/CH key for two seconds (SET/CH + 2 seconds). To advance each command, press (do not hold) the SET/CH key.
  • Page 22 SET/CH 12/24 Hour Press TEMP/+ or Format BARO/- to toggle between 12 hour (12h) and 24 hour (24h) format SET/CH Hour of Day Press TEMP/+ to increase. BARO/- to decrease SET/CH Minute of Day Press TEMP/+ to increase. BARO/- to decrease SET/CH Month Day...
  • Page 23 SET/CH Day of Month Press TEMP/+ to increase and BARO/- to decrease SET/CH °F Temperature Press TEMP/+ to Units of Measure toggle between °F and °C SET/CH inHg Barometric Press TEMP/+ to Pressure Units of toggle between Measure inHg and hPa SET/CH PRESSU Relative...
  • Page 24: Time Zones

    4.1.1 Time Zones Hours Time Zone Cities from IDLW: International Date Line West NT: Nome Nome, AK AHST: Alaska-Hawaii Honolulu, HI Standard CAT: Central Alaska HST: Hawaii Standard YST: Yukon Standard Yukon Territory PST: Pacific Standard Los Angeles, CA, MST: Mountain Standard Denver, CO, USA CST: Central Standard Chicago, IL, USA...
  • Page 25: Barometric Pressure

    Hours Time Zone Cities from Astana Bangkok CCT: China Coast Bejing JST: Japan Standard Tokyo GST: Guam Standard Sydney Magadan IDLE: International Date Wellington, New Line East Zealand NZST: New Zealand Standard Figure 9 4.2 Barometric Pressure 4.2.1 Barometric Pressure History While in normal mode, press BARO/- to check the barometric pressure history.
  • Page 26: Relative Pressure Calibration

    4.2.2 Relative Pressure Calibration You will want to calculate your barometric pressure to an official reporting station in your area. Since barometric pressure does not drastically change in a 50 mile radius (unless the weather is rapidly changing), this method of calibration is acceptable.
  • Page 27: Dew Point

    The standard sea-level pressure is 29.92 in Hg (1013 mb). This is the average sea-level pressure around the world. Relative pressure measurements greater than 29.92 inHg (1013 mb) are considered high pressure and relative pressure measurements less than 29.92 inHg are considered low pressure.
  • Page 28: Alarms

    and the scroll icon will be displayed next to the channel number, and will scroll every 5 seconds. 4.5 Alarms 4.5.1 View Alarm Time While in normal mode, press the ALARM key to view the alarm time. The alarm icon will be displayed in the time field.
  • Page 29: Cancelling The Alarm

    Command Function Description Settings ALARM + 2 Alarm Set the Alarm Press TEMP/+ or seconds Hour Hour Time BARO/- to increase or decrease the alarm hour. SET/CH Alarm Set the Alarm Press TEMP/+ or Minute Hour Minute BARO/- to increase or decrease the alarm minute.
  • Page 30: Low Temperature Alarm

    4.5.4 Low Temperature Alarm The low temperature alarm sounds when the outdoor is between -3 °C and +2 °C (26.6 °F and 35.6 °F). The LO temperature icon will appear and flash on the console. If the BEEP is switched on, an audible alert will also activated when the low temperature alert occurs.
  • Page 31 Enter the calibration offset to match the calibration source. Command Function Description Settings SET/CH CH 1 TEMP Calibrate the Press TEMP/+ or channel 1 BARO/- to BARO/- + temperature increase or 5 seconds decrease the outdoor temperature offset. SET/CH CH 1 Calibrate the Press TEMP/+ or HUMIDITY...
  • Page 32 temperature increase or decrease the outdoor temperature offset. SET/CH CH 3 Calibrate the Press TEMP/+ or HUMIDITY channel 3 BARO/- to humidity increase or decrease the outdoor humidity offset. SET/CH INDOOR Calibrate the Press TEMP/+ or TEMP indoor BARO/- to temperature increase or decrease the indoor...
  • Page 33 or actual temperature is 60.0 °F. The uncalibrated or measured temperature is 58.7 °F. Offset = Calibrated Temperature – Uncalibrated Temperature = 60.0 – 58.7 = 1.3 °F. Enter the temperature offset +1.3 °F. Example 2: The calibrated absolute pressure from a calibrated pressure sensor, or actual absolute pressure is 28.61 inHg.
  • Page 34: Max/Min Mode

    Note: The calibration offset range limits are as follows: Temperature: ± 9°F Humidity: ± 9% Absolute: ± 50hpa (± 1.47 inHg) 4.7 Max/Min Mode The Max/Min data is displayed below each parameter. The orange parameter on the left is the maximum value since the last reset, and the blue parameter on the left is the minimum value since the last reset.
  • Page 35: Other Console Features

    midnight. The MAX/MIN DAILY icon will be displayed. To switch this feature off, reference Section 4.1. 4.8 Other Console Features 4.8.1 Display Brightness Press the LIGHT/SNOOZE button to toggle the screen brightness between HIGH, MEDIUM and LOW. 4.8.2 Weather Forecasting The five weather icons are Sunny, Partly Cloudy, Cloudy, Rainy and Stormy.
  • Page 36: Limitations

    Pressure increases Pressure increases Pressure for a sustained period slightly, or initial decreases slightly of time power up Rainy Stormy Pressure decreases Pressure rapidly for a sustained period decreases of time Figure 14 4.8.3 Weather Forecasting Description and Limitations In general, if the rate of change of pressure increases, the weather is generally improving (sunny to partly cloudy).
  • Page 37: Moon Phase

    of change is relatively steady, it will read partly cloudy. The reason the current conditions do not match the forecast icon is because the forecast is a prediction 24-48 hours in advance. In most locations, this prediction is only 70% accurate and it is a good idea to consult the National Weather Service for more accurate weather forecasts.
  • Page 38 Waxing First Waxing Full Crescent Quarter Gibbous Waning Third Waning Gibbous Quarter Southern Hemisphere: Waxing First Waxing Full Crescent Quarter Gibbous Waning Third Waning Gibbous Quarter Figure 15 Version 1.0 ©Copyright 2020, Ambient LLC. All Rights Reserved. Page 38...
  • Page 39: Pressure Tendency Arrows

    4.8.5 Pressure Tendency Arrows The forecast trend arrow updates every 30 minutes. The trend reflects changes in pressure (1 hPa) over the past 3 hours. Pressure is rising Pressure is Pressure is falling unchanged Figure 16 4.8.6 Rate of Change of Pressure Graph The rate of change of pressure graphic is shown to the left of the barometric pressure and signifies the...
  • Page 40: Resynchronizing Lost Sensor

    Figure 17 4.8.7 Resynchronizing Lost Sensor If the signal is lost between the remote sensor (or transmitter) and the display console (or the receiver), to resynchronize, while in normal mode, Press and hold SET/CH and TEMP/+ button for 5 seconds, to register the outdoor transmitter.
  • Page 41: Factory Reset

    flash. Please wait several minutes for the remote sensor reports in. Do not touch any buttons until synchronization is complete. If the synchronization fails, reset the console by removing one battery from the display console, disconnect from AC power, wait 10 seconds, and reinsert the battery and reconnect AC power.
  • Page 42: Glossary Of Terms

    Glossary of Terms Term Definition Accuracy Accuracy is defined as the ability of a measurement to match the actual value of the quantity being measured. Hygrometer A hygrometer is a device that measures relative humidity. Relative humidity is a term used to describe the amount or percentage of water vapor that exists in air.
  • Page 43: Specifications

    measured pressure. Relative Measured barometric pressure relative to Barometric your location or ambient Pressure conditions. HectoPascals Pressure units in SI (international system) (hPa) units of measurement. Same as millibars (1 hPa = 1 mbar) Inches of Pressure in Imperial units of measure. Mercury 1 inch of mercury = 33.86 millibars (inHg)
  • Page 44: Measurement Specifications

    6.2 Measurement Specifications The following table provides specifications for the measured parameters. Measurement Range Accuracy Resolution Indoor -14 to ± 1.8 °F 0.1 °F Temperature 140 °F ± 1 °C 0.1 °C -10 to 60 °C Outdoor -40 to ± 1.8 °F 0.1 °F Temperature 140 °F...
  • Page 45: Power Consumption

    6.3 Power Consumption • Base station : 3xAAA 1.5V Batteries (not included) 5V DC adaptor (included with WS-2700-AC, sold separately with the WS-2700). • Remote sensor: 2 x AA Batteries (not included) • Battery life: About 12 months for base station...
  • Page 46 Problem Solution If the sensor assembly is too close (less than 5’), move the sensor assembly away from the display console. Make sure the remote sensor LCD display is working on both the console and the remote sensor. Install a fresh set of batteries in the remote thermo-hygrometer.
  • Page 47 Problem Solution sensor reads too mounted in a shaded area. The pre high in the day preferred location is a north facing time. wall because it is in the shade most of the day. Consider the following radiation shield if this is not possible: http://www.ambientweather.com/am wesrpatean.html Indoor and...
  • Page 48: Accessories

    Description Energizer AAA Lithium AAA lithium batteries for Battery (2-pack) - cold weather climates. Batteries for Long Life and Cold Climates Ambient Weather Solar Radiation Shield SRS100LX improves temperature Temperature and accuracy for hot weather Humidity Solar climates. Install over Radiation Shield thermo-hygrometer.
  • Page 49: Liability Disclaimer

    Accessory Description Ambient Weather The WS-2700 supports up to WH32M Wireless three wireless remote sensors. Remote Sensors 9 Liability Disclaimer Please help in the preservation of the environment and return used batteries to an authorized depot. The electrical and electronic wastes contain hazardous substances.
  • Page 50: Fcc Statement

    This product is not a toy. Keep out of the reach of children. No part of this manual may be reproduced without written authorization of the manufacturer. Ambient, LLC WILL NOT ASSUME LIABILITY FOR INCIDENTAL, CONSEQUENTIAL, PUNITIVE, OR OTHER SIMILAR DAMAGES ASSOCIATED WITH THE OPERATION OR MALFUNCTION OF THIS PRODUCT.
  • Page 51: Warranty Information

    designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
  • Page 52 This limited warranty begins on the original date of purchase, is valid only on products purchased and only to the original purchaser of this product. To receive warranty service, the purchaser must contact Ambient, LLC for problem determination and service procedures. Warranty service can only be performed by a Ambient, LLC.
  • Page 53: California Prop 65

    DINP and/or DEHP, which are known to the State of California to cause birth defects or other reproductive harm. Can I Trust that Ambient Weather Products are Safe Despite this Warning? In 1986, California voters approved the Safe Drinking Water and Toxic Enforcement Act known as Proposition 65 or Prop 65.
  • Page 54 RoHS compliant, it remains possible that trace amounts of lead could be found in components or subassemblies of Ambient Weather Products. Bisphenol A (BPSA) could conceivably be present in minute amounts in our plastic housings, lenses, labels or adhesives, and DEHP &...
  • Page 55 Ambient Weather Product or component and Ambient Weather has not attempted to evaluate the level of exposure. A Proposition 65 warning means one of two things: (1) the business has evaluated the exposure and has Version 1.0 ©Copyright 2020, Ambient LLC.
  • Page 56 Proposition 65 more as a 'right to know' law than a pure product safety law." While using Ambient Weather Products as intended, we believe any potential exposure would be negligible or well within the "no significant risk" range.
  • Page 57 Version 1.0 ©Copyright 2020, Ambient LLC. All Rights Reserved. Page 57...
