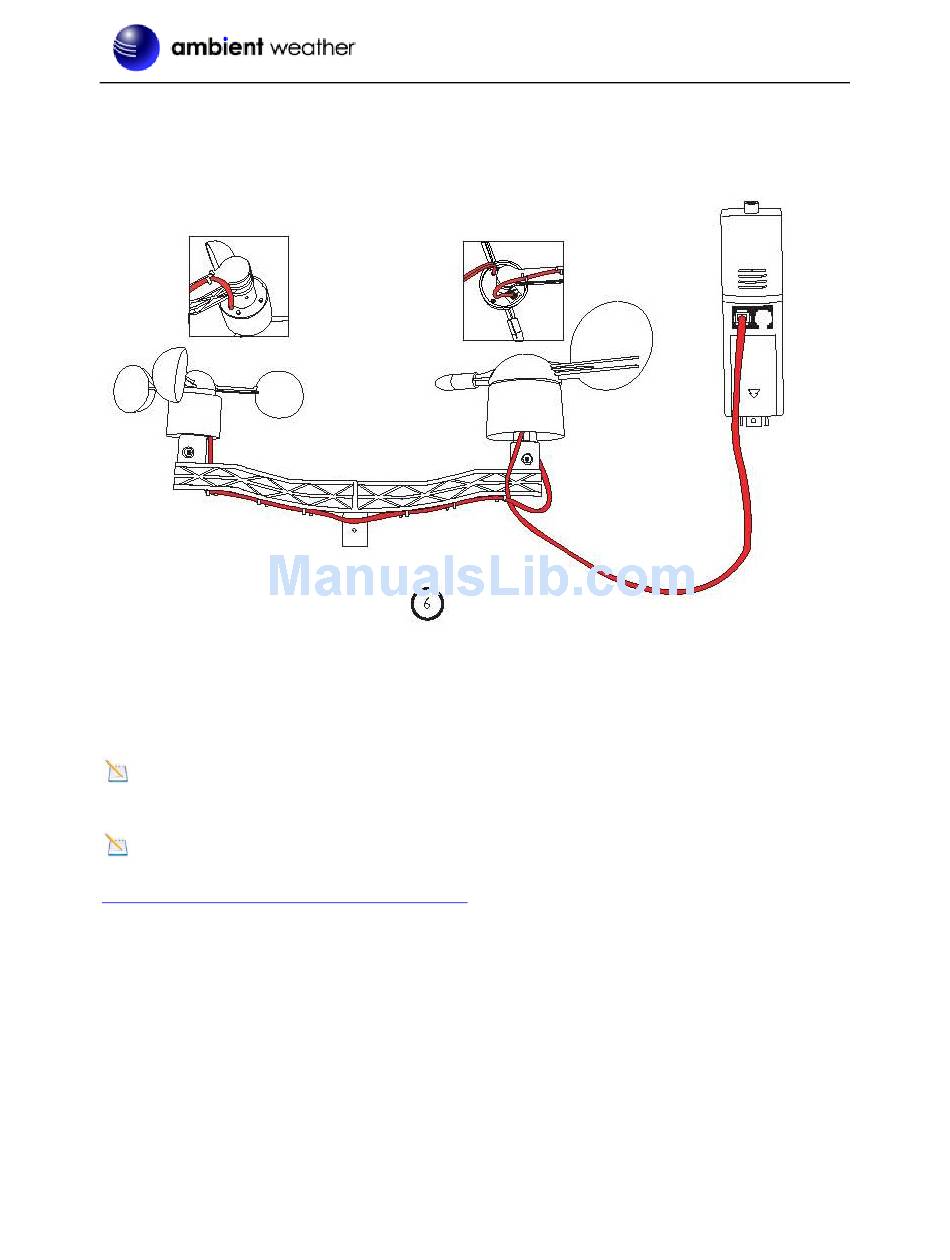

Connect the wind speed cable to the wind direction phone jack, as shown in
Figure 7. Connect the wind direction cable to the thermo-hygrometer phone jack (reference the label
on the thermo-hygrometer). Connect the rain gauge cable to the thermo-hygrometer phone jack
(reference the label on the thermo-hygrometer).
F
igure 7
Insert two AA batteries in the thermo-hygrometer, as shown in Figure 8. The transmitter LED will
light up momentarily (4 seconds), and then flash once every 48 seconds for each transmission update.
Note: Do not install the batteries backwards. You can permanently damage the
thermo-hygrometer. Do not use rechargeable batteries.
Note: We recommend installing Lithium AA batteries:
http://www.ambientweather.com/enaaliba4pa.html
Lithium batteries provide longer life and operate in colder temperatures.
Version 1.10
©Copyright 2011, Ambient LLC. All Rights Reserved.
Page 10
