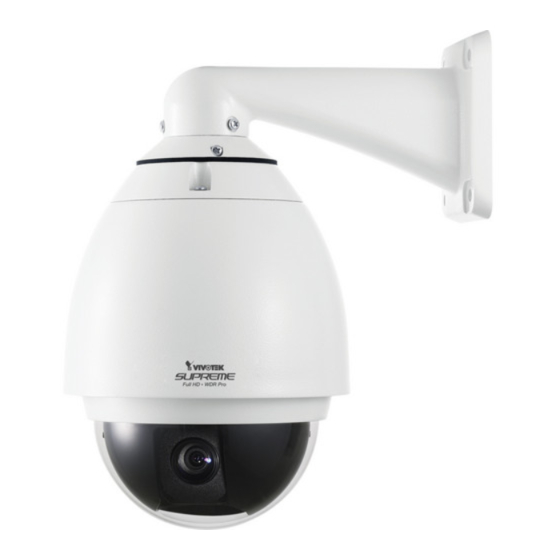

Vivotek SD7151 User Manual

18x zoom progressive scan ccd
Hide thumbs Also See for SD7151:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for Vivotek SD7151

Summary of Contents for Vivotek SD7151

  • Page 2: Table Of Contents

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Table of Contents Overview...............................3 Read before use............................3 Package contents............................3 Physical description..........................4 Installation ..............................7 Hardware installation..........................7 Network deployment..........................8 Software installation ..........................10 Accessing the Network Camera ......................... 11 Using web browsers ..........................11 Using RTSP players ..........................13...

  • Page 3: Overview

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Overview VIVOTEK SD7151, equipped with an 18x optical zoom lens, is a high performance day/night speed dome network suitable for professional surveillance applications. It is another significant addition to VIVOTEK’s high-end network camera portfolio of progressive-series.

  • Page 4: Physical Description

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Physical description Inner view Status LED Reset button Lens Outer view General I/O terminal block Ethernet 10/100 RJ45 plug Audio out (green) Microphone in (pink) Power cord socket (black) Earth General I/O Terminal Block This Network Camera provides a general I/O terminal block which is used to connect external input / output devices.

  • Page 5: Status Led

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions DI/DO Diagram Refer to the following illustration for connection method. Digital Input Digital Output +12V +12V Power+12V Relay_NO Digital input Ground Relay_COM Ground Status LED The color of LED indicates the status of the Network Camera.
  • Page 6 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Hardware Reset There is a reset button on the inner side of the Network Camera. It is used to reboot the Network Camera or restore the Network Camera to factory default. Sometimes rebooting the Network Camera could set the Network Camera back to normal state.

  • Page 7: Installation

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Installation Hardware installation Follow the steps below to install the Network Camera to the ceiling: 1. Attach the alignment sticker to the wall. 2. Drill four pilot holes into the wall.

  • Page 8: Network Deployment

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Network deployment Setup the Network Camera over the Internet This section explains how to configure the Network Camera to Internet connection. 1. If you have external devices such as sensors and alarms, make connection from general I/O terminal block.
  • Page 9 VIVOTEK - A Leading Provider of Multimedia Communication Solutions 2. In this case, if the Local Area Network (LAN) IP address of your Network Camera is 192.168.0.3, please forward the following ports for the Network Camera on the router. ■ HTTP port ■...

  • Page 10: Software Installation

    After your network environment is analyzed, please click Next to continue the program. 3. The program will search all VIVOTEK devices in the same LAN. 4. After searching, the main installer window will pop up. Click on the MAC and model name which match the product label on your device to connect to the Network Camera.

  • Page 11: Accessing The Network Camera

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Accessing the Network Camera This chapter explains how to access the Network Camera through web browsers, RTSP players, 3GPP-compatible mobile devices, and VIVOTEK recording software. Using web browsers ® 1. Launch your web browser (ex. Microsoft Internet Explorer, Mozilla Firefox or Netscape).
  • Page 12 VIVOTEK - A Leading Provider of Multimedia Communication Solutions ► By default, the Network Camera is not password-protected. To prevent unauthorized accesses, it is highly recommended to set a password for the Network Camera. For more information about how to enable password protection, please refer to Security on page 24.

  • Page 13: Using Rtsp Players

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Using RTSP players To view the MPEG-4 streaming media using RTSP players, you can use one of the following players that support RTSP streaming. Quick Time Player Real Player VLC media player...

  • Page 14: Using 3Gpp-Compatible Mobile Devices

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Using 3GPP-compatible mobile devices To view the streaming media through 3GPP-compatible mobile devices, make sure the Network Camera can be accessed from the Internet. For more information on how to set up the Network Camera over the Internet, please refer to Setup the Network Camera over the Internet on page 8.

  • Page 15: Using Vivotek Recording Software

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Using VIVOTEK recording software The product software CD also contains recording software, allowing simultaneous monitoring and video recording for multiple Network Cameras. Please install the recording software; then launch the program to add the Network Camera to the Channel list. For detailed information about how to use the recording software, please refer to the user’s manual of the software or...

  • Page 16: Main Page

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Main Page This chapter explains the layout of the main page. It is composed of the following four sections: Logo of VIVOTEK INC., Menu, Host Name, and Live Video Window. http://192.168.5.1 2/index.html Outdoor Speed Dome Network Camera VIVOTEK INC Logo of VIVOTEK INC.

  • Page 17: Host Name

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Pan: Click this button to start the auto pan. It will pan endless until you click the Stop button again to stop it. Stop: Click this button to stop the auto Pan and auto Patrol function.
  • Page 18 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Title and time: Video title and time can be stamped on the streaming video. For more information, please refer to Video settings on page 39. MPEG-4 protocol and media options: The transmission protocol and media options for MPEG-4 video streaming.
  • Page 19 VIVOTEK - A Leading Provider of Multimedia Communication Solutions The following window is displayed when the video mode is set to MJPEG: ATE 1 11 5 Video title: The video title can be configured. For more information, please refer to Video settings on page 39.

  • Page 20: Client Settings

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Client Settings This chapter explains how to select the streaming source, transmission mode and saving options at local computer. It is composed of the following four sections: Stream Options, MPEG-4 Media Options, MPEG-4 Protocol Options and MP4 Saving Options.

  • Page 21: Mp4 Saving Options

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions TCP: This protocol guarantees the complete delivery of streaming data and thus provides better video quality. Nevertheless, the downside with this protocol is that its real-time effect is not as good as that of the UDP protocol.

  • Page 22: Configuration

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Configuration Only Administrators can access the system configuration page. Each category in the left menu will be explained in the following sections. System This section explains how to configure the basic settings for the Network Camera, such as the host name and system time.
  • Page 23 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Enable Daylight Saving Time: Select this option to enable daylight saving time (DST). During DST, the system clock moves one hour ahead. Note that to utilize this feature, please set the time zone for your Network Camera first.

  • Page 24: Security

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Security This section explains how to enable password protection and create multiple accounts. It is composed of the following three columns: Root Password, Add User and Manage User. Root Password The administrator account “root” is permanent and can not be deleted. Please note that if you want to add more accounts, you must apply a password for the “root”...

  • Page 25: Https

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions HTTPS thenti ti n nd en pted mm ni ti n This section explains how to enable Enable HTTPS Select this option to turn on the HTTPS communication. Create and Install Certificate Select either to create a self-signed certificate or a signed certificate.
  • Page 26 VIVOTEK - A Leading Provider of Multimedia Communication Solutions 4. Look for a trusted certificate authority that issues digital certificates. Enroll the Network Camera. Wait for the certificate authority to issue a SSL certificate; then upload the issued certificate to the Network Camera.
  • Page 27 VIVOTEK - A Leading Provider of Multimedia Communication Solutions 2. Fill in the information required for generating a Certificate Signing Request (CSR) and click Save. 192.168.5.132 3. Browsing the Network Camera using HTTPS helps to protect streaming data over the Internet.

  • Page 28: Network

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Network This section explains how to configure wired network connection for the Network Camera. It is composed of the following five columns: Network Type, HTTP, Two way audio, FTP and RTSP Streaming.
  • Page 29 VIVOTEK - A Leading Provider of Multimedia Communication Solutions PPPoE (Point-to-point over Ethernet) Select this option to configure your Network Camera to make it accessible from anywhere as long as there is an Internet connection. Note that to utilize this feature, it requires an account provided by your ISP.
  • Page 30 VIVOTEK - A Leading Provider of Multimedia Communication Solutions 2. In the Add or Remove Programs dialog box, click Add/Remove Windows Components. 3. In the Windows Components Wizard dialog box, select Networking Services and then click Details. 4. In the Networking Services dialog box, select Universal Plug and Play and then click OK.
  • Page 31 VIVOTEK - A Leading Provider of Multimedia Communication Solutions ► Enabling UPnP port forwarding allows the Network Camera to open secondary HTTP port on the router, not HTTP port, meaning that you have to add the secondary HTTP port number behind the Network Camera’s public address in order to access the Network Camera from the Internet.
  • Page 32 VIVOTEK - A Leading Provider of Multimedia Communication Solutions For example, when the access name for stream 1 is set to video.mjpg: 1. Launch Mozilla Firefox or Netscape. 2. Type the URL command in the address field. Press Enter. 3. The JPEG images will be displayed in your web browser.
  • Page 33 To stop talking, click again. The FTP server allows the Network Camera to utilize VIVOTEK Installation Wizard 2 to upgrade firmware. By default, the FTP port is set to 21. Also, it can be assigned with another port number between 1025 and 65535.
  • Page 34 VIVOTEK - A Leading Provider of Multimedia Communication Solutions RTSP Streaming Authentication: Depending on your network security requirements, the Network Camera provides three types of security settings for streaming via RTSP protocol: disable, basic and digest. If basic authentication is selected, the password is sent in plain text format; there can be potential risks of being intercepted.
  • Page 35 VIVOTEK - A Leading Provider of Multimedia Communication Solutions 4. The live video will be displayed in your player. RTSP port /RTP port for video, audio/ RTCP port for video, audio The RTSP (Real-Time Streaming Protocol) controls the delivery of streaming media. By default, the port number is set to 554.

  • Page 36: Ddns

    Provider: Select a DDNS provider of your choice from the Provider drop-down list. VIVOTEK offers safe100, a free dynamic domain name service to VIVOTEK customers. It is recommended that you register with the safe100 to access the Network Camera from the Internet. Additionally, we offer other DDNS providers, such as Dyndns.org(Dynamic), Dyndns.org(Custom), TZO.com, DHS.org,...
  • Page 37 4. Select Enable DDNS and then click Save to take effect. ■ CustomSafe100 VIVOTEK offers documents to establish CustomSafe100 DDNS server for distributors and system integrators. You can use CustomSafe100 to register a dynamic domain name if your distributor or system integrators offer such services.

  • Page 38: Access List

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Access list This section explains how to control the access permission by checking the client PC’s IP addresses. It is composed of the following four columns: Allowed list, Denied list, Delete allowed list, and Delete denied list.

  • Page 39: Audio And Video

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Audio and video This section explains how to cofigure audio and video performances of the Network Camera. It is composed of the following two columns: Video settings and Audio settings. Video settings Video title: Enter a name that will be displayed on the title bar of the live video.
  • Page 40 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Overlay title and time stamp on video: Select this option to place the video title and time on video streams. Note that when the frame size is set to 176 x 144 as the right picture below, only time will be stamped on video streams.
  • Page 41 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Sharpness: Adjust the image sharpness in fifteen steps from -7 (least sharp) ~ +7(sharpest). By default, the sharpness is set to 0. When completed with the settings on this page, click Save to take effect and click Close to quit the page.
  • Page 42 VIVOTEK - A Leading Provider of Multimedia Communication Solutions CCD Settings Click CCD settings to open the CCD Settings page. In this page, you can set the exposure time and day/ night function. Exposure: ■ Auto The Network Camera automatically adjusts the iris and gain, but fixed shutter speed (1/30 s) in response to different environments.
  • Page 43 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Enter the starting time and ending time for the day mode. Note that the time format is [hh:mm] and is expressed in 24-hour clock time. By default, the starting time and ending time of day mode are set to 07:00 and 18:00.
  • Page 44 VIVOTEK - A Leading Provider of Multimedia Communication Solutions JPEG mode is selected, the Network Camera continuously sends JPEG images to the clients, producing dynamic effects similar to movies. Every single JPEG image transmitted guarantees the same image quality, which in turn comes at the expense of variable bandwidth usage. And because the media contents are a combination of JPEG images, no audio data is transmitted to the clients.

  • Page 45: Motion Detection

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Motion detection This section explains how to configure the Network Camera to enable motion detection. A total of three motion detection windows can be configured. To enable motion detection, follow the steps below: 1.
  • Page 46 VIVOTEK - A Leading Provider of Multimedia Communication Solutions A green bar indicates that even though motions are detected, the event will not be triggered because the image variations are still falling under the defined threshold. er enta e NOTE ►...

  • Page 47: Camera Control

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Camera control This section explains how to control the Network Camera’s Pan/Tilt/Zoom operation by a control panel. Preset Position In this page, you can set preset positions for the Network Camera. You can also select some preset positions for it to partol.
  • Page 48 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Return to home position after seconds Enter a number to set the Network Camera to return to home position after it has been motionless for seconds. Note that this function will be disabled if you have setup a patrol selection.

  • Page 49: Application

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Application This section explains how to configure the Network Camera to react in response to particular situations. A typical application is that when a motion is detected, the Network Camera sends buffered images to a FTP server or via e-mail as notifications.
  • Page 50 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Media name: Enter a descriptive name for the media setting. Media Type: There are three choices of media types available: Snapshot, Video Clip, and System log. Snapshot: Select to send snapshots when a trigger is activated.
  • Page 51 VIVOTEK - A Leading Provider of Multimedia Communication Solutions ■ Maximum file size Specify the maximal file size allowed. ■ File Name Prefix File name prefix Date and time suffix Enter the text that will be put in front of the file name.
  • Page 52 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Server name: Enter a descriptive name for the server setting. Server Type: There are four choices of server types available: Email, FTP, HTTP, and Network storage. Email: Select to send the media via Email when a trigger is activated.
  • Page 53 VIVOTEK - A Leading Provider of Multimedia Communication Solutions HTTP: Select to send the media to a HTTP server when a trigger is activated. ■ URL: Enter the URL of the HTTP server. ■ User name: Enter the user name.
  • Page 54 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Event Settings In the Event column, click Add to open the event setting page. In this page, you can arrange the three elements -- Trigger, Schedule and Action to plot an event. A total of three event settings can be configured.
  • Page 55 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Event Schedule: The effective period in which the event stays active. Specify the effective period for the event. ■ Select the days on weekly basis. ■ Select the time for recording in 24-hr time format.

  • Page 56: Recording

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Recording This section explains how to configure the recording settings for the Network Camera. Recording Settings Click Add to open the recording setting page. In this page, you can define the recording source, recording schedule and recording capacity.
  • Page 57 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Destination: Specify a storage destination for the recorded video files. Note that the destination field is empty by default. Please go to Configuration > Application > Server Settings to set a Network storage server;...

  • Page 58: System Log

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions System log This section explains how to configure the Network Camera to send system log to remote server as a backup. It is composed of the following two columns: Remote Log and Current Log.

  • Page 59: View Parameters

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions View parameters The View parameters page lists the entire system’s parameters in alphabetical order. If you need technical assistance, please provide the information listed in this page. User's Manual - 59...

  • Page 60: Maintenance

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Maintenance This chapter explains how to restore the Network Camera to factory default, upgrade firmware version, etc. Reboot This feature allows you to turn off and then turn on the Network Camera. It takes about one ~ two minutes to complete the process.
  • Page 61 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Calibrate This feature re-calibrate the home position to the default center to recover the tolerance caused by some external forces. Please note that there is no confirming message box after clicking on Calibrate, the Network Camera will calibrate immediately.
  • Page 62 Note that do not power off the Network Camera during the upgrade. Follow the steps below to upgrade firmware: 1. Download a new firmware file from VIVOTEK website. The file is in pkg file format. 2. Click Browse… and specify the firmware file.
  • Page 63 VIVOTEK - A Leading Provider of Multimedia Communication Solutions The upgrade is successful as you see “Reboot system now!! This connection will close”. After that, re-access the Network Camera. The following message is displayed when the upgrade is succeeded. The following message is displayed when you have selected an incorrect firmware file.

  • Page 64: Joystick Settings

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Joystick Settings This chapter explains how to remotely control the Network Camera with a USB joystick (optional). It is easy to install and configure using USB interface. Installation Connect the USB plug of the joystick to a USB port on your computer. Supported by the plug- in in the main page (Microsoft’s DirectX), once the plug-in in the main page is loaded, it will...
  • Page 65 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Buttons configuration Follow the steps below to configure your joystick buttons: 1. Move your mouse cursor on the Live video window in the main page and click once with your right mouse button, which will pop up a menu of joystick settings.
  • Page 66 VIVOTEK - A Leading Provider of Multimedia Communication Solutions 4. Choose one of the actions and then click Assign, which will pop up the Assign Button dialog. Then you can Assign this action to a button. For example: Assign Snapshot to Button 1 5.
  • Page 67 VIVOTEK - A Leading Provider of Multimedia Communication Solutions 8. You can also click Cancel or Clear selected to erase the settings. 9. When completed, click OK to save the settings and quit the page of Burrons configuration or click Cancel without any change.

  • Page 68: Appendix

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Appendix URL Commands of the Network Camera Overview For some customers who already have their own web site or web control application, Network Camera/ Video server can be easily integrated through convenient URLs. This section specifies the external HTTP based application programming interface.
  • Page 69 VIVOTEK - A Leading Provider of Multimedia Communication Solutions General CGI URL syntax and parameters CGI parameters are written in lower-case and as one word without any underscores or other separators. When the CGI request includes internal camera parameters, the internal parameters must be written exactly as they are named in the camera or video server.
  • Page 70 VIVOTEK - A Leading Provider of Multimedia Communication Solutions When query parameter values, the current parameter value are returned. Successful control request returns parameter pairs as follows. Return: HTTP/1.0 200 OK\r\n Content-Type: text/html\r\n Context-Length: <length>\r\n \r\n <parameter pair> where <parameter pair> is <parameter>=<value>\r\n...
  • Page 71 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Parameter Value Description <group>_<name> value to assigned Assign <value> to the parameter <group>_<name> Set to 1 to actually update all fields (no need to use update update <boolean> parameter in each group) Redirect to the page <return page>...
  • Page 72 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Available parameters on the server Valid values: Valid values Description string[<n>] Text string shorter than ‘n’ characters. The characters “,’, <,>,& are invalid. password[<n>] The same as string but display ‘*’ instead...
  • Page 73 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Indicate timezone and area -480: GMT-12:00 Eniwetok, Kwajalein -440: GMT-11:00 Midway Island, Samoa -400: GMT-10:00 Hawaii -360: GMT-09:00 Alaska -320: GMT-08:00 Las Vegas, San_Francisco, Vancouver -280: GMT-07:00 Mountain Time, Denver -281: GMT-07:00 Arizona...
  • Page 74 VIVOTEK - A Leading Provider of Multimedia Communication Solutions daylight_enable <boolean> Enable automatic daylight saving to time zone daylight_ <boolean> Check if current time is under daylight saving time. dstactualmode daylight_auto_ string[19] Display the current daylight saving begin time. begintime...
  • Page 75 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Group: do_i<0~(ndo-1)> Security Name Value Description (get/set) open Indicate whether open circuit or closed circuit represents inactive normalstate grounded status Group: security Security Name Value Description (get/set) user_i0_name string[64] User’s name of root user_i<1~20>...
  • Page 76 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Subgroup of network: https Security Name Value Description (get/set) 443, port https port 1025~65535 Subgroup of network: rtsp Security Name Value Description (get/set) 554, port RTSP port 1025 ~ 65535 disable,...
  • Page 77 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Group: ipfilter Security Name Value Description (get/set) allow_i<0~9> 1.0.0.0 ~ Allowed starting IP address for RTSP connection _start 255.255.255.255 allow_i<0~9> 1.0.0.0 ~ Allowed ending IP address for RTSP connection _end 255.255.255.255 deny_i<0~9>...
  • Page 78 VIVOTEK - A Leading Provider of Multimedia Communication Solutions The period of intra frame in milliseconds 250, 250 => 1/4 S 500, s<0~(m-1)>_ 500 => 1/2 S 1000, mpeg4_ 1000 =>1 S 2000, intraperiod 2000 => 2 S 3000, 3000 => 3 S 4000, 4000 =>...
  • Page 79 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Set maximum frame rate in fps (for JPEG). 1 => 1 fps 2 => 2 fps 3 => 3 fps s<0~(m-1)>_ 5 => 5 fps mjpeg_ 8 => 8 fps maxframe 10 =>...
  • Page 80 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Group: audioin_c<0~ (n-1)> for n channel products Security Name Value Description (get/set) micin, micin => use external microphone input source linein linein => use line input, i.e. internal microphone Enable audio mute mute 0 =>...
  • Page 81 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Set AMR bitrate in bps 4750, 4750 => 4.75 Kbps 5150, 5150 => 5.15 Kbps 5900, 5900 => 5.90 Kbps s<0~(m-1)>_ 6700, 6700 => 6.7 Kbps gamr_bitrate 7400, 7400 => 7.4 Kbps 7950, 7950 =>...
  • Page 82 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Safe100, Safe100 => safe100.net DyndnsDynamic, DyndnsDynamic => dyndns.org (dynamic) DyndnsCustom, DyndnsCustom => dyndns.org (custom) provider TZO, TZO => tzo.com DHS, DHS => dhs.org DynInterfree, DynInterfree =>dyn-interfree.it CustomSafe100 CustomSafe100 =>Custom server using safe100 method <provider>_...
  • Page 83 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Group: camctrl_c<0~(n-1)> for n channel product Security Name Value Description (get/set) panspeed -5 ~ 5 Pan speed -5 ~ 5 tiltspeed -5 ~ 5 Tilt speed -5 ~ 5 zoomspeed -5 ~ 5...
  • Page 84 VIVOTEK - A Leading Provider of Multimedia Communication Solutions protocol_https <boolean> Indicate whether to support http over SSL protocol_rtsp <boolean > Indicate whether to support rtsp protocol_sip <boolean> Indicate whether to support sip protocol_ <positive integer> 0/7 The maximum allowed simultaneous connections...
  • Page 85 VIVOTEK - A Leading Provider of Multimedia Communication Solutions wireless_ <boolean> Indicate whether to support the wireless WEP encrypt_wep wireless_ <boolean> Indicate whether to support the wireless WPA encrypt_wpa wireless_encrypt <boolean> Indicate whether to support the wireless WPA2 _wpa2 Group: event_i<0~2>...
  • Page 86 VIVOTEK - A Leading Provider of Multimedia Communication Solutions To enable or disable event goto function action_goto_ 0 => Disable enable 1 => Enable action_goto_ string[40] The selected name of preset positions name To enable or disable this server action.
  • Page 87 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Group: media_i<0~4> Security Name Value Description (get/set) name string[40] The identification of this entry snapshot, type systemlog, The media type to send to the server or store by the server. videoclip Indicate the source of media stream.
  • Page 88 VIVOTEK - A Leading Provider of Multimedia Communication Solutions End time of weekly schedule. endtime hh:mm (00:00~24:00 means always.) prefix string[16] Indicate the prefix of the filename. cyclesize <integer> The maximum size for cycle recording in Kbytes. maxfilesize 50~6000 The max size for one file in Kbytes The destination to store the recording data.
  • Page 89 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Query status of the digital input Note: This request requires the privilege of viewer. Method: GET/POST Syntax: http://<servername>/cgi-bin/dido/getdi.cgi?[di0][&di1][&di2][&di3] If no parameter is specified, all the status of digital input will be returned.
  • Page 90 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Example: Query the status of digital output 1 Request: http://myserver/cgi-bin/dido/getdo.cgi?do1 Response: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: 7\r\n \r\n do1=1\r\n Capture single snapshot Note: This request require normal user privilege Method: GET/POST Syntax: http://<servername>/cgi-bin/viewer/video.jpg?[channel=<value>][&resolution=<value>][&quality=<value>]...
  • Page 91 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Parameter Value Description Add an account to server. When using this method, “username” field is necessary. It will use default value of other fields if not specified. Remove an account from server. When using this method,...
  • Page 92 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Post data: fimage=<file name>[&return=<return page>]\r\n \r\n <multipart encoded form data> Server will accept the upload file named <file name> to be upgraded the firmware and return with <return page> if indicated.
  • Page 93 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Recall Note: This request requires privilege of viewer Method: GET Syntax: http://<servername>/cgi-bin/viewer/recall.cgi?recall=<value>[&channel=<value>][&return=<return page>] Parameter Value Description Text string less than 30 recall One of the present positions to recall. characters channel <0~(n-1)>...
  • Page 94 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Preset Locations Note: This request requires operator privilege Method: GET/POST Syntax: http://<servername>/cgi-bin/operator/preset.cgi?[channel=<value>][&addpos=<value>][&delpos=<value>] [&return=<return page>] Parameter Value Description <Text string less than 30 addpos Add one preset location to preset list. characters>...
  • Page 95 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Redirect to the page <return page> after the parameter is assigned. The <return page> can be a full URL path or return <return page> relative path according to the current path. If you omit this parameter, it will redirect to an empty page.

  • Page 96: Technical Specifications

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Technical Specifications System Pan/Tilt/Zoom ■ ■ Pan range: 360° continuous rotation CPU: VVTK-1000 SoC ■ ■ Tilt range: 0°~90° flip Flash: 8MB ■ ■ RAM: 64MB Pan speed: 0.1~300°/sec. ■ ■...
  • Page 97 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Power ■ 24V AC 2A 60Hz/50Hz ■ Power consumption: max. 42W Approvals CE, FCC, C-Tick, LVD, VCCI Operating Environments ■ Temperature: -20°~60°C ■ Humidity: 20%~80% RH Viewing System Requirements ® ■...

  • Page 98: Technology License Notice

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Technology License Notice MPEG-4 AAC Technology THIS PRODUCT IS LICENSED UNDER THE MPEG-4 AAC AUDIO PATENT LICENSE. THIS PRODUCT MAY NOT BE DECOMPILED, REVERSE-ENGINEERED OR COPIED, EXCEPT REGARD TO PC SOFTWARE, YOU MAY MAKE SINGLE COPIES FOR ARCHIVAL PURPOSES.

  • Page 99: Electromagnetic Compatibility (Emc)

    EN55022/1998, and the requirement for immunity according to EN50082-1/1992. Liability VIVOTEK Inc. cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and manuals without prior notice. VIVOTEK Inc. makes no warranty of any kind with regard to the material contained within this document, including, but not limited to, the implied warranties of merchantability and fitness for any particular purpose.
