Vivotek SD8333-E User Manual

Vivotek SD8333-E User Manual

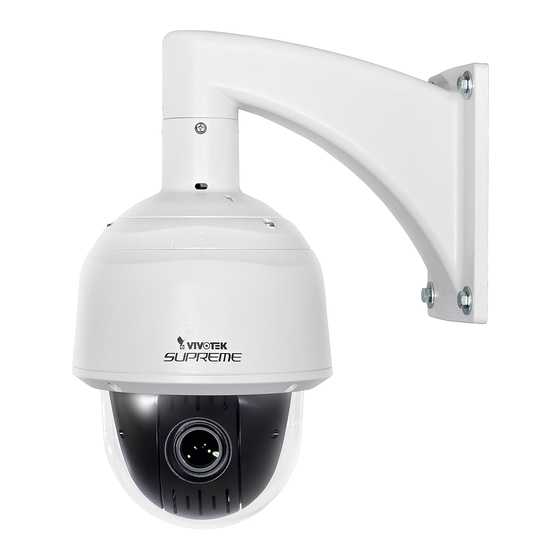

Speed dome network camera
Hide thumbs Also See for SD8333-E:
Table of Contents

Advertisement

Quick Links

Download this manual
SD8333-E/M
User's Manual
720P • 30x Zoom • NEMA 4x • IP66 •
Extreme Weatherproof
Speed Dome
Network Camera
Rev. 1.0

Advertisement

Table of Contents
loading

Related Manuals for Vivotek SD8333-E

Summary of Contents for Vivotek SD8333-E

  • Page 1 SD8333-E/M Speed Dome Network Camera User’s Manual 720P • 30x Zoom • NEMA 4x • IP66 • Extreme Weatherproof Rev. 1.0...

  • Page 2: Table Of Contents

    PTZ > PTZ settings ..........................91 Event > Event settings ..........................96 Applications > Motion detection......................111 Applications > DI and DO ........................114 Applications > Audio detection ......................115 Applications > VADP (VIVOTEK Application Development Platform) ..........117 2 - User's Manual...
  • Page 3 VIVOTEK Recording > Recording settings ........................119 Local storage > SD card management ....................... 124 Local storage > Content management ....................... 125 Appendix  127 URL Commands for the Network Camera ......................127 Technical Specifications ............................. 222 Technology License Notice ..........................223 Electromagnetic Compatibility (EMC) .........................

  • Page 4: Revision History

    VIVOTEK SD8333-E is part of the SUPREME series product line offering 720p HD resolution with superb image quality. Adopting a 30x optical zoom lens, the SD8333-E is able to capture details at top-notch quality. The IP66- and NEMA 4X-rated housing protects the camera body against rain, dust and corrosion within a wide temperature range between -40°C to 55°C.

  • Page 5: Read Before Use

    Camera section serves as a helpful reference to customizing existing homepages or integrating with the current web server. Package Contents ■ SD8333-E/ -M (-M specifies the camera that comes with an electronic dehumidifier unit) ■ Wall Mount Bracket / Screws ■ Waterproof Connectors / Terminal Blocks / Ethernet Cable / Ground Wire ■...

  • Page 6: Physical Description

    VIVOTEK Physical Description Outer View Reset Button Network LED Status LED Lens This drawing shows a camera with its dome cover removed. Inner View Camera Body Board-to-board Connector SD/SDHC/SDXC Card Slot The card slot is accessed by removing the top section using the T25 stardriver.
  • Page 7 VIVOTEK Status LED Item LED status Description Steady Power on and system booting LED OFF Power off Steady & Green blinking every 1 sec. Network normal (heartbeat) Steady & Green LED OFF Network failed blinking every 0.15 sec. & Green...
  • Page 8 VIVOTEK DI/DO Diagram Please refer to the following illustration for the connection method. Please note that the maximum load on the DO pins is 50mA. Camera Power (DO+ 12V) Camera Power Switch Switch Input Input Max. Output Output BJT transistor...

  • Page 9: Installation - For The Configuration W/ Extended Cables 9

    VIVOTEK Installation - for the Configuration w/ Ex- tended Cables Hardware Installation IMPORTANT: If your camera comes without the dehumidifier, you should examine whether the color of the silica gel inside the chassis has turned dark. If so, you should replace the desiccant bag.
  • Page 10 VIVOTEK Install the Wall-mount Bracket 1. The camera weighs 3.66 kgs. Select a rigid mounting location to prevent vibration to the camera. Attach the alignment sticker to the wall. 2. Drill 4 pilot holes (10mm in diameter and 4cm deep) into the wall, and then hammer in the threaded anchors.
  • Page 11 VIVOTEK Cabling Connections & Attach the Top Section 1. Hold your top section with one hand and pass all cables through the wallmount bracket. 2. Secure the top section to the wall mount bracket. Note that you should turn and orient the top section so that the C mark is facing a direction 15 degrees off the center line.

  • Page 12: Mounting The Camera

    VIVOTEK 3. Connect cables and use sealants and putties to make sure cable joints and the cabling hole are waterproof. 4. Secure the included ground wire to the dome cap, pass it through the mount bracket, and con- nect the other end to a grounded conduit later.
  • Page 13 VIVOTEK Mechanical Dimensions Shown below are the dimensions of the wall mount bracket and its mounting holes: You can find the installation instructions on VIVOTEK’s website for other options such as parapet mount: http://www.vivotek.com/web/ product/accessories.aspx NOTE: Before mounting the camera, install an SD card if you prefer recording to local storage.

  • Page 14: Network Deployment

    VIVOTEK Network Deployment Setting up the Network Camera over the Internet There are several ways to set up the Network Camera over the Internet. The first way is to set up the Network Camera behind a router. The second way is to utilize a static...
  • Page 15 For more information with network configuration options (such as that of streaming ports), please refer to Configuration > Network Settings. VIVOTEK also provides the automatic port forwarding feature as an NAT traversal function with the precondition that your router must support the UPnP port forwarding feature.
  • Page 16 VIVOTEK Internet connection with static IP Choose this connection type if you are required to use a static IP for the Network Camera. Please refer to LAN on page 60 for details. Internet connection via PPPoE (Point-to-Point over Ethernet) Choose this connection type if you are connected to the Internet via a DSL Line. Please refer to PPPoE on page 61 for details.

  • Page 17: Software Installation

    After your network environment is analyzed, please click Next to continue the program. 3. The program will search for all VIVOTEK network devices on the same LAN. 4. After a brief search, the main installer window will prompt. Double-click on the MAC and model name which matches the product label on your device to connect to the Network Camera via a web browser.

  • Page 18: Ready To Use

    VIVOTEK Ready to Use 1. A browser session with the Network Camera should prompt as shown below. 2. You should be able to see live video from your camera. You may also install the 32-channel recording software from the software CD in a deployment consisting of multiple cameras. For its installation details, please refer to its related documents.

  • Page 19: Accessing The Network Camera 19

    3. Live video will display in your web browser. 4. If it is the first time installing the VIVOTEK network camera, an information bar will pop up as shown below. Follow the instructions to install the required plug-in on your computer.
  • Page 20 VIVOTEK ► By default, the Network Camera is not password-protected. To prevent unauthorized access, it is highly recommended to set a password for the Network Camera. For more information about how to enable password protection, please refer to Security on page 78.

  • Page 21: Using Rtsp Players

    VIVOTEK Using RTSP Players To view the H.264/MPEG-4 streaming media using RTSP players, you can use one of the following players that support RTSP streaming. Quick Time Player VLC Media Player VLC media player 1. Launch the RTSP player. 2. Choose File > Open URL. An URL dialog box will pop up.

  • Page 22: Using 3Gpp-Compatible Mobile Devices

    VIVOTEK Using 3GPP-compatible Mobile Devices To view the streaming media through 3GPP-compatible mobile devices, make sure the Network Camera can be accessed over the Internet. For more information on how to set up the Network Camera over the Internet, please refer to Setup the Network Camera over the Internet on page To utilize this feature, please check the following settings on your Network Camera: 1.

  • Page 23: Using Vivotek Recording Software

    VIVOTEK Using VIVOTEK Recording Software The product software CD also contains recording software, allowing simultaneous monitoring and video recording for multiple Network Cameras. Please install the recording software; then launch the program to add the Network Camera to the Channel list. For detailed information about how to use the recording software, please refer to the user’s manual of the software or...

  • Page 24: Main Page 24

    VIVOTEK Main Page This chapter explains the layout of the main page. It is composed of the following sections: VIVOTEK INC. Logo, Host Name, Camera Control Area, Configuration Area, and Live Video Window. VIVOTEK INC. Resize Buttons Host Name Logo...
  • Page 25 VIVOTEK VIVOTEK INC. Logo Click this logo to visit the VIVOTEK website. Host Name The host name can be customized to fit your needs. For more information, please refer to System on page 36. Camera Control Area Video Stream: This Network Camera supports multiple streams (stream 1 ~ 4) simultaneously. You can select either one for live viewing.
  • Page 26 VIVOTEK Pan /Tilt /Zoom /Focus speed: Adjust the speed of Pan/ Tilt/ Zoom/ Focus: Pan speed Tilt speed Zoom speed Focus speed Slower Faster Note that mouse screen control is also supported. You can refer to page 91 for related information.
  • Page 27 VIVOTEK Resize Buttons Click the Auto button, the video cell will resize automatically to fit the monitor. Click 100% is to display the original homepage size. Click 50% is to resize the homepage to 50% of its original size. Click 25% is to resize the homepage to 25% of its original size.
  • Page 28 VIVOTEK Snapshot: Click this button to capture and save still images. The captured images will be displayed in a pop-up window. Right-click the image and choose Save Picture As to save it in JPEG (*.jpg) or BMP (*.bmp) format. Digital Zoom: Click and deselect the “Disable digital zoom” to enable the zoom operation. The navigation screen indicates the part of the image being magnified.
  • Page 29 VIVOTEK ■ The following window is displayed when the video mode is set to MJPEG: Video Title Time Video (HTTP-V) 2011/03/10 17:08:56 Title and Time Video 17:08:56 2011/03/10 Video Control Buttons Video Title: The video title can be configured. For more information, please refer to Media > Image on page 46.

  • Page 30: Client Settings 30

    VIVOTEK Client Settings This chapter explains how to select the stream transmission mode and saving options on the local computer. When completed with the settings on this page, click Save on the page bottom to enable the settings. H.264/MPEG-4 Media Options H.264/MPEG-4 Media Options...

  • Page 31: Mp4 Saving Options

    VIVOTEK Two way audio Half duplex: Audio is transmitted from one direction at a time, e.g., from a PC holding a web console with the camera. Full duplex: Audio is transmitted in both directions simultaneously. MP4 Saving Options Users can record live video as they are watching it by clicking the button - Start MP4 Recording - on the main page.

  • Page 32: Joystick Settings

    VIVOTEK Joystick Settings Enable Joystick Connect to the USB plug of the joystick to a USB port on your management computer. Once a USB joystick is connected, the related joystick configuration will be available on the Client settings window. The joystick should work properly without installing any other driver or software.
  • Page 33 VIVOTEK Buttons Configuration In the Joystick Settings window, you can use the combinations of pull-down menus, Actions and Button number, to assign joystick buttons with different functions. The number of buttons may differ from the joystick you attached. Please follow the steps below to configure your joystick buttons: 1.
  • Page 34 VIVOTEK NOTE: • If you want to assign Preset actions to your joystick, the PTZ preset locations should be configured in advance. • If your joystick is not working properly, it may need to be calibrated. Click the Calibrate button to open the Game Controllers window located in Microsoft Windows control panel and follow the instructions for trouble shooting.

  • Page 35: Configuration 35

    VIVOTEK Configuration Click Configuration on the main page to enter the camera setting pages. Note that only Administrators can access the configuration page. Please refer to page 78 Security > User Account for how to configure access rights for different users.

  • Page 36: System > General Settings

    VIVOTEK System > General settings This section explains how to configure the basic settings for the Network Camera, such as the host name and system time. It is composed of the following two columns: System and System Time. System Host name: Enter a desired name for the Network Camera. The text will be displayed at the top of the main page.

  • Page 37: System > Homepage Layout

    Theme Options (the second tab on this page). The settings will be displayed automatically in this Preview field. The following shows the homepage using the default settings: ■ Hide Powered by VIVOTEK: If you check this item, such wording will be removed from the homepage. Logo graph Here you can change the logo at the top of your homepage.
  • Page 38 VIVOTEK Theme Options Here you can change the color of your homepage layout. There are three types of preset patterns for you to choose from. The new layout will simultaneously appear in the Preview filed. Click Save to enable the settings.
  • Page 39 6. Click Save to enable the settings. Below are the options for system integrators or VARs. You can use the checkboxes to replace VIVOTEK’s company logo, the embedded website address or the slogan “Powered by VIVOTEK.“ When done, use the Save button to complete the configuration.

  • Page 40: System > Logs

    VIVOTEK System > Logs This section explains how to configure the Network Camera to send the system log to the remote server as backup. Log server settings Follow the steps below to set up the remote log: 1. Select Enable remote log.

  • Page 41: System > Parameters

    VIVOTEK Access log Access log displays the access time and IP address of all viewers (including operators and administrators) in a chronological order. The access log is stored in the Network Camera’s buffer area and will be overwritten when reaching a certain limit.

  • Page 42: System > Maintenance

    Note: Do not power off the Network Camera during the upgrade! Follow the steps below to upgrade the firmware: 1. Download the latest firmware file from the VIVOTEK website. The file is in .pkg file format. 2. Click Browse… and specify the firmware file.
  • Page 43 VIVOTEK General settings > Restore This feature allows you to restore the Network Camera’s factory defaults. Network: Select this option to retain the Network Type settings (please refer to Network Type on page 60). Daylight Saving Time: Select this option to retain the Daylight Saving Time settings (please refer to Import/Export files below on this page).
  • Page 44 VIVOTEK ® 3. Open and edit the file using Microsoft Notepad and locate your time zone in the strings; set the start and end time of DST. When completed, save the file. In the example below, DST begins each year at 2:00 a.m. on the second Sunday in March and ends at 2:00 a.m.
  • Page 45 VIVOTEK The following message is displayed when attempting to upload an incorrect file format. Export language file: Click to export language strings. VIVOTEK provides nine languages: English, Deutsch, Español, Français, Italiano, 日本語, Português, 簡体中文, and 繁體中文 . Update custom language file: Click Browse… and specify your own custom language file to upload.

  • Page 46: Media > Image

    VIVOTEK Media > Image This section explains how to configure the image settings of the Network Camera. It is composed of the following four columns: General settings, Picture settings, Exposure, and Privacy mask. General settings Video title Show_timestamp and video title in videos_and_snapshots: Enter a name that will be displayed on the title bar of the live video as the picture shown below.

  • Page 47: Image Settings

    VIVOTEK Image settings On this page, you can tune the White balance and Image adjustment settings. Sensor Setting 1: For normal situations White balance: Adjust the value for the best color temperature. ■ Select one of the white balance modes: 1.
  • Page 48 VIVOTEK Electronic image stabilizer Select the checkbox to enable the Electronic image stabilization (EIS) function. Enable 3D Noise reduction ■ Check to enable noise reduction in order to reduce noises and flickers in image. This applies to the onboard 3D Noise Reduction feature. Use the pull-down menu to adjust the reduction strength. Note that applying this function to the video channel will consume system computing power.
  • Page 49 VIVOTEK Exposure control: ■ Exposure level: You can manually set the Exposure level, which ranges from -2.0 to +2.0 (dark to bright). You can also select other values from the Exposure mode menus and select a preferred scenario or manually configure the associated settings. You may prefer a shorter shutter time to better capture moving objects, while a faster shutter reduces light and needs to be compensated by electrical brightness gains.
  • Page 50 VIVOTEK NOTE: • When Iris Priority is selected for the Exposure mode, the tunable aperture size is related to zoom ratio. When using different zoom ratios, the range of aperture sizes can be different. When zoom ratio is 0x, the range of iris sizes is F1.6~F14. When zoom ratio is 20x, the iris size is F3.4. See below for the...
  • Page 51 VIVOTEK ■ Back light compensation: This option is only available when the Auto mode is selected for the Exposure setting. This option enables light compensation for images that are too dark to recognize; for example, for the dark side of objects that is posed against bright sunlight. This option is disabled if you enable the WDR function.
  • Page 52 VIVOTEK Day/Night Settings ■ Turn on external IR illuminator in night mode The camera’s digital output signal can be connected to external IR lights to turn it on when the camera detects low light conditions and enters the night mode.
  • Page 53 VIVOTEK Exposure Profile: (Only available when the IR cut filter is not set to the Auto mode) If you want to configure another sensor and exposure setting for an individual day/night/schedule mode, please click Profile to open the Profile of exposure settings page as shown below.
  • Page 54 VIVOTEK Privacy mask Click Privacy Mask to open the settings page. On this page, you can block out sensitive view areas to address privacy concerns. NOTE: 1. The navigation buttons here also support the continuous move. You can click and hold...
  • Page 55 VIVOTEK NOTE: • The camera supports "3D Privacy Mask." Privacy masks should stay at the same positions regardless of how the camera lens may move. • When the "Enabled privacy mask" checkbox is deselected, no privacy masks will appear on screen.

  • Page 56: Media > Video

    VIVOTEK Media > Video Stream settings This Network Camera supports multiple streams with frame sizes ranging from 176 x 144 to 1280 x 720 pixels. The definition of multiple streams: ■ Stream 1: Users can define the Frame sizes, compression format, image quality, etc.
  • Page 57 VIVOTEK Click the stream item to display the detailed information. . This Network Camera offers real-time H.264, MPEG-4, and MJPEG compression standards (Multiple Codec) for real-time viewing. If the H.264 / MPEG-4 mode is selected, the video is streamed via RTSP protocol.
  • Page 58 VIVOTEK ■ Frame size You can set up different video resolution for different viewing devices. For example, set a smaller frame size and lower bit rate for remote viewing on mobile phones and a larger video size and a higher bit rate for live viewing on web browsers.

  • Page 59: Media > Audio

    VIVOTEK NOTE: ► Video quality and fixed quality refers to the compression rate, so a lower value will produce higher quality. ► Converting high-quality video may significantly increase the CPU loading, and you may encounter streaming disconnection or video loss while capturing a complicated scene. In the event of occurence, we suggest you customize a lower video resolution or reduce the frame rate to obtain smooth video.

  • Page 60: Network > General Settings

    Use fixed IP address: Select this option to manually assign a static IP address to the Network Camera. 1. You can make use of VIVOTEK Installation Wizard 2 on the software CD to easily set up the Network Camera on LAN. Please refer to Software Installation on page 17 for details.
  • Page 61 VIVOTEK Primary DNS: The primary domain name server that translates host names into IP addresses. Secondary DNS: Secondary domain name server that backs up the Primary DNS. Primary WINS server: The primary WINS server that maintains the database of computer names and IP addresses.
  • Page 62 VIVOTEK NOTE: ► If the default ports are already used by other devices connected to the same router, the Network Camera will select other ports for the Network Camera. ► If UPnP is not supported by your router, you will see the following message: Error: Router does not support UPnP port forwarding.
  • Page 63 VIVOTEK 4. In the Networking Services dialog box, select Universal Plug and Play and click OK. 5. Click Next in the following window. 6. Click Finish. UPnP is enabled. ► How does UPnP work? UPnP networking technology provides automatic IP configuration and dynamic discovery of devices added to a network.
  • Page 64 VIVOTEK Enable IPv6 Select this option and click Save to enable IPv6 settings. Please note that this only works if your network environment and hardware equipment support IPv6. The ® browser should be Microsoft Internet Explorer 6.5, Mozilla Firefox 3.0 or above.
  • Page 65 VIVOTEK Please follow the steps below to link to an IPv6 address: 1. Open your web browser. 2. Enter the link-global or link-local IPv6 address in the address bar of your web browser. 3. The format should be: http://[2001:0c08:2500:0002:0202:d1ff:fe04:65f4]/ IPv6 address 4.
  • Page 66 VIVOTEK Port HTTPS port: By default, the HTTPS port is set to 443. It can also be assigned to another port number between 1025 and 65535. Two way audio port: By default, the two way audio port is set to 5060. Also, it can also be assigned to another port number between 1025 and 65535.
  • Page 67 To stop talking, click again. FTP port: The FTP server allows the user to save recorded video clips. You can utilize VIVOTEK's Installation Wizard 2 to upgrade the firmware via FTP server. By default, the FTP port is set to 21. It also can be assigned to another port number between 1025 and 65535.

  • Page 68: Network > Streaming Protocols

    VIVOTEK Network > Streaming protocols HTTP streaming To utilize HTTP authentication, make sure that your have set a password for the Network Camera first; please refer to Security > User account on page 78 for details. Authentication: Depending on your network security requirements, the Network Camera provides two types of security settings for an HTTP transaction: basic and digest.
  • Page 69 VIVOTEK URL command -- http://<ip address>:<http port>/<access name for stream 1, 2, 3, 4, or 5> For example, when the Access name for stream 2 is set to video2.mjpg: 1. Launch the Mozilla Firefox browser. 2. Type the above URL command in the address bar. Press Enter.
  • Page 70 VIVOTEK Authentication: Depending on your network security requirements, the Network Camera provides three types of security settings for streaming via RTSP protocol: disable, basic, and digest. basic authentication is selected, the password is sent in plain text format, but there can be potential risks of it being intercepted.
  • Page 71 VIVOTEK Multicast settings for stream 1, 2, 3, and 4: Click the items to display the detailed configuration information. Select the Always multicast option to enable multicast for video streams. Unicast video transmission delivers a stream through point-to-point transmission; multicast, on the other hand, sends a stream to the multicast group address and allows multiple clients to acquire the stream at the same time by requesting a copy from the multicast group address.

  • Page 72: Network > Ddns

    IP address, to have a fixed host and domain name. Express link Express Link is a free service provided by VIVOTEK server, which allows users to register a domain name for a network device. One URL can only be mapped to one MAC address. This service will examine if the host name is valid and automatically open a port on your router.
  • Page 73 DDNS: Dynamic domain name service Enable DDNS: Select this option to enable the DDNS setting. Provider: Select a DDNS provider from the provider drop-down list. VIVOTEK offers Safe100.net, a free dynamic domain name service, to VIVOTEK customers. It is recommended that you register Safe100.net to access VIVOTEK’s Network Cameras from the Internet.
  • Page 74 4. Select Enable DDNS and click Save to enable the setting. ■ CustomSafe100 VIVOTEK offers documents to establish a CustomSafe100 DDNS server for distributors and system integrators. You can use CustomSafe100 to register a dynamic domain name if your distributor or system integrators offer such services.
  • Page 75 VIVOTEK Network > QoS (Quality of Service) Quality of Service refers to a resource reservation control mechanism, which guarantees a certain quality to different services on the network. Quality of service guarantees are important if the network capacity is insufficient, especially for real-time streaming multimedia applications. Quality can be defined as, for instance, a maintained level of bit rate, low latency, no packet dropping, etc.
  • Page 76 VIVOTEK QoS/DSCP (the DiffServ model) DSCP-ECN defines QoS at Layer 3 (Network Layer). The Differentiated Services (DiffServ) model is based on packet marking and router queuing disciplines. The marking is done by adding a field to the IP header, called the DSCP (Differentiated Services Codepoint). This is a 6-bit field that provides 64 different class IDs.

  • Page 77: Network > Snmp (Simple Network Management Protocol)

    VIVOTEK Network > SNMP (Simple Network Management Protocol) This section explains how to use the SNMP on the network camera. The Simple Network Management Protocol is an application layer protocol that facilitates the exchange of management information between network devices. It helps network administrators to remotely manage network devices and find, solve network problems with ease.

  • Page 78: Security > User Account

    VIVOTEK Security > User Account This section explains how to enable password protection and create multiple accounts. Root Password The administrator account name is “root”, which is permanent and can not be deleted. If you want to add more accounts in the Manage User column, please apply the password for the “root” account first.

  • Page 79: Security > Https (Hypertext Transfer Protocol Over Ssl)

    VIVOTEK Security > HTTPS (Hypertext Transfer Protocol over SSL) This section explains how to enable authentication and encrypted communication over SSL (Secure Socket Layer). It helps protect streaming data transmission over the Internet on higher security level. Create and Install Certificate Method Before using HTTPS for communication with the Network Camera, a Certificate must be created first.
  • Page 80 VIVOTEK 5. Click Save to preserve your configuration, and your current session with the camera will change to the encrypted connection. 6. If your web session does not automatically change to an encrypted HTTPS session, click Home to re- turn to the main page. Change the URL address from “http://” to “https://“ in the address bar and press Enter on your keyboard.
  • Page 81 VIVOTEK Create certificate request and install 1. Select the option from the Method pull-down menu. 2. Click Create certificate to proceed. 3. The following information will show up in a pop-up window after clicking Create. Then click Save to generate the certificate request.
  • Page 82 VIVOTEK 5. Look for a trusted certificate authority, such as Symantec’s VeriSign Authentication Services, that issues digital certificates. Sign in and purchase the SSL certification service. Copy the certificate request from your request prompt and paste it in the CA’s signing request window. Proceed with the rest of the process as CA’s instructions on their webpage.
  • Page 83 VIVOTEK 7. Open a new edit, paste the certificate contents, and press ENTER at the end of the contents to add an empty line. 8. Convert file format from DOS to UNIX. Open File menu > Conversions > DOS to Unix.
  • Page 84 VIVOTEK 9. Save the edit using the “.crt” extension, using a file name like “CAcert.crt.” 10. Return to the original firmware session, use the Browse button to locate the crt certificate file, and click Upload to enable the certification. 84 - User's Manual...
  • Page 85 VIVOTEK Note that a 11. When the certifice file is successfully loaded, its status will be stated as Active. certificate must have been created and installed before you can click on the “Save" button for the configuration to take effect.

  • Page 86: Security > Access List

    VIVOTEK Security > Access List This section explains how to control access permission by verifying the client PC’s IP address. General Settings Maximum number of concurrent streaming connection(s) limited to: Simultaneous live viewing for 1~10 clients (including all streams). The default value is 10. If you modify the value and click Save, all current connections will be disconnected and automatically attempt to re-link (IE Explorer or Quick Time Player).
  • Page 87 VIVOTEK ■ Disconnect: If you want to break off the current connections, please select them and click this button. Please note that those checked connections will only be disconnected temporarily and they will automatically retry a connection (IE Explore or Quick Time Player).
  • Page 88 VIVOTEK Network: This rule allows the user to assign a network address and corresponding subnet mask to the Allow/Deny List in the CIDR format, e.g. 192.168.xx.xx/24. For example: IP address 192.168.2.x will be blocked. Range: This rule allows the user to assign a range of IP addresses to the Allow/Deny List.
  • Page 89 Authentication server (usually a RADIUS server): Checks the client certificate and decides whether to accept the end user’s access request. ■ VIVOTEK Network Cameras support two types of EAP methods to perform authentication: EAP-PEAP and EAP-TLS. Please follow the steps below to enable 802.1x settings: 1.
  • Page 90 VIVOTEK 3. When all settings are complete, move the Network Camera to the protected LAN by connecting it to an 802.1x enabled switch. The devices will then start the authentication automatically. NOTE: ► Below is the authentication process for 802.1x: 1.

  • Page 91: Ptz > Ptz Settings

    VIVOTEK PTZ > PTZ settings This section explains how to control the Network Camera’s Pan/Tilt/Zoom operation. The camera comes with built-in PTZ mechanisms. NOTE: The navigation buttons here also support the continuous move. You can click and hold down the button to move across the screen until you release the button.
  • Page 92 VIVOTEK Misc. settings: Use the checkboxes and the pull-down menus for the camera to automatically resume the previous action or return to the home position after the camera has stayed idle for a period of time. PTZ control panel operation mode: This determines how your mouse and PTZ control panel works on a live view window.
  • Page 93 VIVOTEK The Zoom factor display: This option is enabled by default, and zoom ratio is displayed along with the video title on the upper left corner of a view cell. Apply previous action if the camera idles for __(1~999) seconds: You can assign an action to be taken when the camera sits idle for a configurable period time.
  • Page 94 VIVOTEK Auto tracking In this window, you can modify the minimum object size as the triggering factor while performing the Auto Tracking function. You can move the camera view to an area of your interest, estimate, and define the possible size of objects. For example, you can designate the object size such as that of a human trespasser.
  • Page 95 VIVOTEK Auto tracking is configured by designating the minimum object size. Moving objects that entered the current region of view will trigger the tracking action. Auto tracking, if applied, is designed to track an intruder in a place where human traffic is not heavy, such as a warehouse or a load area.

  • Page 96: Event > Event Settings

    VIVOTEK Event > Event settings This section explains how to configure the Network Camera to responds to particular situations (event). A typical application is that when a motion is detected, the Network Camera sends buffered images to an FTP server or e-mail address as notifications. Click on Help, there is an illustration shown in the pop-up window explaining that an event can be triggered by many sources, such as motion detection or external digital input devices.
  • Page 97 VIVOTEK ■ Event name: Enter a name for the event setting. ■ Enable this event: Select this option to enable the event setting. ■ Priority: Select the relative importance of this event (High, Normal, or Low). Events with a higher priority setting will be executed first.
  • Page 98 VIVOTEK ■ Audio detection A preset threshold can be configured with an external microphone as the trigger to system event. The triggering condition can be an input exceeding or falling below a threshold. Audio detection can take place as a complement to motion detection or as a method to detect activities not covered by the camera's view.
  • Page 99 VIVOTEK 3. Action Define the actions to be performed by the Network Camera when a trigger is activated. ■ Trigger digital output for seconds Select this option to turn on the external digital output device when a trigger is activated. Specify the length of the trigger interval in the text box.
  • Page 100 VIVOTEK NOTE: If you configured a motion detection window as a trigger, the motion detection may become invalid when the camera’s field of view moved away from the detection window. You can let camera return to the motion detection position to detect the coming event by re-configuring your Home position in PTZ >...

  • Page 101: Add Server

    VIVOTEK Add server Click Add server to unfold the server setting window. You can specify where the notification messages are sent when a trigger is activated. A total of 5 server settings can be configured. There are four choices of server types available: Email, FTP, HTTP, and Network storage. Select the item to display the detailed configuration options.
  • Page 102 VIVOTEK To verify if the email settings are correctly configured, click Test. The result will be shown in a pop-up window. If successful, you will also receive an email indicating the result. Click Save server to enable the settings, then click Close to exit the Add server page.
  • Page 103 VIVOTEK ■ Passive mode Most firewalls do not accept new connections initiated from external requests. If the FTP server supports passive mode, select this option to enable passive mode FTP and allow data transmission to pass through the firewall. To verify if the FTP settings are correctly configured, click Test. The result will be shown in a pop-up window as shown below.
  • Page 104 VIVOTEK Network storage: Select to send the media files to a network storage location when a trigger is activated. Please refer to NAS server on page 121 for details. Click Save server to enable the settings, then click Close to exit the Add server page.

  • Page 105: Add Media

    VIVOTEK Add media Add media Click to open the media setting window. You can specify the type of media that will be sent and preserved when a trigger is activated. A total of 5 media settings can be configured. There are three choices of media types available: Snapshot, Video Clip, and System log.
  • Page 106 VIVOTEK ■ Add date and time suffix to the file name Select this option to add a date/time suffix to the file name. For example: Snapshot_20110320_100341 File name prefix Date and time suffix The format is: YYYYMMDD_HHMMSS Click Save media to enable the settings, then click Close to exit the Add media page.
  • Page 107 VIVOTEK ■ Maximum duration Specify the maximum recording duration in seconds. Up to 20 seconds can be set. For example, if pre-event recording is set to 5 seconds and the maximum duration is set to 10 seconds, the Network Camera continues to record for another 4 seconds after a trigger is activated.
  • Page 108 VIVOTEK ■ View: Click this button to open a file list window. This function only apllies when an SD card and networked storage are available. If you click View button of SD card, a Local storage page will pop up for you to manage recorded files on SD card.
  • Page 109 VIVOTEK Here is an example of the Event setting: When completed the settings with steps 1~3 to arrange Schedule, Trigger, and Action of an event, click Save event to enable the settings and click Close to exit the page. The following is an example of the Event setting page:...
  • Page 110 Please note that there is a limited number of customized scripts you can upload; if the current amount of customized scripts has reached the limit, an alert message will prompt. If you need more information, please contact VIVOTEK technical support. 2014/03/20...

  • Page 111: Applications > Motion Detection

    VIVOTEK Applications > Motion detection This section explains how to configure the Network Camera to enable motion detection. A total of three motion detection windows can be configured. Motion Detection Setting 1: For normal situations Motion Detection Setting 2: Follow the steps below to enable motion detection:...
  • Page 112 VIVOTEK A green bar indicates that even though motions have been detected, the event has not been triggered because the image variations still fall under the defined threshold. Percentage = 30% If you want to configure other motion detection settings for day/night/schedule mode, please click Profile to open the Motion Detection Profile Settings page as shown below.
  • Page 113 VIVOTEK NOTE: ► How does motion detection work? There are two motion detection parameters: Sensitivity and Percentage. In the illustration above, frame A and frame B are two sequential images. Pixel differences between the two frames are detected and highlighted in gray (frame C) and will be compared with the sensitivity setting. Sensitivity is a value that expresses the sensitivity to moving objects.

  • Page 114: Applications > Di And Do

    VIVOTEK Applications > DI and DO Digital input: Select High or Low to define normal status for the digital input. Connect a digital input from a sensor device to the camera, the Network Camera will report the current signal status. You may then configure the Normal status (non-trigger status) as High or Low.

  • Page 115: Applications > Audio Detection

    VIVOTEK Applications > Audio detection Audio detection, along with video motion detection, is applicable in the following scenarios: 1. Detection of activities not covered by camera view, e.g., a loud input by gun shots or breaking a door/ window. 2. A usually noisy environment, such as a factory, suddenly becomes quiet due to a breakdown of machines.
  • Page 116 VIVOTEK You can use the Profile window to configure a different Audio detection setting. For example, a place can be noisy in the day time and become very quiet in the night. 1. Click on the Enable this profile checkbox. Once the Audio detection window is opened, the current sound input will be interactively indicated by a fluctuating yellow wave diagram.

  • Page 117: Applications > Vadp (Vivotek Application Development Platform)

    VADP requirements. Please contact technical support or the vendor of your 3rd-party module for the parameters contained within. • Users can also run VIVOTEK's VADP packages as a means to access updated functionality instead of replacing the entire firmware. •...
  • Page 118 VIVOTEK To start a module, select the checkcircle in front, and click the Start button. If you should need to remove a module, select the checkcircle in front and then click the Stop button. By then the module status will become OFF, and the X button will appear at the end of the row.

  • Page 119: Recording > Recording Settings

    VIVOTEK Recording > Recording settings This section explains how to configure the recording settings for the Network Camera. Recording Settings Insert your SD card and click here to test NOTE: ► Please remember to format your SD card when using it for the first time. Please refer to page 124 for detailed information.
  • Page 120 VIVOTEK If you enable adaptive recording and enable time-shift cache stream on Camera A, only when an event is triggered on Camera A will the server record video streams in the full frame rate; otherwise, it will only request the I frame data during normal monitoring, thus effectively save lots of bandwidth and storage.
  • Page 121 VIVOTEK 2. Destination You can select the SD card or network attached storage (NAS) for recording video files. NAS server Click Add NAS server to open the server setting window and follow the steps below to set up: 1. Fill in the information for your server.
  • Page 122 VIVOTEK If successful, you will receive a test.txt file on the network storage server. 3. Enter a server name. 4. Click Save to complete the settings and click Close to exit the page. ■ Capacity: You can select either the entire storage space available or specify a reserved space. The recording size limit must be larger than the reserved space for cyclic recording.
  • Page 123 VIVOTEK this page. When the system begins recording, it will send the recorded files to a networked storage or SD card. The new recording name will appear on the recording page as shown below. To remove a recording setting from the list, select it and click Delete.

  • Page 124: Local Storage > Sd Card Management

    VIVOTEK Local storage > SD card management This section explains how to manage the local storage on the Network Camera. Here you can view SD card status, and implement SD card control. SD card status This column shows the status and reserved space of your SD card. Please remember to format the SD card when using for the first time.

  • Page 125: Local Storage > Content Management

    VIVOTEK Local storage > Content management This section explains how to manage the content of recorded videos on the Network Camera. Here you can search and view the records and view the search results. Searching and Viewing the Records This column allows the user to set up search criteria for recorded data. If you do not select any criteria and click Search button, all recorded data will be listed in the Search Results column.
  • Page 126 VIVOTEK ■ View: Click on a search result. The entry will be highlighted in purple as shown above. Click the View button and a media window will pop up to play back the selected file. For example: Click to adjust the image size ■...

  • Page 127: Appendix

    VIVOTEK Appendix URL Commands for the Network Camera 1. Overview For some customers who already have their own web site or web control application, the Network Camera/Video Server can be easily integrated through URL syntax. This section specifies the external HTTP-based application programming interface.

  • Page 128: General Cgi Url Syntax And Parameters

    VIVOTEK 3. General CGI URL Syntax and Parameters CGI parameters are written in lower-case and as one word without any underscores or other separators. When the CGI request includes internal camera parameters, these parameters must be written exactly as they are named in the camera or video server.

  • Page 129: Get Server Parameter Values

    VIVOTEK 5. Get Server Parameter Values Note: The access right depends on the URL directory. Method: GET/POST Syntax: http://<servername>/cgi-bin/anonymous/getparam.cgi?[<parameter>] [&<parameter>…] http://<servername>/cgi-bin/viewer/getparam.cgi?[<parameter>] [&<parameter>…] http://<servername>/cgi-bin/operator/getparam.cgi?[<parameter>] [&<parameter>…] http://<servername>/cgi-bin/admin/getparam.cgi?[<parameter>] [&<parameter>…] Where the <parameter> should be <group>[_<name>] or <group>[.<name>]. If you do not specify any parameters, all the parameters on the server will be returned.

  • Page 130: Set Server Parameter Values

    (Note: The return page can be a general HTML file (.htm, .html) or a VIVOTEK server script executable (.vspx) file. It cannot be a CGI command or have any extra parameters. This parameter must be 130 - User's Manual...

  • Page 131: Available Parameters On The Server

    VIVOTEK placed at the end of the parameter list Return: HTTP/1.0 200 OK\r\n Content-Type: text/html\r\n Context-Length: <length>\r\n \r\n <parameter pair> where <parameter pair> is <parameter>=<value>\r\n [<parameter pair>] Only the parameters that you set and are readable will be returned. Example: Set the IP address of server to 192.168.0.123: Request: http://myserver/cgi-bin/admin/setparam.cgi?network_ipaddress=192.168.0.123...
  • Page 132 7.1 system Group: system NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) hostname string[64] SD8333-E Host name of server (Network Camera, Wireless Network Camera, Video Server, Wireless Video Server). ledoff <boolean> Turn on (0) or turn off (1) all led indicators. date <YYYY/MM/...
  • Page 133 VIVOTEK mmYYYY.ss system. > <domain <blank> NTP server. name>, *Do not use “skip to invoke default <ip server” for default value. address>, <blank> timezoneindex -489 ~ 529 Indicate timezone and area. -480: GMT-12:00 Eniwetok, Kwajalein -440: GMT-11:00 Midway Island, Samoa...
  • Page 134 VIVOTEK 40: GMT 01:00 Amsterdam, Berlin, Rome, Stockholm, Vienna, Madrid, Paris 41: GMT 01:00 Warsaw, Budapest, Bern 80: GMT 02:00 Athens, Helsinki, Istanbul, Riga 81: GMT 02:00 Cairo 82: GMT 02:00 Lebanon, Minsk 83: GMT 02:00 Israel 120: GMT 03:00 Baghdad, Kuwait, Riyadh, Moscow, St.
  • Page 135 VIVOTEK 480: GMT 12:00 Aucklan, Wellington, Fiji, Kamchatka, Marshall Is. 520: GMT 13:00 Nuku'Alofa daylight_enable <boolean> Enable automatic daylight saving time in time zone. daylight_dstactualmode Check current status of is daylight saving time. (Used internally) daylight_auto_begintime string[19] NONE Display the current daylight saving start time.
  • Page 136 NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) modelname string[40] SD8333-E Internal model name of the server (eg. IP7139) extendedmodelname string[40] SD8333-E ODM specific model name of server (eg. DCS-5610). If it is not an ODM model, this field will be equal to “modelname”...
  • Page 137 VIVOTEK available on the server. language_i<0~(count-1)> string[16] <product Available language lists. dependent > customlanguage_maxcoun <integer> Maximum number of custom languages supported on the server. customlanguage_count <integer> Number of custom languages which have been uploaded to the server. customlanguage_i<0~(ma string <blank>...
  • Page 138 VIVOTEK 7.3 digital input behavior define Group: di_i<0~(ndi-1)> (capability.ndi > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) normalstate high, high Indicates open circuit or closed circuit (inactive status) 7.4 digital output behavior define Group: do_i<0~(ndo-1)> (capability.ndo > 0) NAME VALUE...
  • Page 139 VIVOTEK 7.6 network Group: network NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) preproces <positive <blank> An 32-bit integer, each bit can be set separately as integer> follows: Bit 0 => HTTP service; Bit 1=> HTTPS service; Bit 2=> FTP service; Bit 3 => Two way audio and RTSP Streaming service;...
  • Page 140 VIVOTEK dns1 <ip <blank> Primary DNS server. address> dns2 <ip <blank> Secondary DNS server. address> wins1 <ip <blank> Primary WINS server. address> wins2 <ip <blank> Secondary WINS server. address> 7.6.1 802.1x Subgroup of network: ieee8021x (capability.protocol.ieee8021x > 0) NAME VALUE...
  • Page 141 VIVOTEK 7.6.2 QOS Subgroup of network: qos_cos (capability.protocol.qos.cos > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) enable <boolean> Enable/disable CoS (IEEE 802.1p) vlanid 1~4095 VLAN ID video Video channel for CoS audio Audio channel for CoS (capability.naudio > 0) eventalarm...
  • Page 142 VIVOTEK 7.6.4 FTP Subgroup of network: ftp NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) port 21, 1025~65535 Local ftp server port. 7.6.5 HTTP Subgroup of network: http NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) port 80, 1025 ~ HTTP port. 65535 alternateport...
  • Page 143 VIVOTEK 7.6.6 HTTPS port Subgroup of network: https (capability.protocol.https > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) port 443, 1025 ~ HTTPS port. 65535 7.6.7 RTSP Subgroup of network: rtsp (capability.protocol.rtsp > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) port 554, 1025 ~ RTSP port.
  • Page 144 VIVOTEK 7.6.7.1 RTSP multicast Subgroup of network_rtsp_s<0~(n-1)>_multicast, n is stream count (capability.protocol.rtp.multicast > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) alwaysmulticast <boolean> Enable always multicast. ipaddress <ip address> For n=0, Multicast IP address. 239.128.1.99 For n=1, 239.128.1.100, and so on.
  • Page 145 VIVOTEK 7.6.10 PPPoE Subgroup of network: pppoe (capability.protocol.pppoe > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) user string[128] <blank> PPPoE account user name. pass password[64] <blank> PPPoE account password. 7.7 IP Filter Group: ipfilter NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) enable <boolean>...

  • Page 146: Video Input

    VIVOTEK 7.8 Video input Group: videoin NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) mode Set video mode. cmosfreq 50, 60 CMOS frequency. (capability.videoin.type=2) color 0, 1 0 =>monochrome 1 => color flip <boolean> Flip the image. mirror <boolean> Mirror the image.
  • Page 147 VIVOTEK 7.8.1 Video input setting per channel Group: videoin_c<0~(n-1)> for n channel products, and m is stream number NAME VALUE DEFAULT SECURI DESCRIPTION (get/set cmosfreq 50, 60 CMOS frequency. (capability.videoin.type=2) “auto” indicates auto white whitebalance auto, outdoor indoor, balance. outdoor, outdoorauto, “indoor”–...
  • Page 148 VIVOTEK fixvalenable indicates keep current value. 0: disable, 1: enable, 2: trigger/get current value rgain 0~100 Manual set rgain value of gain control setting. bgain 0~100 Manual set bgain value of gain control setting. color 0, 1 0 =>monochrome 1 => color flip <boolean>...
  • Page 149 VIVOTEK enablepreview <boolean> Usage for UI of exposure settings. Preview settings of video profile. s<0~(m-1)>_codectype mpeg4, mjpeg, H264 Video codec type. h264 s<0~(m-1)>_resolution Reference s0, s1, s3 Video resolution in pixels. capability_vide :1280x720, oin_resolution s2:640x360 s<0~(m-1)>_mpeg4_intrap 250, 500, 1000 Intra frame period in...
  • Page 150 VIVOTEK s1: 6000000, choosing cbr in <product s2:512000, “ratecontrolmode”. dependent> s3: 6000000 s<0~(m-1)>_mpeg4_maxfr 1~60 s0 : 60 Set maximum frame rate in fps s1 : 60 (for MPEG-4). s2 : 15 s3 : 60 s<0~(m-1)>_h264_ 250, 500, 1000 Intra frame period in...
  • Page 151 VIVOTEK s3:6000000 s<0~(m-1)>_h264_maxfra 1~60 s0 : 60 Set maximum frame rate in fps s1 : 60 (for H264). s2 : 15 s3 : 60 s<0~(m-1)>_h264_profile Indicate H264 profiles 0: baseline 1: main profile 2: high profile s<0~(m-1)>_mjpeg_priority framerate, S0: frame rate...
  • Page 152 VIVOTEK s<0~(m-1)>_mjpeg_bitrate 1000~160000 s0:14000000, Set bit rate in bps when s1:14000000, choosing cbr in s2:512000, “ratecontrolmode”. s3:14000000 s<0~(m-1)>_forcei Force I frame. daynight auto,schedule, auto auto => auto daynight day,night night => ircut filter on day => ircut filter off schedule => scheduled ircut...
  • Page 153 VIVOTEK defog 0, 1 Enable / disable defog. wdr_mode WDR enhanced. 0: off 1: manual 2: auto wdr_ compensation WDR strength 0: low 1: medium 2: high 7.8.1.1 Alternative video input profiles per channel In addition to the primary setting of video input, there can be alternative profile video input setting for each channel which might be for different scene of light (daytime or nighttime).
  • Page 154 VIVOTEK irismanual 1~13 Iris adjustment (F14~F1.6) (exposurecontrol => manual) shutterspeed 0~14 Exposure time (1/1 ~ 1/10000) (exposurecontrol => manual) gain 0~15 Gain control (0db ~ 28db) (exposurecontrol => manual) “auto” indicates auto white whitebalance auto, outdoor indoor, balance. outdoor, “indoor”– 3200k base mode...
  • Page 155 VIVOTEK 0: low 1: medium 2: high daynight auto,schedule,da auto auto => auto daynight y,night night => ircut filter on day => ircut filter off schedule => scheduled ircut filter 7.10 IR cut control Group: ircutcontrol (capability.nvideoinprofile > 0) NAME...
  • Page 156 VIVOTEK 7.11 Image setting per channel Group: image_c<0~(n-1)> for n channel products NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) brightness -5~5 Adjust brightness of image according to mode settings. contrast -5 ~ 5 Adjust contrast of image according to mode settings.
  • Page 157 VIVOTEK according to mode settings. profile_i0_dnr_mode Enable/disable noise reduction profile_i0_dnr_strength 1~100 Adjust noise reduction value of percentage profile_i0_eis Enable / disable electronic image stabilizer profile_i0_sharpness -3~3,100 Adjust sharpness of image according to mode settings. profile_i0_sharpnesspercent 0~100 Adjust sharpness value of...
  • Page 158 VIVOTEK saturation -5~5,100 Adjust saturation of image according to mode settings. saturationpercent 0~100 Adjust saturation value of percentage when saturation =100 gammacurve 0~100 Gamma curve hightvline High TV line highsensitivity High sensitivity Group: imagepreview NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set)
  • Page 159 VIVOTEK 7.14 Audio input per channel Group: audioin_c<0~(n-1)> for n channel products (capability.audioin>0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) source linein linein micin => use built-in microphone input. linein => use external microphone input. mute 0, 1 Enable audio mute.

  • Page 160: Motion Detection Settings

    VIVOTEK 7.15 Time Shift settings Group: timeshift, c for n channel products, m is stream number (capability.timeshift > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) enable <boolean> Enable time shift streaming. c<0~(n-1)>_s<0~ <boolean> s0:1 Enable time shift streaming for specific (m-1)>_allow...
  • Page 161 VIVOTEK i<0~(m-1)>_win_i<0~2>_enable <boolean> Enable motion window. i<0~(m-1)>_win_i<0~2>_name string[14] <blank> Name of motion window. i<0~(m-1)>_win_i<0~2>_left 0 ~ 320 Left coordinate of window position. i<0~(m-1)>_win_i<0~2>_top 0 ~ 240 Top coordinate of window position. i<0~(m-1)>_win_i<0~2>_width 0 ~ 320 Width of motion detection window.
  • Page 162 VIVOTEK 7.18 DDNS Group: ddns (capability.ddns > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) enable <boolean> Enable or disable the dynamic DNS. provider CustomSafe100, DyndnsDyn Safe100 => safe100.net DyndnsCustom, amic DyndnsDynamic => dyndns.org DyndnsDynamic, (dynamic) Safe100, DyndnsCustom => dyndns.org (custom) DynInterfree =>dyn-interfree.it...
  • Page 163 VIVOTEK 3322 => 3322.net ALARM => alarm.com ChangeIP => TOSHIBA NOIP => TOSHIBA SWISSCOM =>swiss.com CustomizedTZO => Customized server using TZO method <product dependent> <provider>_ho string[128] <blank> Your DDNS hostname. stname <provider>_us string[64] <blank> Your user name or email to login to the...

  • Page 164: System Log

    VIVOTEK 7.21 UPnP port forwarding Group: upnpportforwarding NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) enable <boolean> Enable or disable the UPnP port forwarding service. upnpnatstatus The status of UPnP port forwarding, used internally. 0 = OK, 1 = FAIL, 2 = no IGD router, 3 = no need for port forwarding 7.22 System log...

  • Page 165: Camera Ptz Control

    VIVOTEK 7.23 camera PTZ control Group: camctrl_c<0~(n-1)> for n channel product (capability.ptzenabled) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) ccdtype string[16] 6e : SD8333 motortype string[16] 02: Paugu cameraid 1 ~ 255 Camera ID controlling external PTZ camera. Note: Please set your speed dome to the appropriate baud rate, and Camera ID, e.g.
  • Page 166 VIVOTEK patrol_i<0~39>_ 0 ~ 999 <blank> (For internal device) dwelling The dwelling time of each patrol location disablemdonptz <boolean> Disable motion detection on PTZ operation. defaulthome <boolean> This field tells system to use default home position or not. axisx 0 ~ 7999 Custom home pan position.
  • Page 167 VIVOTEK Recorded tour: unnecessary. tour_i<0~(m-1)>_ch string[512] <blank> The indexes of preset positions, ecklist separated by “,” tour_i<0~(m-1)>_dw string[512] <blank> Preset tour: time to wait before elltime moving to the next preset position, separated by “,” Recorded tour: number of seconds to wait before continuing a loop tour.
  • Page 168 VIVOTEK stopbit 2-1.5 , data bit is 5 uartmode rs485, rs485 RS485 or RS232. rs232 7.25 SNMP Group: snmp (capability.snmp > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) SNMP v2 enabled. 0 for disable, 1 for enable SNMP v3 enabled. 0 for disable, 1 for...
  • Page 169 1 => Default logo logo_link string[128] http://ww Hyperlink of the logo w.vivotek.c logo_powerbyvvtk_hidden <boolean> 0 => display the power by vivotek logo 1 => hide the power by vivotek logo custombutton_manualtrigger_s <boolean> Show or hide manual trigger (VI) button in homepage 0 ->...

  • Page 170: Privacy Mask

    VIVOTEK 7.27 Privacy mask Group: privacymask3d_c<0~(n-1)> for n channel product NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) enable <boolean> Enable the 3D privacy mask color 0~14 Privacy mask color win_i<0~23>_name string[40] <blank> Name of the privacy mask window. win_i<0~23>_pan 0 ~ 7999 Pan position of window position.
  • Page 171 VIVOTEK <positive (manual trigger) integer> Number of digital outputs. <positive integer> naudioin Number of audio inputs. <positive integer> naudioout Number of audio outputs. <positive integer> nvideoin <positive Number of video inputs. integer> nmediastream <positive Number of media stream integer> per channels.
  • Page 172 VIVOTEK Bit 3 => Support tilt operation; 0(not support), 1(support) Bit 4 => Support zoom operation; 0(not support), 1(support) Bit 5 => Support focus operation; 0(not support), 1(support) Bit 6 => Support iris operation; 0(not support), 1(support) Bit 7 => External or built-in PT;...
  • Page 173 VIVOTEK ptz_focusspeedlv 0, <positive The maximum speed level 3.2-1 integer> of focus moving. ptz_minpan <positive The lower limit for pan 3.2-1 integer> position. ptz_maxpan <positive 7999 The upper limit for pan 3.2-1 integer> position. ptz_minpanangle < integer> The lower limit for pan 3.2-1...
  • Page 174 VIVOTEK integer> streaming connections . protocol_maxmegaconnection <positive The maximum megapixel integer> streaming connections. protocol_rtp_multicast_ <boolean> Indicate whether to scalable support scalable multicast. protocol_rtp_multicast_ <boolean> Indicate whether to backchannel support backchannel multicast. protocol_rtp_tcp <boolean> Indicate whether to support RTP over TCP.
  • Page 175 VIVOTEK available list. maximum frame rate separated commas> videoin_codec mpeg4, mpeg4, Available codec list. mjpeg, mjpeg, h264 h264 videoin_streamcodec 7,7,7,7 A list of This equals <Positive Integer> "capability_videoin_c0_str eamcodec". * This is kept for compatibility. videoin_c<n>_streamcodec 7,7,7,7 A list of Represent supported <Positive Integer>...
  • Page 176 VIVOTEK ". * Only available when [httpversion] >= 0300 0, 1 1: Support flexible bit rate  videoin_flexiblebitrate   control  0: Non‐support flexible bit  rate control.    * More detail, see 5.5  Codec: H264 Codec:  , 5.6  MPEG4 Codec:  , 5.7  MJPEG   * Only available when  [httpversion] >= 0300 timeshift <boolean> Indicate whether to support time shift caching stream. audio_aec <boolean>...
  • Page 177 VIVOTEK audioout_codec g711 g711 Available codec list for SIP. camctrl_httptunnel <boolean> Indicate whether to support httptunnel. camctrl_privilege <boolean> Indicate whether to support “Manage Privilege” of PTZ control in the Security page. 1: support both /cgi-bin/camctrl/camctrl.c gi and /cgi-bin/viewer/camctrl.cg 0: support only /cgi-bin/viewer/camctrl.cg...
  • Page 178 VIVOTEK wireless_encrypt_wpa <boolean> Indicate whether to support wireless WPA. wireless_encrypt_wpa2 <boolean> Indicate whether to support wireless WPA2. derivative_brand <boolean> Indicate whether to support the upgrade function for the derivative brand. For example, if the value is true, the VVTK product can be upgraded to VVXX.
  • Page 179 VIVOTEK temperature <boolean> Indicate whether to support temperature detection. test_ac <boolean> Indicate whether to support test ac key. version_onvifdaemon <string> 1.8.0.9 Indicate ONVIF daemon version version_onvifevent <string> 1.3.0.7 Indicate ONVIF event version version_genetec <string> 1.0.2.6 Indicate Genetec version media_totalspace <positive...
  • Page 180 VIVOTEK supportsd <boolean> Indicate whether to support local storage. remotecamctrl_master 0, <positive Indicate whether to integer> support remote auxiliary camera (master side), this value means supporting max number of auxiliary camera. remotecamctrl_slave <boolean> Indicate whether to support remote camera control (slave side).
  • Page 181 VIVOTEK 1 (The privacy mask is a 2D version) 2 (The privacy mask is a 3D version) A 3D privacy mask denotes that the camera maintains mask position and size while PTZ is in motion. In the 2D version, each...
  • Page 182 VIVOTEK Default  SECURITY NAME VALUE DESCRIPTION         (get/set)   this group. maxframerat A list of  60,60,60,6 Indicate frame rate that the video source outputs in    <Integer> 0  current video mode.      One to one mapping to the resolution in "resolution".   * The element number is defined as "nresolution" in  this group.  * This parameter may be changed when  "videoin_c<n>_cmosfreq"=50 or  "videoin_c<n>_modulation"=pal.  Ex: 30 fps is changed to 25 fps, 60 fps is changed to    50 fps, and so on. mpeg4_maxf A list of  60,60,60,6 Maximum fps that the device can encoded one    ramerate <Integer> and ...
  • Page 183 VIVOTEK Default  SECURITY NAME VALUE DESCRIPTION         (get/set) mpeg4_max <Positive  40000000  0/7 Maximum bitrates of MPEG4.    bitrate Integer> The unit is bps.        * Only available when 'mpeg4' is listed in  "capability_videoin_codec".  Codec: MPEG4   * More details, see 5.6  mjpeg_maxfr A list of  60,60,60,6 Maximum fps that the device can encoded one    amerate  <Positive  0  stream with MJPEG on resolutions in current video  Integer> and  mode.  "‐" ...
  • Page 184 VIVOTEK Default  SECURITY NAME VALUE DESCRIPTION         (get/set) h264_maxfra A list of  60,60,60,6 Maximum fps that the device can encoded one    merate <Positive  0  stream with H.264 on resolutions in current video    Integer> and  mode.  "‐" "‐" means not support.      * One to one mapping to the resolution in  "resolution".  * The element number is defined as "nresolution" in  this group.  * This parameter may be changed when  "videoin_c<n>_cmosfreq"=50 or  "videoin_c<n>_modulation"=pal.  Ex: 30 fps is changed to 25 fps, 60 fps is changed to  50 fps, and so on.  Codec: H264 More details, see 5.5  .  * Only available when 'h264' is listed in ...
  • Page 185 VIVOTEK Default  SECURITY NAME VALUE DESCRIPTION       (get/set) effectivepixel <WxH> 1280x720  The visible area of full scene in this video mode.        The unit is pixel in source.    * This value must <= "capability_videoin_c<n>_maxsize"  * If "effectivepixel"<"capability_videoin_c<n>_maxsize",  then the visible area is located at the center of full scene. outputsize <WxH> 1280x720  The output size of source, equal to the captured size by        device, in this video mode. The unit is pixel.  This value is used as a basic coordinate system for many  features, like ePTZ, privacy mask, motion, etc.    * Source (most for image sensor) may perform scale or  binning, etc on image data, and output data with smaller    size. This parameter is designed to represent this. binning 0, 1, 3 0 ...
  • Page 186 VIVOTEK Default  SECURITY NAME VALUE DESCRIPTION       (get/set) maxframerate A list of  60,60,60,60  0/7 Indicates frame rate that the video source outputs in this      <Positi video mode.  ve    Integer * One to one mapping to the resolution in "resolution".  > * The element number is defined as "nresolution" in this    group.  * This parameter records the frame rate when  "videoin_c<n>_cmosfreq"=60 or    "videoin_c<n>_modulation"=ntsc maxfps_mpeg4 A list of  60,60,60,60  0/7 Maximum fps which the device can encoded with MPEG4      <Positi on resolutions in this video mode. ...

  • Page 187: Event Setting

    VIVOTEK Default  SECURITY NAME VALUE DESCRIPTION       (get/set) maxfps_h264 A list of  60,60,60,60  0/7 Maximum fps which the device can encoded with H.264      <Positi on resolutions in this video mode.  ve  "‐" means not support.  Integer   > and  * One to one mapping to the resolution in "resolution".  "‐" * The element number is defined as "nresolution" in this    group.  * This parameter records the frame rate when  "videoin_c<n>_cmosfreq"=60 or  "videoin_c<n>_modulation"=ntsc  * Only available when 'h264' is listed in    "capability_videoin_codec". description <String 720P HD  Description about this mode.  ...
  • Page 188 VIVOTEK priority 0, 1, 2 Indicate the priority of this event: “0” = low priority “1” = normal priority “2” = high priority delay 1~999 Delay in seconds before detecting the next event. trigger boot, boot Indicate the trigger condition: “boot”...
  • Page 189 VIVOTEK Indicate the source id of vi trigger. This field is required when trigger condition is “vi”. inter 1~999 Interval of snapshots in minutes. This field is used when trigger condition is “seq”. weekday 0~127 Indicate which weekday is scheduled.
  • Page 190 VIVOTEK action_cf_backup <Boolean> Enable or disable the function that send media to SD card for backup if network is disconnected. action_server_i<0~4>_e 0, 1 Enable or disable this server action. nable action_server_i<0~4>_ 0~4, 101 <blank> Index of the attached media. media action_server_i<0~4>_...
  • Page 191 VIVOTEK ftp_passive 0, 1 Enable or disable passive mode. 0 = disable passive mode 1 = enable passive mode email_address string[128] NULL Email server address. email_sslmode 0, 1 Enable support SSL. email_port 0~65535 Port to connect to the server. email_username...
  • Page 192 VIVOTEK snapshot_datesuffix 0, 1 Add date and time suffix to filename: 1 = Add date and time suffix. 0 = Do not add. snapshot_preevent 0 ~ 7 Indicates the number of pre-event images. snapshot_postevent 0 ~ 7 The number of post-event images.
  • Page 193 VIVOTEK limitsize 0: Entire free space mechanism 1: Limit recording size mechanism cyclic 0: Disable cyclic recording 1: Enable cyclic recording notify 0: Disable recording notification 1: Enable recording notification notifyserver 0~31 Indicate which notification server is scheduled. One bit represents one application server (server_i0~i4).
  • Page 194 VIVOTEK dest The destination to store the recorded 0,1,2,3,4 data. “cf” means local storage (CF or SD card). “0” means the index of the network storage. cffolder string[128] NULL Folder name. adaptive_enable Indicate whether the adaptive recording is enabled adaptive_preevent...
  • Page 195 VIVOTEK -1 = Waiting for certificate 0 = Not installed 1 = Active countryname string[2] Country name in the certificate information. stateorprovincename string[128] Asia State or province name in the certificate information. localityname string[128] Asia The locality name in the certificate information.
  • Page 196 VIVOTEK 7.36 Object tracking setting Group: sdobjtrack. PARAMETER VALUE Default SECURITY DESCRIPTION (get/set) objsize_type -1~2 Type of object size. -1 : customized width and height 0 : object size = 30 x 30 1 : object size = 10 x 20...
  • Page 197 VIVOTEK guid<0~2>_number Number of connected seamless streaming with guid<0~2>_id. (Read only) 7.38 VIVOTEK Application Development Platform setting Group: vadp NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) version <string> 1.2.0.0 Indicate the VADP version. number string[128] <product This number is used to register dependent>...
  • Page 198 <blank> Indicate the message that will be show on the running status when mouse over. vvtklicensemec string[40] <blank> Indicate the module use VIVOTEK license mechanism Group: vadp_event NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) ntrigger <integer> <product Indicate the number of topics dependent>...
  • Page 199 VIVOTEK n is equal to ntrigger above. User's Manual - 199...

  • Page 200: Drive The Digital Output

    VIVOTEK 8. Useful Functions 8.1 Drive the Digital Output (capability.ndo > 0) Note: This request requires Viewer privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/dido/setdo.cgi?do1=<state>[&do2=<state>] [&do3=<state>][&do4=<state>] Where state is 0 or 1; “0” means inactive or normal state, while “1” means active or triggered state.
  • Page 201 VIVOTEK Example: Query the status of digital input 1 . Request: http://myserver/cgi-bin/dido/getdi.cgi?di1 Response: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: 7\r\n \r\n di1=1\r\n 8.3 Query Status of the Digital Output (capability.ndo > 0) Note: This request requires Viewer privileges Method: GET/POST Syntax: http://<servername>/cgi-bin/dido/getdo.cgi?[do0][&do1][&do2][&do3]...
  • Page 202 VIVOTEK \r\n do1=1\r\n 8.4 3D Privacy Mask Note: This request requires admin user privilege <SD81X1> You can set privacy mask only at zoom 1x. To go back to zoom 1x directly, please send this cgi command: "/cgi-bin/camctrl/camposition.cgi?setzoom=0" Method: GET/POST Syntax: Fixed in center : http://<servername>/cgi-bin/admin/setpm3d.cgi?method=<value>&name=<value>&[maskheight=<value>&...

  • Page 203: Capture Single Snapshot

    VIVOTEK 8.5 Capture Single Snapshot Note: This request requires Normal User privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/viewer/video.jpg?[channel=<value>][&resolution=<value>] [&quality=<value>][&streamid=<value>] If the user requests a size larger than all stream settings on the server, this request will fail. PARAMETER VALUE DEFAULT DESCRIPTION channel 0~(n-1) The channel number of the video source.

  • Page 204: Account Management

    VIVOTEK 8.6 Account Management Note: This request requires Administrator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/editaccount.cgi? method=<value>&username=<name>[&userpass=<value>][&privilege=<value>] [&privilege=<value>][…][&return=<return page>] PARAMETER VALUE DESCRIPTION method Add an account to the server. When using this method, the “username” field is necessary. It will use the default value of other fields if not specified.

  • Page 205: System Logs

    VIVOTEK 8.7 System Logs Note: This request require Administrator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/syslog.cgi Server will return the most up-to-date system log. Return: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: <syslog length>\r\n \r\n <system log information>\r\n 8.8 Upgrade Firmware Note: This request requires Administrator privileges.
  • Page 206 VIVOTEK 8.9 Camera Control (capability.ptzenabled) Note: This request requires Viewer privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/camctrl/camctrl.cgi?[channel=<value>][&camid=<value>] [&move=<value>] – Move home, up, down, left, right [&focus=<value>] – Focus operation [&iris=<value>] – Iris operation [&auto=<value>] – Auto pan, patrol [&zoom=<value>] – Zoom in, out [&zooming=<value>&zs=<value>] –...
  • Page 207 VIVOTEK speedfocus -5 ~ 5 Set the focus speed. speedapp -5 ~ 5 Set the auto pan/patrol speed. auto Auto pan. patrol Auto patrol. stop Stop camera. zoom wide Zoom larger view with current speed. tele Zoom further with current speed.
  • Page 208 VIVOTEK 8.10 ePTZ Camera Control (capability.eptz > 0) Note: This request requires camctrl privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/camctrl/eCamCtrl.cgi?channel=<value>&stream=<value> [&move=<value>] – Move home, up, down, left, right [&auto=<value>] – Auto pan, patrol [&zoom=<value>] – Zoom in, out [&zooming=<value>&zs=<value>] – Zoom without stopping, used for joystick [&vx=<value>&vy=<value>&vs=<value>] –...
  • Page 209 VIVOTEK zooming wide or tele Zoom without stopping for larger view or further view with zs speed, used for joystick control. 0 ~ 6 Set the speed of zooming, “0” means stop. <integer> The direction of movement, used for joystick control.
  • Page 210 VIVOTEK 8.11 Recall (capability.ptzenabled) Note: This request requires Viewer privileges. Method: GET Syntax: http://<servername>/cgi-bin/viewer/recall.cgi? recall=<value>[&channel=<value>][&return=<return page>] PARAMETER VALUE DESCRIPTION recall Text string less than 30 One of the present positions to recall. characters channel <0~(n-1)> Channel of the video source.
  • Page 211 VIVOTEK 8.13 Preset Locations (capability.ptzenabled) Note: This request requires Operator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/operator/preset.cgi?[channel=<value>] [&addpos=<value>][&delpos=<value>][&return=<return page>] PARAMETER VALUE DESCRIPTION addpos <Text string less than Add one preset location to the preset list. 30 characters> channel <0~(n-1)> Channel of the video source.
  • Page 212 VIVOTEK delpos <Text string less than Delete preset location from the preset list. 40 characters> return <return page> Redirect to the page <return page> after the parameter is assigned. The <return page> can be a full URL path or relative path according to the current path.
  • Page 213 VIVOTEK 8.16 UART HTTP Tunnel Channel (capability.nuart > 0) Note: This request requires Operator privileges. Method: GET and POST Syntax: http://<servername>/cgi-bin/operator/uartchannel.cgi?[channel=<value>] ------------------------------------------------------------------------- GET /cgi-bin/operator/uartchannel.cgi?[channel=<value>] x-sessioncookie: string[22] accept: application/x-vvtk-tunnelled pragma: no-cache cache-control: no-cache ------------------------------------------------------------------------- POST /cgi-bin/operator/uartchannel.cgi x-sessioncookie: string[22] content-type: application/x-vvtk-tunnelled pragma : no-cache...
  • Page 214 VIVOTEK 8.17 Event/Control HTTP Tunnel Channel (capability. evctrlchannel > 0) Note: This request requires Administrator privileges. Method: GET and POST Syntax: http://<servername>/cgi-bin/admin/ctrlevent.cgi ------------------------------------------------------------------------- GET /cgi-bin/admin/ctrlevent.cgi x-sessioncookie: string[22] accept: application/x-vvtk-tunnelled pragma: no-cache cache-control: no-cache ------------------------------------------------------------------------- POST /cgi-bin/admin/ ctrlevent.cgi x-sessioncookie: string[22] content-type: application/x-vvtk-tunnelled...
  • Page 215 VIVOTEK 8.18 Get SDP of Streams Note: This request requires Viewer access privileges. Method: GET/POST Syntax: http://<servername>/<network_rtsp_s<0~m-1>_accessname> “m” is the stream number. “network_accessname_<0~(m-1)>” is the accessname for stream “1” to stream “m”. Please refer to the “subgroup of network: rtsp” for setting the accessname of SDP.
  • Page 216 VIVOTEK 8.20 Senddata (capability.nuart > 0) Note: This request requires Viewer privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/viewer/senddata.cgi? [com=<value>][&data=<value>][&flush=<value>] [&wait=<value>] [&read=<value>] PARAMETER VALUE DESCRIPTION 1 ~ <max. com port The target COM/RS485 port number. number> data <hex decimal The <hex decimal data> is a series of digits from 0 ~ 9, A ~ F. Each data>[,<hex decimal...
  • Page 217 VIVOTEK 8.21 Storage managements (capability.storage.dbenabled > 0) Note: This request requires administrator privileges. Method: GET and POST Syntax: http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=<cmd_type>[&<parameter>=<value>…] The commands usage and their input arguments are as follows. PARAMETER VALUE DESCRIPTION cmd_type <string> Required. Command to be executed, including search, insert, delete, update, and queryStatus.
  • Page 218 VIVOTEK Indicate if the file is locked or not. 0: file is not locked. 1: file is locked. A locked file would not be removed from UI or cyclic storage. triggerTime <text> Optional. Indicate the event trigger time. (not the file created time) Format is “YYYY-MM-DD HH:MM:SS”...
  • Page 219 VIVOTEK Command: update PARAMETER VALUE DESCRIPTION label <integer primary key> Required. Identify the designated record. Ex. label=1 isLocked <boolean> Required. Indicate if the file is locked or not. Ex. Update records whose key numbers are 1 and 5 to be locked status.
  • Page 220 VIVOTEK means inactive or normal Ex: vi0=0(200)1 state while “1” means Setting virtual input 0 to normal state, waiting 200 active or triggered state. milliseconds, setting it to trigger state. Where "nstate" is next Note that when the virtual input is waiting for next state, it state after duration.
  • Page 221 VIVOTEK 8.23 Open Timeshift Stream (capability.timeshift > 0, timeshift_enable=1, timeshift_c<n>_s<m>_allow=1) Note: This request requires Viewer access privileges. Syntax: For HTTP push server (MJPEG): http://<servername>/<network_http_s<m>_accessname>?maxsft=<value>[&tsmode=<value>&reftime=<v alue>&forcechk&minsft=<value>] For RTSP (MP4 and H264), the user needs to input the URL below into an RTSP compatible player.
  • Page 222 VIVOTEK Return Code Description 400 Bad Request Request is rejected because some parameter values are illegal. 415 Unsupported Media Type Returned, if forcechk appears, when minsft is not achievable or the timeshift feature of the target stream is not enabled.
  • Page 223 VIVOTEK 26~30 (only for NTSC or 60Hz CMOS) mpeg4_intraperiod 250, 500, 1000, 2000, 3000, 1000 Intra frame period in milliseconds. 4000 mpeg4_ratecontrolmode cbr, vbr cbr: constant bitrate vbr: fix quality mpeg4_quant 0, 1~5 Quality of video when choosing vbr in 99, 1~5 “mpeg4_ratecontrolmode”.
  • Page 224 VIVOTEK <product dependent> dependent> h264_maxframe 1~25, Set maximum frame rate in fps (for H264). 26~30 (only for NTSC or 60Hz CMOS) <product dependent> 224 - User's Manual...

  • Page 225: Technical Specifications

    Smoked cover/ Combo cable head Adapter Vandal proof transparent cover All specifications are subject to change without notice. Copyright © VIVOTEK INC. All rights reserved. Distributed by: Ver. 5 VIVOTEK INC. VIVOTEK USA VIVOTEK Europe 6F, No.192, Lien-Cheng Rd., Chung-Ho,...

  • Page 226: Technology License Notice

    VIVOTEK Technology License Notice MPEG-4 AAC Technology THIS PRODUCT IS LICENSED UNDER THE MPEG-4 AAC AUDIO PATENT LICENSE. THIS PRODUCT MAY NOT BE DECOMPILED, REVERSE-ENGINEERED OR COPIED, EXCEPT WITH REGARD TO PC SOFTWARE, OF WHICH YOU MAY MAKE SINGLE COPIES FOR ARCHIVAL PURPOSES. FOR MORE INFORMATION, PLEASE REFER TO HTTP://WWW.VIALICENSING.COM.

  • Page 227: Electromagnetic Compatibility (Emc)

    取扱説明書に従って正しい取り扱いをして下さい Liability VIVOTEK Inc. cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and manuals without prior notice. VIVOTEK Inc. makes no warranty of any kind with regard to the material contained within this document, including, but not limited to, the implied warranties of merchantability and fitness for any particular purpose.

This manual is also suitable for:

Sd8333-mSd8333-e/m

Table of Contents
