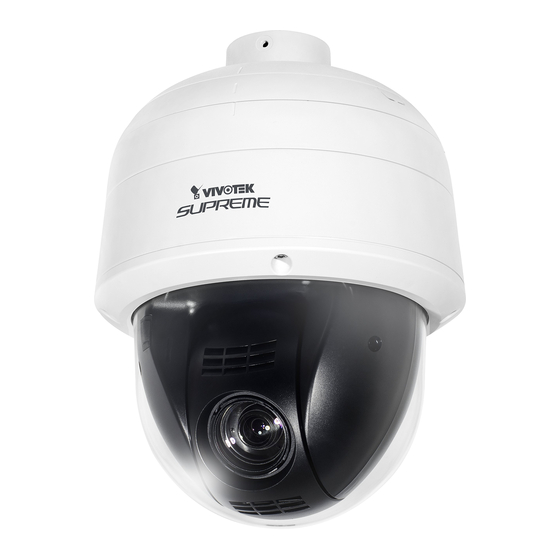

Page 1 SD8161 Speed Dome Network Camera User’s Manual 1080P HD • 18x Zoom • PoE Rev. 1.0...
Page 2: Table Of Contents
PTZ > PTZ settings ............................96 Event > Event settings ..........................101 Applications > Motion detection........................116 Applications > DI and DO .......................... 119 Applications > Audio detection ........................120 Applications > VADP (VIVOTEK Application Development Platform) ............122 2 - User's Manual...
Page 3 VIVOTEK Recording > Recording settings ........................124 Local storage > SD card management ....................... 129 Local storage > Content management ....................... 130 Appendix 132 URL Commands for the Network Camera ......................132 Technical Specifications ............................. 230 Technology License Notice ..........................231 Electromagnetic Compatibility (EMC) .........................
Page 4: Overview
Adopting a 18x optical zoom lens and sophisticated pan/ tilt mechanism, the SD8161 is able to capture fine detail at top-notch quality, and is especially suitable for wide open indoor spaces such as airports and lobbies where highest levels of reliability and precision are always required.
Page 5: Read Before Use
For creative and professional developers, the URL Commands of the Network Camera section serves as a helpful reference to customizing existing homepages or integrating with the current web server. Package Contents ■ SD8161 ■ Screws / Alignment Sticker / T25 Stardriver ■ Quick Installation Guide ■ Software CD ■...
Page 6: Physical Description
VIVOTEK Physical Description Outer View This drawing shows a camera with its dome cover removed. Reset Button Network LED Status LED Lens The MicroSD card slot is accessed by removing the dome cover using the T25 stardriver. Peel the rubber cover open to acess the MicroSD slot.
Page 7 VIVOTEK Status LED Item LED status Description Steady Power on and system booting LED OFF Power off Steady & Green blinking every 1 sec. Network normal (heartbeat) Steady & Green LED OFF Network failed blinking every 0.15 sec. & Green...
Page 8 VIVOTEK Terminal Block Pinouts Name Description Note: Chassis ground Audio GND Audio ground Common ground for MIC IN and Line OUT MIC IN Microphone input Line OUT Audio output RS485- RS485 receive RS485+ RS485 transmit DI GND Digital input ground Common ground for all DI...
Page 9 VIVOTEK DI/DO Diagram Please refer to the following illustration for the connection method. Please note that the maximum load on the DO pins is 50mA. Switch Switch Max. BJT transistor BJT transistor Source Source Relay Relay Device Device IMPORTANT: • The camera can be driven by an Ethernet connection to a PoE Plus switch (30W output).
Page 10: Installation
VIVOTEK Installation Hardware Installation The camera weighs 2.4kg. Select a rigid mounting location to prevent vibration to the camera. 1. Remove the retention screw on the side of camera. 2. Turn and detach the top section. 3. Attach the alignment sticker to the wall. Drill 3 pilot holes into the wall, and drill another hole for routing cables.
Page 11 VIVOTEK 4. Hammer in the threaded anchors. 5. Secure the top section to ceiling using the included screws. 6. Pass cables through the pre-drilled hole or the side openings, and then connect to the camera. IMPORTANT: The product is not likely to require connection to an Ethernet network with outside plant routing, including the campus environments;...
Page 12 VIVOTEK Mounting the Camera 7. Align the camera body with the top section. Align the alignment mark on the camera with that on the top section. Push the camera up to match the top section. 8. Rotate the camera clockwise.
Page 13: Network Deployment
VIVOTEK Network Deployment Setting up the Network Camera over the Internet There are several ways to set up the Network Camera over the Internet. The first way is to set up the Network Camera behind a router. The second way is to utilize a static...
Page 14 For more information with network configuration options (such as that of streaming ports), please refer to Configuration > Network Settings. VIVOTEK also provides the automatic port forwarding feature as an NAT traversal function with the precondition that your router must support the UPnP port forwarding feature.
Page 15 VIVOTEK Internet connection with static IP Choose this connection type if you are required to use a static IP for the Network Camera. Please refer to LAN on page 65 for details. Internet connection via PPPoE (Point-to-Point over Ethernet) Choose this connection type if you are connected to the Internet via a DSL Line. Please refer to PPPoE on page 66 for details.
Page 16: Software Installation
After your network environment is analyzed, please click Next to continue the program. 3. The program will search for all VIVOTEK network devices on the same LAN. 4. After a brief search, the main installer window will prompt. Double-click on the MAC and model name which matches the product label on your device to connect to the Network Camera via a web browser.
Page 17: Ready To Use
VIVOTEK Ready to Use 1. A browser session with the Network Camera should prompt as shown below. 2. You should be able to see live video from your camera. You may also install the 32-channel recording software from the software CD in a deployment consisting of multiple cameras. For its installation details, please refer to its related documents.
Page 18: Configuration Option: Recessed Mount Installation
IMPORTANT: 1. This recessed mount bracket is for indoor use only. 2. Any hardware that is not provided by VIVOTEK (this bracket is installed to) is the responsibility of the installer. 3. Do not install the camera to lightweight ceiling boards that can not support the weight of this installation.
Page 19 VIVOTEK Mounting Hole Definitions 1. Determine a secure location for the recessed-mount bracket. 2. Drill or cut a 260mm hole (in diameter). The maximum thickness of the ceiling/board is 48mm. The ceiling should be able to sustain at least a weight of 6kgs.
Page 20 VIVOTEK 4. Use a #2 Phillips screwdriver to move the clamping plates down so that the ceiling board is caught between the clamps and the flange on the other side of the ceiling. Clockwise Counter- clockwise 20 - User's Manual...
Page 21 VIVOTEK 5. Make sure the recessed mount bracket is secured to the ceiling board by its clamping plates. You can then route an Ethernet cable and I/O wires through the opening on the bracket. For safety concerns, you should also pass a tether line through the hanger piece on the bracket.
Page 22 VIVOTEK 6. Remove the top section and connect cables to the camera. Use the package foam to protect the dome cover when working on the camera. 22 - User's Manual...
Page 23 VIVOTEK 7. Attach the camera body to the recessed mount bracket. 7-1. Install and secure the camera's tether line to the hanger piece of the bracket. 7-2. Push the camera up into the bracket, turn the camera clock-wise. 7-3. When doing so, apply a steady and even force upwards.
Page 24 VIVOTEK 8. Once the camera is secured, align and attach cover ring to the bracket by turning it counter- clockwise. NOTE: 1. Connect and route cables before you secure the recessed-mount bracket to a ceiling. 2. For details on the cable connections with the camera, please refer to their Quick Installation Guide.
Page 25: Accessing The Network Camera
3. Live video will display in your web browser. 4. If it is the first time installing the VIVOTEK network camera, an information bar will pop up as shown below. Follow the instructions to install the required plug-in on your computer.
Page 26 VIVOTEK ► By default, the Network Camera is not password-protected. To prevent unauthorized access, it is highly recommended to set a password for the Network Camera. For more information about how to enable password protection, please refer to Security on page 83.
Page 27: Using Rtsp Players
VIVOTEK Using RTSP Players To view the H.264 streaming media using RTSP players, you can use one of the following players that support RTSP streaming. Quick Time Player VLC Media Player VLC media player 1. Launch the RTSP player. 2. Choose File > Open URL. An URL dialog box will pop up.
Page 28: Using 3Gpp-Compatible Mobile Devices
VIVOTEK Using 3GPP-compatible Mobile Devices To view the streaming media through 3GPP-compatible mobile devices, make sure the Network Camera can be accessed over the Internet. For more information on how to set up the Network Camera over the Internet, please refer to Setup the Network Camera over the Internet on page To utilize this feature, please check the following settings on your Network Camera: 1.
Page 29: Using Vivotek Recording Software
VIVOTEK Using VIVOTEK Recording Software The product software CD also contains recording software, allowing simultaneous monitoring and video recording for multiple Network Cameras. Please install the recording software; then launch the program to add the Network Camera to the Channel list. For detailed information about how to use the recording software, please refer to the user’s manual of the software or...
Page 30: Main Page
VIVOTEK Main Page This chapter explains the layout of the main page. It is composed of the following sections: VIVOTEK INC. Logo, Host Name, Camera Control Area, Configuration Area, and Live Video Window. VIVOTEK INC. Resize Buttons Host Name Logo...
Page 31 VIVOTEK VIVOTEK INC. Logo Click this logo to visit the VIVOTEK website. Host Name The host name can be customized to fit your needs. For more information, please refer to System on page 43. Camera Control Area Video Stream: This Network Camera supports multiple streams (stream 1 ~ 4) simultaneously. You can select either one for live viewing.
Page 32 VIVOTEK Pan /Tilt /Zoom /Focus speed: Adjust the speed of Pan/ Tilt/ Zoom/ Focus: Pan speed Tilt speed Zoom speed Focus speed Slower Faster Note that mouse screen control is also supported. You can refer to page 96 for related information.
Page 33 VIVOTEK Resize Buttons Click the Auto button, the video cell will resize automatically to fit the monitor. Click 100% is to display the original homepage size. Click 50% is to resize the homepage to 50% of its original size. Click 25% is to resize the homepage to 25% of its original size.
Page 34 VIVOTEK Snapshot: Click this button to capture and save still images. The captured images will be displayed in a pop-up window. Right-click the image and choose Save Picture As to save it in JPEG (*.jpg) or BMP (*.bmp) format. Digital Zoom: Click and deselect the “Disable digital zoom” to enable the zoom operation. The navigation screen indicates the part of the image being magnified.
Page 35 VIVOTEK ■ The following window is displayed when the video mode is set to MJPEG: Video Title Time Video (HTTP-V) 2014/03/10 17:08:56 Title and Time Video 17:08:56 2014/03/10 Video Control Buttons Video Title: The video title can be configured. For more information, please refer to Media > Image on page 53.
Page 36 Quick Time player only supports playback of H.264 stream, and not the MJPEG stream. In terms of au- dio codec, Quick Time only supports AAC. Since this camera supports G.711 codec, audio is not avail- able on Quick Time. The VLC player supports H.264/MJPEG, and all audio codecs supported by VIVOTEK’s cameras. 36 - User's Manual...
Page 37: Client Settings
VIVOTEK Client Settings This chapter explains how to select the stream transmission mode and saving options on the local computer. When completed with the settings on this page, click Save on the page bottom to enable the settings. H.264 Media Options H.264 Media Options...
Page 38: Mp4 Saving Options
VIVOTEK Two way audio Half duplex: Audio is transmitted from one direction at a time, e.g., from a PC holding a web console with the camera. Full duplex: Audio is transmitted in both directions simultaneously. MP4 Saving Options Users can record live video as they are watching it by clicking the button - Start MP4 Recording - on the main page.
Page 39: Joystick Settings
VIVOTEK Joystick Settings Enable Joystick Connect to the USB plug of the joystick to a USB port on your management computer. Once a USB joystick is connected, the related joystick configuration will be available on the Client settings window. The joystick should work properly without installing any other driver or software.
Page 40 VIVOTEK Buttons Configuration In the Joystick Settings window, you can use the combinations of pull-down menus, Actions and Button number, to assign joystick buttons with different functions. The number of buttons may differ from the joystick you attached. Please follow the steps below to configure your joystick buttons: 1.
Page 41 VIVOTEK NOTE: • If you want to assign Preset actions to your joystick, the PTZ preset locations should be configured in advance. • If your joystick is not working properly, it may need to be calibrated. Click the Calibrate button to open the Game Controllers window located in Microsoft Windows control panel and follow the instructions for trouble shooting.
Page 42: Configuration
VIVOTEK Configuration Click Configuration on the main page to enter the camera setting pages. Note that only Administrators can access the configuration page. Please refer to page 83 Security > User Account for how to configure access rights for different users.
Page 43: System > General Settings
VIVOTEK System > General settings This section explains how to configure the basic settings for the Network Camera, such as the host name and system time. It is composed of the following two columns: System and System Time. System Host name: Enter a desired name for the Network Camera. The text will be displayed at the top of the main page.
Page 44: System > Homepage Layout
Theme Options (the second tab on this page). The settings will be displayed automatically in this Preview field. The following shows the homepage using the default settings: ■ Hide Powered by VIVOTEK: If you check this item, such wording will be removed from the homepage. Logo graph Here you can change the logo at the top of your homepage.
Page 45 VIVOTEK Theme Options Here you can change the color of your homepage layout. There are three types of preset patterns for you to choose from. The new layout will simultaneously appear in the Preview filed. Click Save to enable the settings.
Page 46 6. Click Save to enable the settings. Below are the options for system integrators or VARs. You can use the checkboxes to replace VIVOTEK’s company logo, the embedded website address or the slogan “Powered by VIVOTEK.“ When done, use the Save button to complete the configuration.
Page 47: System > Logs
VIVOTEK System > Logs This section explains how to configure the Network Camera to send the system log to the remote server as backup. Log server settings Follow the steps below to set up the remote log: 1. Select Enable remote log.
Page 48: System > Parameters
VIVOTEK Access log Access log displays the access time and IP address of all viewers (including operators and administrators) in a chronological order. The access log is stored in the Network Camera’s buffer area and will be overwritten when reaching a certain limit.
Page 49: System > Maintenance
Note: Do not power off the Network Camera during the upgrade! Follow the steps below to upgrade the firmware: 1. Download the latest firmware file from the VIVOTEK website. The file is in .pkg file format. 2. Click Browse… and specify the firmware file.
Page 50 VIVOTEK General settings > Restore This feature allows you to restore the Network Camera’s factory defaults. Network: Select this option to retain the Network Type settings (please refer to Network Type on page 65). Daylight Saving Time: Select this option to retain the Daylight Saving Time settings (please refer to Import/Export files below on this page).
Page 51 VIVOTEK ® 3. Open and edit the file using Microsoft Notepad and locate your time zone in the strings; set the start and end time of DST. When completed, save the file. In the example below, DST begins each year at 2:00 a.m. on the second Sunday in March and ends at 2:00 a.m.
Page 52 VIVOTEK The following message is displayed when attempting to upload an incorrect file format. Export language file: Click to export language strings. VIVOTEK provides nine languages: English, Deutsch, Español, Français, Italiano, 日本語, Português, 簡体中文, and 繁體中文 . Update custom language file: Click Browse… and specify your own custom language file to upload.
Page 53: Media > Image
VIVOTEK Media > Image This section explains how to configure the image settings of the Network Camera. It is composed of the following four columns: General settings, Picture settings, Exposure, and Privacy mask. General settings Video title Show_timestamp and video title in videos_and_snapshots: Enter a name that will be displayed on the title bar of the live video as the picture shown below.
Page 54: Image Settings
VIVOTEK Image settings On this page, you can tune the White balance and Image adjustment settings. Sensor Setting 1: For normal situations White balance: Adjust the value for the best color temperature. ■ Select one of the white balance modes: ■...
Page 55 VIVOTEK Enable 3D Noise reduction ■ Check to enable noise reduction in order to reduce noises and flickers in image. This applies to the onboard 3D Noise Reduction feature. Use the pull-down menu to adjust the reduction strength. Note that applying this function to the video channel will consume system computing power.
Page 56 VIVOTEK Exposure On this page, you can configure the Exposure level, Max gain, and Exposure mode related settings. Detailed configurations will be automatically adjusted since the sensor library will automatically adjust the value according to the ambient light. Sensor Setting 1:...
Page 57 VIVOTEK Day/Night Settings Switch to B/W in night mode Select this to enable the Network Camera to automatically switch to Black/White during night mode. Turn on external IR illuminator in night mode Select this to turn on an external IR illuminator (connected via Digital Output lines) when the camera detects low light condition and enters the night mode.
Page 58 VIVOTEK Exposure Profile: If you want to configure another sensor and exposure setting for a different lighting condition, e.g., low light condition during the night, please click Profile to open the Profile of exposure settings page as shown below. Activated period: Select the mode this profile to apply to: Day mode, Night mode, or Schedule mode.
Page 59 VIVOTEK Privacy mask Click Privacy Mask to open the settings page. On this page, you can block out sensitive view areas to address privacy concerns. NOTE: 1. The navigation buttons here also support the continuous move. You can click and hold...
Page 60 VIVOTEK NOTE: • The camera supports "3D Privacy Mask." Privacy masks should stay at the same positions regardless of how the camera lens may move. • When the "Enabled privacy mask" checkbox is deselected, no privacy masks will appear on screen.
Page 61: Media > Video
VIVOTEK Media > Video Stream settings This Network Camera supports multiple streams with frame sizes ranging from 176 x 144 to 1920 x 1080 pixels. The definition of multiple streams: ■ Stream 1: Users can define the Frame sizes, compression format, image quality, etc.
Page 62 VIVOTEK Click the stream item to display the detailed information. . This Network Camera provides real-time H.264 and MJPEG compression standards (Multiple Codec) for real-time viewing. If the H.264 mode is selected, the video is streamed via RTSP protocol. There are...
Page 63 VIVOTEK ■ Frame size You can set up different video resolution for different viewing devices. For example, set a smaller frame size and lower bit rate for remote viewing on mobile phones and a larger video size and a higher bit rate for live viewing on web browsers.
Page 64: Media > Audio
VIVOTEK Media > Audio Audio Settings Mute: Select this option to disable audio transmission from the Network Camera to all clients. Note that if muted, no audio data will be transmitted even if audio transmission is enabled on the Client Settings page.
Page 65: Network > General Settings
Use fixed IP address: Select this option to manually assign a static IP address to the Network Camera. 1. You can make use of VIVOTEK Installation Wizard 2 on the software CD to easily set up the Network Camera on LAN. Please refer to Software Installation on page 16 for details.
Page 66 VIVOTEK Primary DNS: The primary domain name server that translates host names into IP addresses. Secondary DNS: Secondary domain name server that backs up the Primary DNS. Primary WINS server: The primary WINS server that maintains the database of computer names and IP addresses.
Page 67 VIVOTEK NOTE: ► If the default ports are already used by other devices connected to the same router, the Network Camera will select other ports for the Network Camera. ► If UPnP is not supported by your router, you will see the following message: Error: Router does not support UPnP port forwarding.
Page 68 VIVOTEK 4. In the Networking Services dialog box, select Universal Plug and Play and click OK. 5. Click Next in the following window. 6. Click Finish. UPnP is enabled. ► How does UPnP work? UPnP networking technology provides automatic IP configuration and dynamic discovery of devices added to a network.
Page 69 VIVOTEK Enable IPv6 Select this option and click Save to enable IPv6 settings. Please note that this only works if your network environment and hardware equipment support IPv6. The ® browser should be Microsoft Internet Explorer 6.5, Mozilla Firefox 3.0 or above.
Page 70 VIVOTEK Please follow the steps below to link to an IPv6 address: 1. Open your web browser. 2. Enter the link-global or link-local IPv6 address in the address bar of your web browser. 3. The format should be: http://[2001:0c08:2500:0002:0202:d1ff:fe04:65f4]/ IPv6 address 4.
Page 71 VIVOTEK Port HTTPS port: By default, the HTTPS port is set to 443. It can also be assigned to another port number between 1025 and 65535. Two way audio port: By default, the two way audio port is set to 5060. Also, it can also be assigned to another port number between 1025 and 65535.
Page 72 To stop talking, click again. FTP port: The FTP server allows the user to save recorded video clips. You can utilize VIVOTEK's Installation Wizard 2 to upgrade the firmware via FTP server. By default, the FTP port is set to 21. It also can be assigned to another port number between 1025 and 65535.
Page 73: Network > Streaming Protocols
VIVOTEK Network > Streaming protocols HTTP streaming To utilize HTTP authentication, make sure that your have set a password for the Network Camera first; please refer to Security > User account on page 83 for details. Authentication: Depending on your network security requirements, the Network Camera provides two types of security settings for an HTTP transaction: basic and digest.
Page 74 VIVOTEK URL command -- http://<ip address>:<http port>/<access name for stream 1, 2, 3, 4, or 5> For example, when the Access name for stream 2 is set to video2.mjpg: 1. Launch the Mozilla Firefox browser. 2. Type the above URL command in the address bar. Press Enter.
Page 75 VIVOTEK Authentication: Depending on your network security requirements, the Network Camera provides three types of security settings for streaming via RTSP protocol: disable, basic, and digest. basic authentication is selected, the password is sent in plain text format, but there can be potential risks of it being intercepted.
Page 76 Unrestricted in scope IMPORTANT: The Multicast metadata port is utilized by VIVOTEK VADP modules to transfer video analytics results, PTZ stream, textual data, and event messages between the camera and the client side running and observing the video analysis. If your client side computer is located outside the local network, you may need to open the associated TCP port on routers and firewall.
Page 77: Network > Ddns
Express link Express Link is a free service provided by VIVOTEK server, which allows users to register a domain name for a network device. One URL can only be mapped to one MAC address. This service will examine if the host name is valid and automatically open a port on your router.
Page 78 DDNS: Dynamic domain name service Enable DDNS: Select this option to enable the DDNS setting. Provider: Select a DDNS provider from the provider drop-down list. VIVOTEK offers Safe100.net, a free dynamic domain name service, to VIVOTEK customers. It is recommended that you register Safe100.net to access VIVOTEK’s Network Cameras from the Internet.
Page 79 4. Select Enable DDNS and click Save to enable the setting. ■ CustomSafe100 VIVOTEK offers documents to establish a CustomSafe100 DDNS server for distributors and system integrators. You can use CustomSafe100 to register a dynamic domain name if your distributor or system integrators offer such services.
Page 80 VIVOTEK Network > QoS (Quality of Service) Quality of Service refers to a resource reservation control mechanism, which guarantees a certain quality to different services on the network. Quality of service guarantees are important if the network capacity is insufficient, especially for real-time streaming multimedia applications. Quality can be defined as, for instance, a maintained level of bit rate, low latency, no packet dropping, etc.
Page 81 VIVOTEK QoS/DSCP (the DiffServ model) DSCP-ECN defines QoS at Layer 3 (Network Layer). The Differentiated Services (DiffServ) model is based on packet marking and router queuing disciplines. The marking is done by adding a field to the IP header, called the DSCP (Differentiated Services Codepoint). This is a 6-bit field that provides 64 different class IDs.
Page 82: Network > Snmp (Simple Network Management Protocol)
VIVOTEK Network > SNMP (Simple Network Management Protocol) This section explains how to use the SNMP on the network camera. The Simple Network Management Protocol is an application layer protocol that facilitates the exchange of management information between network devices. It helps network administrators to remotely manage network devices and find, solve network problems with ease.
Page 83: Security > User Account
VIVOTEK Security > User Account This section explains how to enable password protection and create multiple accounts. Root Password The administrator account name is “root”, which is permanent and can not be deleted. If you want to add more accounts in the Manage User column, please apply the password for the “root” account first.
Page 84: Security > Https (Hypertext Transfer Protocol Over Ssl)
VIVOTEK Security > HTTPS (Hypertext Transfer Protocol over SSL) This section explains how to enable authentication and encrypted communication over SSL (Secure Socket Layer). It helps protect streaming data transmission over the Internet on higher security level. Create and Install Certificate Method Before using HTTPS for communication with the Network Camera, a Certificate must be created first.
Page 85 VIVOTEK 5. Click Save to preserve your configuration, and your current session with the camera will change to the encrypted connection. 6. If your web session does not automatically change to an encrypted HTTPS session, click Home to re- turn to the main page. Change the URL address from “http://” to “https://“ in the address bar and press Enter on your keyboard.
Page 86 VIVOTEK Create certificate request and install 1. Select the option from the Method pull-down menu. 2. Click Create certificate to proceed. 3. The following information will show up in a pop-up window after clicking Create. Then click Save to generate the certificate request.
Page 87 VIVOTEK 5. Look for a trusted certificate authority, such as Symantec’s VeriSign Authentication Services, that issues digital certificates. Sign in and purchase the SSL certification service. Copy the certificate request from your request prompt and paste it in the CA’s signing request window. Proceed with the rest of the process as CA’s instructions on their webpage.
Page 88 VIVOTEK 7. Open a new edit, paste the certificate contents, and press ENTER at the end of the contents to add an empty line. 8. Convert file format from DOS to UNIX. Open File menu > Conversions > DOS to Unix.
Page 89 VIVOTEK 9. Save the edit using the “.crt” extension, using a file name like “CAcert.crt.” 10. Return to the original firmware session, use the Browse button to locate the crt certificate file, and click Upload to enable the certification. User's Manual - 89...
Page 90 VIVOTEK Note that a 11. When the certifice file is successfully loaded, its status will be stated as Active. certificate must have been created and installed before you can click on the “Save" button for the configuration to take effect.
Page 91: Security > Access List
VIVOTEK Security > Access List This section explains how to control access permission by verifying the client PC’s IP address. General Settings Maximum number of concurrent streaming connection(s) limited to: Simultaneous live viewing for 1~10 clients (including all streams). The default value is 10. If you modify the value and click Save, all current connections will be disconnected and automatically attempt to re-link (IE Explorer or Quick Time Player).
Page 92 VIVOTEK ■ Disconnect: If you want to break off the current connections, please select them and click this button. Please note that those checked connections will only be disconnected temporarily and they will automatically retry a connection (IE Explore or Quick Time Player).
Page 93 VIVOTEK Network: This rule allows the user to assign a network address and corresponding subnet mask to the Allow/Deny List in the CIDR format, e.g. 192.168.xx.xx/24. For example: IP address 192.168.2.x will be blocked. Range: This rule allows the user to assign a range of IP addresses to the Allow/Deny List.
Page 94 Authentication server (usually a RADIUS server): Checks the client certificate and decides whether to accept the end user’s access request. ■ VIVOTEK Network Cameras support two types of EAP methods to perform authentication: EAP-PEAP and EAP-TLS. Please follow the steps below to enable 802.1x settings: 1.
Page 95 VIVOTEK 3. When all settings are complete, move the Network Camera to the protected LAN by connecting it to an 802.1x enabled switch. The devices will then start the authentication automatically. NOTE: ► Below is the authentication process for 802.1x: 1.
Page 96: Ptz > Ptz Settings
VIVOTEK PTZ > PTZ settings This section explains how to control the Network Camera’s Pan/Tilt/Zoom operation. The camera comes with built-in PTZ mechanisms. NOTE: The navigation buttons here also support the continuous move. You can click and hold down the button to move across the screen until you release the button.
Page 97 VIVOTEK Misc. settings: Use the checkboxes and the pull-down menus for the camera to automatically resume the previous action or return to the home position after the camera has stayed idle for a period of time. PTZ control panel operation mode: This determines how your mouse and PTZ control panel works on a live view window.
Page 98 VIVOTEK The Zoom factor display: This option is enabled by default, and zoom ratio is displayed along with the video title on the upper left corner of a view cell. Apply previous action if the camera idles for __(1~999) seconds: You can assign an action to be taken when the camera sits idle for a configurable period time.
Page 99 Users can choose to perform other functions, such as pan or patrol, simply by clicking their buttons on the PTZ panel while the camera is performing the auto tracking function. When Auto Tracking is taking place, a “Tracking” message is displayed on the message bar. SD8161-VVTK(TCP-V) Tracking.. 1.0X SD8161-VVTK 2014/06/17 User's Manual - 99...
Page 100 VIVOTEK Auto tracking is configured by designating the minimum object size. Moving objects larger than the min. size that entered the current region of view will trigger the tracking action. Auto tracking, if applied, is designed to track an intruder in a place where human traffic is not heavy, such as a warehouse or a load area.
Page 101: Event > Event Settings
VIVOTEK Event > Event settings This section explains how to configure the Network Camera to responds to particular situations (event). A typical application is that when a motion is detected, the Network Camera sends buffered images to an FTP server or e-mail address as notifications. Click on Help, there is an illustration shown in the pop-up window explaining that an event can be triggered by many sources, such as motion detection or external digital input devices.
Page 102 VIVOTEK ■ Event name: Enter a name for the event setting. ■ Enable this event: Select this option to enable the event setting. ■ Priority: Select the relative importance of this event (High, Normal, or Low). Events with a higher priority setting will be executed first.
Page 103 VIVOTEK ■ Audio detection A preset threshold can be configured with an external microphone as the trigger to system event. The triggering condition can be an input exceeding or falling below a threshold. Audio detection can take place as a complement to motion detection or as a method to detect activities not covered by the camera's view.
Page 104 VIVOTEK 3. Action Define the actions to be performed by the Network Camera when a trigger is activated. ■ Trigger digital output for seconds Select this option to turn on the external digital output device when a trigger is activated. Specify the length of the trigger interval in the text box.
Page 105 VIVOTEK NOTE: If you configured a motion detection window as a trigger, the motion detection may become invalid when the camera’s field of view moved away from the detection window. You can let camera return to the motion detection position to detect the coming event by re-configuring your Home position in PTZ >...
Page 106: Add Server
VIVOTEK Add server Click Add server to unfold the server setting window. You can specify where the notification messages are sent when a trigger is activated. A total of 5 server settings can be configured. There are four choices of server types available: Email, FTP, HTTP, and Network storage. Select the item to display the detailed configuration options.
Page 107 VIVOTEK To verify if the email settings are correctly configured, click Test. The result will be shown in a pop-up window. If successful, you will also receive an email indicating the result. Click Save server to enable the settings, then click Close to exit the Add server page.
Page 108 VIVOTEK ■ Passive mode Most firewalls do not accept new connections initiated from external requests. If the FTP server supports passive mode, select this option to enable passive mode FTP and allow data transmission to pass through the firewall. To verify if the FTP settings are correctly configured, click Test. The result will be shown in a pop-up window as shown below.
Page 109 VIVOTEK Network storage: Select to send the media files to a network storage location when a trigger is activated. Please refer to NAS server on page 126 for details. Click Save server to enable the settings, then click Close to exit the Add server page.
Page 110: Add Media
VIVOTEK Add media Add media Click to open the media setting window. You can specify the type of media that will be sent and preserved when a trigger is activated. A total of 5 media settings can be configured. There are three choices of media types available: Snapshot, Video Clip, and System log.
Page 111 VIVOTEK ■ Add date and time suffix to the file name Select this option to add a date/time suffix to the file name. For example: Snapshot_20110320_100341 File name preﬁx Date and time sufﬁx The format is: YYYYMMDD_HHMMSS Click Save media to enable the settings, then click Close to exit the Add media page.
Page 112 VIVOTEK ■ Maximum duration Specify the maximum recording duration in seconds. Up to 20 seconds can be set. For example, if pre-event recording is set to 5 seconds and the maximum duration is set to 10 seconds, the Network Camera continues to record for another 4 seconds after a trigger is activated.
Page 113 VIVOTEK ■ View: Click this button to open a file list window. This function only apllies when an SD card and networked storage are available. If you click View button of SD card, a Local storage page will pop up for you to manage recorded files on SD card.
Page 114 VIVOTEK Here is an example of the Event setting: When completed the settings with steps 1~3 to arrange Schedule, Trigger, and Action of an event, click Save event to enable the settings and click Close to exit the page. The following is an example of the Event setting page:...
Page 115 Please note that there is a limited number of customized scripts you can upload; if the current amount of customized scripts has reached the limit, an alert message will prompt. If you need more information, please contact VIVOTEK technical support. 2014/03/20...
Page 116: Applications > Motion Detection
VIVOTEK Applications > Motion detection This section explains how to configure the Network Camera to enable motion detection. A total of three motion detection windows can be configured. Motion Detection Setting 1: For normal situations Motion Detection Setting 2: Follow the steps below to enable motion detection:...
Page 117 VIVOTEK A green bar indicates that even though motions have been detected, the event has not been triggered because the image variations still fall under the defined threshold. Percentage = 30% If you want to configure other motion detection settings for day/night/schedule mode, please click Profile to open the Motion Detection Profile Settings page as shown below.
Page 118 VIVOTEK NOTE: ► How does motion detection work? There are two motion detection parameters: Sensitivity and Percentage. In the illustration above, frame A and frame B are two sequential images. Pixel differences between the two frames are detected and highlighted in gray (frame C) and will be compared with the sensitivity setting. Sensitivity is a value that expresses the sensitivity to moving objects.
Page 119: Applications > Di And Do
VIVOTEK Applications > DI and DO Digital input: Select High or Low to define normal status for the digital input. Connect a digital input from a sensor device to the camera, the Network Camera will report the current signal status. You may then configure the Normal status (non-trigger status) as High or Low.
Page 120: Applications > Audio Detection
VIVOTEK Applications > Audio detection Audio detection, along with video motion detection, is applicable in the following scenarios: 1. Detection of activities not covered by camera view, e.g., a loud input by gun shots or breaking a door/ window. 2. A usually noisy environment, such as a factory, suddenly becomes quiet due to a breakdown of machines.
Page 121 VIVOTEK You can use the Profile window to configure a different Audio detection setting. For example, a place can be noisy in the day time and become very quiet in the night. 1. Click on the Enable this profile checkbox. Once the Audio detection window is opened, the current sound input will be interactively indicated by a fluctuating yellow wave diagram.
Page 122: Applications > Vadp (Vivotek Application Development Platform)
VADP requirements. Please contact technical support or the vendor of your 3rd-party module for the parameters contained within. • Users can also run VIVOTEK's VADP packages as a means to access updated functionality instead of replacing the entire firmware. •...
Page 123 VIVOTEK To start a module, select the checkcircle in front, and click the Start button. If you should need to remove a module, select the checkcircle in front and then click the Stop button. By then the module status will become OFF, and the X button will appear at the end of the row.
Page 124: Recording > Recording Settings
VIVOTEK Recording > Recording settings This section explains how to configure the recording settings for the Network Camera. Recording Settings Insert your SD card and click here to test NOTE: ► Please remember to format your SD card when using it for the first time. Please refer to page 129 for detailed information.
Page 125 VIVOTEK If you enable adaptive recording and enable time-shift cache stream on Camera A, only when an event is triggered on Camera A will the server record video streams in the full frame rate; otherwise, it will only request the I frame data during normal monitoring, thus effectively save lots of bandwidth and storage.
Page 126 VIVOTEK 2. Destination You can select the SD card or network attached storage (NAS) for recording video files. NAS server Click Add NAS server to open the server setting window and follow the steps below to set up: 1. Fill in the information for your server.
Page 127 VIVOTEK If successful, you will receive a test.txt file on the network storage server. 3. Enter a server name. 4. Click Save to complete the settings and click Close to exit the page. ■ Capacity: You can select either the entire storage space available or specify a reserved space. The recording size limit must be larger than the reserved space for cyclic recording.
Page 128 VIVOTEK this page. When the system begins recording, it will send the recorded files to a networked storage or SD card. The new recording name will appear on the recording page as shown below. To remove a recording setting from the list, select it and click Delete.
Page 129: Local Storage > Sd Card Management
VIVOTEK Local storage > SD card management This section explains how to manage the local storage on the Network Camera. Here you can view SD card status, and implement SD card control. SD card status This column shows the status and reserved space of your SD card. Please remember to format the SD card when using for the first time.
Page 130: Local Storage > Content Management
VIVOTEK Local storage > Content management This section explains how to manage the content of recorded videos on the Network Camera. Here you can search and view the records and view the search results. Searching and Viewing the Records This column allows the user to set up search criteria for recorded data. If you do not select any criteria and click Search button, all recorded data will be listed in the Search Results column.
Page 131 VIVOTEK ■ View: Click on a search result. The entry will be highlighted in purple as shown above. Click the View button and a media window will pop up to play back the selected file. For example: Click to adjust the image size ■...
Page 132: Appendix
VIVOTEK Appendix URL Commands for the Network Camera 1. Overview For some customers who already have their own web site or web control application, the Network Camera/Video Server can be easily integrated through URL syntax. This section specifies the external HTTP-based application programming interface.
Page 133: General Cgi Url Syntax And Parameters
VIVOTEK 3. General CGI URL Syntax and Parameters CGI parameters are written in lower-case and as one word without any underscores or other separators. When the CGI request includes internal camera parameters, these parameters must be written exactly as they are named in the camera or video server.
Page 134 VIVOTEK [&<parameter>…] http://<servername>/cgi-bin/operator/getparam.cgi?[<parameter>] [&<parameter>…] http://<servername>/cgi-bin/admin/getparam.cgi?[<parameter>] [&<parameter>…] Where the <parameter> should be <group>[_<name>] or <group>[.<name>]. If you do not specify any parameters, all the parameters on the server will be returned. If you specify only <group>, the parameters of the related group will be returned.
Page 135: Set Server Parameter Values
(Note: The return page can be a general HTML file (.htm, .html) or a VIVOTEK server script executable (.vspx) file. It cannot be a CGI command or have any extra parameters. This parameter must be placed at the end of the parameter list Return: HTTP/1.0 200 OK\r\n...
Page 136: Available Parameters On The Server
VIVOTEK <parameter>=<value>\r\n [<parameter pair>] Only the parameters that you set and are readable will be returned. Example: Set the IP address of server to 192.168.0.123: Request: http://myserver/cgi-bin/admin/setparam.cgi?network_ipaddress=192.168.0.123 Response: HTTP/1.0 200 OK\r\n Content-Type: text/html\r\n Context-Length: 33\r\n \r\n network.ipaddress=192.168.0.123\r\n 7. Available parameters on the server...
Page 137 VIVOTEK integer primary key SQLite data type. A 32-bit signed integer. The value is assigned a unique integer by the server. text SQLite data type. The value is a text string, stored using the database encoding (UTF-8, UTF-16BE or UTF-16-LE).
Page 138 7.1 system Group: system NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) hostname string[64] SD8161 Host name of server ledoff <boolean> Turn on (0) or turn off (1) all led indicators. date <YYYY/MM/ <current Current date of system. Set to ‘keep’ DD>, date>...
Page 139 VIVOTEK -200: GMT-05:00 Eastern Time, New York, Toronto -201: GMT-05:00 Bogota, Lima, Quito, Indiana -180: GMT-04:30 Caracas -160: GMT-04:00 Atlantic Time, Canada, La Paz, Santiago -140: GMT-03:30 Newfoundland -120: GMT-03:00 Brasilia, Buenos Aires, Georgetown, Greenland -80: GMT-02:00 Mid-Atlantic -40: GMT-01:00 Azores, Cape_Verde_IS.
Page 140 VIVOTEK 230: GMT 05:45 Kathmandu 240: GMT 06:00 Almaty, Novosibirsk, Astana, Dhaka, Sri Jayawardenepura 260: GMT 06:30 Rangoon 280: GMT 07:00 Bangkok, Hanoi, Jakarta, Krasnoyarsk 320: GMT 08:00 Beijing, Chongging, Hong Kong, Kuala Lumpur, Singapore, Taipei 360: GMT 09:00 Osaka, Sapporo,...
Page 141 VIVOTEK updateinterval 0 to Disable automatic time 3600, adjustment, otherwise, it indicates 86400, the seconds between NTP automatic 604800, update intervals. 2592000 restore Restore the system parameters to <positive default values after <value> seconds. integer> reset Restart the server after <value>...
Page 142 NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) modelname string[40] SD8161 Internal model name of the server (eg. IP7139) extendedmodelname string[40] SD8161 ODM specific model name of server (eg. DCS-5610). If it is not an ODM model, this field will be equal to “modelname”...
Page 143 VIVOTEK 7.2 status Group: status NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) di_i<0~(ndi-1)> <boolean> 0 => Inactive, normal 1 => Active, triggered (capability.ndi > 0) do_i<0~(ndo-1)> <boolean> 0 => Inactive, normal 1 => Active, triggered (capability.ndo > 0) onlinenum_rtsp integer Current number of RTSP connections.
Page 144 VIVOTEK 7.5 security Group: security NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) privilege_do view, operator, operator Indicate which privileges and admin above can control digital output (capability.ndo > 0) privilege_camctrl view, operator, view Indicate which privileges and admin above can control PTZ (capability.ptzenabled >...
Page 145 VIVOTEK Stopped service will auto-start after changing port settings. Change HTTP port from 80 to 5556, and change RTP port for video from 5556 to 20480. Then, set preprocess=9 to stop both service first. ”/cgi-bin/admin/setparam.cgi? network_preprocess=9&network_http_port=5556& network_rtp_videoport=20480” type lan, Network connection type.
Page 146 VIVOTEK identity_peap String[64] <blank> PEAP identity identity_tls String[64] <blank> TLS identity password String[253] <blank> Password for TLS privatekeypassword String[253] <blank> Password for PEAP ca_exist <boolean> CA installed flag ca_time 0~20 CA installed time. Represented in EPOCH ca_size 0~20 CA file size (in bytes) certificate_exist <boolean>...
Page 147 VIVOTEK eventalarm 0~63 Event/alarm channel for DSCP management 0~63 Management channel for DSCP eventtunnel 0~63 Event/Control channel for DSCP 7.6.3 IPV6 Subgroup of network: ipv6 (capability.protocol.ipv6 > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) enable <boolean> Enable IPv6. addonipaddress <ip address>...
Page 148 VIVOTEK stream 2. (capability.protocol.spush_mjpeg =1 and capability.nmediastream > 1) s2_accessname string[32] video3.mjpg Http server push access name for stream 3 (capability.protocol.spush_mjpeg =1 and capability.nmediastream > 2) s3_accessname string[32] video4.mjpg Http server push access name for stream 4 (capability.protocol.spush_mjpeg =1 and capability.nmediastream > 2) anonymousviewing <boolean>...
Page 149 VIVOTEK s2_accessname string[32] live3.sdp RTSP access name for stream3 (capability.protocol.rtsp=1 and capability.nmediastream > 2) s3_accessname string[32] live4.sdp RTSP access name for stream4 (capability.protocol.rtsp=1 and capability.nmediastream > 2) 7.6.7.1 RTSP multicast Subgroup of network_rtsp_s<0~(n-1)>: multicast, n is stream count (capability.protocol.rtp.multicast > 0)
Page 150 VIVOTEK 7.6.9 RTP port Subgroup of network: rtp NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) videoport 1025 ~ 65535 5556 Video channel port for RTP. (capability.protocol.rtp_unicast=1) audioport 1025 ~ 65535 5558 Audio channel port for RTP. (capability.protocol.rtp_unicast=1) metadataport 1025 ~ 65535 6556 Metadata port for RTP.
Page 151: Video Input
VIVOTEK <ip address / network mask> Range address:<start ip address - end ip address>) ipv6list_i<0~9> String[43] <blank> IPv6 address list. 7.8 Video input Group: videoin NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) cmosfreq 50, 60 CMOS frequency. (capability.videoin.type=2) whitebalance auto, manual, auto “auto”...
Page 152 VIVOTEK Bit 5 => Support focus operation; 0(not support), 1(support) text string[64] <blank> Enclose caption. imprinttimestamp <boolean> Overlay time stamp on video. maxexposure 1~32000 Maximum exposure time. <product dependent> irismode fixed, indoor, indoor Video Iris mode. outdoor 7.8.1 Video input setting per channel Group: videoin_c<0~(n-1)>...
Page 153 VIVOTEK flip <boolean> Flip the image. mirror <boolean> Mirror the image. ptzstatus <integer> A 32-bit integer, each bit can be set separately as follows: Bit 0 => Support camera control function; 0(not support), 1(support) Bit 1 => Built-in or external camera;...
Page 154 VIVOTEK 1000, 2000, milliseconds. 3000, 4000 s<0~(m-1)>_h264_ratecont s0: cbr, vbr cbr, constant bitrate rolmode s1: cbr, vbr vbr, fix quality s2: cbr, vbr s3: cbr, vbr s<0~(m-1)>_h264_quant 1~5, Quality of video when choosing 99, 100 vbr in “ratecontrolmode”. 99 is the customized manual input setting.
Page 155 VIVOTEK s2:imageq uality s3:imageq uality s<0~(m-1)>_mjpeg_ratecon cbr, vbr cbr, constant bitrate trolmode vbr, fix quality s<0~(m-1)>_mjpeg_quant 1~5, Quality of JPEG video. 99, 100 99 is the customized manual input setting. 1 = worst quality, 5 = best quality. 100 is percentage mode.
Page 156 VIVOTEK imagequali 7.8.1.1 Alternative video input profiles per channel In addition to the primary setting of video input, there can be alternative profile video input setting for each channel which might be for different scene of light (daytime or nighttime).
Page 157 VIVOTEK 7.9 Video input preview The temporary settings for video preview Group: videoinpreview NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) maxexposure 1~32000 Maximum exposure time. exposurelevel 0~12 Exposure level enableblc <boolean> Enable backlight compensation. irismode fixed, indoor, indoor Video Iris mode.
Page 158 VIVOTEK high 7.11 Image setting per channel Group: image_c<0~(n-1)> for n channel products NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) brightness -5~5,100 Adjust brightness of image brightnesspercent 0~100 Adjust brightness value in percentage when brightness=100 saturation -5~5,100 Adjust saturation of image...
Page 159 VIVOTEK of image profile_i0_gammacurve 0~100 Gamma curve profile_i0_dnr_mode 0:disable 1:enable profile_i0_dnr_strength 1~100 Strength of DNR User's Manual - 159...
Page 160 VIVOTEK 7.12 Image setting for preview Group: imagepreview_c<0~(n-1)> for n channel products NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) brightness -5~5,100 Adjust brightness of image according to mode settings. brightnesspercent 0~100 Adjust brightness value in percentage when saturation=100 saturation -5~5,100 Adjust saturation of image according to mode settings.
Page 161 VIVOTEK setting. videoin_bgain 0~100 Manual set bgain value of gain control setting. videoin_ggain 0~100 Manual set ggain value of gain control setting. User's Manual - 161...
Page 162 VIVOTEK 7.13 Exposure window setting per channel Group: exposurewin_c<0~(n-1)> for n channel products NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) mode auto, blc auto The mode indicates how to decide the exposure. auto: Use full view as the only one exposure window.
Page 163 VIVOTEK 7.14 Audio input per channel Group: audioin_c<0~(n-1)> for n channel products (capability.audioin>0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) source linein linein micin => use built-in microphone input. linein => use external microphone input. mute 0, 1 Disable audio mute.
Page 164: Motion Detection Settings
VIVOTEK profile_i0_alarm_level 1~100 Audio detection alarm level 7.15 Motion detection settings Group: motion_c<0~(n-1)> for n channel product NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) enable <boolean> Enable motion detection. win_i<0~2>_enable <boolean> Enable motion window 1~3. win_i<0~2>_name string[40] <blank> Name of motion window 1~3.
Page 165 VIVOTEK detection window. i<0~(m-1)>_win_i<0~2>_height 0 ~ 240 Height of motion detection window. i<0~(m-1)>_win_i<0~2>_objsize 0 ~ 100 Percent of motion detection window. i<0~(m-1)>_win_i<0~2>_sensitivity 0 ~ 100 Sensitivity of motion detection window. 7.16 DDNS Group: ddns (capability.ddns > 0) NAME VALUE DEFAULT...
Page 166: System Log
VIVOTEK state onlycheck, badnetwork Camera will check the status of network onlyoffline, environment and express link URL checkonline, badnetwork string[63] NULL The url user define to link to camera 7.18 UPnP presentation Group: upnppresentation NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) enable <boolean>...
Page 167: Camera Ptz Control
7.21 camera PTZ control Group: camctrl_c<0~(n-1)> for n channel product (capability.ptzenabled) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) ccdtype string[16] product FE : SD8161 dependent motortype string[16] Motor device type panspeed -5 ~ 5 Pan speed tiltspeed -5 ~ 5 Tilt speed...
Page 168 VIVOTEK The name of patrol location patrol_i<0~39>_ 0 ~ 255 <blank> (For internal device) dwelling The dwelling time of each patrol location disablemdonptz <boolean> Disable motion detection on PTZ operation. defaulthome <boolean> This field tells system to use default home position or not.
Page 169 1 => Default logo logo_link string[128] http://ww Hyperlink of the logo w.vivotek.c logo_powerbyvvtk_hidden <boolean> 0 => display the power by vivotek logo 1 => hide the power by vivotek logo custombutton_manualtrigger_s <boolean> Show or hide manual trigger (VI) button in homepage 0 ->...
Page 170: Privacy Mask
VIVOTEK theme_color_titlefont string[7] #098bd6 Font color of video title. theme_color_controlbackgroun string[7] #565656 Background color of control area. theme_color_configbackground string[7] #323232 Background color of configuration area. theme_color_videobackground string[7] #565656 Background color of video area. theme_color_case string[7] #323232 Frame color 7.24 Privacy mask Group: privacymask3d_c<0~(n-1)>...
Page 171 VIVOTEK 7.25 Capability Group: capability NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) api_httpversion <string> 0300a The HTTP API version. bootuptime <positive integer> Server bootup time. Number of IR <positive integer> interfaces. <boolean> Indicate whether to support built-in IR extir <boolean> Indicate whether to...
Page 172 VIVOTEK settings per channel. naudiosetting <positive integer> Number of audio settings per channel. nuart Number of UART <positive integer> interfaces. nvideoinprofile <positive integer> Number of video input profiles. nmotionprofile 0, <positive integer> Number of motion profiles. ptzenabled 0, <positive integer>...
Page 173 VIVOTEK Bit 6 => Support iris operation; 0(not support), 1(support) Bit 7 => External or built-in PT; 0(built-in), 1(external) Bit 8 => Invalidate bit 1 ~ 7; 0(bit 1 ~ 7 are valid), 1(bit 1 ~ 7 are invalid) Bit 9 => Reserved bit;...
Page 174 VIVOTEK ptz_minpan <positive integer> The lower limit for pan position. ptz_maxpan <positive integer> 3999 The upper limit for pan position. ptz_minpanangle < integer> The lower limit for pan angle. ptz_maxpanangle < integer> The upper limit for pan position. ptz_mintilt <positive integer>...
Page 175 VIVOTEK protocol_sip <boolean> Indicate whether to support SIP. protocol_maxconnectio <positive integer> The maximum allowed simultaneous connections. protocol_maxgenconne <positive integer> The maximum ction general streaming connections . protocol_rtp_multicast_ <boolean> Indicate whether to scalable support scalable multicast. protocol_rtp_multicast_ <boolean> Indicate whether to...
Page 176 VIVOTEK videoin_type 0, 1, 2 0 => Interlaced 1 => Progressive 2 => CMOS videoin_c0_nmode <Integer> Indicate how many video modes supported by this channel. videoin_c0_mode <Integer> Indicate current video mode. videoin_c0_streamcode <A list of positive 6,6,6,6 Represent integer separated by supported codec commas>...
Page 177 VIVOTEK camera, users can install any C-Mount or CS-Mount lens as they wish. motor: Lens with motor to support zoom, focus, etc. -: N/A videoin_c0_lens_model Optional model name name for lens. videoin_c0_mode<0~1 Indicate binning is >_binning used or not in this video mode.
Page 178 VIVOTEK videoin_c0_nresolution <positive integer> Number of videoin resolution. videoin_c0_resolution <a list of available 176x144, Available resolution separated 384x216, resolutions list. by commas> 640x360, <product 1280x720, dependent> 1360x768, 1600x904, 1920x1080 Videoin_c0_maxsize <WxH> 1920x1080 The maximum resolution of this channel, the unit is pixel.
Page 179 VIVOTEK audio_mic <boolean> Indicate whether to support built-in microphone input. audio_extmic <boolean> Indicate whether to support external microphone input. audio_linein <boolean> Indicate whether to support external line input. (It will be replaced by audio_mic and audio_extmic.) audio_lineout <boolean> Indicate whether to support line output.
Page 180 VIVOTEK nprivacymask <positive integer> Number of privacy masks. transmission_mode Indicate transmission mode Both of the machine: TX = server, Rx = receiver box, Both = DVR. network_wire <boolean> Indicate whether to support Ethernet. network_wireless <boolean> Indicate whether to support wireless.
Page 181 VIVOTEK wireless_encrypt_wpa2 <boolean> Indicate whether to support wireless WPA2. localstorage_manageab <boolean> Indicate whether manageable local storage is supported. localstorage_seamless <boolean> Indicate whether seamless recording is supported. localstorage_modnum The maximum MOD <positive integer> connection numbers. localstorage_slconnum The maximum <positive integer> seamless connection number.
Page 182 VIVOTEK separately as follows: Bit 0 => stream 1 supports ePTZ or not. Bit 1 => stream 2 supports ePTZ or not. The rest may be deduced by analogy nanystream 0, <positive integer> number of any media stream per channel <boolean>...
Page 183 VIVOTEK led. Iris <boolean> Indicate whether to support iris control. temperature <boolean> Indicate whether to support temperature detection. Fisheye <boolean> Indicate where fisheye camera. vadp <positive integer> An 32-bit integer, each bit can be set separately as follows: Bit 0 => VADP interface Bit 1 =>...
Page 184 VIVOTEK media_totalspace <positive integer> 35000 Available memory space (KB) for media. media_snapshot_sizepe <positive integer> 1250 Maximum size (KB) rsecond of one snapshot image. media_snapshot_maxp <positive integer> Maximum snapshot reevent number before event occurred. media_snapshot_maxp <positive integer> Maximum snapshot ostevent number after event occurred.
Page 185: Event Setting
VIVOTEK 7.26 Customized event script Group: event_customtaskfile_i<0~2> PARAMETER VALUE Default SECURITY DESCRIPTION (get/set) name string[40] <blank> Custom script identification of this entry. date string[4~20] <blank> Date of custom script. time string[4~20] <blank> Time of custom script. 7.27 Event setting Group: event_i<0~2>...
Page 186 VIVOTEK exttriggerstatus1 String[40] <blank> The status for event trigger. exttriggerstatus2 String[40] <blank> The status for event trigger. exttriggerstatus3 String[40] <blank> The status for event trigger. Indicate the source id of di trigger. This field is required when trigger condition is “di”.
Page 187 VIVOTEK weekday 0~127 Indicate which weekday is scheduled. One bit represents one weekday. bit0 (LSB) = Saturday bit1 = Friday bit2 = Thursday bit3 = Wednesday bit4 = Tuesday bit5 = Monday bit6 = Sunday For example, to detect events on Friday and Sunday, set weekday as 66.
Page 188 VIVOTEK 7.28 Server setting for event action Group: server_i<0~4> PARAMETER VALUE DEFAULT SECURITY DESCRIPTION (get/set) name string[40] NULL Identification of this entry type email, email Indicate the server type: ftp, “email” = email server http, “ftp” = FTP server “http” = HTTP server “ns”...
Page 189 VIVOTEK 7.29 Media setting for event action Group: media_i<0~4> (media_freespace is used internally.) PARAMETER VALUE DEFAULT SECURITY DESCRIPTION (get/set) name string[40] NULL Identification of this entry type snapshot, snapshot Media type to send to the server or store systemlog, on the server.
Page 190 VIVOTEK 7.30 Recording Group: recording_i<0~1> PARAMETER VALUE DEFAULT SECURITY DESCRIPTION (get/set) name string[40] NULL Identification of this entry. trigger schedule, schedule The event trigger type networkfail schedule: The event is triggered by schedule networkfail: The event is triggered by the failure of network connection.
Page 191 VIVOTEK weekday 0~127 Indicate which weekday is scheduled. One bit represents one weekday. bit0 (LSB) = Saturday bit1 = Friday bit2 = Thursday bit3 = Wednesday bit4 = Tuesday bit5 = Monday bit6 = Sunday For example, to detect events on Friday and Sunday, set weekday as 66.
Page 192 VIVOTEK adaptive_postevent 0~10 Indicate when is the adaptive recording <product dependent> stopped after the event trigger point (seconds) 7.31 HTTPS Group: https (capability.protocol.https > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) enable <boolean> To enable or disable secure HTTP. policy <Boolean>...
Page 193 Enable automatic clean up method. Expired and not locked media files will be deleted. autocleanup_maxage <positive To specify the expired days for automatic integer> clean up. 7.33 VIVOTEK Application Development Platform setting Group: vadp NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) version 0~.0~.0~.0~.0~...
Page 194 VIVOTEK resource_free_storage 10240 Indicate current free storage size for uploading VADP modules. module_number Record the total module number that already stored in the system. module_order string[40] <blank> The execution order of the enabled modules. module_save2sd <boolean> Indicate if the module should be saved to SD card when user want to upload it.
Page 195 VIVOTEK 7.34 Seamless recording setting Group: seamlessrecording (capability.localstorage.seamless > 0) PARAMETER VALUE Default SECURITY DESCRIPTION (get/set) diskmode seamless, seamless “seamless” indicates enable manageable seamless recording. “manageable” indicates disable seamless recording. maxconnection Maximum number of connected seamless streaming. stream (Internal used, read only)
Page 196: Drive The Digital Output
VIVOTEK 8. Useful Functions Drive the Digital Output (capability.ndo > 0) Note: This request requires Viewer privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/dido/setdo.cgi?do1=<state>[&do2=<state>] [&do3=<state>][&do4=<state>] Where state is 0 or 1; “0” means inactive or normal state, while “1” means active or triggered state.
Page 197 VIVOTEK Example: Query the status of digital input 1 . Request: http://myserver/cgi-bin/dido/getdi.cgi?di1 Response: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: 7\r\n \r\n di1=1\r\n Query Status of the Digital Output (capability.ndo > 0) Note: This request requires Viewer privileges Method: GET/POST Syntax: http://<servername>/cgi-bin/dido/getdo.cgi?[do0][&do1][&do2][&do3]...
Page 198: Capture Single Snapshot
VIVOTEK \r\n do1=1\r\n Capture Single Snapshot Note: This request requires Normal User privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/viewer/video.jpg?[channel=<value>][&resolution=<value>] [&quality=<value>][&streamid=<value>] If the user requests a size larger than all stream settings on the server, this request will fail. PARAMETER VALUE DEFAULT DESCRIPTION...
Page 199: System Logs
VIVOTEK [&privilege=<value>][…][&return=<return page>] PARAMETER VALUE DESCRIPTION method Add an account to the server. When using this method, the “username” field is necessary. It will use the default value of other fields if not specified. Delete Remove an account from the server. When using this method, the “username”...
Page 200: Upgrade Firmware
VIVOTEK <system log information>\r\n Upgrade Firmware Note: This request requires Administrator privileges. Method: POST Syntax: http://<servername>/cgi-bin/admin/upgrade.cgi Post data: fimage=<file name>[&return=<return page>]\r\n \r\n <multipart encoded form data> Server will accept the file named <file name> to upgrade the firmware and return with <return page> if indicated.
Page 201 VIVOTEK ze=704x480&strech=1 PARAMETER VALUE DESCRIPTION channel <0~(n-1)> Channel of video source. camid 0,<positive integer> Camera ID. move home Move to camera to home position. Move camera up. down Move camera down. left Move camera left. right Move camera right. speedpan -5 ~ 5 Set the pan speed.
Page 202 VIVOTEK 0 indicates that it uses resolution (streaming size) as the range of stretch <boolean> the coordinate system. 1 indicates that it uses videosize (plug-in size) as the range of the coordinate system. focus auto Auto focus. Focus on further distance.
Page 203 VIVOTEK Move up. down Move down. left Move left. right Move right. auto Auto pan. patrol Auto patrol. stop Stop auto pan/patrol. zoom wide Zoom larger view with current speed. tele Zoom further with current speed. zooming wide or tele Zoom without stopping for larger view or further view with zs speed, used for joystick control.
Page 204 VIVOTEK ePTZ Recall (capability.eptz > 0) Note: This request requires camctrl privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/camctrl/eRecall.cgi?channel=<value>&stream=<value>& recall=<value>[&return=<return page>] PARAMETER VALUE DESCRIPTION channel <0~(n-1)> Channel of the video source. stream <0~(m-1)> Stream. recall Text string less than 40 One of the present positions to recall.
Page 205 VIVOTEK IP Filtering Note: This request requires Administrator access privileges. Method: GET/POST Syntax: <product dependent> http://<servername>/cgi-bin/admin/ipfilter.cgi?type[=<value>] http://<servername>/cgi-bin/admin/ipfilter.cgi?method=add<v4/v6>&ip=<ipaddress>[&index=<value>][&ret urn=<return page>] http://<servername>/cgi-bin/admin/ipfilter.cgi?method=del<v4/v6>&index=<value>[&return=<return page>] PARAMETER VALUE DESCRIPTION type NULL Get IP filter type allow, deny Set IP filter type method addv4 Add IPv4 address into access list.
Page 206 VIVOTEK method addv4 Add IPv4 address into access list. addv6 Add IPv6 address into access list. delv4 Delete IPv4 address from access list. delv6 Delete IPv6 address from access list. <IP address> Single address: <IP address> Network address: <IP address / network mask>...
Page 207 VIVOTEK Get SDP of Streams Note: This request requires Viewer access privileges. Method: GET/POST Syntax: http://<servername>/<network_rtsp_s<0~m-1>_accessname> “m” is the stream number. “network_accessname_<0~(m-1)>” is the accessname for stream “1” to stream “m”. Please refer to the “subgroup of network: rtsp” for setting the accessname of SDP.
Page 208 VIVOTEK 1 ~ <max. com port The target COM/RS485 port number. number> data <hex decimal The <hex decimal data> is a series of digits from 0 ~ 9, A ~ F. Each data>[,<hex decimal comma separates the commands by 200 milliseconds.
Page 209 VIVOTEK triggerType <text> Optional. Indicate the event trigger type. Please embrace your input value with single quotes. Ex. mediaType=’motion’ Support trigger types are product dependent. mediaType <text> Optional. Indicate the file media type. Please embrace your input value with single quotes.
Page 210 VIVOTEK To increase the flexibility of search command, you may use “OR” connectors for logical “OR” search operations. Moreover, to search for a specific time period, you can use “TO” connector. Ex. To search records triggered by motion or di or sequential and also triggered between 2008-01-01 00:00:00 and 2008-01-01 23:59:59.
Page 211 VIVOTEK http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=queryStatus&retType=javascript Virtual input (capability.nvi > 0) Note: Change virtual input (manual trigger) status. Method: GET Syntax: http://<servername>/cgi-bin/admin/setvi.cgi?vi0=<value>[&vi1=<value>][&vi2=<value>] [&return=<return page>] PARAMETER VALUE DESCRIPTION vi<num> state[(duration)nstate] Ex: vi0=1 Setting virtual input 0 to trigger state Where "state" is 0, 1. “0”...
Page 212 VIVOTEK Request 2 will not be accepted during the execution time(15 seconds). Open Timeshift Stream (capability.timeshift > 0, timeshift_enable=1, timeshift_c<n>_s<m>_allow=1) Note: This request requires Viewer access privileges. Syntax: For HTTP push server (MJPEG): http://<servername>/<network_http_s<m>_accessname>?maxsft=<value>[&tsmode=<value>&reftime=<v alue>&forcechk&minsft=<value>] For RTSP (MP4 and H264), the user needs to input the URL below into an RTSP compatible player.
Page 213 VIVOTEK Return Code Description 400 Bad Request Request is rejected because some parameter values are illegal. 415 Unsupported Media Type Returned, if forcechk appears, when minsft is not achievable or the timeshift feature of the target stream is not enabled.
Page 214 VIVOTEK h264_ratecontrolmode cbr, vbr cbr: constant bitrate vbr: fix quality h264_quant 99, 1~5 Quality of video when choosing vbr in “h264_ratecontrolmode”. 0,99 is the customized manual input setting. 1 = worst quality, 5 = best quality. h264_qvalue 0~51 Manual video quality level input.
Page 215 VIVOTEK Remote Focus Note: This request requires Administrator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/remotefocus.cgi?function=<value>[&direction=<value>] [&position=<value>][&steps=<value>][&iris] PARAMETER VALUE DESCRIPTION function zoom, Function type focus, zoom – Move zoom motor auto, focus – Move focus motor scan, auto – Perform auto focus stop, scan –...
Page 216 VIVOTEK steps 1 ~ <motor_max> Motor’s moving steps. It works only if function=zoom | focus and direction=forward | backward. <motor_max> is refer to remote_focus_focus_motor_max or remote_focus_zoom_motor_max which replied from "function=getstatus" iris Open iris or not. It works only if function=auto | scan.
Page 217 VIVOTEK Upload Files Note: This request requires Administrator privileges. Method: POST Syntax: For daylight saving time configuration file: http://<servername>/cgi-bin/admin/upload_dst.cgi Post data: filename =<file name>\r\n \r\n <multipart encoded form data> For language file: http://<servername>/cgi-bin/admin/upload_lan.cgi Post data: filename =<file name>\r\n \r\n <multipart encoded form data>...
Page 218: Technical Specifications
1xGE IEEE 802.3at Parapet mounting kit 1.5" PT adapter Mounting adapter Smoked cover PoE Injector All specifications are subject to change without notice. Copyright © VIVOTEK INC. All rights reserved. Ver. 4 VIVOTEK INC. VIVOTEK USA VIVOTEK Europe VIVOTEK India 6F, No.192, Lien-Cheng Rd., Chung-Ho,...
Page 219: Technology License Notice
VIVOTEK Technology License Notice MPEG-4 AAC Technology THIS PRODUCT IS LICENSED UNDER THE MPEG-4 AAC AUDIO PATENT LICENSE. THIS PRODUCT MAY NOT BE DECOMPILED, REVERSE-ENGINEERED OR COPIED, EXCEPT WITH REGARD TO PC SOFTWARE, OF WHICH YOU MAY MAKE SINGLE COPIES FOR ARCHIVAL PURPOSES. FOR MORE INFORMATION, PLEASE REFER TO HTTP://WWW.VIALICENSING.COM.
Page 220: Electromagnetic Compatibility (Emc)
取扱説明書に従って正しい取り扱いをして下さい Liability VIVOTEK Inc. cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and manuals without prior notice. VIVOTEK Inc. makes no warranty of any kind with regard to the material contained within this document, including, but not limited to, the implied warranties of merchantability and fitness for any particular purpose.
