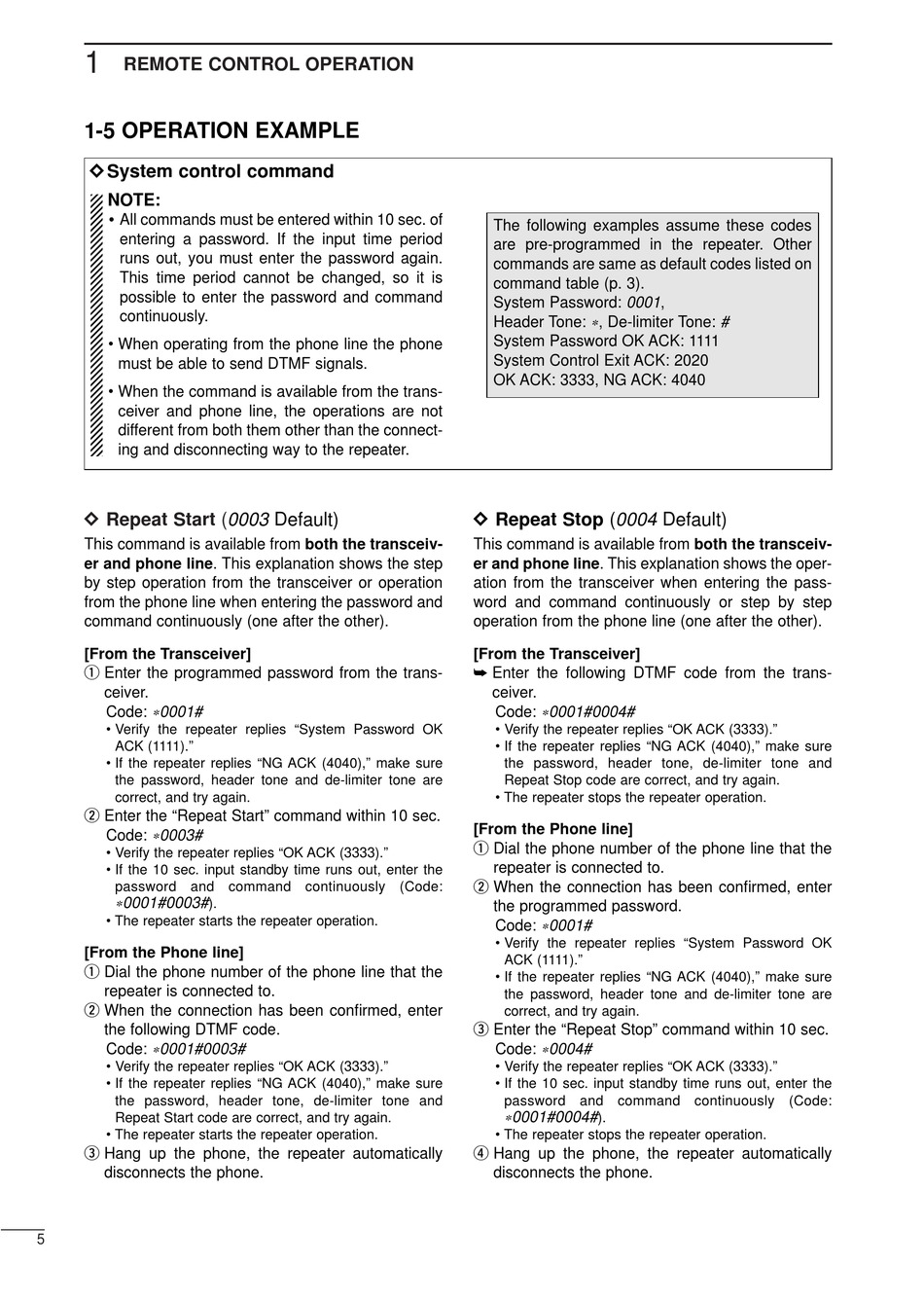

REMOTE CONTROL OPERATION

1-5 OPERATION EXAMPLE

D D System control command
NOTE:
•
All commands must be entered within 10 sec. of
entering a password. If the input time period
runs out, you must enter the password again.
This time period cannot be changed, so it is
possible to enter the password and command
continuously.
• When operating from the phone line the phone
must be able to send DTMF signals.
• When the command is available from the trans-
ceiver and phone line, the operations are not
different from both them other than the connect-
ing and disconnecting way to the repeater.
D D Repeat Start
This command is available from both the transceiv-
er and phone line. This explanation shows the step
by step operation from the transceiver or operation
from the phone line when entering the password and
command continuously (one after the other).
[From the Transceiver]
q Enter the programmed password from the trans-
ceiver.
Code: ∗ 0001#
• Verify the repeater replies "System Password OK
ACK (1111)."
• If the repeater replies "NG ACK (4040)," make sure
the password, header tone and de-limiter tone are
correct, and try again.
w Enter the "Repeat Start" command within 10 sec.
Code: ∗ 0003#
• Verify the repeater replies "OK ACK (3333)."
• If the 10 sec. input standby time runs out, enter the
password and command continuously (Code:
∗ 0001#0003#
).
• The repeater starts the repeater operation.
[From the Phone line]
q Dial the phone number of the phone line that the
repeater is connected to.
w When the connection has been confirmed, enter
the following DTMF code.
Code: ∗ 0001#0003#
• Verify the repeater replies "OK ACK (3333)."
• If the repeater replies "NG ACK (4040)," make sure
the password, header tone, de-limiter tone and
Repeat Start code are correct, and try again.
• The repeater starts the repeater operation.
e Hang up the phone, the repeater automatically
disconnects the phone.
5
(0003 Default)
The following examples assume these codes
are pre-programmed in the repeater. Other
commands are same as default codes listed on
command table (p. 3).
System Password: 0001,
Header Tone: ∗ , De-limiter Tone: #
System Password OK ACK: 1111
System Control Exit ACK: 2020
OK ACK: 3333, NG ACK: 4040
D D Repeat Stop (0004 Default)
This command is available from both the transceiv-
er and phone line. This explanation shows the oper-
ation from the transceiver when entering the pass-
word and command continuously or step by step
operation from the phone line (one after the other).
[From the Transceiver]
➥ Enter the following DTMF code from the trans-
ceiver.
Code: ∗ 0001#0004#
• Verify the repeater replies "OK ACK (3333)."
• If the repeater replies "NG ACK (4040)," make sure
the password, header tone, de-limiter tone and
Repeat Stop code are correct, and try again.
• The repeater stops the repeater operation.
[From the Phone line]
q Dial the phone number of the phone line that the
repeater is connected to.
w When the connection has been confirmed, enter
the programmed password.
Code: ∗ 0001#
• Verify the repeater replies "System Password OK
ACK (1111)."
• If the repeater replies "NG ACK (4040)," make sure
the password, header tone and de-limiter tone are
correct, and try again.
e Enter the "Repeat Stop" command within 10 sec.
Code: ∗ 0004#
• Verify the repeater replies "OK ACK (3333)."
• If the 10 sec. input standby time runs out, enter the
password and command continuously (Code:
∗ 0001#0004#
).
• The repeater stops the repeater operation.
r Hang up the phone, the repeater automatically
disconnects the phone.
