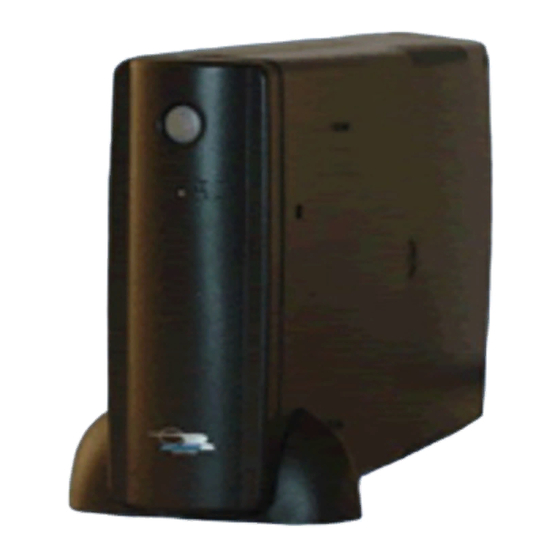

- Page 1 MLP SERIES UPS Falcon electric inc. MLP SERIES OWNERS MANUAL MLP-300-1 ~ MLP-500-1...
-
Page 2: Important Safety Instructions
For Service Call: (800) 842-6940 * Subject to change without notice. Falcon Electric Inc., Monrovia, CA. Email. Sales @falconups.com IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS - This manual contains important instructions for the MLP Series UPS that should be followed during installation and maintenance of the UPS and batteries. - Page 3 CAUTION - Do not open or mutilate the battery or batteries. Released electrolyte is harmful to the skin and eyes. It may be toxic. CAUTION - A battery can present a risk of electrical shock and high short circuit current. REFER ALL BATTERY SERVICING OR REPLACEMENT TO A QUALIFIED SERVICE TECHNICIAN.
-
Page 4: Rear Panel Layout
Turn on the connected equipment and verify the UPS does not go into overload using the front panel LED indicator. SEE TABLE BELOW. Audible Condition Alarm Green Orange None AC Mode Battery Mode Defective Battery or Overcharging Overload Low Battery Cut REAR PANEL LAYOUT 1. -
Page 5: Troubleshooting
The MLP UPS is shipped from the factory with it’s batteries fully charged, however some charge may be lost due to self discharge chacteristics of the internal battey. Allways allow the UPS to recharge for 24 hours prior to use. Simply connect the UPS line cord to a powered receptacle and allow to recharge. -
Page 6: Specification
SPECIFICATION MODEL MLP-300-1 MLP-500-1 Nominal Voltage 120Vac Voltage Range 80-143Vac INPUT Current 3.6A 6.0A Frequency 50/60Hz ±5% (auto detecting) Voltage 120Vac ±10% On Line Voltage Regulation On Battery Voltage ±10% Regulation AVR Operation Buck AVR (down/up) 126/121Vac Boost AVR (up/down)
